Sony VPL-DX271 Manual de usuario

4-698-369-11 (1)

Data

Projector

Operating Instructions

Before operating the unit, please read this manual and supplied Quick Reference Manual

thoroughly and retain it for future reference.

VPL-DX271/DX241/DX221

VPL-DW241

Not all models are available in all countries and area. Please check

with your local Sony Authorized Dealer.

2Table of Contents

Table of Contents

Overview

Location and Function of Controls .... 3

Main Unit ..................................... 3

Terminal Panel .............................. 4

Remote Commander and Control

Panel Keys ................................. 5

Preparation

Connecting the Projector ................... 7

Connecting a Computer ................ 7

Connecting a Video equipment .... 8

Connecting to an external

device ........................................ 9

Supplying the power to the external

device ........................................ 9

Projecting an Image

Projecting an Image ......................... 10

Adjusting the Projected image ... 11

Turning Off the Power ................ 15

Adjustments and Settings

Using a Menu

Using a MENU ................................ 17

The Picture Menu ............................. 18

The Screen Menu ............................. 19

The Function Menu .......................... 23

The Operation Menu ........................ 24

The Connection/Power Menu .......... 25

The Installation Menu ...................... 27

The Information Menu ..................... 28

Others

Indicators ..........................................29

Messages List ...................................31

Troubleshooting ................................32

Replacing the Lamp ..........................34

Cleaning the Air Filter ......................36

When Using the Projector by Mounting

It to a Ceiling ................................37

Removing the lens cap ................37

Attaching the dust cover .............37

Cleaning the air filter and its

surroundings ............................38

Carrying the unit ...............................38

Specifications ...................................39

Projection Distance ...........................44

Dimensions .......................................49

Index .................................................52

Location and Function of Controls

Overview

BOverview

Location and Function of Controls

aFocus ring (page 11)

bZoom ring (page 11)

cLens

dRemote control detector

eLens cap

fFoot adjust button (page 13)

gFront foot (adjustable) (page 13)

hAir filter cover/Ventilation holes

(intake) (page 36)

iRear feet (page 13)

jVentilation holes (exhaust)

Do not place anything near the ventilation

holes as this may cause internal heat

buildup. Do not place your hand near the

ventilation holes and the circumference as

this may cause injury.

kLamp cover (page 34)

lTerminal panel (page 4)

mSecurity bar

Connects to a commercially available

security chain or wire.

nSecurity lock

Connects to an optional security cable

manufactured by Kensington.

For details, visit Kensington’s web site.

http://www.kensington.com/

oControl panel keys (page 5)

pVentilation holes (intake)

qSpeaker

rWARNING indicator (page 29)

sON/STANDBY indicator

(page 29)

Main Unit

Caution

4Location and Function of Controls

VPL-DX221

VPL-DX271/DX241/DW241

Input (pages 7, 8)

aINPUT A

Video: RGB/YPBPRinput terminal

bINPUT B

Video: HDMI input terminal

Audio: HDMI input terminal

cINPUT C*

Video: HDMI input terminal

Audio: HDMI input terminal

* VPL-DX271/DX241/DW241 only

dVIDEO IN

Video: Video input terminal

Output

ePower Supply*

USB terminal (Type A)(5V/2A)

* VPL-DX271/DX241/DW241 only

If you use the power supply terminal, set

“Power Supply” to “On” in the

Connection/Power menu (page 25).

fAUDIO OUTPUT

Audio: Audio output terminal (AUDIO)

The audio is output only when the INPUT B

terminal or the INPUT C terminal is selected.

Others

gAC IN (∼) socket

Connects the supplied AC power cord.

Terminal Panel

4 126

42 1356

Note

Location and Function of Controls

Overview

Remote Commander

Control Panel Keys

aTurning on the power/Going to

standby mode

?/1(On/Standby) key

bSelecting an input signal

(page 10)

INPUT key

cOperating a menu (page 17)

MENU key

RESET key

ENTER /V/v/B/b(arrow) keys

RETURN key

dAdjusting the image (page 11)

ASPECT key (page 19)

KEYSTONE key (page 14)

PATTERN key (page 12)

APA (Auto Pixel Alignment) key*

(page 14)

*Use this key when inputting a computer

signal via the RGB input terminal

(INPUT A).

eUsing various functions during

projecting

D ZOOM (Digital Zoom) +/– key*1

Enlarges the image with the center of it

as a starting point while projecting.

1Press the D ZOOM + key to display

the digital zoom icon on the projected

image.

2Press the D ZOOM + key or the D

ZOOM – key repeatedly to change the

enlargement ratio. The image can be

enlarged up to 4 times.

Press the RESET key to restore the

previous image.

BLANK key

Cuts off the projected image

temporarily. Press again to restore the

previous image. Picture muting helps

reduce power consumption.

MUTING key

Mutes the audio output temporarily.

Press again to restore the previous

volume.

VOLUME +/– key

Adjusts the volume output.

FREEZE key*2

Pauses a projected image. Press again to

restore the image.

*1: Use this key when inputting a

computer signal. But it may not be

used depending on the resolution of

the input signal.

Remote Commander and Control Panel Keys

INPUT

APA ECO MODE

RETURN

ASPECT

D ZOOM

KEYSTONE

ENTER

VOLUME

PATTERN

FREEZE

BLANK

MUTING

RESET

Note

Notes

6Location and Function of Controls

*2: Use this key when inputting a

computer signal.

fSetting the energy–saving mode

easily

ECO MODE key

Energy-saving mode can be set easily.

Energy-saving mode consists of “Lamp

Mode,” “With No Input,” and “With

Static Signal.” For example, “With No

Input” is a mode that automatically

enters the power saving status if a signal

is not input into the unit for about

10 minutes.

1Press the ECO MODE key to display

the ECO Mode menu.

2Press the V/vkey or ECO MODE key

to select “ECO” or “User” mode.

ECO: Sets each mode to the optimum

energy-saving value.

Lamp Mode: Low

With No Input: Standby

With Static Signal: Lamp

Dimming

User: Sets each item of the ECO

mode menu as you desire (go to

step 3).

3Select “User” then press the bkey.

The setting items appear.

4Press the V/vkey to select the item

then press the ENTER key.

5Press the V/vkey to select the setting

value.

6Press the ENTER key.

The screen returns to the previous

menu.

For details on ECO Mode settings, see

“Lamp Mode”, “With No Input” and

“With Static Signal” on the Connection/

Power menu (page 25).

gInfrared transmitter

About remote commander operation

• Direct the remote commander toward the

remote control detector.

• The shorter the distance between the

remote commander and the projector is,

the wider the angle within which the

remote commander can control the

projector becomes.

• Make sure that nothing obstructs the

infrared beam between the remote

commander and the remote control

detector on the projector.

RETURN

ECO

User

ECO Mode

:Sel :Back

ECO Mode Menu

RETURN

Lamp Mode High

Auto Power Saving

Off

With No Input

Lamp Dimming

With Static Signal

User

:Sel :Set :Back

Connecting the Projector

Preparation

BPreparation

Connecting the Projector

• Make sure all the equipment is powered off when connecting the projector.

• Use the proper cables for each connection.

• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or

cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

• For more information, refer also to the instruction manuals of the equipment you are connecting.

• Use a no-resistance audio cable.

Connection with a computer is explained for each input signal.

INPUT A

INPUT B/INPUT C

• Only VPL-DX271/DX241/DW241 has the INPUT C terminal.

• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.

• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are

recommended.)

• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal

or CEC (Consumer Electronics Control) Signal.

• The resolutions of the projected image may vary depending on the input terminals.

• It is recommended that you set the resolution of your computer to 1024 × 768 pixels (VPL-DX271/

DX241/DX221) or 1280 × 800 pixels (VPL-DW241) for the external monitor.

Notes

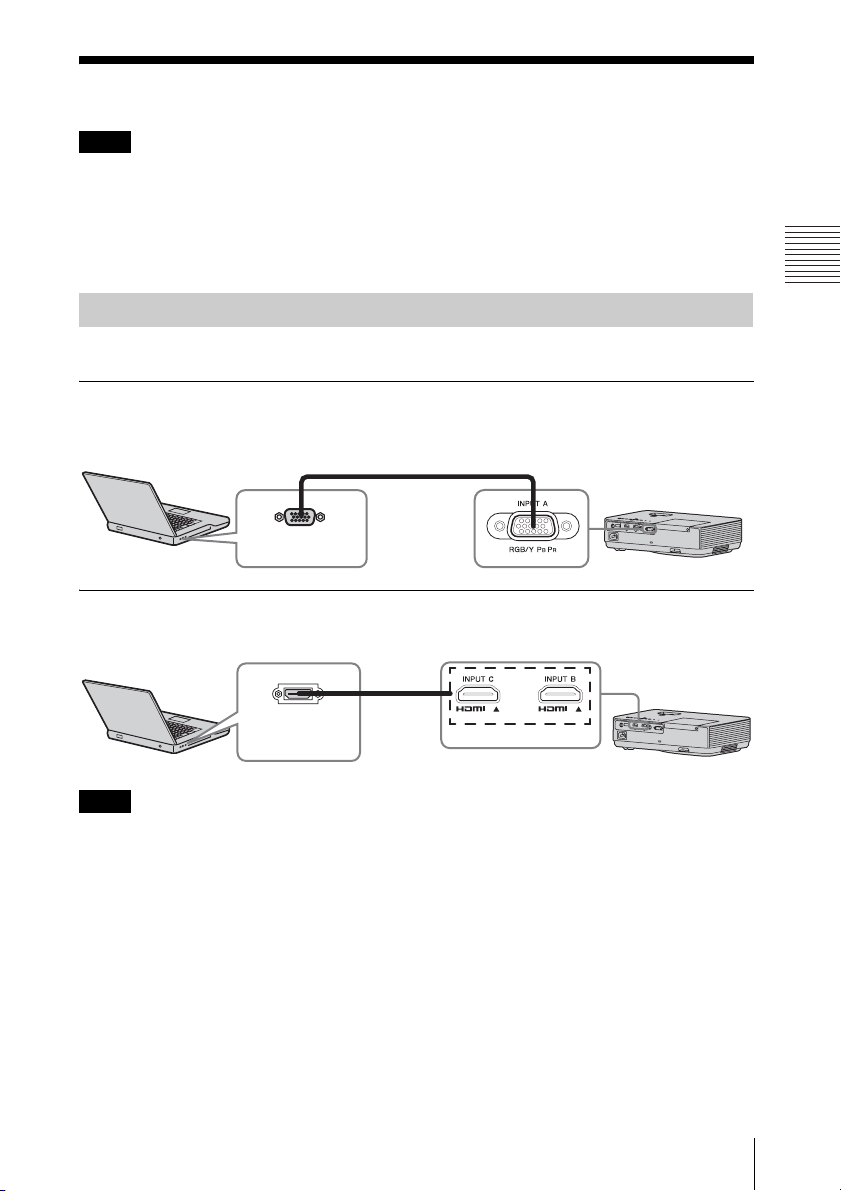

Connecting a Computer

For connecting a computer with an RGB output terminal.

RGB output

terminal

Mini D-sub 15-pin cable (supplied)

Computer

Notes

For connecting a computer with an HDMI output terminal.

HDMI output

terminal

HDMI

cable (not

supplied)

Computer

8Connecting the Projector

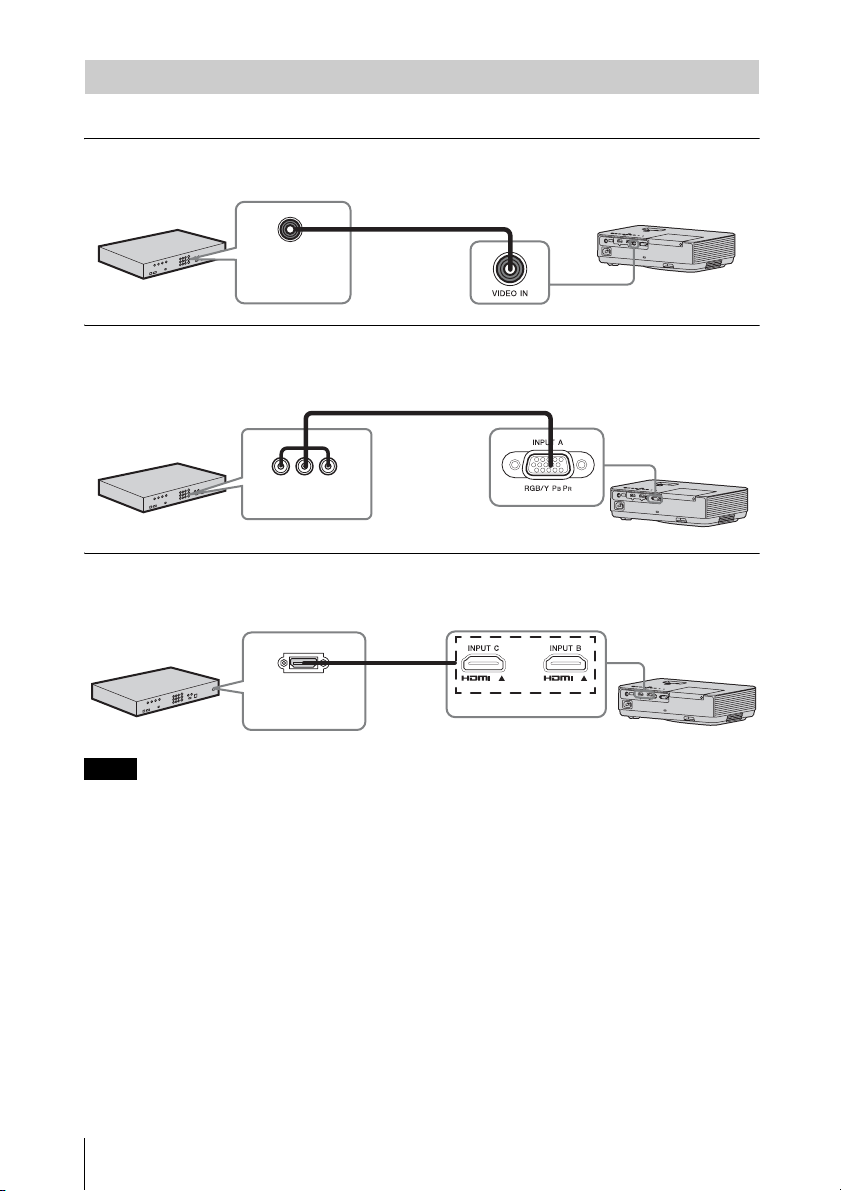

Connections with a DVD player or BD player are explained for each input signal.

VIDEO

For connecting video equipment with a video output terminal.

INPUT A

For connecting video equipment with a YPBPRoutput terminal.

INPUT B/INPUT C

• Only VPL-DX271/DX241/DW241 has the INPUT C terminal.

• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.

• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital) Signal

or CEC (Consumer Electronics Control) Signal.

• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are

recommended.)

• The maximum resolution of the INPUT C terminal is set to 720p.

Connecting a Video equipment

Notes

Video cable (not supplied)

Video output

terminal

Video equipment

Component – Mini D-sub 15-pin cable (not supplied)

Video equipment

YPBPRoutput

terminal

Video equipment

HDMI

cable

(not

supplied)

HDMI output

terminal

For connecting video equipment with an HDMI output terminal.

Connecting the Projector

Preparation

INPUT C

For connecting an external device with an HDMI output terminal. Connect the external device

to INPUT C.

The unit supplies power (5V/2A maximum) via the USB cable to the external device (stick type

PC, etc.).

1Connect the unit to the external device using the USB cable (with type A USB

terminal).

• Use external devices with the appropriate specification for using this unit.

• If you connect the unit in wrong ways, the external device may cause a malfunction. In this

case, Sony assumes no responsibility.

2Set “Power Supply” to “On” in the Connection/Power menu (page 25).

The unit supplies power to the external device through the USB cable.

• Only VPL-DX271/DX241/DW241 has the INPUT C terminal.

• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.

• The HDMI terminal of this projector is not compatible with DSD (Direct Stream Digital)

Signal or CEC (Consumer Electronics Control) Signal.

• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are

recommended.)

• The maximum resolution of the INPUT C terminal is set to 720p.

Connecting to an external device

Supplying the power to the external device

Notes

External

device

HDMI cable

(not supplied)

HDMI output

terminal

Stick type external devices with HDMI

output terminal, such as wireless devices,

small-sized PC, etc. (not supplied)

USB terminal

(Type A) USB cable

(type A USB terminal)

Power supply

terminal

10 Projecting an Image

BProjecting an Image

Projecting an Image

The size of a projected image depends on the distance between the projector and screen. Install

the projector so that the projected image fits the screen size. For details on projection distances

and projected image sizes, see “Projection Distance” (page 44).

1Plug the AC power cord into the wall

outlet.

2Connect all equipment to the projector

(page 7).

3Press the ?/1key to turn on the unit.

4Turn on the connected equipment.

5Select the input source.

Press the INPUT key on the projector to

display the menu for switching input

signal on the screen. Press the INPUT

key repeatedly, or press the V/vkey to

select an image to be projected.

6When projecting a computer image,

switch your computer’s output to

external display.

The method to switch the output varies

depending on the type of computer.

(Example)

7Adjust the focus, size and position of

the projected image (page 11).

Video

Input-A

Input-B

Input-C

Input

Sel

Computer

Video equipment

Projector

Wall outlet

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de Sony

Sony

Sony VPL-CX85 Manual de usuario

Sony

Sony VPL-AW10 (VPLAW10 and VPLAW15) Manual de usuario

Sony

Sony Hi-Scan KP-51WS500 Manual de usuario

Sony

Sony VPL-FX51 Manual de usuario

Sony

Sony VPL-CX100 Guía de referencia

Sony

Sony Xperia Touch G1109 Manual de usuario

Sony

Sony VPL-PX20 Manual de usuario

Sony

Sony VPL VW50 - SXRD - Projector Manual de usuario

Sony

Sony VPL-XW7000 WIT Manual de usuario

Sony

Sony VPL VPL-HW15 Manual de usuario

Sony

Sony VPL-PHZ61 Manual de usuario

Sony

Sony VPL-CX3 - XGA LCD Projector Manual de usuario

Sony

Sony VPL-HW50ES Manual de uso y mantenimiento

Sony

Sony HDMI VPL-FH300L Manual de servicio

Sony

Sony VPL-HW40ES Manual de usuario

Sony

Sony VPL-DX120 Manual de usuario

Sony

Sony KPR-41EXR95 Manual de usuario

Sony

Sony VPL-CH355 Manual de usuario

Sony

Sony VPL-HS50 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony KP 48S70 Manual de usuario

Sony

Sony VPLVW100 - Full HD Widescreen Projector Manual de usuario

Sony

Sony VPL-CX76 Manual de usuario

Sony

Sony VPL-PX20 Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario

Epson

Epson PowerLite 810p Manual de usuario

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manual de usuario
