Sony MP-CL1 Guía de referencia

MP-CL1 3-MP0-107-01

120

inches

3.45 m

1.15 m

2.3 m

Help guide

MP-CL1

3-MP0-107-01

MP-CL1 3-MP0-107-01

Parts and controls

CAUTION

Do not point the laser light directly at eyes or people, nor look into it. Doing so may

cause serious injuries such as loss of eyesight.

Strap hole

Micro USB jack

Use an AC power adaptor with a 1.5 A or

greater output to charge this product.

(power) button

Press and hold the (power) button for

longer than 1 second to turn the power

on or off.

MP-CL1 3-MP0-107-01

Jog lever (−/ENTER/+)

Press the jog lever while at the ENTER position to display the menu. Slide it to +

or − to move to next or previous menu item, and then press while at the ENTER

position to select the highlighted item.

Speaker

Built-in Wi-Fi antenna

HDMI/MHL IN jack

AUDIO OUT jack

Connect headphones or speakers to this jack.

USB OUT jack (for power supply)

Connect another device to this jack to charge it. The lamp lights up in green

while charging the device.

Ventilation holes

(charge) lamp

(power) lamp

Lens

Laser radiates from this aperture.

MP-CL1 3-MP0-107-01

Adjusting the volume

Slide the Jog Lever to + or − while the menu is not displayed to adjust the volume.

Checking the remaining battery power

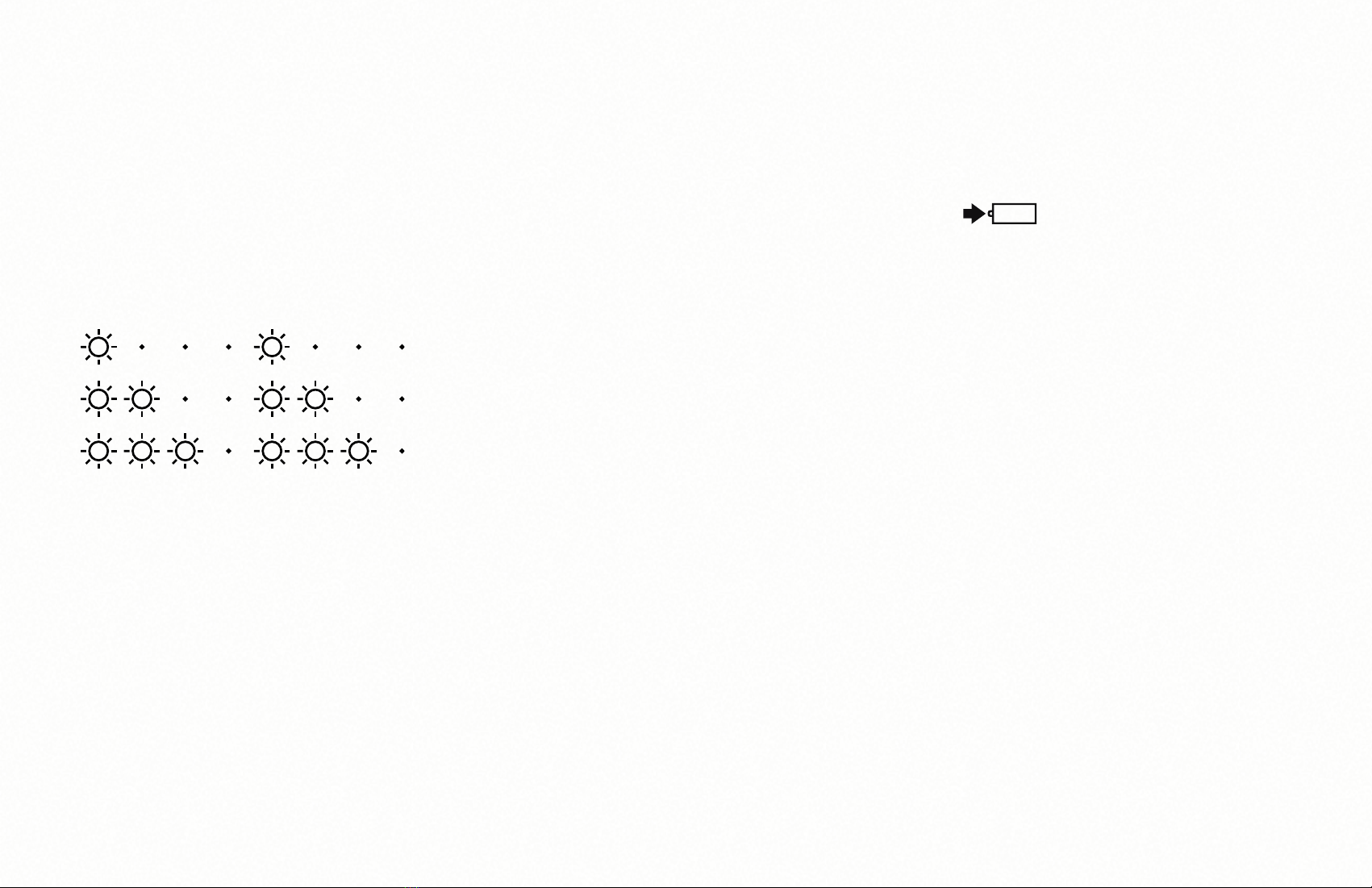

Press and quickly release the button (within 1 second). The lamp blinks in

orange, showing the battery status. The lamp blinks in one of the following patterns

according to the remaining battery power.

(Once): 0% to 30% remaining

(Twice): 30% to 70% remaining

(Three times): 70% to 100% remaining

MP-CL1 3-MP0-107-01

Using the menu

Navigating the menu

Learn how to navigate through the menu here.

1Press the jog lever while at the ENTER

position.

The menu is projected.

2Slide the jog lever to + or − to move to the next or previous menu item.

3Press the jog lever while at the ENTER position with the desired menu

item highlighted.

One of the following is displayed according to the selected menu item.

MP-CL1 3-MP0-107-01

Values to choose from

Slide the jog lever to + or − to move to the next or

previous value, and then press the lever while at the

ENTER position with the desired value highlighted.

Submenu

Slide the jog lever to + or − to move to the next or

previous submenu item, and then press the lever

while at the ENTER position with the desired item

highlighted. The adjustment bar or another screen is

displayed according to the selected item.

MP-CL1 3-MP0-107-01

Adjustment bar

Slide the jog lever to + or − to change the value

shown in the bar, and then press the lever while at

the ENTER position to confirm.

To exit the menu

Press and hold the jog lever for about 2 seconds while at the ENTER position.

MP-CL1 3-MP0-107-01

Description of the menu items

Close Exits the menu.

Input change Selects an input source from HDMI/MHL and screen mirroring

according to the connection method.

Keystone

Preset 1/

Preset 2/

OFF

If the projected image is distorted and looks trapezoidal, select

[Keystone Preset 1] or [ Keystone Preset 2] to apply the

keystone adjustment. The default values of [ Keystone Preset 2]

is suitable for correcting distortion when using the 2 Way Stand

(supplied). The preset values can be customized by changing the

settings in [ V keystone] and/or [ H keystone] below.

V keystone Corrects vertical distortion. The

value set here overwrites the

selected preset value.

MP-CL1 3-MP0-107-01

H keystone Corrects horizontal distortion.

The value set here overwrites the

selected preset value.

Flip (left-right) Flips the image horizontally. Use

this mode for rear projection.

To flip the image back to normal,

select this menu again.

Picture setting

Contrast Adjusts the contrast of the projected image.

Hue Adjusts the color tones.

Saturation Adjusts the color intensity.

MP-CL1 3-MP0-107-01

Setup

Device

name

Displays the device name of this product. You can change the

name (up to 15 characters) by selecting the name field and using

the on-screen keyboard. Select [Save] to save the new name.

Sleep timer Turns this product off automatically after a set length of time up

to 150 minutes in increments of 30 minutes.

Optical

alignment

Adjusts the horizontal/vertical alignment of the color items. Try

this if the projected image is unclear.

Biphase

alignment

Adjusts the synchronization timing of input signals. Try this if the

projected image is flickering or blurred.

Factory

reset

Resets all setting values (except for the Optical and Biphase

alignment settings) to the factory default.
