Sony COM-2 Supplement 1 Instrucciones de instalación y funcionamiento

4-118-106-01(1)

COM-2.US.Web.4-118-106-01(1)

Supplement

Video Camera (compliant with Ver.1.200 or later) 2

Photo and video upload (compliant with Ver.1.200 or later) 4

Video (compliant with Ver.1.100 or later) 6

Game (compliant with Ver.1.200 or later) 7

SHOUTcastWidget (compliant with Ver.1.100 or later) 8

Shortcuts for Web (compliant with Ver.1.200 or later) 9

URL input box and navigation bar of the Web browser

(compliant with Ver.1.100 or later)

Formatting a “Memory Stick Duo” 10

(compliant with Ver.1.200 or later)

Optimizing System Memory

(compliant with Ver.1.200 or later) 11

About the supplied “Operating Instructions”

manual (PDF)

To download the latest version of “Operating Instructions”

manual (PDF), visit the following Web site:

http://www.sony.com/mylo/support

Note

The “Operating Instructions” manual (PDF) does not include the

contents of this “Supplement” booklet. Be sure to keep this booklet for

your reference.

COM-2.US.Web.4-118-106-01(1)

Video Camera (compliant with Ver.1.200 or later)

You can shoot videos and photos using the camera of this unit.

Shooting Videos

On the Home menu, select “Camera,” followed by “Video Camera.”

The Standby screen appears.

Thumbnail

Select to start shooting a video.

Select to stop shooting the video.

Hints

To take a photo, select “Camera” from the Home menu, followed by “Still Camera.” For

details on how to take photos, refer to the “Operating Instructions” manual (PDF).

You can also use the shutter button, the Operation key or the Enter key on the keyboard

to start/stop shooting videos.

When you start up the camera by pressing and holding the shutter button, the still

camera monitor screen is displayed. Select “Video Camera” from the OPTION menu to

change to the video Standby screen.

The maximum video length is 10 minutes for 1 video.

Even if the destination folder is set to “Memory Stick,” videos may be saved on the

internal memory if a “Memory Stick Duo” is not inserted into this unit.

Videos are saved in the “MP_ROOT” folder of either the “Memory Stick Duo” or the

internal memory that is set as the destination.

Notes

You cannot disable the start/stop sound for the video shooting from the loudspeaker.

If you use a “Memory Stick Duo” that was formatted using a computer, reformat it using

the “Format Storage” function of the unit (page 10).

COM-2.US.Web.4-118-106-01(1)

If the recording continues to fail unintentionally with the WIRELESS LAN switch set to

“OFF,” an error may occur to the file system. The following message is displayed: “Failed

to continue recording video. If the WIRELESS LAN switch is ON, please turn it OFF.”

In this case, formatting of the save destination may recover the file system. Backing

up data on the destination to your PC, etc., before formatting the destination is highly

recommended, because all of the data on it will erased.

If an incoming Skype call occurs during recording, the recording will be stopped.

Viewing a video

On the Standby screen, tapping the thumbnail at the bottom right starts the

playback of the last shot video. To go back to the Standby screen, tap the BACK

button.

Hint

You can also play back the video by tapping “Video” on the Home menu.

Changing to the still camera/changing the save to destination of

videos

Select the desired item from the OPTION menu on the Standby screen to take

a photo or to change the save to destination.

Item Result or setting options

Still Camera Changes to still camera for taking photos.

Save To Sets the media to which videos are saved.

Video Camera supported formats

Supported file format:

Memory Stick Video Format

Supported video codec:

MPEG-4 Simple Profile

Bit rate: 384 kbps

Frame rate: 15 fps

Resolution: 320 × 240

Supported audio codec:

AAC-LC

Bit rate: 64 kbps

Sampling frequency: 24 kHz

COM-2.US.Web.4-118-106-01(1)

Photo and video upload (compliant with Ver.1.200 or later)

There are many Web sites where you can upload photos and videos, such as

social networking services, digital photography services, etc.

You can upload photos and videos easily by registering Web sites in advance.

Registering Web sites

On the Home menu, select “Web,” and then display the desired Web site of

“Jump to upload site” from the OPTION menu of “Photo” or “Video.”

Tap “Add as upload site” from the OPTION menu, and then tap “Photo” or

“Video.”

Tap “OK” to complete the registration.

Hints

When you put a checkmark on “Set as upload site,” the Web site will be displayed when

you select “Jump to upload site” from the OPTION menu of “Photo” or “Video.”

To register a Web site by inputting its URL, select “Photo” or “Video” on the Home

menu, followed by “Upload Settings” from the OPTION menu and “New.”

The following Web sites are set by default as a upload sites:

Photos: Facebook

http://www.facebook.com/photos.php?ref=sb

Videos: YouTube

http://www.youtube.com/my_videos_upload?client=web-sony-us-mylo

Note

The maximum number of Web sites that can be registered is 10 each for photos and

videos.

Uploading photos and videos

On the Home menu, select “Photo” or “Video,” then display the desired photo

or video for upload.

Tap “Jump to upload site” from the OPTION menu and a registered Web site

will be displayed.

Follow the instruction of the Web site to upload files.

Following these steps makes the upload process easier, because the file you

want to upload that is displayed on the “Photo” or “Video” screen has already

been selected as the upload file from the file selection dialog, and you do not

need to select the file from the file tree.

COM-2.US.Web.4-118-106-01(1)

Changing the settings

To change the upload settings for photos, select “Photo” on the Home menu,

followed by “Upload Settings” from the OPTION menu.

To change the upload settings for videos, select “Video” on the Home menu,

followed by “Upload Settings” from the OPTION menu.

Select the Web site that is to be displayed after selecting “Jump to upload site”

from the OPTION menu of “Photo” or “Video,” and tap to switch it to .

To register a Web site by inputting its address, select “New.”

To change the settings of a registered Web site, highlight the Web site and then

select the desired item from the OPTION menu.

Item Result

Open with Web browser Displays the registered Web site in the Web browser.

Edit Edits “Title” or “Address.”

Delete Deletes the registered Web site.

Notes

Web sites marked with cannot be deleted because they are in-use.

To delete a registered Web site, highlight the Web site using the operation key and then

select “Delete” from the OPTION menu. Note that if you tap the Web site, it is set as the

destination of “Jump to upload site” for “Photo” or “Video,” and therefore, cannot be

deleted because it is in-use.

Uploading may take time or may fail, due to heavy network traffic, etc.

COM-2.US.Web.4-118-106-01(1)

Video (compliant with Ver.1.100 or later)

About supported video formats

This unit also supports WMV formats in addition to those stated in “Supported

video formats” described in “Operating Instructions” manual (PDF).

Supported file format:

ASF

Supported file extension:

wmv

Supported video codec:

WMV9 (VC-1) (Simple Profile)

Bit rate: 768 kbps (maximum)

Frame rate: 30 fps (maximum)

Resolution: 320 × 240 (maximum)

Supported audio codec:

WMA

Bit rate: 256 kbps (maximum)

Sampling frequencies: 24/44.1/48 kHz

USB mode when transferring video files from a computer

You can use “MTP (Media Transfer Protocol)” in addition to “MSC (Mass

Storage Class),” which is explained in “Operating Instructions” manual (PDF).

USB mode Software program Transfer To

MTP (Media Transfer Protocol) Windows Explorer

Windows Media Player 10, 11 Internal memory

To change the USB mode to “MTP,” select “Tools” on the Home menu, and

then select “Settings,” followed by the “USB Mode.” After that, tap of

“MTP” to switch it to .

Using Windows Media Player 10 or 11

You can transfer video files or playlists to the unit using Windows Media Player.

Before transferring video files, be sure to set the unit’s USB mode to “MTP” and

connect the unit to a computer. To transfer video files, start Windows Media

Player, and click “Sync” at the top of the window, and then select this unit in the

right pane. This unit is displayed as “Personal Communicator.” Select video files

to transfer in the left pane, and click “Start Sync.”

COM-2.US.Web.4-118-106-01(1)

Hint

The transferred video files will be stored in the “VIDEO” folder.

Using Windows Explorer (Drag and drop)

You can transfer video files with the “.wmv” extension by dragging and

dropping them to the unit using Windows Explorer.

Note

Some video file cannot be played on this unit even with the file name extension is

“.wmv.”

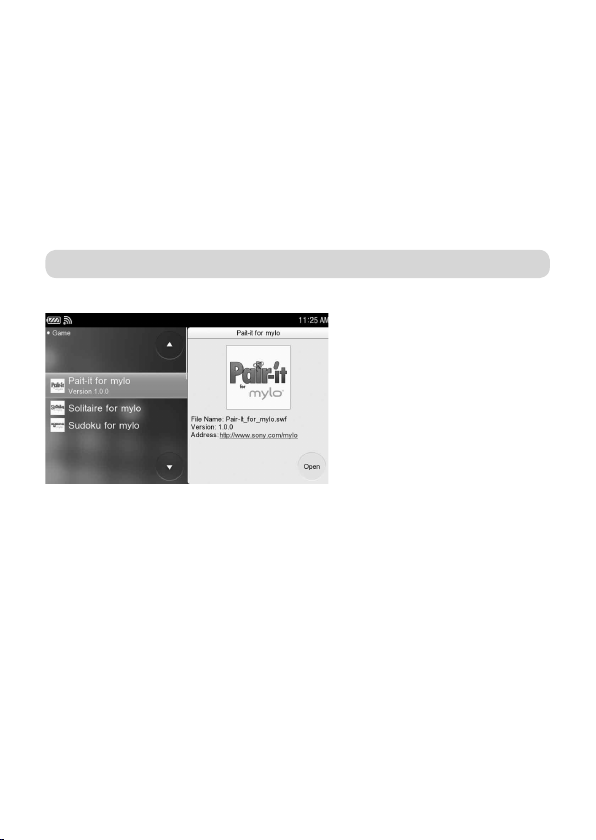

Game (compliant with Ver.1.200 or later)

The system software Ver.1.100 includes a simplified version of this application.

On the Home menu, select “Game” and then select the desired game from the

game list.

The game starts.

Tapping the BACK button ends the game and returns the display to the game

list.

Tapping the HOME button ends the game and returns the display to the Home

menu.

Notes

You can download them using this unit from the following Web site:

http://www.sony.com/mylo

Games that are not designed for this unit may not be playable, even if they are displayed

on the list.

When downloading a game, be sure to confirm the system software version that the

game supports.

Tap the game screen if the keys do not work or sounds are not output.

COM-2.US.Web.4-118-106-01(1)

If the System Software version is earlier than 1.200, the games that support displaying

thumbnails and titles cannot be downloaded.

Hints

The games displayed are stored in the “GAME” folder of the internal memory.

When you start downloading a game via the Web site mentioned above using the Web

browser of this unit, the game will be installed onto this unit automatically.

SHOUTcastWidget (compliant with Ver.1.100 or later)

The “SHOUTcast Widget” is an application that allows you to tune in and

listen to SHOUTcast Internet radio stations you select. You can also save a

selected station as a preset channel in the widget.

Notes

The “SHOUTcast Widget” is not on the supplied CD-ROM. You can download it from

the following Web site:

http://www.sony.com/mylo

Some radio stations use audio formats that are not supported by the Music Player of

this unit, such as “AAC+,” and cannot be played back.

Station selection screen Preset screen

How to preset channels

You can preset SHOUTcast Internet radio stations to channels in the

“SHOUTcast Widget.”

To preset stations, tap the SHOUTcast icon to display the SHOUTcast

homepage on the mylo Web browser.

Tap the “Tune In!” icon of the Internet radio station you want to preset and

play on with the Music Player.

On the mylo Screen, tap “Preset” of the “SHOUTcast Widget” on the Station

selection screen. The screen changes to the Preset screen. Select the channel by

tapping or , and tap “Set” to complete.

Note

“Set” is not available if you have not tuned into a station yet.

COM-2.US.Web.4-118-106-01(1)

Hints

When you tap “Clear” on the Preset screen, the preset station for the current channel is

erased.

On the Preset screen, the channel number and broadcasting station name are displayed

on the top line, and the last tuned broadcast station is displayed on the bottom line.

You can register up to 8 channels on the “SHOUTcast Widget.”

How to select a channel

On the Station selection screen, tap or to select a channel, and then tap

to listen.

Hints

When you tap “Last Tuned,” the last channel selected will begin playing. If there is no

last tuned channel, the message “Click Logo and Tune In!” is displayed.

When you tap , the play back is paused.

On the Station selection screen, the channel number and broadcasting station name are

displayed on the top line, and the information of the current music track is displayed on

the bottom line.

Shortcuts for Web (compliant with Ver.1.200 or later)

When using the Web, you can use the following keys for shortcuts, as well as

those listed in the “Operating Instructions” manual (PDF).

To Keyboard operation

Next Window Press Fn + “Y.”

Previous Window Press Fn + “T.”

Close Window Press Fn + “W.”

COM-2.US.Web.4-118-106-01(1)

URL input box and navigation bar of the Web browser

(compliant with Ver.1.100 or later)

The URL input box at the top, and the navigation bar at the bottom may or

may not be displayed, depending on the method used to open the window.

When you open a new window by selecting “New Window” from the OPTION

menu or by tapping “New Window” at the top level of the Web browser left

pane, the URL input box and navigation bar are always displayed. The URL

input box and navigation bar will continue to be displayed on the new window

until you choose not to display them.

When using other means, the previous display status is remembered, and the

URL input box and navigation bar may not be displayed if the URL input box

and/or navigation bar were hidden by the DISP (Display) button.

Tap the DISP button to control the display of these items.

Formatting a“Memory Stick Duo”

(compliant with Ver.1.200 or later)

If the unit fails repeatedly to save recordings to a “Memory Stick Duo” when

the WIRELESS LAN switch is set to “OFF,” try formatting the “Memory Stick

Duo” using the “Format Storage” function of the unit.

How to format a “Memory Stick Duo”

On the Home menu, select “Tools” and then select “Settings,” followed by

“System.”

Select “Format Storage” and then select “Memory Stick Duo” followed by “OK”

to start formatting the “Memory Stick Duo.”

Notes

Formatting a commercially available “Memory Stick Duo” is unnecessary, as it is

already formatted.

If you format media in which data has been already written, all the data and software

will be erased. Please be cautious not to mistakenly erase any important data.

Backing up data on a “Memory Stick Duo” to your PC, etc., before formatting the

“Memory Stick Duo” is highly recommended.

A “Memory Stick Duo” formatted with a computer is not guaranteed to operate with

this unit.

Otros manuales para COM-2 Supplement 1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de PDA de Sony

Sony

Sony mylo com-1 Manual de instalación y operación

Sony

Sony CLIE PEG-NR70 Manual de usuario

Sony

Sony CLIE PEG-N710C Manual de usuario

Sony

Sony PEG-S320 Add-on Application Manual de usuario

Sony

Sony PEG-SJ30 - Clie Color Handheld Guía del usuario

Sony

Sony PEG-N760C Audio Player v2.1 Guía del usuario

Sony

Sony PEG-UX50 - Clie Handheld Manual de usuario

Sony

Sony CLIE PEG-TG50 Instrucciones de funcionamiento

Sony

Sony PEG-TG50 Intellisync Lite Guía de inicio rápido

Sony

Sony COM-2 Supplement 1 Manual de usuario

Sony

Sony PEG-UX50 - Clie Handheld Manual de usuario

Sony

Sony PEG-NX80V - Clie Handheld Manual de usuario

Sony

Sony PEG-UX50 - Clie Handheld Manual de usuario

Sony

Sony CLIE PEG-S300/E Guía de configuración

Sony

Sony PEG-S360 Add-on Application Manual de usuario

Sony

Sony PEG-TJ25 - Personal Entertainment Organizer Guía del usuario

Sony

Sony PEG-TG50 Intellisync Lite Manual de usuario

Sony

Sony CLIE PEG-N610C Guía del usuario

Sony

Sony PEG-N710C Add-on Application Guía del usuario

Sony

Sony Clie PEG-NX70V Manual de usuario

Sony

Sony CLIE PEG-T415 Manual de usuario

Sony

Sony Clie PEG-NX70V Manual de instrucciones

Sony

Sony CLIE PEG-T415 Manual de usuario

Sony

Sony PEG-S360 - Personal Entertainment Organizer Manual de usuario

Manuales populares de PDA de otras marcas

SPOT

SPOT SPOT Manual de usuario

Palm

Palm handheld Manual de usuario

Winmate

Winmate E500QK Manual de usuario

Getac

Getac PS236 Manual de usuario

Sharp

Sharp CE-1600P Manual de usuario

HTC

HTC PHAR100 Manual de usuario

Mindeo

Mindeo M40 Manual de usuario

Acer

Acer n30 Manual de usuario

ASCOM

ASCOM 9D24 EX Manual de usuario

Unitech

Unitech PA520BTNF Manual de usuario

HandHeld

HandHeld Nautiz X3 Manual de usuario

Casio

Casio PALM Manual de usuario

Sharp

Sharp TM-20 Guía de inicio rápido

Atid

Atid AT870 Manual de usuario

AML

AML M7225 Manual de usuario

Audiovox

Audiovox Maestro Manual técnico

Casio

Casio PV-750 Plus Manual de instrucciones y seguridad

Unitech

Unitech PT630 Manual de usuario
