Sony Bravia KLV-32T400A Manual de usuario

KLV-32/26/19T400A/26/19T400G/19T400W

4-110-401-12(1)

KLV-32T400A

KLV-26T400A

KLV-26T400G

KLV-19T400A

KLV-19T400G

KLV-19T400W

Operating Instructions

LCD Colour TV

2GB

KLV-32/26/19T400A/26/19T400G/19T400W

4-110-401-12(1)

Thank you for choosing this Sony product.

Before operating the TV, please read this manual

thoroughly and retain it for future reference.

The illustrations used in this manual are of the

KLV-32T400A unless otherwise stated.

• HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

• “BRAVIA” and are trademarks of Sony

Corporation.

Notes for New Zealand model

Your Bravia TV is ENERGY STAR qualified in the home

mode.

• When the TV is initially set up, it is designed to meet

ENERGY STAR requirements.

• Changes to certain features, settings, and functionalities of

this TV (i.e. TV Guide, Picture/Sound, Light Sensor,

Power Savings) can slightly change the power

consumption.

Depending upon such changed settings, the power

consumption may increase which possibly could exceed the

limit required for ENERGY STAR qualification.

Introduction Trademark information

3GB

KLV-32/26/19T400A/26/19T400G/19T400W

4-110-401-12(1)

Table of Contents

Checking the accessories ...........................4

Inserting batteries into the remote...............4

1: Attaching the 3D WOOFER and stand....4

Attaching the stand................................... 4

Attaching the 3D WOOFER and stand ..... 6

2: Connecting an antenna/cable/VCR.........7

3: Preventing the TV from toppling over......7

4: Bundling the cables.................................8

5: Performing the initial set-up ....................8

Selecting the language............................. 8

Auto-tuning the TV .................................... 9

Watching TV ............................................10

Detaching the Table-Top Stand from the

TV..............................................................10

Safety information .....................................12

Precautions ...............................................14

Overview of the remote ..........................15

Using the Tools menu ............................. 17

Overview of the TV buttons and

indicators .................................................18

Using Optional Equipment

Connecting optional equipment.................19

Viewing pictures from the connected

equipment .................................................20

Using MENU Functions

Navigating through menus ........................21

Listening to the FM Radio .........................22

Listening to preset stations..................... 22

Listening to non-preset stations.............. 22

Settings adjustment...................................23

Picture menu........................................... 25

Sound menu............................................ 26

Screen menu........................................... 27

Set-up menu ........................................... 28

PC Settings menu ................................... 30

Channel Set-up menu ............................. 31

Additional Information

Specifications ........................................... 34

Troubleshooting........................................ 35

Start-up Guide 4

4GB

KLV-32/26/19T400A/26/19T400G/19T400W

4-110-401-12(1)

Start-up Guide

Checking the

accessories

Stand (1) and screws (4)

3D WOOFER (1) and screws (4) (KLV-19T400W)

Remote RM-GA013 (1)

Size AA batteries (R6 type) (2)

Inserting batteries into

the remote

• Observe the correct polarity when inserting

batteries.

• Do not use different types of batteries together or

mix old and new batteries.

• Dispose of batteries in an environmentally

friendly way. Certain regions may regulate the

disposal of batteries. Please consult your local

authority.

• Handle the remote with care. Do not drop or step

on it, or spill liquid of any kind onto it.

• Do not place the remote in a location near a heat

source, a place subject to direct sunlight, or a

damp room.

1: Attaching the 3D

WOOFER and stand

Please ensure the AC power cord is away from the

3D WOOFER/stand installation location before you

attach below 3D WOOFER/stand.

3D WOOFER is only available for KLV-19T400W.

– Except for KLV-19T400W

BKLV-32T400A

Push and lift the cover to open.

Attaching the stand

5GB

Start-up Guide

KLV-32/26/19T400A/26/19T400G/19T400W

4-110-401-12(1)

BKLV-26T400A/26T400G BKLV-19T400A/19T400G

1Place the TV onto the stand by aligning the

screw hole alignment lines over the stand

as shown.

2Fix the TV to the stand according to the

arrow marks that guide the screw holes

using the supplied screws.

• This TV is very heavy, so two or more people

should place the TV onto the stand.

• If using an electric screwdriver, set the tightening

torque at approximately 1.5N·m (15kgf·cm).

• Ensure the AC power cord is away from screw

holes during stand installation to avoid damage to

the AC power cord.

Continued

6GB

KLV-32/26/19T400A/26/19T400G/19T400W

4-110-401-12(1)

You can enjoy high quality sound by attaching the 3D

WOOFER as follows:

BKLV-19T400W

1Place the 3D WOOFER onto the stand by

aligning the screw hole alignment lines

over the stand as shown.

2Fix the 3D WOOFER to the stand

according to the arrow marks that guide

the screw holes using the supplied screws

(+BVTP2 4x16).

3Place the TV onto the 3D WOOFER by

aligning the screw hole alignment lines

over the 3D WOOFER as shown.

4Fix the TV to the 3D WOOFER according

to the arrow marks that guide the screw

holes using the supplied screws (+PSW

M5x16).

5Connect using only the supplied 3D

WOOFER; otherwise your TV may

malfunction.

• If using an electric screwdriver, set the tightening

torque at approximately 1.2N·m (12kgf·cm) when

attaching the stand. However, set the tightening

torque at approximately 1.5N·m (15kgf·cm) when

attaching the TV to the 3D WOOFER.

• Ensure the AC power cord is away from screw

holes during stand installation to avoid damage to

the AC power cord.

Attaching the 3D WOOFER and stand

Black

wire

Red wire

7GB

Start-up Guide

KLV-32/26/19T400A/26/19T400G/19T400W

4-110-401-12(1)

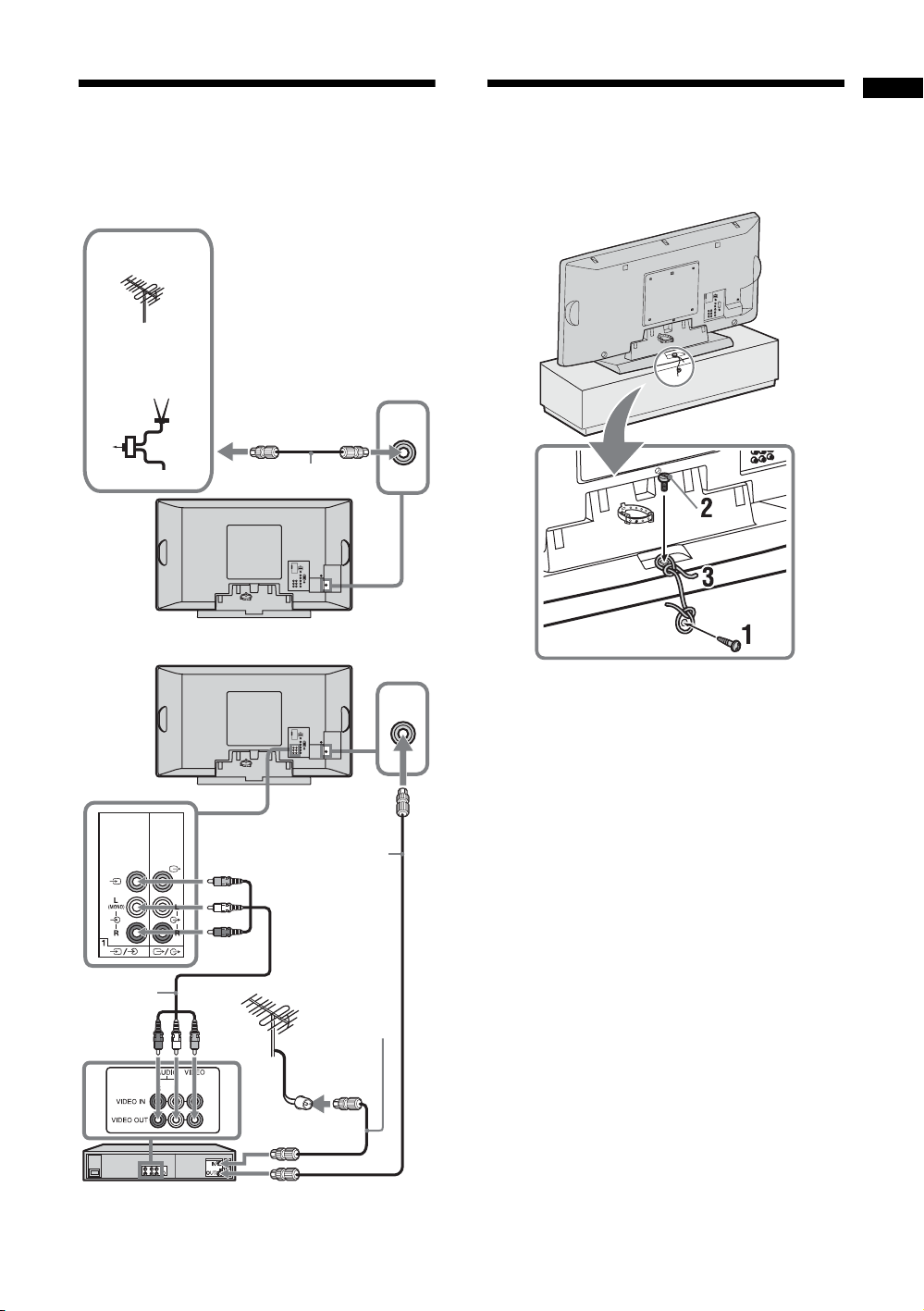

2: Connecting an

antenna/cable/VCR

Connecting an antenna/cable

3: Preventing the TV

from toppling over

1Install a wood screw (4 mm in diameter, not

supplied) in the TV stand.

2Install a machine screw (M6 x 12, not

supplied) into the screw hole of the TV.

3Tie the wood screw and the machine screw

with a strong cord.

Connecting an antenna/cable and VCR

Antenna cable

(not supplied)

Antenna cable

(not supplied)

Antenna cable

(not supplied)

Audio/Video

cable (not

supplied)

VCR

TV, CATV,

Satellite

If cannot

receive FM

signal

Antenna

selector

TV signal

8GB

KLV-32/26/19T400A/26/19T400G/19T400W

4-110-401-12(1)

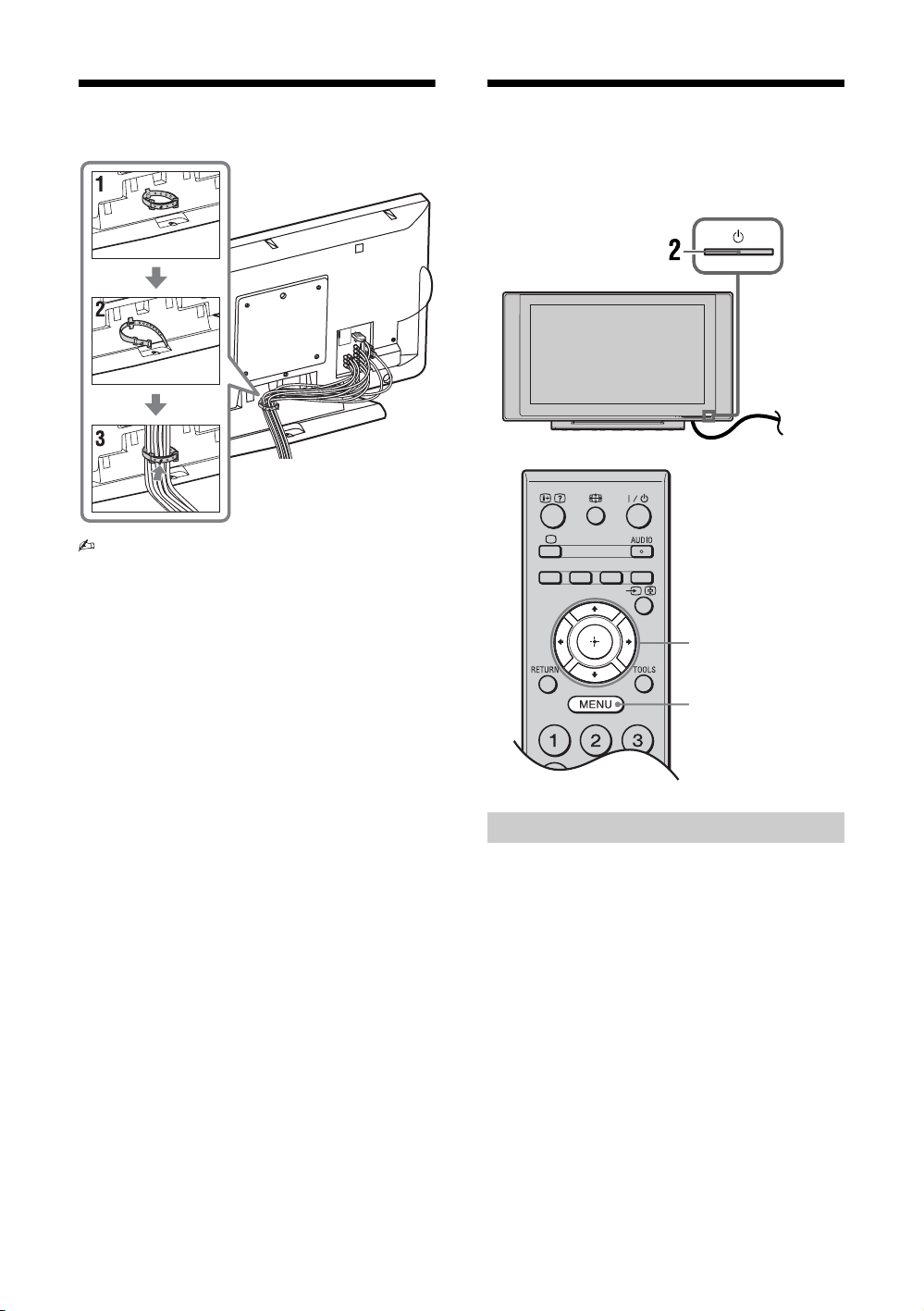

4: Bundling the cables

• Cable holder is located at 3D WOOFER for

KLV-19T400W.

5: Performing the initial

set-up

1Connect the TV to your AC power outlet

(110-240 V AC, 50/60 Hz) (New Zealand

only: 220-240 V AC, 50/60 Hz).

2Press 1on the TV.

When the TV is in standby mode (the 1(standby)

indicator on the TV front panel is red), press "/1

on the remote to turn on the TV.

When you turn on the TV for the first time, the

“Language” menu appears on the screen.

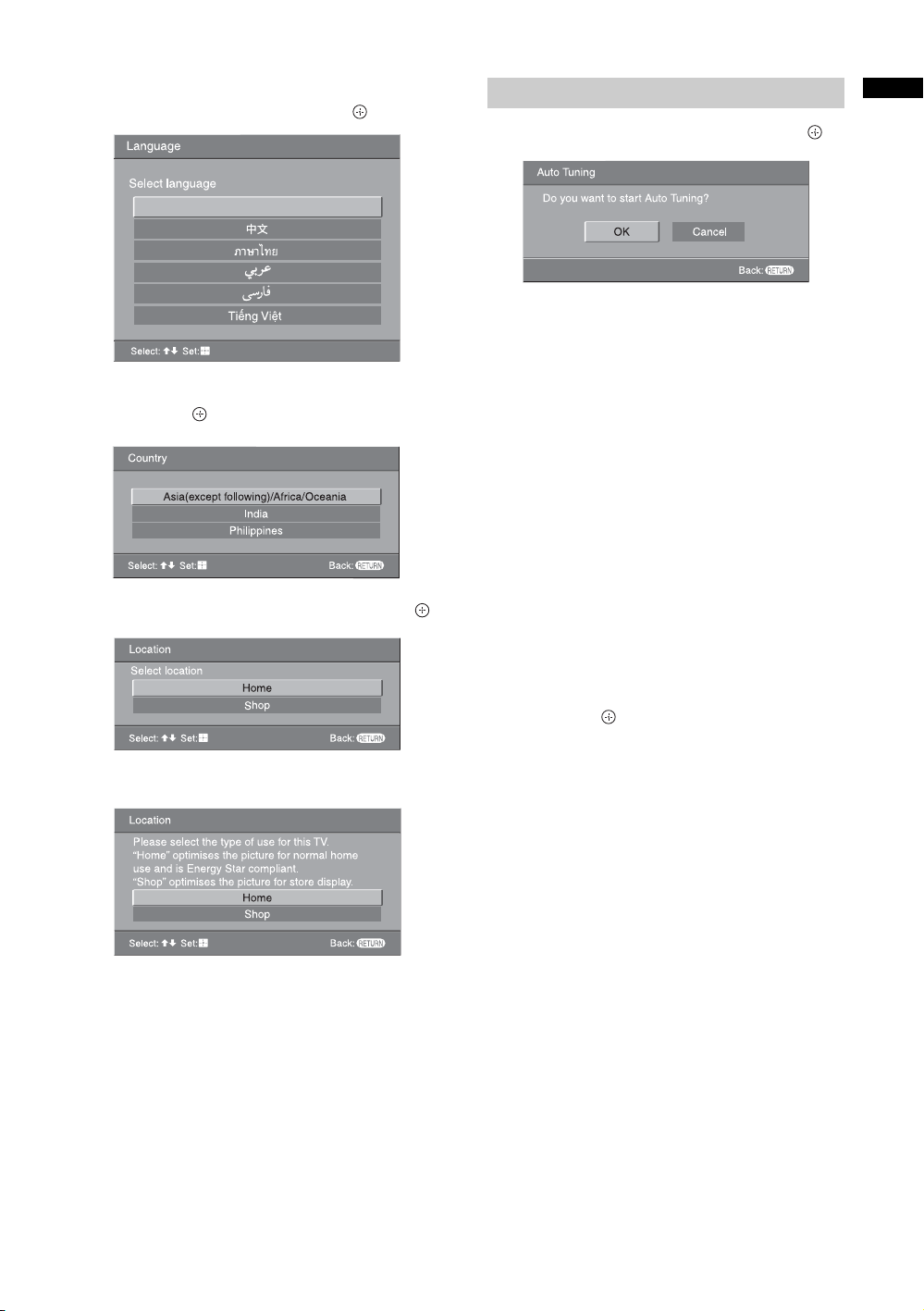

Selecting the language

, 1

3, 4, 5, 6, 9

9GB

Start-up Guide

KLV-32/26/19T400A/26/19T400G/19T400W

4-110-401-12(1)

Press

to select the language displayed

on the menu screens, then press .

4Press F/fto select the country/region,

then press .

5Press F/fto select “Home”, then press .

BFor New Zealand model

6Press G/gto select “OK”, then press .

The TV starts searching for all available channels.

This may take some time, please be patient and do

not press any buttons on the TV or remote.

If a message appears for you to confirm the

antenna connection

No programmes found. Please connect antenna

(aerial) and select “Confirm” to start auto-tuning

again. If 200 channels are found, auto-tuning is

stopped.

7When the “Programme Sorting” menu

appears on the screen, follow the steps of

“Programme Sorting” (page 31).

If you do not want to change the order in which the

channels are stored on the TV, go to step 8.

8Press MENU to exit.

The TV has now tuned in all the available

channels.

9Press G/g to select the desired setting in

“Display this menu next time?” dialogue,

then press to exit.

z• If “Yes” is selected and the TV is turned off by

pressing 1on the TV, or is disconnected from

the AC power outlet, the initial set-up

procedure restarts the next time the TV is

turned on.

English

Select country

Auto-tuning the TV

10 GB

KLV-32/26/19T400A/26/19T400G/19T400W

4-110-401-12(1)

Watching TV

1Press 1on the TV to turn on the TV.

2Press the number buttons or PROG +/– to

select a TV channel.

3Press 2+/– to adjust the volume.

Detaching the Table-

Top Stand from the TV

Remove the screws guided by the arrow marks of

the TV.

Do not remove the Table-Top Stand for any reason

other than to wall-mount the TV.

B KLV-32T400A

B KLV-26T400A/26T400G
