Sony DVP-S565D Manual de usuario

SERVICE MANUAL

PX Model

CD/DVD PLAYER

DVP-S565D

RMT-D117A

The Service Manual for this set contains only the points which differ is

bound together with the following Service Manual and therefore please

refer to them.

DVP-S565D: PX →DVP-S560D: E

See page 3 for different parts.

• Main Unit

DVP-S336/S345/S360/S365/ 9-921-755-11

S560D/S570D/S745D Service Manual

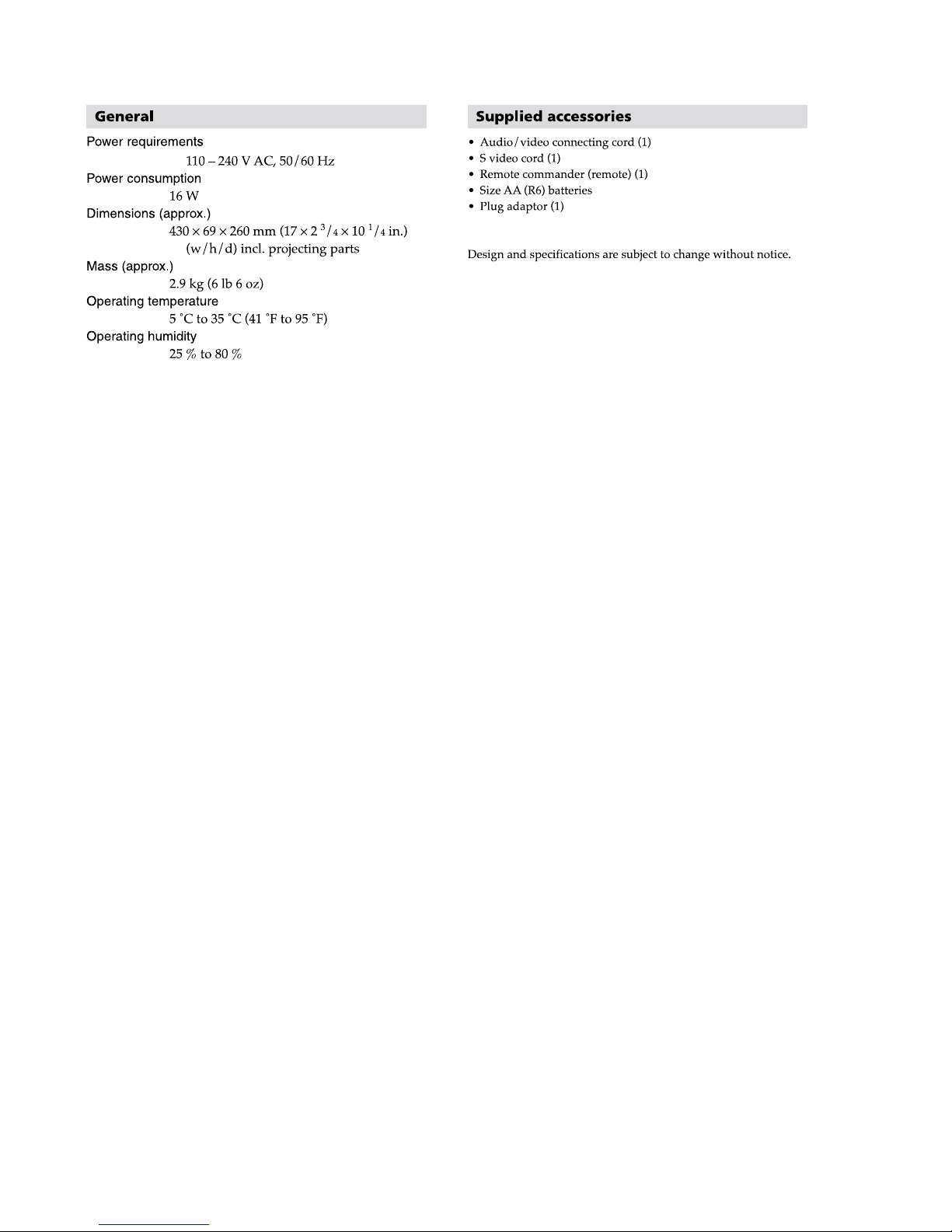

Difference Manual SPECIFICATIONS

– Continued on next page –

– 2 –

– 3 –

• DIFFERENT PARTS LIST

8-1. EXPLODED VIEWS

NOTE:

• -XX and -X mean standardized parts, so they

may have some difference from the original

one.

• Color Indication of Appearance Parts

Example:

KNOB, BALANCE (WHITE) . . . (RED)

↑↑

Parts Color Cabinet’s Color

• The mechanical parts with no reference num-

ber in the exploded views are not supplied.

• Accessories and packing materials are given

in the last of the electrical parts list.

8-1-1. CASE ASSEMBLY

(See Service Manual Page 8-1.)

10 10

not

supplied

not

supplied

1 X-3950-413-1 PANEL ASSY, FRONT

2 3-059-349-01 CUSHION, FOOT

3 4-217-485-11 EMBLEM (5-A), SONY

4 3-056-508-01 EMBLEM, DVD

5 3-059-377-11 COVER, TRAY

6 3-059-322-01 STICK, CURSOR

9 3-059-331-01 FOOT, REAR

10 3-710-901-51 SCREW, TAPPING

not supplied

DVP-S560D: E DVP-S565D: PX

Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

1 X-3950-733-1 PANEL ASSY, FRONT

2 3-059-349-11 CUSHION, FOOT

not supplied

4 3-975-726-71 EMBLEM, DVD

5 3-059-377-31 COVER, TRAY

6 3-059-322-31 STICK, CURSOR

9 3-059-389-01 CUSHION (REAR), FOOT

10 3-710-901-11 SCREW, TAPPING

11 3-062-941-01 CASE

-: Points changed parts.

]

[

– 4 –

DVP-S565D

Sony Corporation

Network Entertainment Group

9-921-768-11 2000F0530009-1F

Published by Quality Assurance Dept.

8-1-3. CHASSIS ASSEMBLY

(See Service Manual Page 8-5.)

8-2. ELECTRICAL PARTS LIST

101 3-059-379-01 KNOB, VOLUME

*104 A-6065-508-A HP-127 BOARD, COMPLETE

106 3-059-319-31 BUTTON, POWER

107 3-059-320-11 JOINT (P)

108 3-059-321-11 INDICATOR (P)

111 3-059-388-01 PILLAR, MULTI

*112 A-6065-510-A MB-86 BOARD, COMPLETE

113 4-966-267-12 BUSHING (FBS001), CORD

*115 A-6065-511-A AI-17 BOARD, COMPLETE

120 3-059-390-51 PANEL, REAR

101 3-059-379-11 KNOB, VOLUME

*104 A-6065-458-A HP-127 BOARD, COMPLETE

106 3-059-319-21 BUTTON, POWER

107 3-059-320-01 JOINT (P)

108 3-059-321-01 INDICATOR (P)

111 3-059-327-01 PILLAR, MULTI

*112 A-6065-457-A MB-86 BOARD, COMPLETE

113 4-966-267-11 BUSHING (FBS001), CORD

*115 A-6065-456-A AI-17 BOARD, COMPLETE

120 3-059-326-81 PANEL, REAR

DVP-S560D: E DVP-S565D: PX

Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

*A-6065-511-A AI-17 BOARD, COMPLETE

*A-6065-508-A HP-127 BOARD, COMPLETE

*A-6065-510-A MB-86 BOARD, COMPLETE

R124 Not used

R128 Not used

ACCESSORIES & PACCKING MATERIALS

********************************

3-062-059-11 MANUAL, INSTRUCTION (ENGLISH)

Page DVP-S560D: E DVP-S565D: PX

Ref. No. Part No. Description Remark

8-25

*A-6065-456-A AI-17 BOARD, COMPLETE

*A-6065-458-A HP-127 BOARD, COMPLETE

*A-6065-457-A MB-86 BOARD, COMPLETE

R124 1-216-105-91 RES, CHIP 220K 5% 1/10W

R128 1-216-099-00 METAL CHIP 120K 5% 1/10W

ACCESSORIES & PACCKING MATERIALS

********************************

3-062-059-31 MANUAL, INSTRUCTION (SPANISH)

8-20

8-17

8-16

8-7

NOTE:

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering

these items.
