Sony VPL-SW630C Manual de usuario

4-532-769-12 (1)

Data

Projector

Operating Instructions

Before operating the unit, please read this manual and supplied Quick Reference Manual

thoroughly and retain it for future reference.

VPL-SW630C/SW620C/SW630/SW620

VPL-SX630

Not all models are available in all countries and area. Please check

with your local Sony Authorized Dealer.

2Table of Contents

Table of Contents

Overview

Location and Function of Controls .... 4

Main Unit ..................................... 4

Connector Panel ........................... 5

Remote Commander and Control

Panel Keys ................................. 6

Interactive Pen Device (VPL-

SW630C/SW620C only) ........... 8

Preparation

Connecting the Projector ................... 9

Connecting a Computer ................ 9

Connecting a Video

equipment ................................ 11

Connecting a microphone .......... 13

Connecting a USB memory

device ...................................... 13

Connecting an External Monitor and

Audio Equipment .................... 13

Projecting/Adjusting an


Projecting an Image ......................... 14

Adjusting the Projected image ... 16

Turning Off the Power ................ 19

Adjustments and Settings

Using a Menu

Using a MENU ................................ 20

The Picture Menu ............................. 21

The Screen Menu ............................. 22

The Function Menu .......................... 26

The Operation Menu ........................ 27

The Connection/Power Menu ...........28

The Installation Menu ......................30

The Information Menu .....................31

Network

Using Network Features ...................32

Displaying the Control Window of

the Projector with a Web

Browser ...................................32

Confirming the Information

regarding the Projector ............33

Operating the Projector from a

Computer .................................33

Using the e-mail report

Function ...................................34

Setting the LAN Network of the

projector ..................................35

Setting the WLAN Network of the

projector ..................................35

Setting the Control Protocol of the

Projector ..................................38

Interactive Function

Using the Interactive Function (VPL-

SW630C/SW620C only) ...............41

Connecting a Computer with a USB

Cable ........................................42

For Windows ...............................42

For Mac .......................................44

Presentation Function via

Network

Using Presentation Function via

Network .........................................46

Table of Contents

Installing Projector Station for

Network Presentation ..............46

Starting Projector Station for

Network Presentation ..............46

Projecting an Image ....................47

Connection Settings ....................47

Using the Controller ...................48

Displaying Images or Files Sent

from a Tablet PC/

Smartphone .............................48

Playing Video and Audio

using USB Connection

Playing Video and Audio using USB

Connection ....................................50

Starting USB Display .................50

Playing Video and Audio ...........50

Using the Controller ...................50

USB Media Viewer

Using USB Media Viewer ................52

Thumbnail Mode ........................53

Option Menu ...............................53

Display Mode .............................54

Option Menu ...............................54

Slideshow Mode .........................54

Option Menu ...............................55

Others

Indicators .......................................... 56

Messages List ................................... 57

Troubleshooting ...............................58

Replacing the Lamp .........................60

Cleaning the Air Filter .....................62

Specifications ...................................64

Projection Distance and Lens Shift

Range ............................................71

Dimensions ...................................... 75

END USER LICENSE

AGREEMENT ............................. 77

Index ................................................ 83

4Location and Function of Controls

BOverview

Location and Function of Controls

aInteractive Pen detector

(VPL-SW630C/SW620C only)

bProjection window

cControl panel keys (page 6)

dSide cover/Ventilation hole

(intake)

eFocus lever (page 16)

fAir filter (page 62)

gLens shift dial H (page 17)

hLends shift dial V (page 17)

iZoom lever (page 16)

jConnector panel (page 5)

kLamp cover (page 60)

lAdjuster (page 17)

mSecurity bar

Connects to a commercially available

security chain or wire.

nSecurity lock

Connects to an optional security cable

manufactured by Kensington.

For details, visit Kensington’s web site.

http://www.kensington.com/

oON/STANDBY indicator

(page 56)

pLAMP/COVER indicator

(page 56)

qVentilation holes (exhaust)

Do not place anything near the ventilation

holes as this may cause internal heat

buildup. Do not place your hand near the

ventilation holes and the circumference as

this may cause injury.

rSpeaker

sRemote control detector

Main Unit

qs qd

Caution

Location and Function of Controls

Overview

Input (pages 9, 11)

aINPUT A

Video: RGB/YPBPRinput connector

(RGB/YPBPR)

Audio: Audio input connector (AUDIO)

bINPUT B

Video: RGB input connector (RGB)

Audio: Audio input connector (AUDIO)

cINPUT C

Video: HDMI input connector (HDMI)

Audio: HDMI input connector (HDMI)

dS VIDEO (S VIDEO IN)

Video: S video input connector

(S VIDEO IN)

Audio: Audio input connector

(L (MONO) AUDIO/R)

eVIDEO (VIDEO IN)

Video: Video input connector (VIDEO)

Audio: Audio input connector

(L (MONO) AUDIO/R)

The audio inputs of S VIDEO and VIDEO are

shared.

Output (page 13)

fOUTPUT

Video: Monitor output connector

(MONITOR)

Audio: Audio output connector

(AUDIO)

This connector outputs the projected image or

audio only when INPUT A or INPUT B is

used.

Others

gRS-232C connector (RS-232C)

RS-232C compatible control connector.

Connects the computer’s RS-232C

connector and the RS-232C cross cables.

hLAN connector (page 32)

iAC IN (∼) socket

Connects the supplied AC power cord.

jUSB connector (Type A) ( )

(pages 13, 52)

kUSB connector (Type B) ( )

(page 50)

lMicrophone input ( )

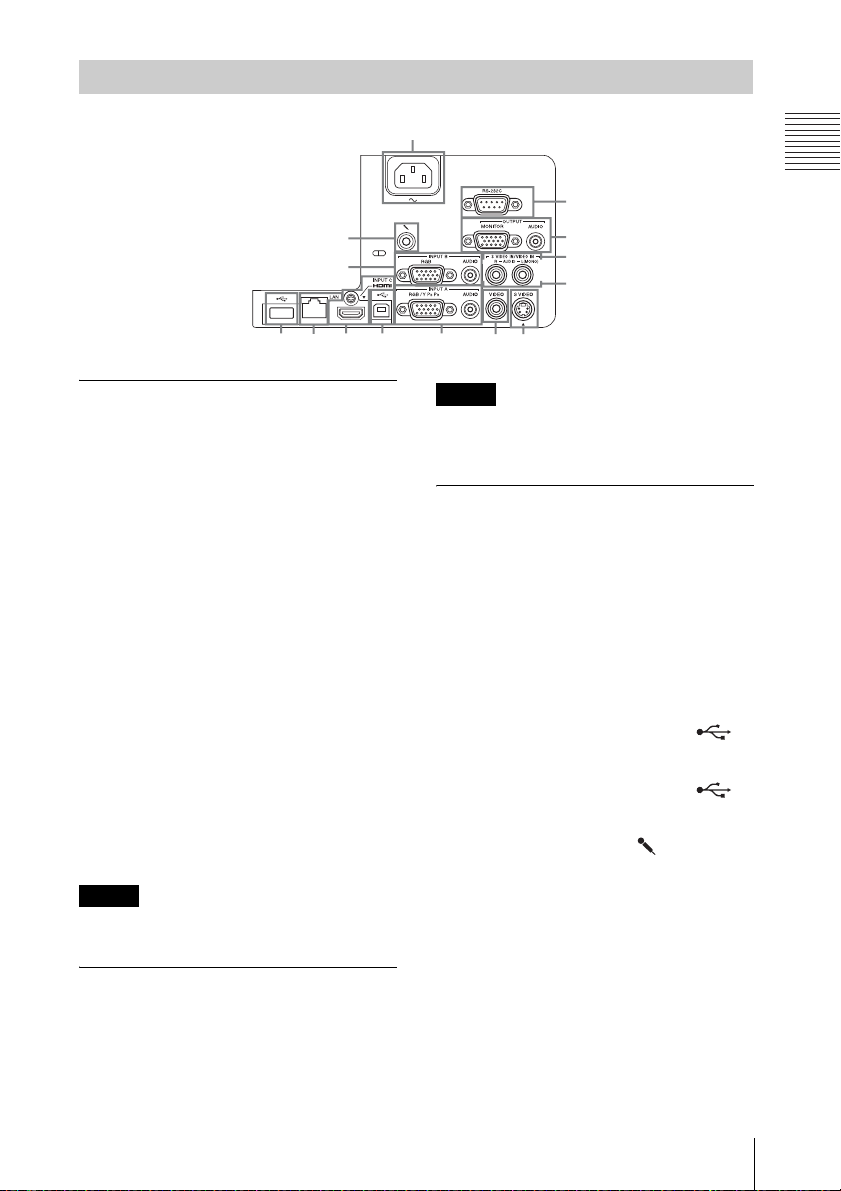

Connector Panel

8q; 3

Note

6Location and Function of Controls

Remote Commander

Control Panel Keys

aTurning on the power/Going to

standby mode

?/1(On/Standby) key

bSelecting an input signal

(page 14)

INPUT key

cOperating a menu (page 20)

MENU key

RESET key

ENTER /V/v/B/b(arrow) keys

RETURN key

dAdjusting the image (page 16)

ASPECT key (page 22)

KEYSTONE key (page 18)

PATTERN key (page 18)

APA (Auto Pixel Alignment) key*

(page 18)

*Use this key when inputting a computer

signal via the RGB input connector

(INPUT A or INPUT B).

eUsing various functions during

projecting

D ZOOM (Digital Zoom) +/– key*1

Enlarges a portion of the image while

projecting.

1Press the D ZOOM + key to display

the digital zoom icon on the projected

image.

2Press the V/v/B/bkeys to move the

digital zoom icon to the point on the

image you want to enlarge.

3Press the D ZOOM + key or the D

ZOOM – key repeatedly to change the

enlargement ratio. The image can be

enlarged up to 4 times.

Press the RESET key to restore the

previous image.

BLANK key

Cuts off the projected image

temporarily. Press again to restore the

previous image. Picture muting helps

reduce power consumption.

MUTING key

Mutes the audio output temporarily.

Press again to restore the previous

volume.

VOLUME +/– key

Adjusts the volume output.

FREEZE key*2

Pauses a projected image. Press again to

restore the image.

Remote Commander and Control Panel Keys

INPUT

APA ECO MODE

RETURN

ASPECT

D ZOOM

KEYSTONE

ENTER

VOLUME

PATTERN

FREEZE

BLANK

MUTING

RESET

Note

Location and Function of Controls

Overview

*1: Use this key when inputting a

computer signal. But it may not be

used depending on the resolution of

the input signal.

*2: Use this key when inputting a

computer signal.You cannot use this

key when “Type A USB”, “Type B

USB”or “Network”is selected as the

input.

fSetting the energy–saving mode

easily

ECO MODE key

Energy-saving mode can be set easily.

Energy-saving mode consists of “Lamp

Mode,” “With No Input,” “With Static

Signal” and “Standby Mode.”

1Press the ECO MODE key to display

the ECO Mode menu.

2Press the V/vkey or ECO MODE key

to select “ECO” or “User” mode.

ECO: Sets each mode to the optimum

energy-saving value.

Lamp Mode: Low

With No Input: Standby

With Static Signal: Lamp

Dimming

Standby Mode: Low

User: Sets each item of the ECO

Mode menu as you desire (go to

step 3).

3Select “User” then press the bkey.

The setting items appear.

4Press the V/vkey to select the item

then press the ENTER key.

5Press the V/vkey to select the setting

value.

6Press the ENTER key.

The screen returns to the User screen.

For details on ECO Mode settings, see

“Lamp Mode,” “Constant Brightness,”

“With No Input,” “With Static Signal”

and “Standby Mode” on the Connection/

Power menu (page 28).

Others

gInfrared transmitter

About remote commander operation

• Direct the remote commander toward the

remote control detector.

• The shorter the distance between the

remote commander and the projector is,

the wider the angle within which the

remote commander can control the

projector becomes.

• Make sure that nothing obstructs the

infrared beam between the remote

commander and the remote control

detector on the projector.

Notes

RETURN

ECO

User

ECO Mode

:Sel :Back

RETURN

Lamp Mode High

Constant Brightness

Auto Power Saving

Standby Mode

Off

With No Input

Lamp Dimming

With Static Signal

Standard

User

:Sel :Set :Back

8Location and Function of Controls

aPen tip switch

Functions as the left button of a mouse.

bColor ring

main (IFU-PN250A): red/sub

(IFU-PN250B): blue

cIndicator

This indicator flashes when the button is

pressed and lights up when the pen tip

touches the screen. It will not light up if

battery power is low. In this case, replace

the batteries.

dButton

Main: Switches between drawing and

mouse functions.

Sub: Displays the sub pen toolbar.

eBattery cover

The battery cover is attached to the

Interactive Pen Device by a small strap.

Be careful not to break the strap when

opening the battery cover.

fStrap attachment hole

Interactive Pen Device (VPL-SW630C/SW620C only)

12 34 6

Connecting the Projector

Preparation

BPreparation

Connecting the Projector

• Make sure all the equipment is powered off when connecting the projector.

• Use the proper cables for each connection.

• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or

cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

• For more information, refer also to the instruction manuals of the equipment you are connecting.

• Use a no-resistance audio cable.

Connection with a computer is explained for each input signal.

INPUT A/INPUT B

It is recommended that you set the resolution of your computer to 1280 × 800 pixels

(VPL-SW630C/SW620C/SW630/SW620) or 1024 × 768 pixels (VPL-SX630) for the external

monitor.

INPUT C

Notes

Connecting a Computer

For connecting a computer with an RGB output connector.

RGB output

connector

Audio output

connector

Mini D-sub 15-pin cable (not supplied)

Computer

Audio cable (Stereo mini plug) (not supplied)

Note

For connecting a computer with an HDMI output connector.

HDMI output

connector

HDMI cable

(not supplied)

Computer

10 Connecting the Projector

• Use HDMI-compatible equipment which has the HDMI Logo.

• Use a high speed HDMI cable(s) on which the cable type logo is specified. (Sony products are

recommended.)

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal

or CEC (Consumer Electronics Control) Signal.

USB connector (Type B) ( )

For connecting to a computer with a USB connector (“Playing Video and Audio using USB

Connection” (page 50)).

LAN connector

For connecting to a computer, tablet PC, or smartphone via a hub or router (“Presentation

Function via Network” (page 46)).

Notes

USB A-B cable (not

supplied)

Computer

USB connector

(Type A)

LAN cable (straight type)

(not supplied)

Computer

LAN

connector

Wired connection

Tablet PC/Smartphone

Computer

Wireless connection

Hub, Wireless router, etc.

Otros manuales para VPL-SW630C

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de datos de Sony

Sony

Sony VPL-EW275 Manual de servicio

Manuales populares de Proyector de datos de otras marcas

Sharp

Sharp Notevision XG-C465X-L Guía del usuario
