Sony WX-GT88UI Manual de usuario

4-440-390-11(1)

WX-GT88UI/WX-GT80UI

FM/AM

Compact Disc

Player

To switch the FM/AM tuning step, see page 4.

To cancel the demonstration (DEMO) display, see page 4.

Para cambiar el paso de sintonización de FM/AM, consulta la

página 4.

Para cancelar la pantalla de demostración (DEMO), consulte la

página 4.

Operating Instructions GB

Manual de

instrucciones

Laser diode properties

Emission duration: Continuous

Laser output: Less than 53.3 W

(This output is the value measured at a

distance of about 200 mm from the

objective lens surface on the optical pick-up

block with 7 mm aperture.)

This product is protected by certain

intellectual property rights of Microsoft

Corporation. Use or distribution of such

technology outside of this product is

prohibited without a license from Microsoft

or an authorized Microsoft subsidiary.

Android is a trademark of Google Inc. Use

of this trademark is subject to Google

Permissions.

Be sure to install this unit in the

dashboard of the car for safety.

For installation and connections,

see the supplied installation/connections

manual.

ZAPPIN and Quick-BrowZer are

trademarks of Sony Corporation.

Windows Media is either a registered

trademark or trademark of Microsoft

Corporation in the United States and/or

other countries.

iPhone, iPod, iPod classic, iPod nano, and

iPod touch are trademarks of Apple Inc.,

registered in the U.S. and other countries.

App Store is a service mark of Apple Inc.

MPEG Layer-3 audio coding technology

and patents licensed from Fraunhofer IIS

and Thomson.

Note on the lithium battery

Do not expose the battery to excessive heat

such as direct sunlight, fire or the like.

Warning if your car’s ignition has no

ACC position

Be sure to set the Auto Off function

(page 21). The unit will shut off

completely and automatically in the set

time after the unit is turned off, which

prevents battery drain. If you do not set

the Auto Off function, press and hold

 until the display

disappears each time you turn the

ignition off.

Table of contents

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Switching the FM/AM tuning step . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Canceling the DEMO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Location of controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

RM-X211 Remote commander . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Storing and receiving stations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

RDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Playing a disc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

USB devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Playing back a USB device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Playing back iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Operating an iPod directly — Passenger control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

App Remote. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Two-way Music Control with iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Searching and playing tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Playing tracks in various modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Searching a track by name — Quick-BrowZer™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Searching a track by listening to track passages — ZAPPIN™. . . . . . . . . . . . . . . . . . . 15

Changing the illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Changing the color of display and buttons — Dynamic Color Illuminator . . . . . . . 16

Advanced color setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Sound Settings and Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Enjoying sophisticated sound functions — Advanced Sound Engine . . . . . . . . . . . . 18

Adjusting setup items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using optional equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Auxiliary audio equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Getting Started

Switching the FM/AM

tuning step

The FM/AM tuning step is factory-set to the

50 kHz (FM)/9 kHz (AM) position. If the

frequency allocation system of your country

is based on 200 kHz (FM)/10 kHz (AM) or

100 kHz (FM)/10 kHz (AM) step, set the

tuning step before use.

This setting appears when this unit is turned

off.

1Press , rotate the control dial

until “GENERAL” appears, then press

it.

2Rotate the control dial until “TUNER-

STP” appears, then press it.

3Rotate the control dial to select from

“50K/9K,” “100K/10K,” or “200K/

10K,” then press it.

Receivable frequency by selected frequency

setup:

FM 50 kHz: 87.50 MHz, 87.55 MHz, 87.60

MHz...

FM 100 kHz: 87.5 MHz, 87.6 MHz, 87.7

MHz...

FM 200 kHz: 87.5 MHz, 87.7 MHz, 87.9

MHz...

AM 9 kHz: 531 kHz, 540 kHz, 549 kHz...

AM 10 kHz: 530 kHz, 540 kHz, 550 kHz...

Canceling the DEMO

mode

You can cancel the demonstration display

which appears while this unit is turned off.

1Press , rotate the control dial

until “DISPLAY” appears, then press

it.

2Rotate the control dial until “DEMO”

appears, then press it.

3Rotate the control dial to select

“DEMO-OFF,” then press it.

The setting is complete.

4Press (BACK) to return to the

previous display.

The display returns to normal reception/

play mode.

Setting the clock

The clock uses a 12-hour digital indication.

1Press , rotate the control dial

until “GENERAL” appears, then press

it.

2Rotate the control dial until “CLOCK-

ADJ” appears, then press it.

The hour indication flashes.

3Rotate the control dial to set the hour

and minute.

To move the digital indication, press

 +/–.

4After setting the minute, press

.

The setup is complete and the clock

starts.

To display the clock, press .

Location of controls

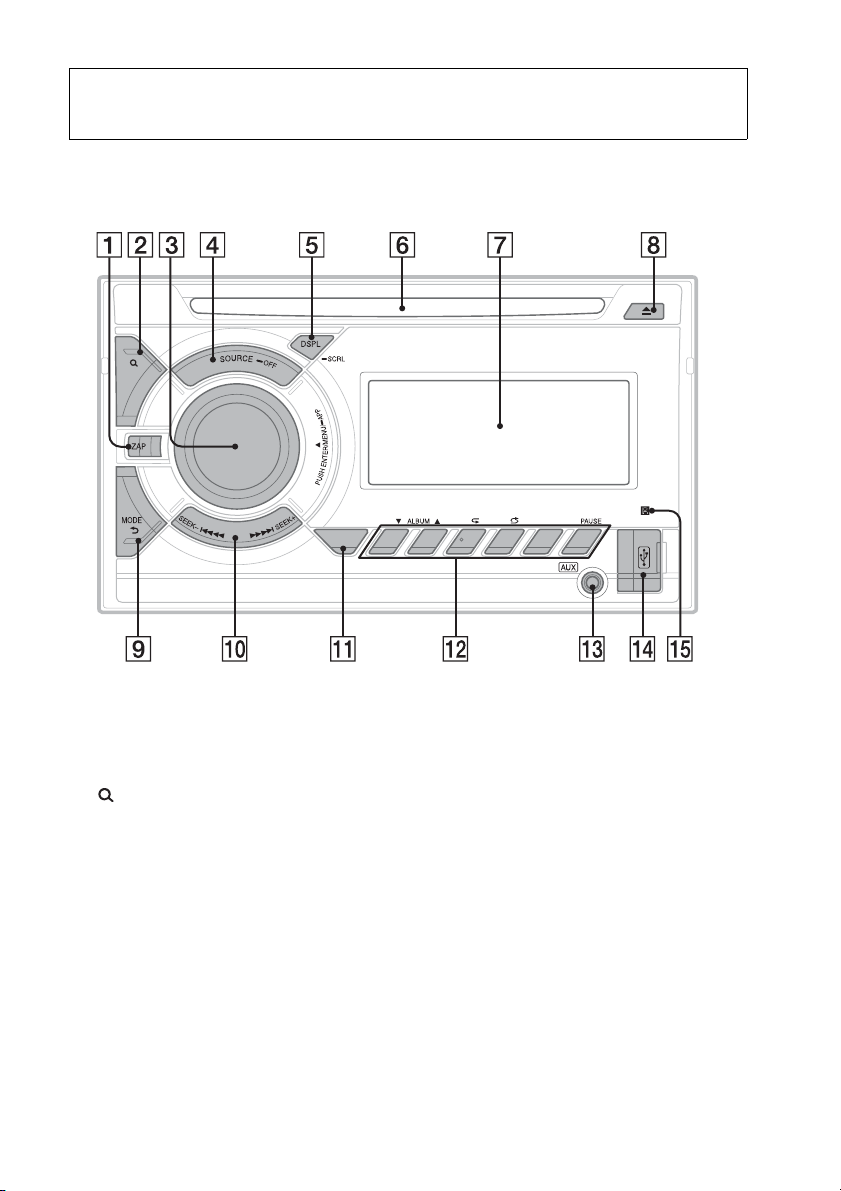

Main unit

This section contains instructions on the

location of controls and basic operations.

ZAP button page 15

To enter ZAPPIN™mode.

(BROWSE) button page 14

To enter the Quick-BrowZer™mode

(CD/USB).

Control dial/ENTER/MENU/APP

button page 15, 20

Rotate to adjust volume.

Press to enter setup mode.

Press and hold for more than 2 seconds

to establish App Remote.

After pressing , rotate

then press to change the source.

SOURCE/OFF button*1

Press to turn on the power; select the

source (Radio/CD/USB/AUX).

Press repeatedly to change to another

source.

Press and hold for 1 second to turn off

the power.

Press and hold for more than 2 seconds

to turn off the power and the display

disappears.

DSPL (Display)/SCRL (Scroll) button

page 8, 9, 10, 11

To change display items (press); scroll a

display item (press and hold).

Disc slot

Insert the disc (label side up), playback

starts.

Display window

PTY 1 23456

(Eject) button

To eject the disc.

(BACK)/MODE button page 8, 12

Press to return to the previous display;

Select the radio band (FM/AM);

Press and hold to enter/cancel the

passenger control (iPod).

SEEK +/– buttons

Radio:

To tune in stations automatically

(press); find a station manually (press

and hold).

CD/USB:

To skip a track (press); skip tracks

continuously (press, then press again

within about 2 seconds and hold);

reverse/fast-forward a track (press and

hold).

App Remote*2:

To skip a track (press).

PTY (Program Type) button page 9

To select PTY in RDS.

Number buttons

Radio:

To receive stored stations (press); store

stations (press and hold).

CD/USB:

/: ALBUM /(during MP3/

WMA/AAC playback)

To skip an album (press); skip

albums continuously (press and

hold).

: (Repeat)*3page 13

: (Shuffle) page 13

: PAUSE

To pause playback. Press again to

resume playback.

App Remote*2:

: PAUSE

To pause playback. Press again to

resume playback.

AUX input jack page 23

USB port page 10, 11

Receptor for the remote

commander

*1 If App Remote is established with iPhone, the

application name appears on the display when

selecting the source.

*2 When App Remote is established with

iPhone. Depending on the application, certain

operations may not be available.

*3 This button has a tactile dot.

Note

If the unit is turned off and the display

disappears, the unit cannot be operated with the

remote commander unless  on

the unit is pressed, or a disc is inserted to activate

the unit first.

RM-X211 Remote

commander

Remove the insulation film before use.

OFF button

To turn off the power; stop the source.

SOURCE button*1

Press to turn on the power.

Press repeatedly to change to another

source (Radio/CD/USB/AUX).

()/() buttons

To control Radio/CD/USB/App

Remote, the same as  –/+ on the

unit.

Setup items can be operated by .

After pressing , press 

to change the source.

(BACK) button

To return to the previous display.

ENTER button

To apply a setting.

PTY (Program Type) button

VOL (Volume) +*2/– button

ATT (Attenuate) button

To attenuate the sound. To cancel, press

again.

MODE button

Press to select the radio band (FM/AM);

Press and hold to enter/cancel the

passenger control (iPod).

SOUND/MENU button

To enter the SOUND menu directly

(press); to enter setup mode (press and

hold).

(BROWSE) button

(+)/(–) buttons

To control CD/USB, the same as /

 on the unit.

Setup items can be operated by .

DSPL (Display)/SCRL (Scroll) button

Number buttons

To receive stored stations (press); store

stations (press and hold).

To pause playback (press ).

*1 If App Remote is established with iPhone, the

application name appears on the display when

selecting the source.

*2 This button has a tactile dot.

Radio

Storing and receiving

stations

Tuning step setting is required (page 4).

Notes

• If the tuning step setting is changed, the stored

stations will be erased.

• If replacing the car battery or changing the

connections, the tuning step setting will be

erased, and you will need to set again.

Caution

When tuning in stations while driving, use

Best Tuning Memory (BTM) to prevent an

accident.

Storing automatically — BTM

1Press  repeatedly until

“TUNER” appears.

To change the band, press 

repeatedly. You can select from FM1,

FM2, FM3, AM1, or AM2.

2Press , rotate the control dial

until “GENERAL” appears, then press

it.

3Rotate the control dial until “BTM”

appears, then press it.

The unit stores stations in order of

frequency on the number buttons.

Tip

You can also press , rotate the

control dial to select “TUNER,” then press it to

select the source.

Storing manually

1While receiving the station that you

want to store, press and hold a number

button ( to ) until “MEM”

appears.

Receiving the stored stations

1Select the band, then press a number

button ( to ).

Tuning automatically

1Select the band, then press  +/–

to search for the station.

Scanning stops when the unit receives a

station. Repeat this procedure until the

desired station is received.

Tip

If you know the frequency of the station you want

to listen to, press and hold  +/–to locate

the approximate frequency, then press

 +/–repeatedly to fine adjust to the

desired frequency (manual tuning).

RDS

FM stations with Radio Data System (RDS)

service send inaudible digital information

along with the regular radio program signal.

Notes

• Depending on the country/region, not all RDS

functions may be available.

• RDS will not work if the signal strength is too

weak, or if the station you are tuned to is not

transmitting RDS data.

Changing display items

Press .

Selecting PTY (Program Types)

Use PTY to display or search for a desired

program type.

1Press  during FM reception.

The current program type name appears

if the station is transmitting PTY data.

2Rotate the control dial until the desired

program type appears, then press it.

The unit starts to search for a station

broadcasting the selected program type.

Type of programs

Note

You may receive a different radio program from

the one you select.

Setting CT (Clock Time)

The CT data from the RDS transmission

sets the clock.

1Set “CT-ON” in setup (page 21).

Note

The CT function may not work properly even

though an RDS station is being received.

Playing a disc

This unit can play CD-DA (also containing

CD TEXT) and CD-R/CD-RW (MP3/

WMA/AAC files (page 24)).

1Insert the disc (label side up).

Playback starts automatically.

To eject the disc, press .

Notes

• When ejecting/inserting a disc, keep any USB

devices disconnected to avoid damage to the

disc.

• Corresponding codec is MP3 (.mp3), WMA

(.wma) and AAC (.m4a).

Changing display items

Press .

Displayed items may differ depending on

the disc type, recording format and settings.

NEWS (News), AFFAIRS (Current Affairs),

INFO (Information), SPORT (Sports),

EDUCATE (Education), DRAMA (Drama),

CULTURE (Culture), SCIENCE (Science),

VARIED (Varied), POP M (Pop Music),

ROCK M (Rock Music), EASY M (M.O.R.

Music), LIGHT M (Light classical),

CLASSICS (Serious classical), OTHER M

(Other Music), WEATHER (Weather),

FINANCE (Finance), CHILDREN

(Children’s program), SOCIAL A (Social

Affairs), RELIGION (Religion), PHONE IN

(Phone In), TRAVEL (Travel), LEISURE

(Leisure), JAZZ (Jazz Music), COUNTRY

(Country Music), NATION M (National

Music), OLDIES (Oldies Music), FOLK M

(Folk Music), DOCUMENT (Documentary)

USB devices

• MSC (Mass Storage Class)-type USB

devices compliant with the USB standard

can be used.

• Backup of data to a USB device is

recommended.

• MSC (Mass Storage Class)-type Android™

Phone compliant with the USB standard

can be used.

Depending on the Android Phone, setting

the USB connection mode to MSC is

required.

Notes

• Connect the USB device after starting the

engine.

Depending on the USB device, malfunction or

damage may occur if it is connected before

starting the engine.

• Corresponding codec is MP3 (.mp3), WMA

(.wma), AAC (.m4a) and AAC (.mp4).

• For details on the compatibility of your USB

device, visit the support site on the back cover.

Playing back a USB device

1Open the USB cover, then connect the

USB device to the USB port.

Playback starts.

If a USB device is already connected, to start

playback, press  repeatedly

until “USB” appears.

To stop playback, press and hold

 for 1 second.

To remove the USB device, stop the USB

playback, then remove the USB device.

Note

Do not use USB devices so large or heavy that

they may fall down due to vibration, or cause a

loose connection.

Changing display items

Press .

Displayed items may differ depending on

the USB device, recording format and

settings.

Notes

• The maximum number of tracks is 10,000.

• It may take time for playback to begin,

depending on the amount of recorded data.

• During playback or fast-forward/reverse of a

VBR (Variable Bit Rate) MP3/WMA/AAC file,

elapsed playing time may not display

accurately.

• Playback of the following MP3/WMA/AAC

files is not supported.

– lossless compression

–copyright-protected

– DRM (Digital Rights Management) files

–Multi-channelaudiofiles

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Reproductor de CD de Sony

Sony

Sony CFD-449 Manual de usuario

Sony

Sony NW-A1200 - Hard Disc Drive Walkman Manual de uso y mantenimiento

Sony

Sony D-EJ360 - PSYC CD Walkman Manual de usuario

Sony

Sony XDCAM PDW-HD1200 Manual de usuario

Sony

Sony CDX-CA590X Guía del producto

Sony

Sony D-F700 Manual de usuario

Sony

Sony SCD-CE595 Manual de usuario

Sony

Sony D-E350 - PSYC CD Walkman Manual de usuario

Sony

Sony CDX-G1152U Manual de usuario

Sony

Sony CD Walkman D-EQ550 Manual de usuario

Sony

Sony CD Walkman D-NE500 Manual de usuario

Sony

Sony Walkman D-E888 Manual de usuario

Sony

Sony Xplod CDX-737 Manual de usuario

Sony

Sony D-NE20 - Atrac Cd Walkman Manual de usuario

Sony

Sony CDX-GT201C Manual de usuario

Sony

Sony MDP-500 - Cd Cdv Ld Player Manual de usuario

Sony

Sony D-NE710 - ATRAC3/MP3 CD Walkman Portable Disc... Manual de usuario

Sony

Sony CDX-848X - Compact Disc Changer System Manual de usuario

Sony

Sony CDP-CX220 - 200 Disc Cd Changer Manual de usuario

Sony

Sony D-NF610 - Portable Cd Player Manual de usuario

Sony

Sony D-E565 - Compact Disc Player Manual de usuario

Sony

Sony DVP-FX930 Manual de usuario

Sony

Sony CDX-GT320MP Manual de usuario

Sony

Sony CFD-F10 - Cd Radio Cassette-corder Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Philips

Philips AZ1207 Manual de usuario

Philips

Philips CD582 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Philips

Philips Expanium AZ 1538 Manual de usuario

Rotel

Rotel RCD 975 Manual de usuario

Pioneer

Pioneer CLD-D790 Manual de usuario
