4-244-278-21(1)

Super Audio CD

Player

 2003 Sony Corporation

SCD-XB790

Operating Instructions

Mode d’emploi

Bedienungsanleitung

Manual de instrucciones

2GB

WARNING

To prevent fire or shock

hazard, do not expose the

unit to rain or moisture.

To avoid electrical shock,

do not open the cabinet.

Refer servicing to qualified

personnel only.

To prevent fire, do not cover the ventilation

of the apparatus with news papers, table-

cloths, curtains, etc. And don’t place

lighted candles on the apparatus.

To prevent fire or shock hazard, do not

place objects filled with liquid, such as

vases, on the apparatus.

This appliance is classified as a CLASS 1

LASER product.

This label is located on the rear exterior.

The following caution label is located

inside the unit.

Don’t throw away the

battery with general house

waste, dispose of it

correctly as chemical

wastes.

Welcome!

Thank you for purchasing the Sony Super

Audio CD Player. Before operating the

unit, please read this manual thoroughly

and retain it for future reference.

About This Manual

The instructions in this manual are for

model SCD-XB790.

Conventions

•Instructions in this manual describe the

controls on the player.

You can also use the controls on the

remote if they have the same or similar

names as those on the player.

• The following icons are used in this

manual:

Indicates that you can do the

task using the remote.

Indicates hints and tips for

making the task easier.

3GB

Features

About the Super Audio CD

•Super Audio CD is a new high-quality audio disc

standard where music is recorded in the DSD (Direct

Stream Digital) format (conventional CDs are recorded

in the PCM format). The DSD format, using a sampling

frequency 64 times higher than that of a conventional

CD, and with 1-bit quantization, achieves both a wide

frequency range and a wide dynamic range across the

audible frequency range, and so provides music

reproduction extremely faithful to the original sound.

•The Super Audio CD has two types; a 2 channel stereo

disc and a Multi-channel disc which holds up to 6

independent channels. The multi-channel characteristic

of the Super Audio CD features a speaker allocation

system basically similar to the 5.1 channel output of

current AV systems.

Features of the player

This player is designed to play back 2-channel and multi-

channel Super Audio CDs, and conventional CDs, and

provides the following features:

•Mounted with a Discrete Dual Laser Optical Pickup,

capable of reading a Super Audio CD or conventional

CD depending on the exclusive wavelength.

•Quicker track access performance enabled by an

advanced servo mechanism.

•AMulti-Channel Management function that allows you

to adjust the multi-channel playback environment

according to the allocation and size of your speakers.

•ASuper Audio D/A Converter and Direct Digital Sync

System, which allows higher-quality sound

reproduction.

Others

•ASuper Audio CD can mark up to 255 track/index

numbers. This feature applies to SCD-XB790.

•The supplied remote is capable of controlling both the

SCD-XB790 and a conventional Sony CD player.

TABLE OF CONTENTS

Getting Started 4

Before You Start the Hookup 4

Hooking Up the Audio Components 5

Location and Functions of Parts 8

Front Panel Parts Descriptions 8

Rear Panel Parts Descriptions 10

Remote Parts Descriptions 11

Playing Discs 12

Compatible Disc Types 12

Playing a Disc 14

Using the Display 15

Locating a Specific Track 18

Locating a Particular Point in a Track 18

Playing Tracks Repeatedly 19

Playing Tracks in Random Order (Shuffle Play) 20

Creating Your Own Programme (Programme

Play) 21

Listening to a Multi-channel Super Audio CD

(Multi-channel management function) 22

Additional Information 25

Precautions 25

Notes on Discs 26

Troubleshooting 27

Specifications 27

Index Back cover

4GB

Getting

Started

This chapter provides information on

the supplied accessories and how to

connect various audio components to

the Super Audio CD player. Be sure

to read this chapter thoroughly before

you actually connect anything to the

player.

Before You Start the

Hookup

Checking the supplied accessories

This player comes with the following items:

•Audio connecting cord

Stereo cable (1)

• Remote commander RM-SX700 (1)

•R06 (size-AA) batteries (2)

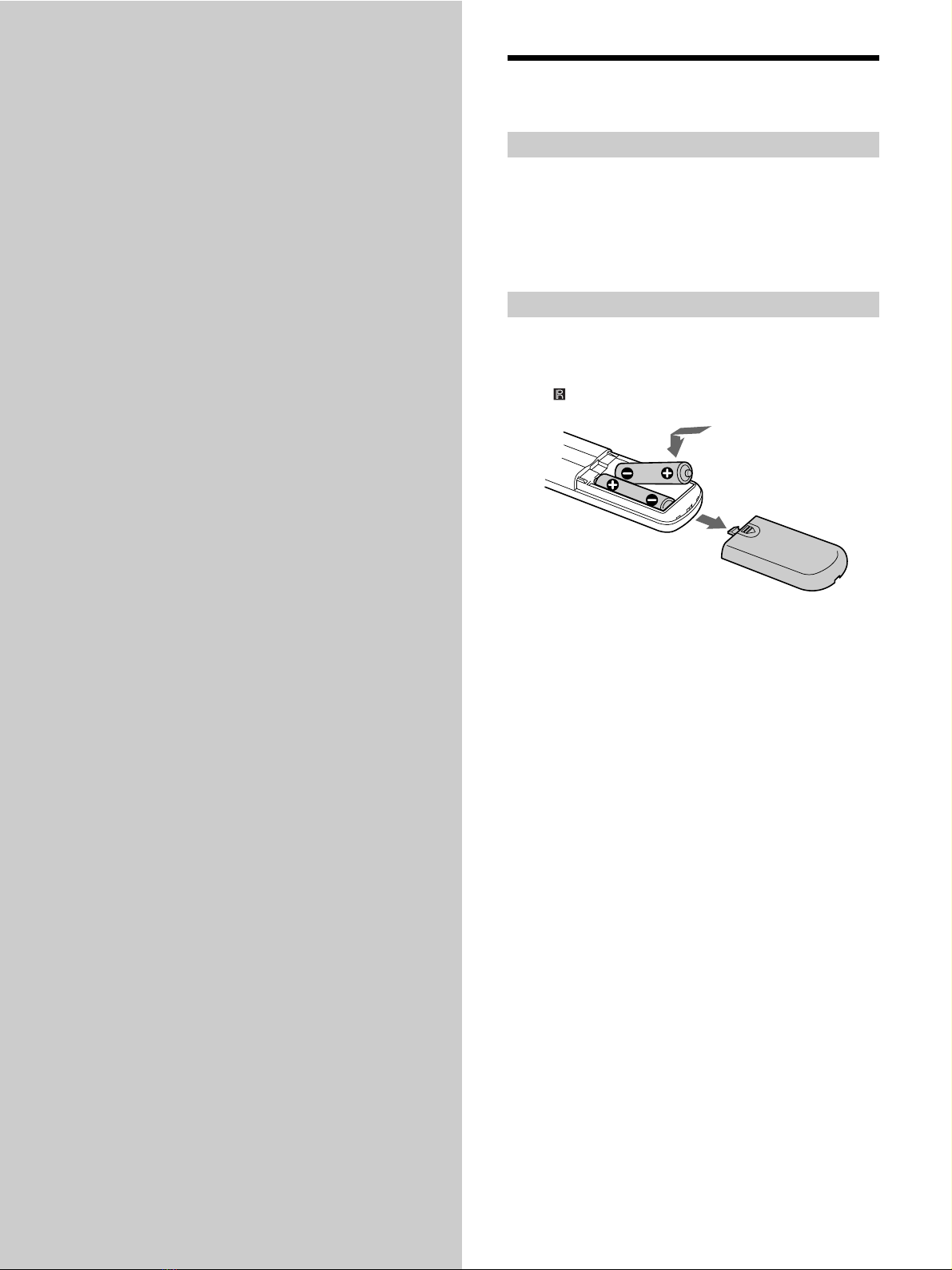

Inserting batteries into the remote

Insert two R06 (size-AA) batteries into the battery

compartment with the + and – correctly oriented to the

markings. When using the remote, point it at the remote

sensor on the player.

zWhen to replace the batteries

Under normal conditions, the batteries should last for about six

months. When the remote no longer operates the player, replace

both batteries with new ones.

Notes

•Do not leave the remote in an extremely hot or a humid place.

• Do not drop any foreign object into the remote casing,

particularly when replacing the batteries.

•Do not use a new battery with an old one.

•Do not expose the remote sensor to direct sunlight or lighting

apparatus. Doing so may cause a malfunction.

•If you do not intend to use the remote for an extended period

of time, remove the batteries to avoid possible damage from

battery leakage and corrosion.

5GB

Getting Started

Hooking Up the Audio Components

Connect the Super Audio CD player to an audio

component. Be sure to turn off the power of all

components before making connections and connect

securely to prevent noise.

When you have an amplifier equipped with the 5.1CH

input jacks (multi-channel amplifier, AV amplifier, etc.)

and connect the player and the amplifier via ANALOG

5.1CH OUT jacks, you can play a multi-channel Super

Audio CD and enjoy the multi-channel playback.

For normal playback, connect the player and an amplifier

via ANALOG 2CH OUT jacks.

ANALOG

2CH OUT 5.1CH OUT OUT

FRONT COAXIAL OPTICALSURR CENTER

SUB

WOOFER

DIGITAL(CD)

To CD (Super Audio

CD) IN jacks (L/R) Stereo amplifier, etc.

Connecting via ANALOG 2CH OUT jacks

Use an audio connecting cords for this connection. Connect the

ANALOG 2CH OUT L/R jacks to the CD (Super Audio CD)

input jacks of your amplifier. Be sure to match the colour-coded

pin to the appropriate jacks: white (left) to white and red (right)

to red.

Audio connecting cords (Red and White) (supplied)

White (L)

Red (R)

White (L)

Red (R)

6GB

Getting Started

CENTER or SUB WOOFER connection

Audio connecting cords (Black) (not supplied)

Notes

•When you make the Multi-channel connection, connect the

ANALOG 2CH OUT jacks also using another audio connecting

cord so that you can play a CD (or Super Audio CD) when you

set the input selector of your amplifier to CD (or Super Audio

CD) input .

• During playback of a conventional CD or a 2CH Super Audio

CD, the same signal that is output from the ANALOG 2CH

OUT jacks is also output from the ANALOG 5.1CH FRONT L/

R jacks.

• During playback of a Multi-channel Super Audio CD, the same

signal that is output from the ANALOG 5.1CH FRONT L/R

jacks is also output from the ANALOG 2CH OUT jacks. (The

down mixed signal of the Multi-channel signal is not played

back.)

•There are 5CH, 4CH, and 3CH Super Audio CD. When you

play these disc, the signal does not output from all the jacks of

the ANALOG 5.1CH OUT. For details of the playback, see the

cover or instructions of the Super Audio CD.

Hooking Up the Audio Components

Connecting via ANALOG 5.1CH OUT jacks

Use audio connecting cords for this connection. Connect the

ANALOG 5.1CH OUT jacks (FRONT L/R, SURR L/R, CENTER,

SUBWOOFER) to the corresponding jacks of your amplifier. For

FRONT or SURR connection, use the connecting cords (Red and

White jacks) (one audio cord is supplied with the player) and be

sure to match the colour-coded pin to the appropriate jacks:

white (left) to white and red (right) to red. For CENTER and SUB

WOOFER connection, use the connecting cords (Black) (not

supplied).

FRONT or SURR connection

Audio connecting cords (Red and White) (one audio cord is

supplied with the player)

ANALOG

2CH OUT 5.1CH OUT OUT

FRONT COAXIAL OPTICALSURR CENTER

SUB

WOOFER

DIGITAL(CD)

To FRONT IN

jacks (L/R)

To SURROUND or

REAR IN jacks

(L/R)

To CENTER IN

jack

To SUB WOOFER

IN jack Multi-channel amplifier,

AV amplifier, etc.

White (L)

Red (R)

White (L)

Red (R)

Black

7GB

Getting Started

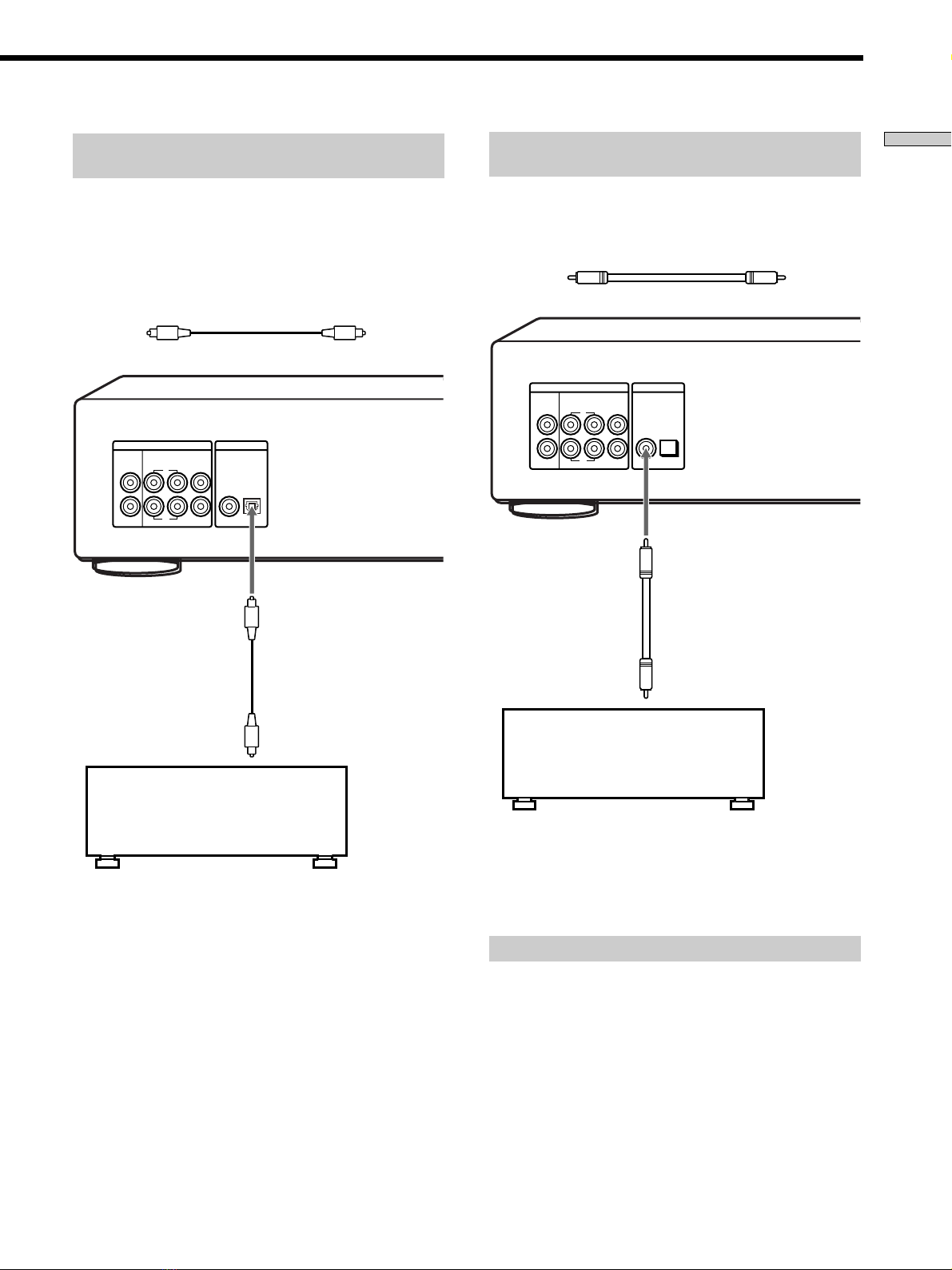

Connecting via DIGITAL (CD) OUT COAXIAL

connector

Use a coaxial digital cable to connect the audio components

equipped with coaxial digital input connectors.

Coaxial digital cable (not supplied)

Connecting via DIGITAL (CD) OUT OPTICAL

connector

Use an optical digital cable for this connection. When connecting

the optical digital cable to the DIGITAL (CD) OUT OPTICAL

connector, take the cap off the connectors and push the cable

plugs in until they click into place.

Be careful not to bend or twist the optical cable.

Optical digital cable (not supplied)

ANALOG

2CH OUT 5.1CH OUT OUT

FRONT COAXIAL OPTICALSURR CENTER

SUB

WOOFER

DIGITAL(CD)

ANALOG

2CH OUT 5.1CH OUT OUT

FRONT COAXIAL OPTICALSURR CENTER

SUB

WOOFER

DIGITAL(CD)

To CD (Super Audio

CD) IN coaxial digital

jack

Stereo amplifier,

etc.

To CD (Super Audio

CD) IN optical digital

jack

Stereo amplifier,

etc.

Note

Only the audio signals of conventional CDs can be output from

the DIGITAL (CD) OUT connectors. Those of the Super Audio

CD cannot be output through DIGITAL (CD) OUT.

Note

Only the audio signals of conventional CDs can be output from

the DIGITAL (CD) OUT connectors. Those of the Super Audio

CD cannot be output through DIGITAL (CD) OUT.

Connecting the AC power cord

Connect the AC power cord to a wall outlet.

8GB

Location and

Functions of

Parts

This chapter tells you about the

location and functions of the various

buttons and controls on the front and

rear panels and the supplied remote.

Further details are provided on the

pages indicated in parentheses.

It also tells you about the information

that appears in the display window.

Front Panel Parts

Descriptions

1POWER switch (14)

Press to turn on the player.

2TIME/TEXT button (15)

Each time you press the button, the playing time of the

track, the total remaining time on the disc, or TEXT

information appears in the display.

3SACD/CD button (13)

Each time you press the button while playing back a

hybrid disc, the layer to be played back switches

between the HD (Super Audio CD) layer and the CD

layer.

4Disc tray (14)

Press AOPEN/CLOSE to open/close the disc tray.

5Multi-channel indicator

Turns on when you turn on the player, or when the

Multi-channel Super Audio CD is loaded and select

the Multi-channel playback area by pressing MULTI/

2CH.

9GB

Location and Functions of Parts

6AOPEN/CLOSE button (14)

Press to open the disc tray.

7Hbutton (14)

Press to start play.

8Xbutton (14)

Press to pause play.

9xbutton (14)

Press to stop play.

0lAMS Ldial (AMS: Automatic Music Sensor)

(14)

When you turn the l AMS Ldial

counterclockwise by one click, you go back to the

preceding track; when you turn the l AMS L

dial clockwise by one click, you go to the succeeding

track.

qa PHONES

Connect the headphones.

During playback of a Multi-channel Super Audio CD,

the same signal that is output from the ANALOG

5.1CH FRONT L/R jacks is output from the PHONES

jack.

qs PHONE LEVEL

Adjust the headphones volume.

qd MENU (13)

Press to enter the menu.

Press to exit from the menu and return to the normal

display.

qf MULTI/2CH button (12)

Press to select the playback area when the 2 channel +

Multi-channel Super Audio CD (page 13) is loaded.

qg Display window (15)

Shows various information.

qh m/Mbuttons (18)

Press to locate a portion you want to play within a

track.

PHONES

POWER

PHONE LEVEL

MIN MAX

PUSH ENTER

AMS

TIME/TEXT SACD/CD

MENU MULTI/2CH

OPEN CLOSE

10GB

Location and Functions of Parts

Rear Panel Parts Descriptions

1ANALOG 2CH OUT L/R jacks (6)

Connect to an audio component (stereo/2 channel)

using the audio connecting cord.

2ANALOG 5.1CH OUT jacks (5)

Connect to an amplifier equipped with the 5.1CH

input jacks (Multi-channel amplifier, AV amplifier,

etc.) using the audio connecting cords.

3DIGITAL (CD) OUT COAXIAL connector (7)

Connect to an audio component using the coaxial

digital cable.

4DIGITAL (CD) OUT OPTICAL connector (7)

Connect to an audio component using an optical

digital cable.

ANALOG

2CH OUT 5.1CH OUT OUT

FRONT COAXIAL OPTICALSURR CENTER

SUB

WOOFER

DIGITAL(CD)

Note

Only the audio signals of the CD can be output from the

DIGITAL (CD) OUT connectors shown in 3and 4. Those of the

Super Audio CD cannot be output through DIGITAL (CD) OUT.

Otros manuales para SCD-XB790

Tabla de contenidos

Idiomas:

Otros manuales de Reproductor de CD de Sony

Sony

Sony CDP-CX235 - Mega Changer Manual de usuario

Sony

Sony Walkman D-NE900 Manual de usuario

Sony

Sony D-NF400 - ATRAC Walkman Portable CD Player Manual de usuario

Sony

Sony CFD-S250 - Cd Radio Cassette-corder Manual de usuario

Sony

Sony MZ-N707 OpenMG Jukebox NOTES on installing &... Manual de usuario

Sony

Sony CFD-S39 - Cd Radio Cassette-corder Manual de usuario

Sony

Sony Discman D-170AN Manual de usuario

Sony

Sony D-EJ360 - PSYC CD Walkman Manual de usuario

Sony

Sony CDX-GT560 Manual de usuario

Sony

Sony Hi-MD WALKMAN MZ-RH1 Manual de usuario

Sony

Sony VGP-XL1B - Vaio Digital Living System Media... Manual de usuario

Sony

Sony MDP-600 Manual de usuario

Sony

Sony Discman D-335 Manual de usuario

Sony

Sony D-EJ360 - PSYC CD Walkman Manual de usuario

Sony

Sony D-SJ01 - Sports Discman Manual de usuario

Sony

Sony D-NF340 Manual de usuario

Sony

Sony HCD-EC68 Manual de usuario

Sony

Sony DEJ017CK - Walkman Portable CD Player Manual de usuario

Sony

Sony D-FJ040PS Marketing Manual de usuario

Sony

Sony SCD-C333ES - Super Audio Cd Changer Manual de usuario

Sony

Sony Walkman D-NE050PS Manual de usuario

Sony

Sony CD Walkman D-EJ100 Manual de usuario

Sony

Sony CDP-M400CS Operating Instructions ... Manual de usuario

Sony

Sony CFD-V7 Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Philips

Philips AZ1207 Manual de usuario

Philips

Philips CD582 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Philips

Philips Expanium AZ 1538 Manual de usuario

Rotel

Rotel RCD 975 Manual de usuario

Pioneer

Pioneer CLD-D790 Manual de usuario
