SERVICE MANUAL

US Model

Canadian Model

UK Model

E Model

D-MJ95

PORTABLE CD PLAYER

Model D-MJ95 model is almost same as D-EJ616CK model.

This manual contains only the points which differ from D-EJ616CK model.

For the information not contained in this manual, please refer to D-E660/EJ610/EJ611/EJ613/EJ615/EJ616CK

service manual (9-927-632-S).

Ver 1.0 2000. 05

– 2 –

• The equipment can be removed using the following procedure.

SECTION 1

DISASSEMBLY

Note : Follow the disassembly procedure in the numerical order given.

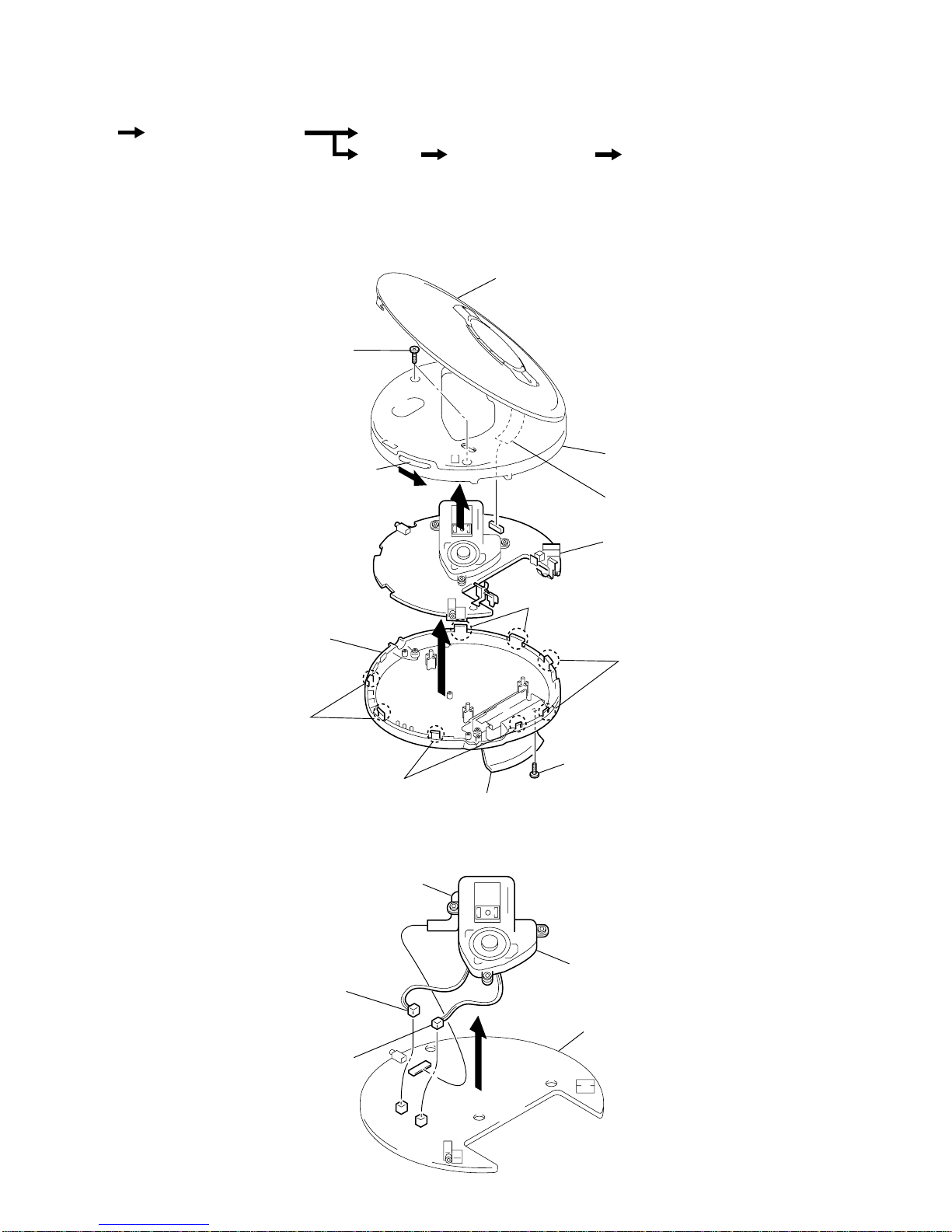

1-1. CABINET (REAR) SUB ASSY, CABINET (FRONT), MAIN BOARD

Set Cabinet (Rear) Sub Assy,

Cabinet (Front), Main Board Motor Assy, Turn Table

(Spindle) (M901) “Motor Assy, Sled (M902)”,

Optical Pick-up (DAX-23E)

Switch Unit

MD Assy

1-2. MD ASSY

4screws (B2)

2screw (B2)

1lid. battery

3knob (open)

8FLEXIBLE board (CN801

)

0MAIN board

7cabinet (front)

lid, upper

5claws

qa cabinet (rear) sub assy

5claws

1CN502 (red)

2CN503 (white)

5MD assy

3optical pick-up flexible board

MAIN boar

– 3 – – 4 –

1-3. MOTOR ASSY,

TURNTABLE (SPINDLE) (M901) 1-4. “MOTOR ASSY, SLED (M902)”,

OPTICAL PICK-UP (DAX-23E)

3motor assy, turn tabl

(spindle) (M901)

chassis

1B 1.7x5

7P 1.4x3.5

qs screw (feed) assy

chassis

0optical pick-up

(DAX-23E)

8bracket (shaft)

4gear (B)

2cover, gear

6motor assy ,sled (M902)

1-5. SWITCH UNIT

1knob (open)

7cover, lid

lid, upper

cabinet (front)

6claws

8switch unit

5screws

spring (full open)

qs window, LCD

qa button (FF&FR)

0button (mode)

9button (play)

SECTION 2

EXPLODED VIEW

2-1. CABINET SECTION

NOTE:

• The mechanical parts with no reference

number in the exploded views are not supplied.

• Accessories and packing materials are

given in the last of this parts list.

• Items marked “*” are not stocked since

they are seldom required for routine service.

Some delay should be anticipated

when ordering these items.

• Abbreviation

AR :Argentina model

CND : Canadian model

CDM-3223EBA

15 16

520

22 23 24

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 A-3323-401-A MAIN BOARD, COMPLETE

2 4-223-584-01 TERMINAL (–), BATTERY

3 4-223-585-01 TERMINAL (+), BATTERY

4 A-3328-742-A CABINET (REAR) SUB ASSY

5 3-719-408-01 SCREW (B2), TAPPING, P3

6 4-223-606-01 LID, BATTERY

7 4-966-278-01 FOOT, RUBBER

8 4-993-131-01 KNOB (HOLD)

9 4-223-586-01 TERMINAL, BATTERY LINK

10 3-375-114-31 SCREW

11 3-044-063-01 COVER, LID

12 1-418-849-11 SWITCH UNIT

13 3-044-068-01 BUTTON (PLAY)

14 3-044-067-01 BUTTON (MODE)

15 3-044-066-01 BUTTON (FF&FR)

16 3-044-065-01 COVER, DECORATION

17 3-047-205-01 SHEET (LCD WINDOW), ADHESIVE

18 3-044-064-01 WINDOW, LCD

19 X-3379-487-1 LID (UPPER) SUB ASSY (US,CND,E,AR)

19 X-3379-488-1 LID (UPPER) SUB ASSY (UK)

20 4-223-587-01 SPRING (FULL OPEN)

21 4-223-603-01 CABINET (FRONT)

22 4-223-607-01 BUTTON (VOLUME)

23 4-222-793-11 KNOB (OPEN)

24 4-222-792-01 LEVER, DETECTOR

25 4-222-794-01 CLAW, LOCK

26 4-223-583-01 SPRING (OPEN)

27 4-223-609-01 KNOB (JOGGABLE)

The components identified by

mark 0or dotted line with mark

0are critical for safety.

Replace only with part number

specified.

Les composants identifiés par une

marque 0sont critiques pour

la sécurité.

Ne les remplacer que par une piéce

portant le numéro spécifié.

D-MJ95

– 5 – – 6 –

ACCESSORIES & PACKING MATERIALS

********************************

1-251-696-11 CONNECTING PACK, CAR (CPA-11)

1-418-897-11 ROTARY COMMANDER (RM-WMC10)

01-467-195-11 ADAPTOR, AC (AC-E455A) (US,CND,E)

01-473-115-11 ADAPTOR, AC (AC-E455F) (UK)

01-475-969-11 ADAPTOR, AC (AC-E455) (AR)

1-756-035-11 BATTERY PACK (NC-WMAA) (E,AR)

1-756-035-21 BATTERY PACK (NC-WMAA) (UK)

1-756-035-31 BATTERY PACK (NC-WMAA) (US,CND)

01-784-619-71 CORD, CAR BATTERY

3-047-253-11 MANUAL, INSTRUCTION (SPANISH) (E,AR)

3-047-253-21 MANUAL, INSTRUCTION (ENGLISH)

(CND,UK,E,AR)

3-047-253-31 MANUAL, INSTRUCTION (FRENCH) (CND)

3-047-253-41 MANUAL, INSTRUCTION (PORTUGUESE) (E,AR)

3-220-111-11 MANUAL, INSTRUCTION (ENGLISH) (US)

*4-998-554-01 TAPE (A), M (60X12mm)

*4-998-554-11 TAPE (A), M (80X12mm)

*4-998-555-01 TAPE (B), M (80X25mm)

8-953-130-90 HEADPHONE MDR-E805LP (CND,UK,E,AR)

8-953-342-93 HEADPHONE MDR-24 (US)

Sony Corporation

Audio Entertainment Group9-927-921-11 2000E0435-1

Printed in Japan C2000. 5

Published by PE General Engineering Dept.

• Abbreviation

AR : Argentina model

CND : Canadian model

Ref. No. Part No. Description Remark

The components identified by

mark 0or dotted line with mark

0are critical for safety.

Replace only with part number

specified.

Les composants identifiés par une

marque 0sont critiques pour la

sécurité.

Nelesremplacer quepar unepiéce

portant le numéro spécifié.
