SERVICE MANUAL

CFD-S100L

CD RADIO CASSETTE-CORDER

CD player section

System

Compact disc digital audio system

Laser diode properties

Material: GaAlAs

Wave length: 780 nm

Emission duration: Continuous

Laser output: Less than 44.6 µW

(This output is the value measured at a distance of

about 200 mm from the objective lens surface on

the optical pick-up block with 7 mm aperture.)

Spindle speed

200 r/min (rpm) to 500 r/min (rpm) (CLV)

Number of channels

Frequency response

20 - 20,000 Hz +1/–2 dB

Wow and flutter

Below measurable limit

Radio section

Frequency range

FM: 87.5 - 108 MHz

MW:531 - 1,611 kHz (9 kHz step)

530 - 1,610 kHz (10 kHz step)

LW: 153 - 279 kHz

IF FM: 10.7 MHz

MW/LW: 450 kHz

Aerials

FM: Telescopic aerial

MW/LW: Built-in ferrite bar aerial

SPECIFICATIONS

– Continued on next page –

Cassette-corder section

Recording system

4-track 2 channel stereo

Fast winding time

Approx. 120 sec. with Sony cassette C-60

Frequency response

TYPE I (normal): 80 - 10,000 Hz

General

Speaker

Full range: 10 cm dia.,

3.2 ohms, cone type (2)

Outputs

Headphones jack (stereo minijack)

For 16 - 68 ohms impedance headphones

Maximum power output

4.6 W

Power requirements

For CD radio cassette-corder:

230 V AC, 50 Hz

9 V DC, 6 size D (R20) batteries

Power consumption

AC 20 W

Ver 1.0 2003. 02

9-877-016-01

2003B0400-1

Sony Corporation

Personal Audio Company

Published by Sony Engineering Corporation

AEP Model

UK Model

CFD-S100L

1818

T+

T–

F+

F–

SL+

SL–

SP+

SP–

VREF

LD POWER

CONTROLLER

Q701 APC

FIN2

FIN1

LDD

LDS

TIN2

TIN1

VREF

TRACKING

COIL

DRIVE

FOCUS

COIL

DRIVE

TIN

FIN

SLIN

SLED

MOTOR

DRIVE

SPINDLE

MOTOR

DRIVE

SPIN

VREF

OPIN

MUTE

T+

T–

F+

F–

SL+

SL–

SP+

SP–

TRACKING

COIL

FOCUS

COIL

OPTICAL PICK-UP

BLOCK

(KSS-213R)

M702

SLED

MOTOR

M701

SPINDLE

MOTOR

SLED/SPINDLE

MOTOR DRIVER,

TRACKING/FOCUS

COIL DRIVER

IC702

S701

(LIMIT)

EFMIN

HFL

AGC

PH(RFENV)

VREF

CONT1

FSEQ

CONT4

DRF

RES

WRQ

XOUT

XIN

LCHO

RCHO

TDDTD

31 72 25 66 63 61 62 49 4865 64

RF AMP,

SYSTEM SERVO PROCESSOR,

DIGITAL SIGNAL PROCESSOR

IC701

61 63 54 62 55 52 5364

X701

16.93MHz

C-CE

C-DIN

C-CLK

C-WRQ

C-XRT

C-DRF

C-FSEQ

C-DOUT

CD-DOOR CD

BTT-CHK-H

P-CON

AC-CHK

SYSTEM CONTROLLER

IC802 (1/2)

CD +3.3V

REG

Q957-959,D957

BATTERY

CHECK

Q804,806

POWER

CONTROLLER

Q819,D802

AUDIO+6V

REG

Q955,D953

+3.3V REG

IC801

POWER

SWITCH

Q952,953

POWER

SWITCH

Q951

CD 3.3V

CD-CONT

S801

PUSH

OPEN/

3.3V

VDD (SW)

AUDIO 6V

D901 – 904

RECT

F902

T901

POWER

TRANSFORMER

J901

AC IN

Signal path

: CD

CLV,CAV

CONTROL

PLL

VCEC

SWITCH

ERROR

CORRECTION

AUDIO CD

A/D

CONVERTER,

SERVO

PROCESSOR

FRAME SYNC

DETECT,PROTECT

INSERT

EFM DECODER

INTERPOLATION

MUTE

ATTENUATION

DEEMPHASIS

8FS

DIGITAL

FILTER

1-bit DAC

LPF

SLICE

LEVEL

CONTROL

GENERAL

PURPOSE

PORT

COMMAND

INTERFACE

CLOCK

GENERATOR

VREF

CD_IN_R

CD_IN_ L

DRY BATTERY

SIZE " D "

(IEC DESIGNATION R20)

6PCS, 9V

4.5V

D/A

CONVERTER

PH/BH

RADIO 6V

CD 6V

BTT-CHK-M

V-CHECK

FDD

SPDO

SLDO

21 22 23

D951

Q801

BATT COM

VDD

AC-HI

V-COM

(VDD)

D405

OPR/BATT

6-3. BLOCK DIAGRAM — CD SECTION —

(Page 19)

CFD-S100L

19 19

21 22 16

L-CH

R-CH

HRP301

RECORD/PLAYBACK

HEAD

HE301

ERASE HEAD

DET

ALC 2

RADIO L

L.LO

R.LO

LINE

TAPE

R-CH

TU_IN_R

TU_IN_L

TAPE

LOGIC

POWER AMP

IC304

D322

R-CH

SP301

SPEAKER

(L-CH)

SP302

SPEAKER

(R-CH)

J321

REF

L.LINE

L.RO

REC

L.RAD

R.RAD

T301

REC BIAS OSC

Q301

ISS1

TAPE

V-CLK

V-DATA

CD-CONT

26–106 – 9

LIQUID CRYSTAL

DISPLAY PANEL

LCD801

SYSTEM CONTROLLER

IC802 (2/2)

7736 78

DBB

COM0

COM3

S16

EEPROM

IC803

SCL

SAD

MODE CHK

WP/INI

Q813 Q812,D807

VOL

KEY1

KEY2

KEY3

KEY4

Signal path

: FM

: MW

: TAPE PLAY

: TAPE REC

: CD

R-ch is omitted due to same as

L-ch.

REC/PB

PRE AMP

IC301

11 5

MEGA

BASS

CONTROLLER

Q122

14 R.LINE

8R.IN

L.IN

9R.RO

A-MUTE

MUTE

Q124

LEVEL

DETECT

D323

TC-PLAY

TAPE PLAY

DETECT

Q808

REC

-1 -2

S301

(REC/PB)

REC

KEY4

KEY3

KEY1

KEY2

S802

(TAPE PLAY)

M801

CAPSTAN/REEL

MOTOR

CD_IN_R

CD_IN_L

S416-423

S424-427,S412-414

S409-411,S428-432

S401-408

7980

AUDIO 6V

Q302

TU_IN_R

U-COM

(VDD)

VDD (SW)

ISS2

Q303

Q814

KEY NETWORK

VIN2 VOUT2

VOLUME CONTROL

IC302

2 7

LINE

AMP

Q125

VOL AMP

5759 58 56 60

R-LAT

R-CLK

R-DATA

R-COUNT

RST

B-MUTE

TUNER

X802

4.19MHz

RESET

IC804

XT1

XT2

X801

32.768kHz

3.3V

1 2 3 4

11 12 20 19

AM IN

FM IN

XOUT

XIN

MO/ST

IF IN

LPF2/MO-ST

LPF1/BAND

IF-OUT

ST-IND

OSC-OUT

BAND

ST-IND

18 LP-OUT

6MW/LW

OSC

MIX

OSC

AM RF-IN

RF-IN

IF-IN

75kHz

FM/MW/LW PLL

IC2

14 17 13 18

16 15 11

1920

22 4 6

2124

CF4

L1 CT1

RADIO 6V

D1 D2

CT3

CT5

-2

-1

CT3,L3-1

TRACKING

CT5,L3-2

TRACKING

LW FREQUENCY COVERAGE

CT1,L1

TRACKING

FREQUENCY

COVERAGE

ANT1

TELESCOPIC

ANTENNA

BUFFER

DET

IF CUT

BUFFER

MPX MUTE

MW/LW

HIGH

CUT

Q12

IF CUT

R-OUT

L-OUT

RADIO 6V

QUAD

FM/MW/LW FRONT-END, IF AMP,

FM MPX

IC1

RADIO 6V

CF2

RADIO 6V

MW SW

Q41

MW/LW

FERRITE-ROD

ANTENNA

LW SW

Q43

LW SW

Q44

REG

Q61

MW SW

Q42

MW/LW

Q14

RA6V

OSC

MIX-OUT

RF-OUT FM OSC

DET-OUT MPX-IN

VDD (SW)

D324

6-4. BLOCK DIAGRAM — MAIN SECTION —

(Page 18)

CFD-S100L

21 21

IC B/D

C745

R707

CNP701

R701

R702

R703

R704

R705

R706

R712

C751

M702

M701

R744

R743

C741

C733

C732

R724

R709 R710

C703

C704

R711

C743

C731

R708

C708

C742

R741

C740

C709

R726 C729

R731 R720

R719

R722

R727R728

C744

R730

R729

C724

C720

C722

C723

C721 R717

R716

R718

R721

FB701

C717

C735

R715

R714

R723

C728

R725

C702

S701

C730

CNP702

C707

C706

C711

L706

C750

C747

C746

C701

C739

IC702

JC702

JC701

C738

C705

C734

C736

JC703

C727

C726

C725

R732

C755

C754

IC701

X701

C716

Q701

JC704

6-6. SCHEMATIC DIAGRAM — CD SECTION — • Refer to page 20 for Common Note on Schematic Diagrams and page 35 for IC Block Diagrams.

•Voltage and waveforms are dc with respect to ground

under no-signal (detuned) conditions.

no mark : CD PLAY

(Page 25)

IC7014(RF)

500mV/div 0.5µsec/div 2

IC701qd (FE)

100mV/div 20µsec/div 3

IC701qg (TE)

100mV/div 20µsec/div 4

IC701rk (XOUT)

1V/div 0.05µsec/div

0.85±0.2Vp-p

Approx. 100mVp-p Approx. 100mVp-p

1.8V 1.8V 3.2Vp-p

•Waveforms (Mode: PLAY)

16.93MHz

CFD-S100L

23 23

IC B/D

C51 C52

C54

R54

C95

C56

C55

R60R61 R59 R58

JC4

R13

L21

R56

R4 JC5

C60

C68

C66

JC33

C18

JC6

C12

C10 C8C4

R11

C23

C34

C35 C33

C31

R31

C30

R41

C42

C39

R30R32 C80

C37

R50

C22

R24

C20

C11

C32

D11D10

R94

C57

R51

C63

C62

C61

JC34

JC1R10JC2

C29

ANT1 C7 C58

R63

R52

C53

C59

R53

JC23

CF4

CF2

C15C14 C77 C78

JC3

C21

C24

R12C25

R93

R19

R22

R17

R66 C64

C93

JC22

Q14

Q12

CT1

C70 C40

CT3 C49 R40

C43

C44C71C72

R18

C5 C6

R43

Q43

JC24

Q42

R42

Q41 C3

Q44

CT5 C73C48

C45

R16

C46 C2

L3 C41

CNP2

IC1

IC2

R92

Q61

R64

R91

CNP1

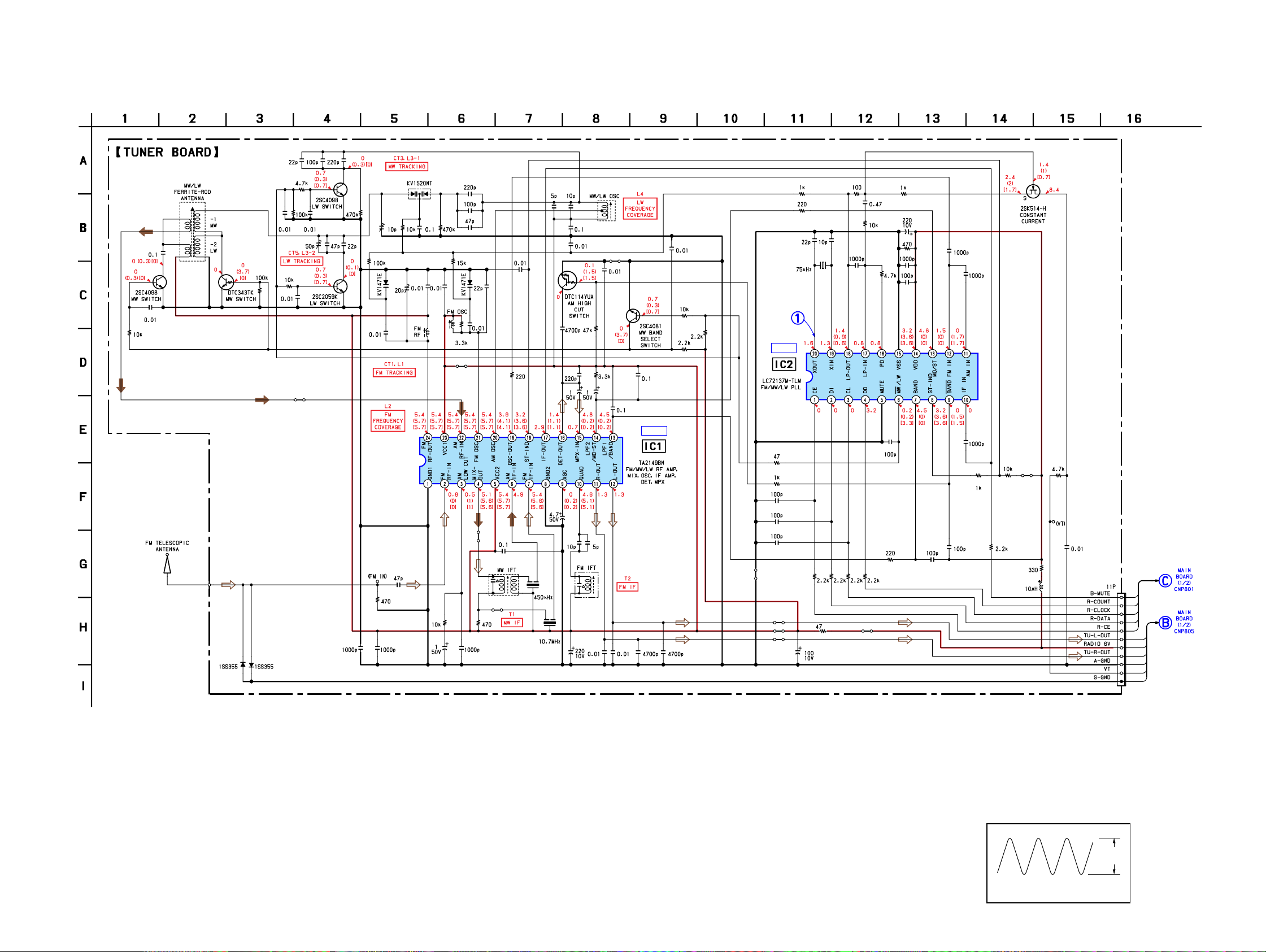

6-8. SCHEMATIC DIAGRAM —TUNER SECTION — • Refer to page 20 for Common Note on Schematic Diagrams and page 36 for IC Block Diagrams.

•Voltage and waveforms are dc with respect to ground

under no-signal (detuned) conditions.

no mark : FM

():MW

[]:LW

(Page 25)

• Waveform

1.5Vp-p

IC2 w; (XOUT)

0.5V/div 5µsec/div

75kHz

CFD-S100L

25 25

IC B/D

R814

Q813

R815

R816

R837

R824

R827

D802

D807

R835 R844

R809

R854

CNP806

R839

R867

Q812

R856

R838

R843

R842

R846

R859

R845 R860

R849

IC801

C802

C816

C817

C815

C814

X802

C839

C271

C820 C822

C824

C821

C171

R818

R899

R898

R897

R896

R895

R894

R893

R892

R891

R890

R889

R888

R887

R886

R880

R881

R882

R883

R884

R885

R866

R833

R831

R830

R829

R828

R825

R848

R847

R817

R834

R826

R823

R819

C803

C804

C806

C807

C808

C809

C810

C805

R821

C832

C831

R803

R802

R807

C800

R877

R805

C812

C818

C819

C813

R836

R832

R850

L802

L801

R808

R810

R812

CNP804

CNP803

C148

C248

C811

CNP801

CNP805

CNP302

KH803

S802

M801

S801

Q804

Q806

Q819

X801

IC804

Q801

Q814

IC803

Q808

C830

R865

JC803

JC802

JC805

JC806

R876

C801

R804

R360

R361

R806

JC807

R870

R862

R861

R855

IC802

R841

R840

JC804

JC309

JC310 JC311

R811

CNP802

R820

R822

R813

6-10. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 20 for Common Note on Schematic Diagrams, page 24 forWaveforms and page 37 for IC Block Diagrams.

•Voltage and waveforms are dc with respect to ground

under no-signal (detuned) conditions.

no mark : FM

():PB

<>:REC

[]:CD PLAY

(Page 21)

(Page 23)

(Page 26)

(Page

26)

(Page 28)

(Page 30)

(Page 32)

CFD-S100L

2626

IC B/D

C324

C230

C231

C232

R244

KH321

C132

C131

C130

R144

D323

R323

C323

IC304

C322

C129

C229

C325

R951

C952

C953

C951

C331

R240

R140

R127

C133

R227

D322

C233

C957

C959

C326

D324

R333

CNP323

J321

R232

R132

Q952

R322

R955 R954

R148

R128

R125 R149

R225 R249

C126

C125

C225 C226

Q124 Q224 R230

C228

C128

R130

R231

R131

R324

KH301 CNP322

Q958

D957

Q957

Q955

D953

R952

R953

R956

R957

R325

Q122

Q222

SP301

SP302

Q959

R302

C301

JC801

C122 C222

R245

C206 R246

R330

R329

JC308

C134

R145

R146

Q125

R147

R247

C330

C350

C352

C321

C234

Q225

C106

R328

R334

R301

JC306

Q953

JC304

JC305

C960

R248

R228

IC302

JC307

JC302

JC303

R958

R959

R226 C224

R126 C124

Q951

R960

R961

R962

R963

D951

PS301

6-11. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 20 for Common Note on Schematic Diagrams and page 37 for IC Block Diagrams.

•Voltage is dc with respect to ground under no-signal

(detuned) condition.

no mark : FM

():PB

<>:REC

[]:CD PLAY

(Page 34)

(Page 25)

CFD-S100L

2828

IC B/D

R301

C301

R110 R101

C302

C205R201

R210

HRP301

HE301

R106

R206

R302

R303

R304

R309

C303

C304

R306

R111

R211

R203R202

R103

R102

R308

C105

C103

C203

C306

C107

C207

C305

T301

C102

R104

R112

C104

R212

R204

C202

C201

C204

IC301

JC302

JC306

JC308

JC305

JC307

JC301

JC303

JC304

R314 R315

C310 C308

R311R310

Q301

R307C307

R305

Q303Q302

JC309

CN303

C101

R105

R205

•Voltage and waveforms are dc with respect to ground

under no-signal (detuned) conditions.

no mark : FM

():PB

<>:REC

[]:CD PLAY

6-13. SCHEMATIC DIAGRAM —TC SECTION — • Refer to page 20 for Common Note on Schematic Diagrams and page 37 for IC Block Diagrams.

(Page 25)

• Waveforms

4Vp-p

Q301 C(REC)

0.1V/div 5µsec/div

19.5µsec

T301, HRP301 (YEL)

10V/div 5µsec/div

40Vp-p

19.5µsec

CFD-S100L

3030

R404

R406

R407

R409

R410

R403

R405

R408

R411

R412

R413

R414

R423

R424

R425

R426

R427

CNP401 CNP402

S427

S425

S424S409

S410

S411

S403

S404

S405

S406

S407

S408

R401

R402

S401

S402

JC402

JC401

CNP405

CNP404

CNP403

6-15. SCHEMATIC DIAGRAM — CONTROL SECTION — • Refer to page 20 for Common Note on Schematic Diagrams.

(Page 25)

CFD-S100L

3232

R448 R445

R444

R443

D405

CNP406

LCD801

KH401KH402

S423 S422 S421 S420 S419 S418 S417 S416

S414 S413 S412

R446

R429 R428R430R431R433 R432

R456R457 R455 R454 R453 R452 R451 R450 R436 R435 R434

R437

R438

R449

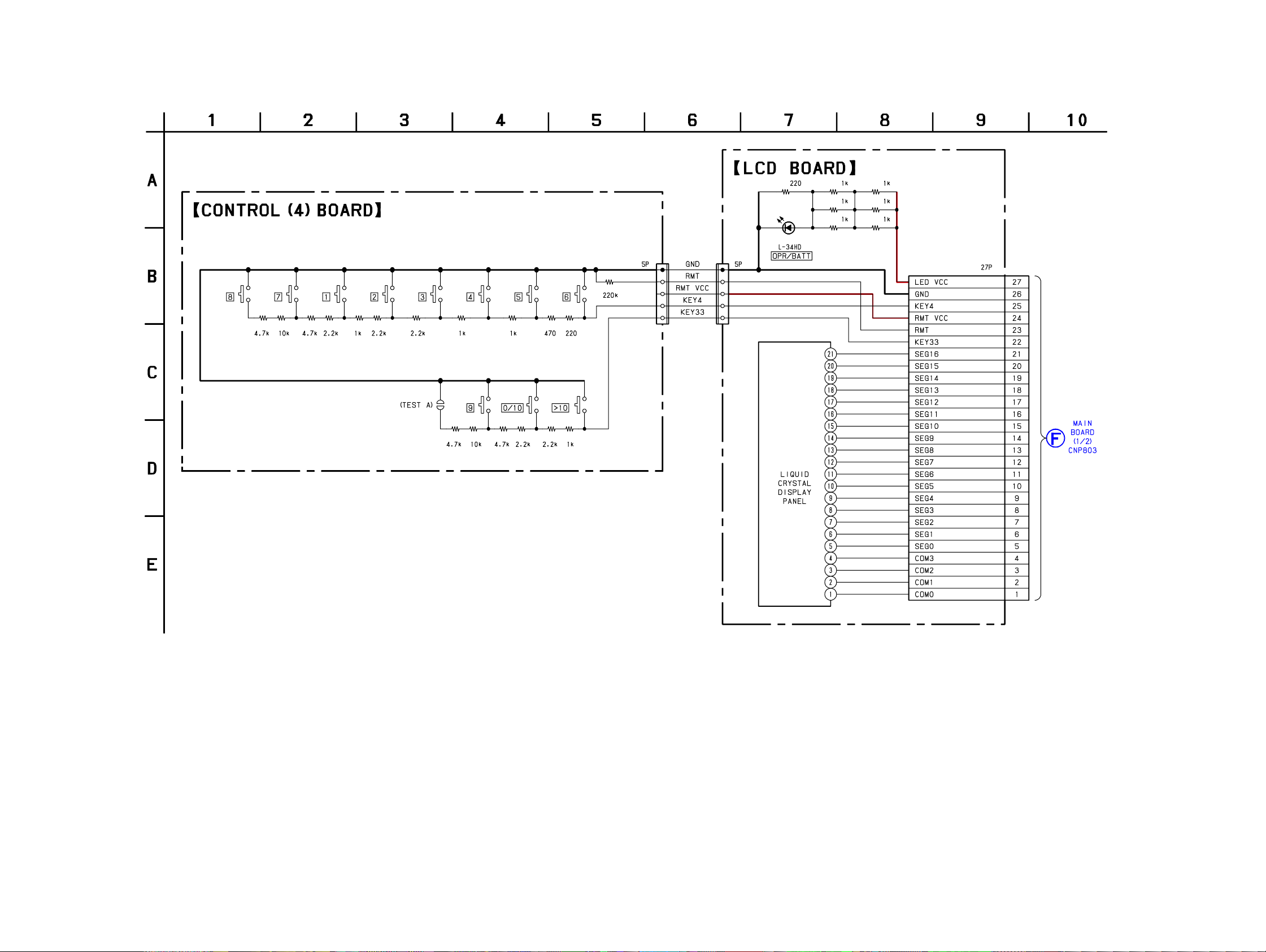

6-17. SCHEMATIC DIAGRAM — DISPLAY SECTION — • Refer to page 20 for Common Note on Schematic Diagrams.

•Voltage is dc with respect to ground under no-signal

(detuned) condition.

no mark : FM

(Page 25)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reproductor de CD de Sony

Sony

Sony CFD-V35 - Cd Radio Cassette-corder Manual de usuario

Sony

Sony CFDG700CP - Xplod Boombox Manual de usuario

Sony

Sony CFD-RG880CP Manual de usuario

Sony

Sony CFD-F10 - Cd Radio Cassette-corder Manual de usuario

Sony

Sony DVP-FX1021 - Portable Dvd Player Manual de usuario

Sony

Sony Walkman D-EJ785 Manual de usuario

Sony

Sony DNE330 - Walkman Cd MP3 Atrac Player Manual de usuario

Sony

Sony CDX-705 - Compact Disc Changer System Manual de usuario

Sony

Sony D-NE10 - Atrac Cd Walkman Guía de inicio rápido

Sony

Sony CDP-M333ES - Es 400 Disc Cd Changer Manual de usuario

Sony

Sony CDP-970 Manual de usuario

Sony

Sony CDPCX455 - 400 Disc MegaStorage CD Changer Manual de usuario

Sony

Sony CDX-R5715X - Fm/am Compact Disc Player Manual de usuario

Sony

Sony CDX-T67 Operating Instructions (English Manual de usuario

Sony

Sony D-FJ75TR - Fm/am Portable Cd Player Manual de usuario

Sony

Sony CDX-GT340 Manual de usuario

Sony

Sony CDP-CX88ES - Es 200 Disc Cd Changer Manual de usuario

Sony

Sony Walkman D-FJ041 Manual de usuario

Sony

Sony D-EJ715 - Portable Cd Player Manual de usuario

Sony

Sony CDX-1150 - Compact Disc Player Manual de usuario

Sony

Sony CDX-M800 Manual de usuario

Sony

Sony CDX-530RF - Compact Disc Changer System Manual de usuario

Sony

Sony Walkman D-NF421 Manual de instrucciones

Sony

Sony DVP-SR200P Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Philips

Philips AZ1207 Manual de usuario

Philips

Philips CD582 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Philips

Philips Expanium AZ 1538 Manual de usuario

Rotel

Rotel RCD 975 Manual de usuario

Pioneer

Pioneer CLD-D790 Manual de usuario
