CFD-RG880CP

SPECIFICATIONS

CD RADIO CASSETTE-CORDER

9-889-387-01

2009A04-1

E Model

East European Model

Russian Model

Ver. 1.0 2009.01

Section

Model Name Using Similar Mechanism CFD-G700CP/G770CP/G770CPK

CD Mechanism Type KSM-213CDP/C2NP

Optical Pick-up Name KSS-213C

TAPE

Section

Model Name Using Similar Mechanism CFD-G505

Tape Transport Mechanism Type MF-G505V

CD player section

System

Compact disc digital audio system

Laser diode properties

Emission duration: Continuous

Laser output: Less than 44.6 μW

(This output is the value measured at a distance of

about 200 mm from the objective lens surface on the

optical pick-up block with 7 mm aperture.)

Number of channels

Frequency response

20 - 20 000 Hz +1/–2 dB

Wow and ﬂutter

Below measurable limit

Radio section

Frequency range

MX model:

FM: 87.5 - 108 MHz

AM: 530 - 1 710 kHz

BR, CET, E41, E92 model:

FM: 87.5 - 108 MHz

AM: 531 - 1 611 kHz (9 kHz step)

530 - 1 610 kHz (10 kHz step)

Antennas

FM: Telescopic antenna

AM: Built-in ferrite bar antenna

Cassette-corder section

Recording system

4-track 2 channel stereo

Fast winding time

Approx. 150 s (sec.) with Sony cassette C-60

Frequency response

TYPE I (normal): 70 - 13 000 Hz

USB section

Supported bit rate

MP3 (MPEG 1 Audio Layer-3):

32 - 320 kbps, VBR

WMA:

16 - 320 kbps, VBR

Sampling frequencies

MP3 (MPEG 1 Audio Layer-3):

32/44.1/48 kHz

WMA:

32/44.1/48kHz

(USB) port

USB-A (Full Speed)

– Continued on next page –

J O M I

CFD-RG880CP

2525

SECTION 7

DIAGRAMS

7-1. BLOCK DIAGRAM – CD Section –

A IN

RF OUT

2 1

C IN

B IN

D IN

E IN

RF SIGNAL PROCESSOR EFMIN

RF OUT

F IN

LDLD

TD+

TD–

SL+

SL–

FD+

FD–

–

LDO

APC

LDS

VREF

D DO

D DI

D CL

D CE

D RESB

USB-TXD

USB-RXD

SLEEP

VBUS

+5V

MUTE

LD POWER

CONTROLLER

Q701

TRACKING

COIL

DRIVE

SERVO

CONTROL

8FS

DIGITAL

FILTER

1-bit DAC

SYNCHRONIZATION

DETECTION

EFM DEMODULATION

OPTICAL PICK-UP

BLOCK

(KSM-213CDP)

SLED/SPINDLE

MOTOR DRIVER,

TRACKING/FOCUS

COIL DRIVER

IC703

SYSTEM SERVO PROCESSOR,

DIGITAL SIGNAL PROCESSOR

IC701

SYSTEM CONTROL

IC801 (1/4)

TRACKING

COIL

FOCUS

COIL

M702

(SLED)

24 25

FOCUS

COIL

DRIVE

SLED

MOTOR

DRIVE

SPINDLE

MOTOR

DRIVE

SP+

I-CD LID

SP–

–

M701

(SPINDLE)

S701

(LIMIT)

TDO

FDO

SLDO

SPDO

CONT3

D RESB

D CE

D CL

D DI

D DO

93 94 867

M-MUTE

O-CD RES

O-CD CE

O-CD CLK

O-CD DO

I-CD DI

USB-RXD

10091

USB-TXD

O-SW EN

I-SW FLG

SW2

PUSH

OPEN/

;

VBUS +5V

CONTROL

IC704

XOUT

XIN

73 72

X701

16.9344MHz

CLOCK

GENERATOR

MCU I/F

LCHO 76

RCHO 78

STREQ 54

UHD+ D+

UHD– D–

STCK 55

STDATA 56

PCMREQ 65

PCMLRSY 62

PCMBCK 63

PCMDATA 64

P70/INT0/TOLCP/AN8

P24/INT5/INT7/SCK4

P22/INT4/SO4/RD

P23/INT4/SI4/WR

P07/AN7/T70

P06/AN6/T60

P05/AN5/CK0/SDAT

CD L-CH

RCH

RES

P16/T1PWML/DE

P12/SCK

P71/INT1/TOHCP/AN9

P30/UTX1

P31/URX1

P10/SO

P11/SI

X702

12MHz

USB I/F

IC702

J1001

(USB)

CF2

CF1

AMAIN

SECTION

: USB

: CD

• Signal Path

• R-CH is omitted due to same as L-CH.

(Page 27)

J O M I

CFD-RG880CP

2626

7-2. BLOCK DIAGRAM – TUNER Section –

O-TU-CE

O-TU-CLK

O-TU-DATA

I-TU-COUNT

SYSTEM CONTROL

IC801(2/4)

FERRITE-ROD

ANTENNA

D11 D10

MIX

FM RF IN

FM RF OUT

FM OSC

AM RF IN

AM OSC

OSC

MIX

OSC

OUT

MIX OUT

BUFFER

CF2

CF4

FM IF-IN

AM IF-IN

MPX

FM/AM

BUFFER

DET

15 B

DET OUT

MUTE 12

11 R-CH

FM/AM FRONT-END

IF AMP,DET,FM MPX

23 5

RADIO 6V

QUAD VCC1 VCC2

MAIN

SECTION

14 13

MO/ST

BAND

FM/AM PLL

IC2

FM IN

AM IN

VDD

XOUT

XIN

IF IN

MO/ST

75kHz

D909

U-COM(VDD)

TU LCH

RADIO 6V

CT1

RADIO 6V

CT3

RADIO 6V

ANTENNA

TELESCOPIC

IC1

18 LP OUT

16 PD

ST IND

BAND

IFOUT

MPX-IN

O-TU-MUTE

RADIO 6V

ANT1

17 LP IN

CT1,L1

TRACKING

FREQUENCY

COVERAGE

CT3,L3

TRACKING

FREQUENCY

COVERAGE

AM IF

FM IF

MUTE

SWITCH

Q833

: FM

: AM

• Signal Path

• R-CH is omitted due to same as L-CH.

(Page 27)

J O M I

CFD-RG880CP

2727

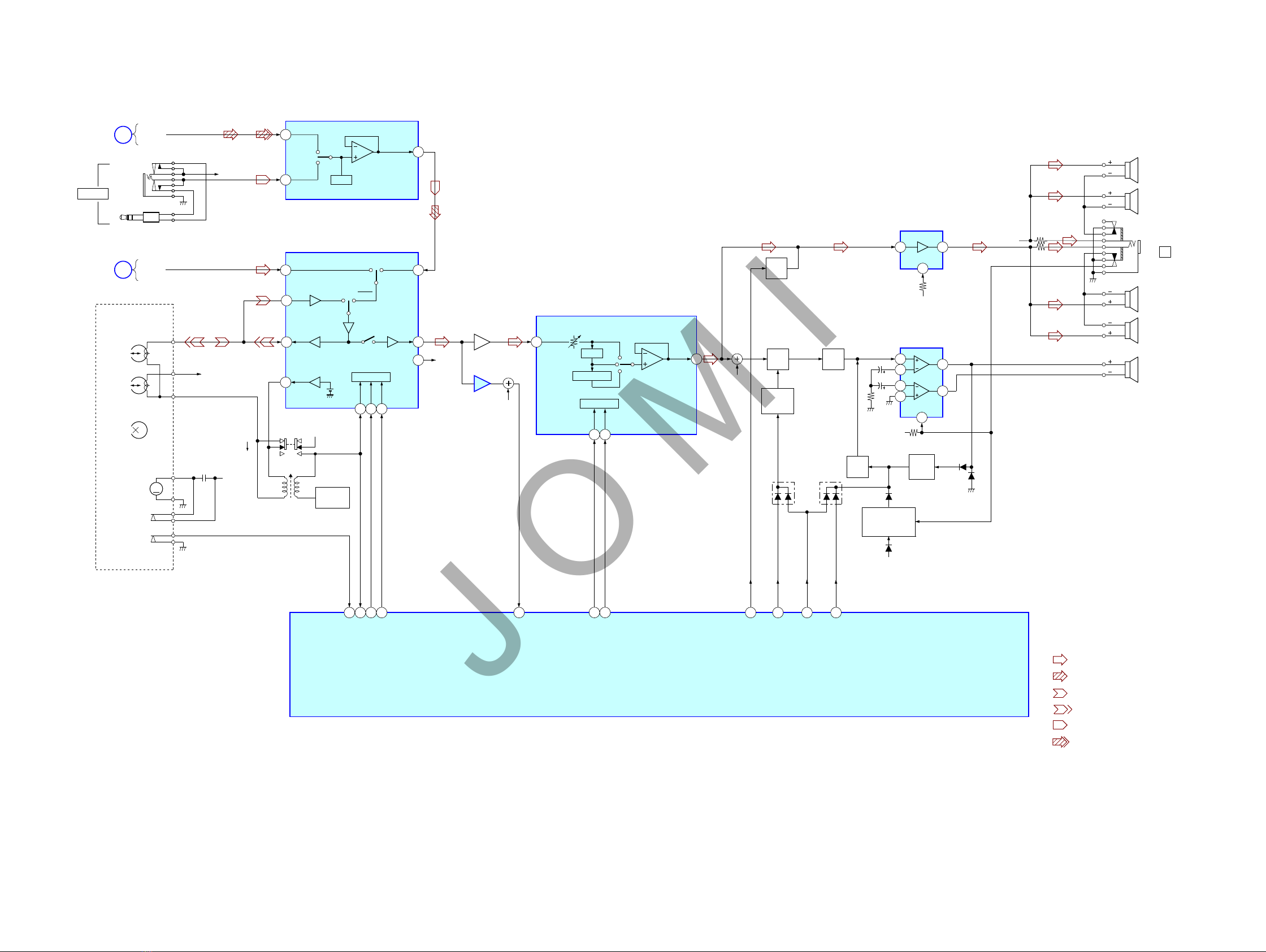

7-3. BLOCK DIAGRAM – MAIN Section –

TUNER

SECTION

CD L-CH

R-CH

RECORD/PLAYBACK

HEAD

HRP301

HE301

ERASE HEAD

R-CH

L-CH

REC BIAS

OSC

Q301

REC/PB PRE AMP

IC301

1521

REC

TAPE

L.LINL.RAD

PB AMP

26dB

2422

L.LO

TAPETAPE

T301

MUTE

Q101

AMP

Q301

AGC

DRIVE

Q304

STBY

POWER AMP

IC303

R-CH J391

SPEAKER (L-CH)

SPEAKER (R-CH)

O-VOL-DATA

O-A-MUTE

O-TAPE

TAPE REC

SYSTEM CONTROL

IC801(3/4)

S301

REC/PB

REC AMP

AMP

BUFFER 7dB

I-TAPE PLAY

M971

CAPSTAN/REEL

MOTOR

S972

MOTOR

S971

PLAY

SECTION

LINE

O-CD-SW

I-SPOUT-VOLTAGE

R.LO

6REF

IN L1

IN L2

SEL1 L

OUT1 L

3MUTE

VOL1 L

R-CH

Q160

IC351

SDA

SCL

SOUND/VOLUME

IC301 (2/2)

INPUT SELECT

IC301 (1/2)

O-VOL-CLK

AGC

Q306

D303 D304

D307

D308

VDD(SW)

13 3

11 5

STBY

WOOFER AMP

IC302

WOOFER ON/OFF

WOOFER 1/2

SP191

SP291

SP393

WOOFER

AU 6V

BUZZER (R-CH)

SP292

BUZZER (L-CH)

SP192

REC

LPF

Q303

HEADPHONE

DETECT SWITCH

Q305

GAIN

CONTROL

Q302

D305

D306

AUDIO +6V

TC+9V

J372

CNP2

AUDIO IN

L.IN

L.RO

TAPE MECHANISM DECK

TONE

SURROUND

MCU I/F

LOGIC

O-P-MUTE

R-CH

TU L-CH

: FM

: CD

• Signal Path

• R-CH is omitted due to same as L-CH.

: TAPE PLAY

: TAPE REC

: LINE IN

: USB

(Page 25)

(Page 26)

J O M I

CFD-RG880CP

2828

7-4. BLOCK DIAGRAM – POWER Section –

VDD+3.3VLCD+3.3V

U-COM(VDD)

VDD(SW)

VDD+3.3V

VBUS

+5V

L901

VBUS+5V

REG

IC901

F982

BATT

F981

120-127V

F983

BR MODEL

EXCEPT

BR MODEL

220-230V

D981—984

RECT

T981

POWER

TRANSFORMER

DRY BATTERY

SIZE "D"

(IEC DESIGNATION R20)

8PCS, 12V

D906

+3.3V

(CD)

CONT

O-POWER

I-KEY0

I-RES

CD3.3V CHK

O-5V-ON

I-REG 6.2V-CHK

CD+3.3V

REG

Q912

RESET

IC803

VDD+3.3V SWITCH

Q804,805

POWER

PROTECT

SWITCH

Q901

TC+9V

CD/RADIO

/LED+6.2V

AUDIO+6V

VDD+3.3V REG

IC804

VOUT

2VIN 1

J981

AC IN

S981

VOLTAGE SELECTOR

D903D902

I-VH-CHK

SYSTEM CONTROL

IC801 (4/4)

O-LCD INH

O-LCD CE

O-LCD SCL

O-LCD DATA

EPROM SCL

EPROM SDA

CD/RADIO

/LED+6.2V

BACK LIGHT H

BACK LIGHT L

AC CHECK

Q808

D601,602

LCD

BACK

LIGHT

EEPROM

IC802

CLOCK

SHIFT

SWITCH

Q802,803

FUNCTION

SWITCH

S401-426

X802

10MHz

WAKE UP

SWITCH

Q801

LED DRIVE

Q817-832

BACK LIGHT

LED CONTROL

SWITCH

Q809-812

DISPLAY CONTROL

IC601

I-RMC

INH

SEG1

SEG34

COM1

COM14

USB LED

USB REC LED

462

563

364

CF1

SCL

SDA

CF2 16

O-CLOCK SHFT2

O-CLOCK SHFT1

I-AC CHECK 88

REMOTE CONTROL

SIGNAL RECEIVER

IC602

LCD601

LIQUID

CRYSTAL

ELEMENT

I-KEY1

WOOFER LED1

WOOFER LED

POWER CONTROL

SWITCH

Q813-816

WOOFER LED2

I-KEY2

I-KEY3

I-KEY4

I-WAKE UP

LED1

LED2

LED3

LED4

LED5

LED6

LED7

LED8

46 47 48 49 50 51 52 53

POWER

SWITCH

Q903,904

CD+6V

REG

Q906

TC+9V

REG

Q905

VDD+3.3V

SWITCH

Q806,807

AU+6V

REG

Q907

D604

VDD(SW)

D603

VDD(SW)

OPR/BATT

CD/RADIO

/LED+6.2V

CD/RADIO

/LED+6.2V

USB LED

DRIVE

Q401-404

D409

USB REC

D410

D401-408

(ILLUMINATION)

USB PLAY

JW987,

988

JW985,

986

• Abbreviation

BR: Brazilian model

J O M I

CFD-RG880CP

3232
