Welcome !

Thank you for purchasing the Sony Compact

Disc Player. This unit lets you enjoy a variety

of features. You can use an optional rotary

remote (RM-X2S).

Table of Contents

Additional Information

Precautions ........................................................... 9

Maintenance......................................................... 9

Dismounting the unit ....................................... 10

Attaching the label to the rotary remote ........ 10

Location of controls .......................................... 11

Specifications ..................................................... 12

Troubleshooting guide ..................................... 13

Index ................................................................... 14

Getting Started

Resetting the unit ................................................ 4

Detaching the front panel .................................. 4

Setting the clock .................................................. 5

CD Player

Listening to a CD ................................................ 5

Playing a CD in various modes ........................ 6

Radio

Memorizing stations automatically

— Automatic Memory .................................. 6

Memorizing only the desired stations ............. 7

Receiving the memorized stations.................... 7

Other Functions

Adjusting the sound characteristics ................. 8

Muting the sound................................................ 8

Changing the sound and beep tone ................. 8

Turning on the clock display

— Power Select Function .............................. 8

Getting Started

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Press the reset button with a pointed object,

such as a ball-point pen.

Notes

•Pressing the reset button will erase all the memorized

program and memory functions.

•When you connect the power supply cord to the unit or

reset the unit, wait for about 10 seconds before you insert

a disc. Do not insert a disc within these 10 seconds,

otherwise, the unit will not be reset, and you will have to

press the reset button again.

Detaching the front panel

You can detach the front panel of this unit to

prevent the unit from being stolen.

1Press (OFF).

2Press (RELEASE) to open up the front

panel. Then slide the front panel a little

to the left, and pull it off towards you.

Notes

• Be sure not to drop the panel when detaching it from the

unit.

•If you press (RELEASE) to detach the panel while the

unit is still on, the unit will turn off automatically to

prevent the speakers from being damaged.

•When you carry the front panel with you, put it in the

supplied front panel case.

Attaching the front panel

Align part Aof the front panel to part Bof

the unit as illustrated, and push until it clicks.

Notes

• Be sure not to attach the front panel upside down.

•Do not press the front panel hard against the unit when

attaching it. Press it lightly against the unit.

•Do not press hard or put excessive pressure on the

display window of the front panel.

•Do not expose the front panel to direct sunlight, heat

sources such as hot air ducts, and do not leave it in a

humid place. Never leave it on the dashboard of a car

parked in direct sunlight where there may be a

considerable rise in temperature.

Caution alarm

If you turn the ignition key switch to the OFF

position without removing the front panel, the

caution alarm will be activated and a beep tone

will be heard for a few seconds (only for cars

with an accessory position on the ignition key

switch). If you connect an optional power

amplifier and do not use the built-in amplifier,

the beep tone will be disabled.

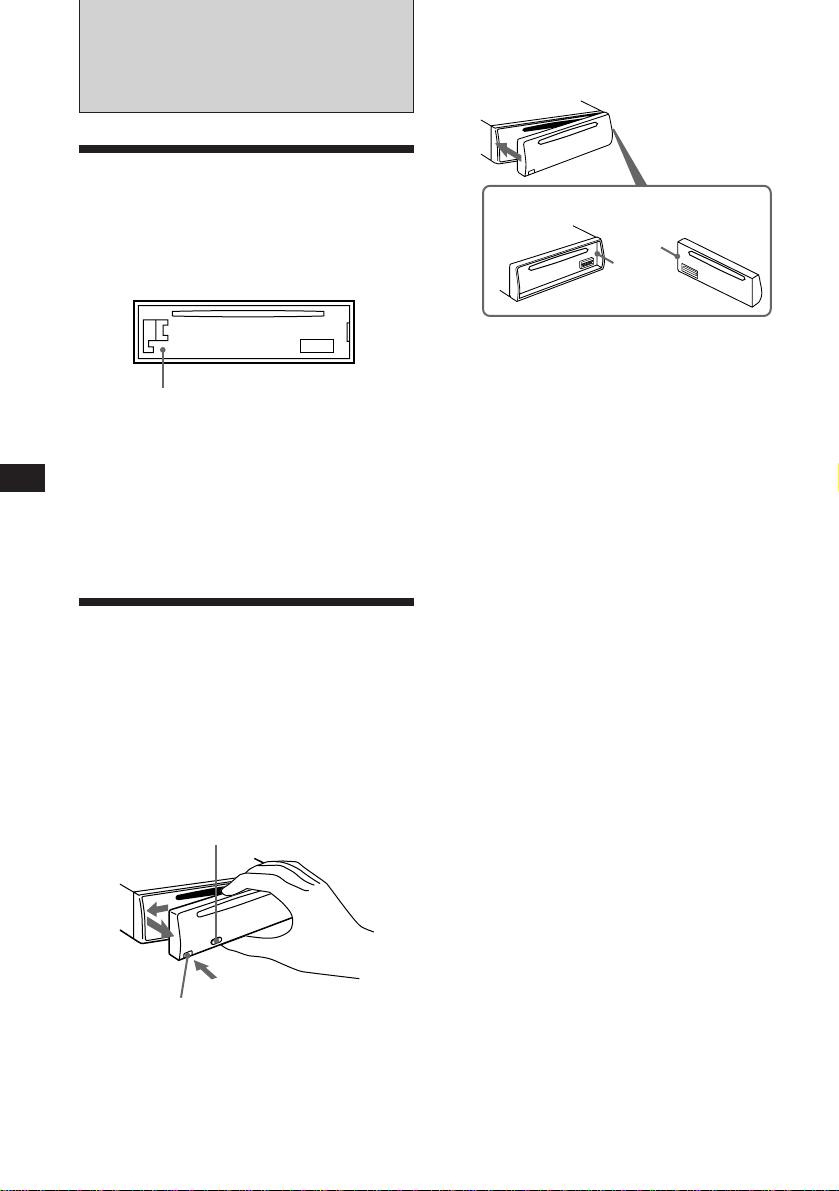

Reset button

(OFF)

(RELEASE)

Getting Started/CD Player

Labelled side up

Setting the clock

The clock has a 12-hour digital indication.

Example: Set the clock to 10:08

1Press (OFF) or (DSPL) during operation.

2Press (DSPL) for two seconds.

The hour digit flashes.

1Set the hour digits.

2Press (SEL) momentarily.

The minute digits flash.

3Set the minute digits.

3Press (DSPL) momentarily.

The clock is activated.

Note

If the car has no accessory position on the ignition key

switch, the clock cannot be set unless the power is turn on.

Set the clock after you have turned on the radio, or started

CD playback.

100

1000

1008

To locate succeeding tracks

To locate preceding tracks

SEEK

AMS

To go forward

To go back

To go forward

To go back

215

MIN SEC

Elapsed playing time

CD Player

Listening to a CD

Simply insert the CD.

Playback starts automatically.

If a CD is already inserted, press (SOURCE)

repeatedly until “CD” appears.

Note

To play back an 8 cm CD, use the optional Sony compact

disc single adapter (CSA-8).

To Press

Stop playback 6or (OFF)

Eject the CD 6

Changing the displayed items

Each time you press (DSPL), the item changes

as follows:

zElapsed playing time zTrack number

Time Z

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, press either side of

(SEEK/AMS) momentarily.

Locating a specific point in a track

— Manual Search

During playback, press and hold either

side of (SEEK/AMS) for two seconds.

Release the button when you have

found the desired point.

Note

If “_ _ ” or “ _ _” appears in the display, you have

reached the beginning or the end of the disc and you cannot

go any further.

Playing a CD in various

modes

Searching for the desired track

— Intro Scan

Press (1) during playback.

“INTRO” appears in the display.

The first 10 seconds of all the tracks are played.

When you find the desired track, press again.

The unit returns to the normal playback mode.

Playing tracks repeatedly

— Repeat Play

Press (2) during playback.

“REPEAT” appears in the display.

When the currently played track is over, it will

be played again from the beginning.

To cancel this mode, press again.

Playing tracks in random order

— Shuffle Play

Press (3) during playback.

“SHUFFLE” appears in the display.

To cancel this mode, press again.

SEEK

AMS

To search forward

To search backward

”FMI ” FMII ” FMIII ” AM

Radio

Memorizing stations

automatically

— Automatic Memory

Stations with the clearest reception are

automatically searched and memorized on

each band (FMI, FMII, FMIII and AM). Up to 6

stations on each band can be stored on the

number buttons ((1) to (6)) in the order of

band frequency.

1Press (SOURCE) repeatedly to select the

tuner.

Each time you press (MODE), the mode

changes as follows:

CD ˜TUNER

2Press (MODE) repeatedly to select the

band.

Each time you press (MODE), the mode

changes as follows:

3Press (A.MEM) for two seconds.

The unit will be starts scanning the selected

band and memories the tuned stations on

the number button (1) through (6)

automatically.

Notes

•The unit does not store stations with weak signals. If

only a few stations are received, some number buttons

remain empty.

•When a number is indicated in the display, the unit

starts storing stations from the one currently displayed.

•If a CD is not in the unit, only the tuner band appears

even if you press (SOURCE).

Memorizing only the

desired stations

You can store up to 6 stations on each band (18

for FMI, FMII and FMIII, 6 for AM) in the

order of your choice.

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Press either side of (SEEK/AMS) to tune

in the station that you want to store on

the number button.

4Press the desired number button ((1) to

(6)) for two seconds until “MEM”

appears.

The number button indication appears in

the display.

Note

If you try to store another station on the same number

button, the previously stored station will be erased.

Receiving the memorized

stations

1Select the desired band (page 6).

2Press the number button ((1) to (6))

momentarily where the desired station is

stored.

If you cannot tune in a preset

station

Press either side of (SEEK/AMS)

momentarily to search for the station

(automatic tuning).

Scanning stops when the unit receives a

station. Press either side of (SEEK/AMS)

repeatedly until the desired station is

received.

Note

If the automatic tuning stops too frequently, press

(SENS) momentarily until “LCL” appears in the display

(local seek mode). Only the stations with relatively strong

signals will be tuned in.

CD Player/Radio

Tip

If you know the frequency of the station you want to listen

to, press and hold either side of (SEEK/AMS) for two

seconds until the desired frequency appears (manual

tuning).

If FM stereo reception is poor

— Monaural Mode

Press (SENS) momentarily until “MONO”

appears.

The sound improves, but becomes

monaural (“ST” disappears).

To go back to the normal mode, press again

until “MONO” disappears.

Changing the displayed items

Each time you press (DSPL), the items

alternate between the frequency and time.

Other Functions

Adjusting the sound

characteristics

You can adjust bass, treble, balance and fader.

Each source can store the bass and treble level

independently.

1Select the item you want to adjust by

pressing (SEL) repeatedly.

VOL (volume) nBAS (bass) nTRE (treble)

nBALANCE (balance) nFADER (fader)

2Adjust the selected item by pressing (+)

or (–).

Adjust within three seconds after selecting

the item. (After three seconds, the buttons

work as volume control buttons.)

Muting the sound

Press (MUTE).

“MUTE” flashes.

To restore the previous volume level, press

(MUTE) again.

Changing the sound and

beep tone

Boosting the bass sound — D.bass

You can enjoy clear and powerful bass sound.

The D-bass function boosts the low frequency

signal with a sharper curve than conventional

bass boost.

You can hear the bass line more clearly even if

the vocal sound is the same volume. You can

emphasize and adjust the bass sound easily

with the D-bass control. This effect is similar to

the one you get when you use an optional

subwoofer system.

Moreover, the Digital D-bass*function creates

even sharper and more powerful bass sound

than Analog D-bass.

*Digital D-bass is available during CD playback.

Digital D-BASS Analog D-BASS

Level

0dB

D-BASS 3

D-BASS 2

D-BASS 1

0dB

D-BASS 3

D-BASS 2

D-BASS 1

Frequency (Hz)Frequency (Hz)

Adjusting the bass curve

Turn the D-BASS dial to adjust the bass

level (1, 2 or 3).

“D-BASS” appears in the display.

During CD playback, “DIGITAL D-BASS”

appears in the display.

To cancel, turn the dial to the OFF position.

Muting the beep tone

Press (6) while pressing (SEL).

To obtain the beep tone again, press these

buttons again.

Note

If you connect an optional power amplifier and do not use

the built-in amplifier, the beep tone will be disabled.

Turning on the clock

display— Power Select Function

Only for cars with an accessory position on the

ignition key switch

To turn the Power Select Function ON

Press (OFF) while pressing (SEL).

The Power Select Function ties the clock

display power to the accessory position on

the ignition key switch.

To avoid battery wear, the clock is not

displayed while the unit is initializing.

Note

You cannot operate this function with the optional rotary

remote (RM-X2S).

Other Functions/Additional Information

Before playing, clean the discs with an

optional cleaning cloth. Wipe each disc from

the center out.

Do not use solvents such as benzine, thinner,

commercially available cleaners or antistatic

spray intended for analog discs.

Notes on moisture condensation

On a rainy day or in a very damp area,

moisture may condense on the lenses inside

the CD player. Should this occur, the unit will

not operate properly. In this case, remove the

disc and wait for about an hour until the

moisture evaporates.

When you play 8 cm CDs

Use the optional Sony compact disc single

adapter (CSA-8) to protect the CD player from

being damaged.

Maintenance

Fuse replacement

When replacing the fuse, be sure to use one

that matches the amperage described on the

fuse. If the fuse blows, check the power

connection and replace the fuse. If the fuse

blows again after replacement, there may be

an internal malfunction. In such a case, consult

your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating

exceeding the one supplied with the unit as

this could damage the unit.

Fuse (10 A)

Additional

Information

Precautions

• If your car was parked in direct sunlight

resulting in a considerable rise in

temperature inside the car, allow the unit to

cool off before operating it.

• If no power is being supplied to the unit,

check the connections first. If everything is in

order, check the fuse.

• If no sound comes from the speakers of a

two-speaker system, set the fader control to

the center position.

•If your car is equipped with a power

antenna, note that it will extend

automatically while the unit is operating.

If you have any questions or problems

concerning your unit that are not covered in

this manual, please consult your nearest Sony

dealer.

Notes on handling CDs

A dirty or defective disc may cause sound

dropouts while playing. To enjoy optimum

sound, handle the disc as follows.

Handle the disc by its edge. To keep the disc

clean, do not touch the surface.

Do not stick paper or tape on the labeled

surface.

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave

them in a car parked in direct sunlight where

there can be a considerable rise in the

temperature inside the car.

Attaching the label to the

rotary remote

You can control this unit with the optional

rotary remote (RM-X2S).

Several labels are supplied with the rotary

remote. Attach the label that matches the

functions of this unit and the mounting

position of the rotary remote.

After you mount the rotary remote, attach the

label in the illustration below.

SEL

DSPL

MODE

SEL

DSPL

MODE

Release key

(supplied)

Cleaning the connectors

The unit may not function properly if the

connectors between the unit and the front

panel are not clean. To prevent this, open the

front panel by pressing (RELEASE), then

detach it and clean the connectors with a

cotton swab dipped in alcohol. Do not apply

too much force. Otherwise, the connectors may

be damaged.

Main unit

Back of the front panel

Dismounting the unit

Tabla de contenidos

Otros manuales de Reproductor de CD de Sony

Sony

Sony CFD ZW755 - Portable CD / Cassette Manual de usuario

Sony

Sony Walkman D-NE320SP Manual de usuario

Sony

Sony QUALIA 007 Manual de usuario

Sony

Sony SCD-XE597 Manual de usuario

Sony

Sony Discman D-T401 Manual de usuario

Sony

Sony MDP-500 - Cd Cdv Ld Player Guía del usuario

Sony

Sony CD Walkman D-EJ2000 Manual de usuario

Sony

Sony D-EJ1000 - Portable Cd Player Manual de usuario

Sony

Sony CDP-XE400 - Compact Disc Player Manual de usuario

Sony

Sony CDX-600 - Compact Disc Changer System Manual de usuario

Sony

Sony SCD-X501ES Manual de usuario

Sony

Sony Walkman D-E775 Manual de usuario

Sony

Sony CDX-GT25MPW - Fm/am Compact Disc Player Manual de usuario

Sony

Sony CDP-CX151 Manual de usuario

Sony

Sony CFD-922L Manual de usuario

Sony

Sony CDX-4000X - Fm/am Compact Disc Player Guía del producto

Sony

Sony CFD-G70 - Cd Radio Cassette-corder Manual de usuario

Sony

Sony CDX-505RF/EXCD-3RF Manual de usuario

Sony

Sony CDX-705 - Compact Disc Changer System Manual de usuario

Sony

Sony XDCAM PDW-HD1200 Manual de usuario

Sony

Sony CD Walkman D-E551 Manual de usuario

Sony

Sony D-NE710 - ATRAC3/MP3 CD Walkman Portable Disc... Manual de usuario

Sony

Sony Walkman D-EJ721 Manual de usuario

Sony

Sony HCR-DR7AV Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Philips

Philips AZ1207 Manual de usuario

Philips

Philips CD582 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Philips

Philips Expanium AZ 1538 Manual de usuario

Rotel

Rotel RCD 975 Manual de usuario

Pioneer

Pioneer CLD-D790 Manual de usuario
