SMART SECURITY SYSTEM

WIFI Pan/tilt Network Camera

User Manual

Read and understand thoroughly this safety awareness & instruction before using

and keep it for future reference

SMART SECURITY SYSTEM

Quick Guide

Get a general idea on this network camera

(1)Product Overview

LED Indicator: From Left to Right

1.Network indicator 2. Alarm indicator 3. Record indicator

4 alarm-arming indicator

Pls Check the indicator light whether working properly

Indicator

Lit stay-on

Lit flashing

Lit off

Network indicator

Network

connected

connecting

Un-connected

Alarm indicator

Having alarm

－

No alarm

Record indicator

－

Recording

Recording stopped

Alarm-arming

indicator

Arming

To-be armed

Disarming

SMART SECURITY SYSTEM

Interface

①Network interface：Using wired network access to the Internet

②WIFI ant：For receiving WIFI signal；

③SD interface：Insert SD card to record picture /video；

SMART SECURITY SYSTEM

④Power supply interface；connect with power adaptor；

Pls connect the inputs (①○

2) in sequential order according to above

drawing

⑤Bracket: Installation Bracket

⑥Alarm ant Interface: For Receiving Alarm Signal

App download

IOS clients can search and download 2cu from Apple APP store, Android

clients can search and download it from Google Play. Pls register your

account and password according to the instruction step by step

Network connection

（1）Wired connection

After power on the network camera, connect the network

interfaces on camera and Router by one network cable,(pls make

sure to ON the DHCP on the router）， the Network indicator will

stay-ON after connecting it well

（2）WIFI connection

If there is no wired network, you can use the Infrared control

to SET the WIFI. Pls set as the following steps：1) Insert the

Infrared control into the earphone interface of the smart phone.

SMART SECURITY SYSTEM

2) point the Infrared control at the IR receiver on the network

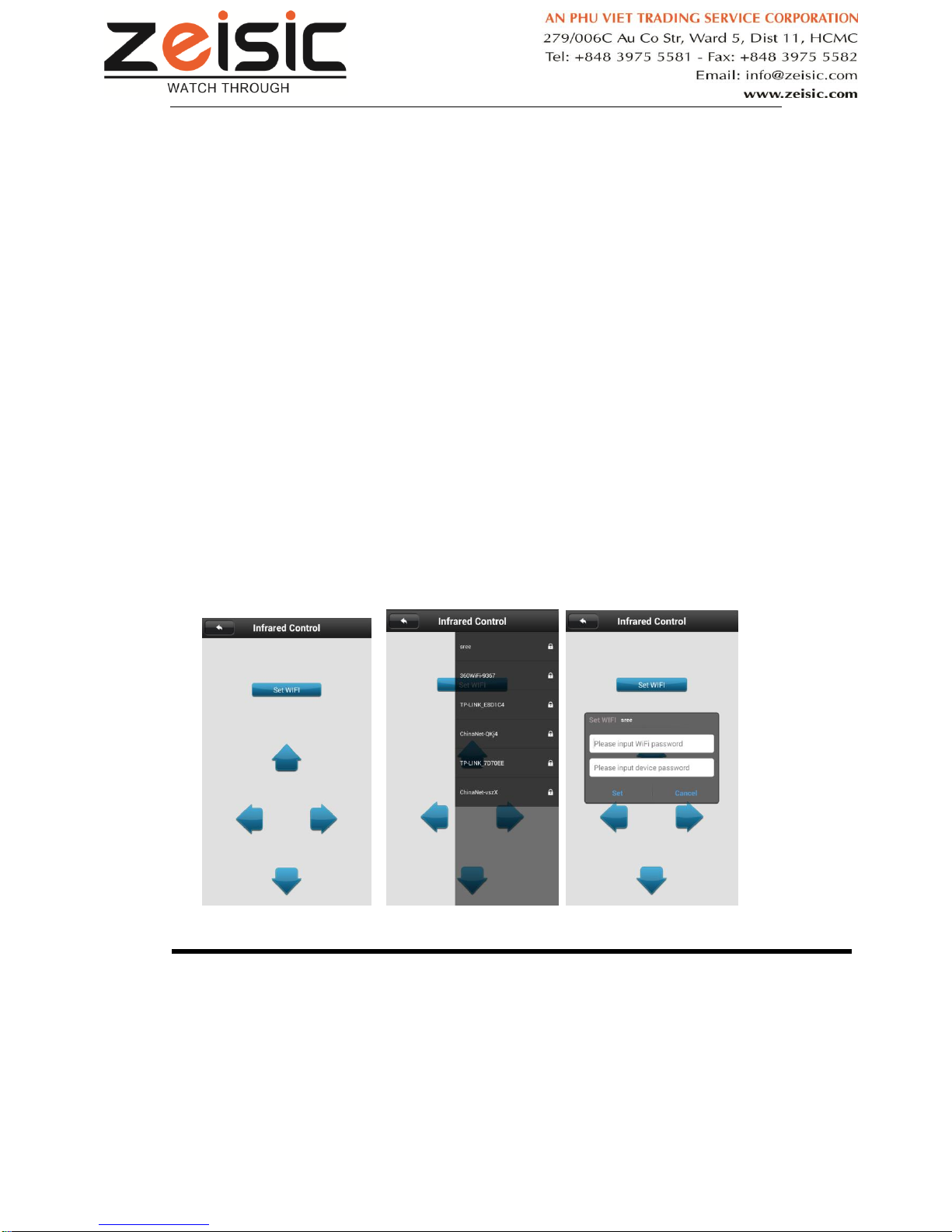

camera. 3) Open APP 2cu>toolbox> Infrared control，then you

can see the up/down/left/right button. Press any one button ,if

the network camera can move around , means the Infrared

control works well . 4) Then press WIFI button on the same

screen, to select the WIFI device to be connected. Input the

WIFI password and Device password(the factory default

password is empty ). 5) Then press “SET “, if you can hear one

alert tone “ding”, means the network has connected with WIFI

successful .and then the network indicator will stay-on

Add Device

（1）it can search all device in the same LAN and set the

visiting password

Open the APP 2cu toolbox , press “shake “，shake your mobile

left/right , then the APP will search the devices in the local area

SMART SECURITY SYSTEM

network , then press the device to be added , input the device name

and password . if the device is a new one had never set any

password, so the password you input will be the visiting password

for this device .

（2）add device manually

Press the in the bottom right corner to be in the contact

interface first , then click top right corner , then input the

device ID number and password as below picture

SMART SECURITY SYSTEM

Device monitoring

（1）press Device Icon in contact interface：in the contact

interface ,just press the device Icon to start monitoring function；

（2）Press Number dial plate：Just input the device ID,and then

Press the monitoring icon,input the visiting password

To start monitoring

Device Setting

SMART SECURITY SYSTEM

(1)Defense area settings & Alarm settings（optional function）

This device can support 8*8=64 wirelss detectors and 8 remote

controlling alarm system via learning code . The specific operation

of learning code as follows:

Click Contact name ->settings->Defense Area Settings，Press the

name of one Defense Area to view 8 small defense area. Then

trigger the wireless devices to learn code .

for example to set up a door sensor as No. 1 detector of the hall,

choose the hall, click No. 1 button, the learning code dialog box will

be popped up, then the door sensor will be triggered and APP will

remind that the learning is successful. The No.1 button will turn to

be light blue color. meanwhile, it will show “learning successful “

SMART SECURITY SYSTEM

Delete the code : click the defense area number which has learned code

and confirm to delete it .

Alarm settings:There are two way to Arm the alarm. 1: press the

ARM button on the Infrared controller which already learned code .

2: in APP 2cu , beside the Device name on the contact interface ,there is

one (disarm) button after press it ,it will become Arm

After ARM the alarm. the device will send the alert to APP 2CU.

meanwhile it will capture some picture send to the email box registered

Before arm the alarm, you need do detailed Alarm setting as below :

Click the Device name on the contact interface-> setting->Alarm setting

SMART SECURITY SYSTEM

Binding Account :Input the APP ID to the binding account. ( maximum 3

APP ID can be set).

Alarm Email : iput the email address to receive the ALARM message

from the device .

Motion Detection：Alarm will be triggered if device detects moving

objects in the video image

Buzzer：The device will start buzzer if any alarm appears

（2）Device update

Click device name ->setting-> Device update ：if have any new

version software ,it will remind the new software version

Number and ask user to confirm to update or cancel the updating

（3）Restore factory

Restore factory will clear all the settings: include WIFI information,

visiting password, Alarm signal, defense area setting etc.

Set as follow:

There is one reset hole on the bottom of the camera. Insert a clip

into the reset hole and keep for 3 seconds. Restore factory

successfully if the four indicators on the front brown panel are on
