Sony CDX-GT660UP Manual de usuario

4-286-236-13(1)

CDX-GT660UP

FM/AM

Compact Disc

Player

Owner’s Record

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer

regarding this product.

Model No. CDX-GT660UP Serial No.

To cancel the demonstration (DEMO) display, see page 5.

Pour annuler l’affichage de démonstration (DEMO), reportez-

vous à la page 5.

Operating Instructions US

Mode d’emploi FR

Warning

Be sure to install this unit in the

dashboard of the car for safety.

For installation and connections,

see the supplied installation/connections

manual.

This equipment has been tested and found

to comply with the limits for a Class B

digital device, pursuant to Part 15 of the

FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does cause

harmful interference to radio or television

reception, which can be determined by

turning the equipment off and on, the user

is encouraged to try to correct the

interference by one or more of the

following measures:

– Reorient or relocate the receiving

antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on

a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

FOR UNITED STATES CUSTOMERS. NOT

APPLICABLE IN CANADA, INCLUDING

IN THE PROVINCE OF QUEBEC.

POUR LES CONSOMMATEURS AUX

ÉTATS-UNIS. NON APPLICABLE AU

CANADA, Y COMPRIS LA PROVINCE DE

QUÉBEC.

You are cautioned that any changes or

modifications not expressly approved in

this manual could void your authority to

operate this equipment.

CAUTION

The use of optical instruments with this

product will increase eye hazard.

For the State of California, USA only

Perchlorate Material – special handling

may apply, See

www.dtsc.ca.gov/hazardouswaste/perchlorate

Perchlorate Material: Lithium battery

contains perchlorate

SiriusXM subscriptions and Satellite Radio

Tuner module sold separately.

www.siriusxm.com.

Sirius, XM and all related marks and logos

are trademarks of Sirius XM Radio Inc.

and its subsidiaries. All other marks and

logos are the property of their respective

ZAPPIN and Quick-BrowZer are

trademarks of Sony Corporation.

12 TONE ANALYSIS and its logo are

trademarks of Sony Corporation.

SensMe and the SensMe logo are

trademarks or registered trademarks of

Sony Ericsson Mobile Communications AB.

Music recognition technology and related

data are provided by Gracenote®.

Gracenote is the industry standard in music

recognition technology and related content

delivery. For more information, please visit

www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and

ideorelated data from Gracenote, Inc.,

present Gracenote. One or more patents

owned by Gracenote apply to this product

and service.

See the Gracenote website for a non-

exhaustive list of applicable Gracenote

patents.

Gracenote, CDDB, MusicID, MediaVOCS,

the Gracenote logo and logotype, and the

“Powered by Gracenote” logo are either

registered trademarks or trademarks of

Gracenote in the United States and/or other

countries.

Microsoft, Windows, Windows Vista and

Windows Media and logos are trademarks

or registered trademarks of Microsoft

Corporation in the United States and/or

other countries.

This product contains technology subject

to certain intellectual property rights of

Microsoft. Use or distribution of this

technology outside of this product is

prohibited without the appropriate

license(s) from Microsoft.

iPhone, iPod, iPod classic, iPod nano, and

iPod touch are trademarks of Apple Inc.,

registered in the U.S. and other countries.

Apple, Macintosh and iTunes are

trademarks of Apple Inc., registered in the

U.S. and other countries.

Warning if your car’s ignition has no

ACC position

Be sure to set the Auto Off function

(page 24). The unit will shut off

completely and automatically in the set

time after the unit is turned off, which

prevents battery drain. If you do not set

the Auto Off function, press and hold

 until the display

disappears each time you turn the

ignition off.

MPEG Layer-3 audio coding technology

and patents licensed from Fraunhofer IIS

and Thomson.

PANDORA, the PANDORA logo, and the

Pandora trade dress are trademarks or

registered trademarks of Pandora Media,

Inc., used with permission.

Note on the lithium battery

Do not expose the battery to excessive heat

such as direct sunlight, fire or the like.

Table of contents

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Canceling the DEMO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Detaching the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Location of controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Storing and receiving stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

RDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Playing a disc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

USB devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Playing back a USB device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Enjoying music according to your mood — SensMe™. . . . . . . . . . . . . . . . . . . . . . . . . 12

iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Playing back iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Operating an iPod directly — Passenger control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Pandora® via USB (iPhone) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Playing back Pandora . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Searching and playing tracks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Playing tracks in various modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Searching a track by name — Quick-BrowZer™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Searching a track by listening to track passages — ZAPPIN™. . . . . . . . . . . . . . . . . . 19

Changing the illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Changing the color of display and buttons —Dynamic Color Illuminator. . . . . . . . 19

Advanced color setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Sound Settings and Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Changing the sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Enjoying sophisticated sound functions — Advanced Sound Engine . . . . . . . . . . . . 22

Adjusting setup items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Using optional equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Auxiliary audio equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

SiriusXM tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Getting Started

Canceling the DEMO

mode

You can cancel the demonstration display

which appears during turning off.

1Press and hold the select button.

The setup display appears.

2Rotate the control dial until “DEMO”

appears, then press it.

3Rotate the control dial to select

“DEMO-OFF,” then press it.

The setting is complete.

4Press (BACK).

The display returns to normal reception/

play mode.

Setting the clock

The clock uses a 12-hour digital indication.

1Press and hold the select button.

The setup display appears.

2Rotate the control dial until “CLOCK

ADJ” appears, then press it.

The hour indication flashes.

3Rotate the control dial to set the hour

and minute.

To move the digital indication, press

 –/+.

4After setting the minute, press the

select button.

The setup is complete and the clock

starts.

To display the clock, press .

Detaching the front panel

You can detach the front panel of this unit

to prevent theft.

1Press and hold .

The unit is turned off.

2Press .

3Slide the front panel to the right, then

gently pull out the left end of the front

panel.

Caution alarm

If you turn the ignition switch to the OFF

position without detaching the front panel,

the caution alarm will sound for a few

seconds. The alarm will only sound if the

built-in amplifier is used.

Note

Do not subject the front panel to heat/high

temperature or moisture. Avoid leaving it in a

parked car or on a dashboard/rear tray.

Attaching the front panel

Place the hole of the front panel onto the

spindle on the unit, then lightly push the

left side in.

Press  on the unit (or insert

a disc) to operate the unit.

Location of controls

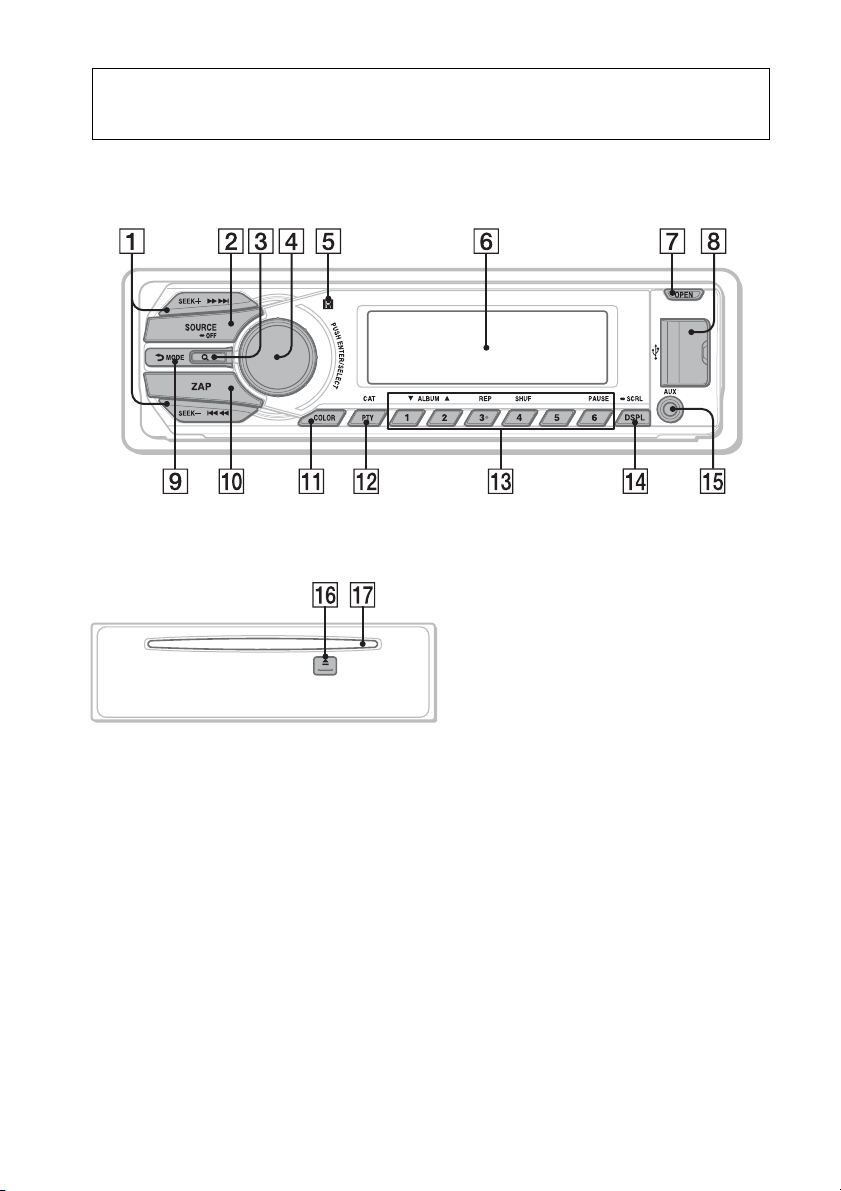

Main unit

Front panel removed This section contains instructions on the

location of controls and basic operations.

SEEK +/– buttons

Radio:

To tune in stations automatically

(press); find a station manually (press

and hold).

CD/USB:

To skip tracks (press); skip tracks

continuously (press, then press again

within about 1 second and hold);

reverse/fast-forward a track (press and

hold).

SensMe™:

To skip tracks (press); reverse/fast-

forward a track (press and hold).

Pandora USB:

To skip tracks (press  +).

SOURCE/OFF button*1

Press to turn on the power/change the

source (Radio/CD/USB/SensMe™*2/

Pandora USB/AUX).

Press and hold for 1 second to turn off

the power.

Press and hold for more than 2 seconds

to turn off the power and the display

disappears.

(BROWSE) button page 18, 26

To enter the Quick-BrowZer™mode;

list the station (Pandora USB).

Control dial/select button

page 21, 24

To adjust volume (rotate); select setup

items (press and rotate).

Receptor for the remote

commander

Display window

OPEN button page 5, 10

USB connector page 11, 12, 14

(BACK)/MODE button*1

page 9, 15

Press to return to the previous display/

select the radio band (FM/AM).

Press and hold to enter/cancel the

passenger control/enter the bookmark

mode (Pandora USB).

ZAP button page 19

To enter ZAPPIN™mode.

COLOR button page 19

To select the preset colors (press);

hold).

PTY/CAT*3button page 9, 26

To select PTY in RDS.

Number buttons

Radio:

To receive stored stations (press); store

stations (press and hold).

CD/USB/SensMe™:

/: ALBUM /(during MP3/

WMA/AAC playback)

To skip albums/change SensMe™

channels (press); skip albums

continuously (press and hold).

: REP*4page 17

: SHUF page 17

: PAUSE

To pause playback. To cancel,

press again.

Pandora USB:

/: Thumbs down ()/up ()

(press and hold for 1 second) page 16

: PAUSE

To pause playback. To cancel, press

again.

DSPL (display)/SCRL (scroll) button

page 9, 10, 11, 14, 27

To change display items (press); scroll

the display item (press and hold).

AUX input jack page 26

(eject) button

To eject the disc.

Disc slot

Insert the disc (label side up), playback

starts.

*1 If a SiriusXM tuner is connected: when

 is pressed, the connected

device (“SIRIUSXM”) will appear on the

display. Furthermore, if  is pressed,

you can switch the SiriusXM tuner band.

*2 When a USB device set up for the SensMe™

function is connected.

*3 When the SiriusXM tuner is connected.

*4 This button has a tactile dot.

Note

If the unit is turned off and the display

disappears, it cannot be operated with the remote

commander unless  on the unit

is pressed, or a disc is inserted to activate the unit

first.

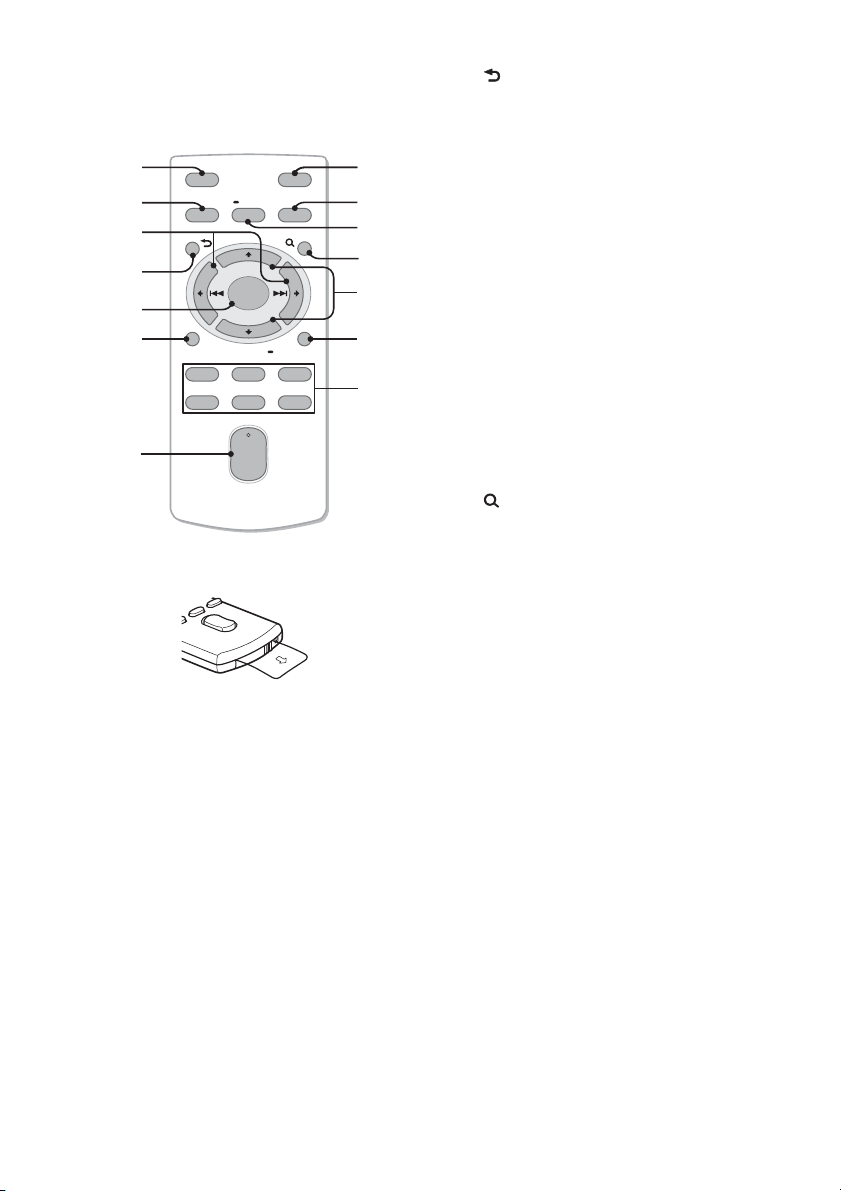

RM-X211 Remote

commander

Remove the insulation film before use.

OFF button

To turn off the power; stop the source.

SOURCE button*1

To turn on the power; change the

source (Radio/CD/USB/SensMe™*2/

Pandora USB/AUX).

()/() buttons

To control Radio/CD/USB/SensMe™/

Pandora USB, the same as  –/+

on the unit.

Setup, sound setting, etc., can be

operated by .

(BACK) button

ENTER button

To apply a setting.

PTY button

VOL (volume) +*3/– button

ATT (attenuate) button

To attenuate the sound. To cancel, press

again.

MODE button*1

Press to select the radio band (FM/AM).

Press and hold to enter/cancel the

passenger control/enter the bookmark

mode (Pandora USB).

SOUND/MENU button

To enter sound setting (press); enter

menu (press and hold).

(BROWSE) button

(+)/(–) buttons

To control CD/USB/SensMe™/Pandora

USB, the same as / (ALBUM /

) on the unit.

Setup, sound setting, etc., can be

operated by .

DSPL/SCRL button

Number buttons

To receive stored stations (press); store

stations (press and hold).

To pause playback (press ).

*1 If a SiriusXM tuner is connected: when

 is pressed, the connected device

(“SIRIUSXM”) will appear on the display.

Furthermore, if  is pressed, you can

switch the SiriusXM tuner band.

*2 When a USB device set up for the SensMe™

function is connected.

*3 This button has a tactile dot.

OFF

PTY

DSPL/

SCRL

SOUND

SOURCE

MODE

132

465

ATT

VOL

–

ENTER

PAU SE

Radio

Storing and receiving

stations

Caution

When tuning in stations while driving, use

Best Tuning Memory (BTM) to prevent an

accident.

Storing automatically — BTM

1Press  repeatedly until

“TUNER” appears.

To change the band, press 

repeatedly. You can select from FM1,

FM2, FM3, AM1 or AM2.

2Press and hold the select button.

The setup display appears.

3Rotate the control dial until “BTM”

appears, then press it.

The unit stores stations in order of

frequency on the number buttons.

Storing manually

1While receiving the station that you

want to store, press and hold a number

button ( to ) until “MEMO”

appears.

Receiving the stored stations

1Select the band, then press a number

button ( to ).

Tuning automatically

1Select the band, then press  +/–

to search for the station.

Scanning stops when the unit receives a

station. Repeat this procedure until the

desired station is received.

Tip

If you know the frequency of the station you want

to listen to, press and hold  +/–to locate

the approximate frequency, then press

 +/–repeatedly to fine adjust to the

desired frequency (manual tuning).

RDS

FM stations with Radio Data System (RDS)

service send inaudible digital information

along with the regular radio program signal.

Notes

• Depending on the country/region, not all RDS

functions may be available.

• RDS will not work if the signal strength is too

weak, or if the station you are tuned to is not

transmitting RDS data.

Changing display items

Press .

Selecting PTY (Program Types)

Displays the currently received program

type. Also searches your selected program

type.

1Press  during FM reception.

The current program type name appears

if the station is transmitting PTY data.

2Rotate the control dial until the desired

program type appears, then press it.

The unit starts to search for a station

broadcasting the selected program type.

Type of programs

Note

You may receive a different radio program from

the one you select.

Setting CT (Clock Time)

The CT data from the RDS transmission

sets the clock.

1Set “CT-ON” in setup (page 24).

Note

The CT function may not work properly even

though an RDS station is being received.

Playing a disc

This unit can play CD-DA (also containing

CD TEXT) and CD-R/CD-RW (MP3/

WMA/AAC files (page 28)).

1Press .

2Insert the disc (label side up).

3Close the front panel.

Playback starts automatically.

To eject the disc, press  then press .

Note

When ejecting/inserting a disc, keep any USB

devices disconnected to avoid damage to the disc.

Changing display items

Displayed items may differ depending on

the disc type, recording format and settings.

Press .

NEWS (News), INFORM (Information),

SPORTS (Sports), TALK (Talk), ROCK

(Rock), CLS ROCK (Classic Rock), ADLT

HIT (Adult Hits), SOFT RCK (Soft Rock),

TOP 40 (Top 40), COUNTRY (Country),

OLDIES (Oldies), SOFT (Soft), NOSTALGA

(Nostalgia), JAZZ (Jazz), CLASSICL

(Classical), R AND B (Rhythm and Blues),

SOFT R B (Soft Rhythm and Blues),

LANGUAGE (Foreign Language), REL

MUSC (Religious Music), REL TALK

(Religious Talk), PERSNLTY (Personality),

PUBLIC (Public), COLLEGE (College),

WEATHER (Weather)

Otros manuales para CDX-GT660UP

Tabla de contenidos

Idiomas:

Otros manuales de Sistema estéreo para automóvil de Sony

Sony

Sony CDX-3900 Guía del producto

Sony

Sony DSX-GS80 Manual de usuario

Sony

Sony MDX-CA790X Manual de usuario

Sony

Sony XR-C33R Manual de usuario

Sony

Sony BluetoothH MEX-BT5100 Manual de usuario

Sony

Sony CDX-GT828U Manual de usuario

Sony

Sony CDX-GT630UI - Cd Receiver Mp3/wma/aac Player Guía del producto

Sony

Sony XM-GTX1821 Manual de usuario

Sony

Sony DSX-GS80 Manual de usuario

Sony

Sony XM-ZR704 Manual de usuario

Sony

Sony CDX-4480ESP - Am/fm Compact Disc Changer Manual de uso y mantenimiento

Sony

Sony XR-C6220R Guía del producto

Sony

Sony XAV-A1 - Av Center Manual de usuario

Sony

Sony XPlod MEX-BT5000 Manual de usuario

Sony

Sony MEX-BT2800 - Bluetooth Audio System Guía del producto

Sony

Sony CDX-444RF - Compact Disc Changer System Manual de usuario

Sony

Sony CDX-525RF - Compact Disc Changer System Manual de usuario

Sony

Sony DSX-S310BTX Manual de usuario

Sony

Sony DVX-11A - Car Mp3/dvd/cd Single Player Manual de usuario

Sony

Sony MEX-BT3750U Manual de usuario

Sony

Sony CDX-5V661 Manual de usuario

Sony

Sony XR-CA800 Manual de usuario

Sony

Sony XDP-MU110 Manual de usuario

Sony

Sony MEX-BT5750U Manual de usuario

Manuales populares de Sistema estéreo para automóvil de otras marcas

JL Audio

JL Audio Stealthbox SB-CAN-G2MVX3D/10TW3 Manual de usuario

Clarion

Clarion PU-9836A Manual de usuario

Mitsubishi Electric

Mitsubishi Electric AR0M Manual de usuario

Insignia

Insignia NS-HD5113 Manual de usuario

Clarion

Clarion BTD3341 Manual de usuario

USA SPECS

USA SPECS PA11-VW6 Manual de usuario

Kenwood

Kenwood KCD-BT6544U/UY Manual de usuario

JVC

JVC KD-DB912BT Manual de usuario

Philips

Philips CSQ405/98 Manual de usuario

Alpine

Alpine TDM-7544 Manual de usuario

Autotek

Autotek TransAm TA 1400 Manual de usuario

Clarion

Clarion PN-3124N-A Manual de usuario

Denso TEN

Denso TEN FT0108A Manual de usuario

Pyle

Pyle PLD57MU Manual de usuario

Harman

Harman Chrysler Radio Navigation System RB4 Manual de usuario

Clarion

Clarion VS735 Manual de usuario

JVC

JVC KW-R910BT Manual de usuario

Eclipse

Eclipse CD2000 Manual de usuario
