Operating Instructions

2000 Sony Corporation

FM/MW/SW

Cassette

Car Stereo

XR-C5500

For installation and connections, see the supplied installation/connections

manual.

Owner’s Record

The model and serial numbers are located on the bottom of the unit.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this

product.

Model No. XR-C5500 Serial No.

3-048-458-11 (1)

Welcome !

Thank you for purchasing this Sony Cassette

Player. This unit lets you enjoy a variety of

features using the following controller

accessory:

Optional accessory

Rotary commander RM-X4S

Card remote commander RM-X91

In addition to the cassette playback and radio

operations, you can expand your system by

connecting an optional CD/MD unit*1.

When you operate this unit or a connected

optional CD unit with the CD TEXT function,

the CD TEXT information will appear in the

display when you play a CD TEXT disc*2.

*1You can connect a CD changer, an MD changer,

a CD player, or an MD player.

*2A CD TEXT disc is an audio CD that includes

information such as the disc name, artist name,

and track names.

This information is recorded on the disc.

Warning

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or

television reception, which can be determined

by turning the equipment off and on, the user

is encouraged to try to correct the interference

by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the

equipment and receiver.

—Connect the equipment into an outlet on a

circuit different from that to which the

receiver is connected.

—Consult the dealer or an experienced radio/

TV technician for help.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate

this equipment.

Notes on Cassettes

Cassette care

•Do not touch the tape surface of a cassette, as

any dirt or dust will contaminate the heads.

•Keep cassettes away from equipment with

built-in magnets such as speakers and

amplifiers, as erasure or distortion on the

recorded tape could occur.

•Do not expose cassettes to direct sunlight,

extremely cold temperatures, or moisture.

•Slack in the tape may cause the tape to be

caught in the machine. Before you insert the

tape, use a pencil or similar object to turn the

reel and take up any slack.

•Distorted cassettes and loose labels can cause

problems when inserting or ejecting tapes.

Remove or replace loose labels.

•The sound may become distorted while

playing the cassette. The cassette player head

should be cleaned after each 50 hours of use.

Cassettes longer than 90 minutes

The use of cassettes longer than 90 minutes is

not recommended except for long continuous

play. The tape used for these cassettes is very

thin and tends to stretch easily. Frequent

playing and stopping of these tapes may cause

them to become entangled in the cassette deck

mechanism.

Slack

Precautions

•If your car was parked in direct sunlight

resulting in a considerable rise in

temperature inside the car, allow the unit to

cool off before operating it.

•If no power is being supplied to the unit,

check the connections first. If everything is in

order, check the fuse.

•If no sound comes from the speakers of a

two-speaker system, set the fader control to

the center position.

•When a tape is played back for a long period,

the cassette may become warm because of

the built-in power amplifier. However, this is

not a sign of malfunction.

If you have any questions or problems

concerning your unit that are not covered in

this manual, please consult your nearest Sony

dealer.

To maintain high quality sound

If you have drink holders near your audio

equipment, be careful not to splash juice or

other soft drinks onto the car audio. Sugary

residues on this unit or cassette tapes may

contaminate the playback heads, reduce the

sound quality, or prevent sound reproduction

altogether.

Cassette cleaning kits cannot remove sugar

from the tape heads.

Table of Contents

This Unit Only

Location of controls ................................................. 5

Getting Started

Resetting the unit ................................................ 7

Detaching the front panel .................................. 7

Turning the unit on/off ...................................... 8

How to use the menu ......................................... 8

Setting the clock .................................................. 8

Cassette Player

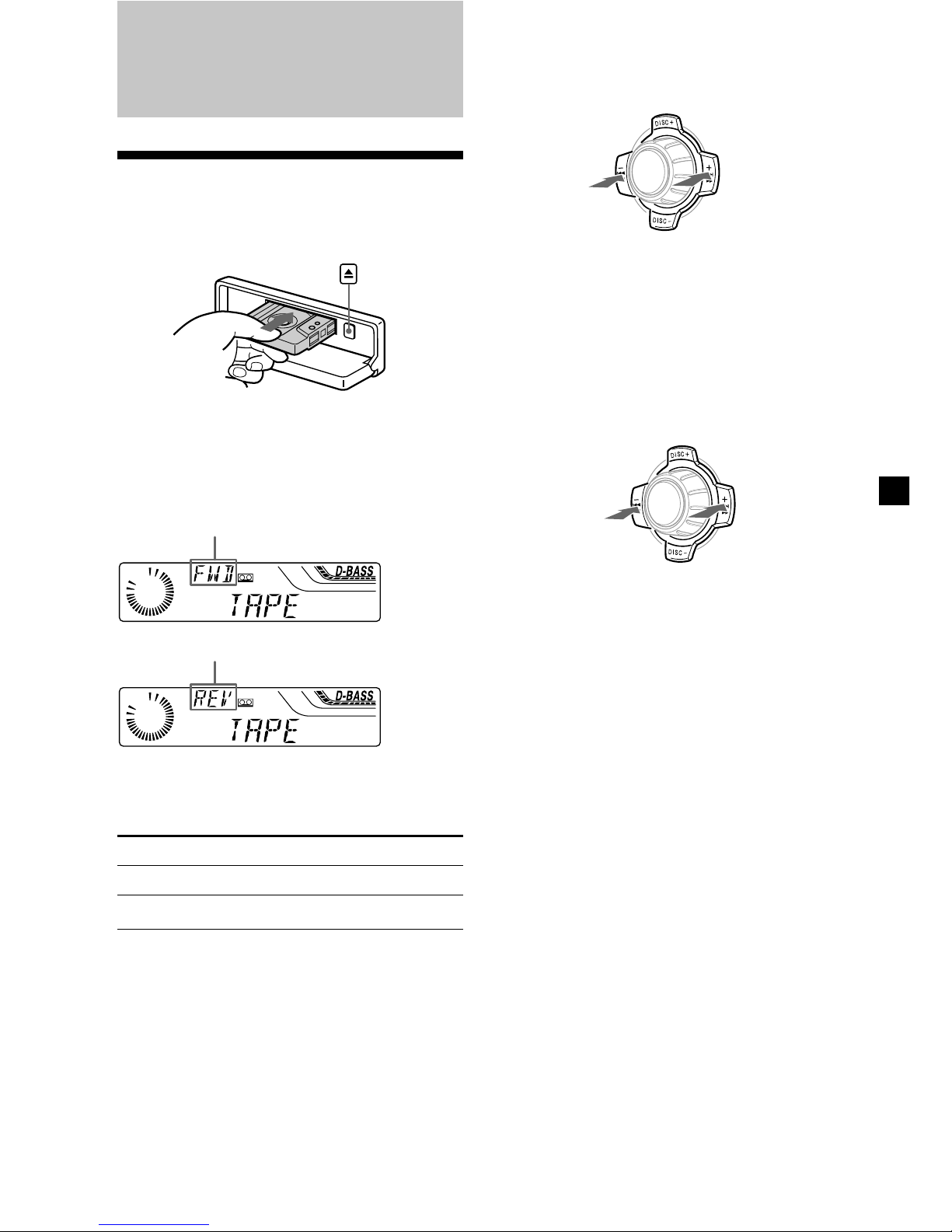

Listening to a tape ............................................... 9

Playing a tape in various modes ..................... 10

Radio

Memorizing stations automatically

—Best Tuning Memory (BTM) ................... 11

Memorizing only the desired stations ............ 11

Receiving the memorized stations .................. 12

Other Functions

Labeling the rotary commander ..................... 13

Using the rotary commander .......................... 13

Adjusting the sound characteristics ............... 15

Attenuating the sound ..................................... 15

Changing the sound and display settings ..... 15

Boosting the bass sound

—D-bass ....................................................... 16

With Optional Equipment

CD/MD Unit

Playing a CD or MD ......................................... 16

Playing tracks repeatedly

—Repeat Play .............................................. 18

Playing tracks in random order

—Shuffle Play .............................................. 18

Additional Information

Maintenance ....................................................... 18

Dismounting the unit ....................................... 19

Specifications ..................................................... 20

Troubleshooting guide ..................................... 21

Location of controls

XR-C5500

–

MODE

DSPL

OFF

ENTER

SOUND

1 2 3 4 56

SEEK/AMS

REP SHUF

OPEN

D-BASS

SOURCE

Refer to the pages listed for details.

1MENU button

8, 10, 11, 12, 15, 17

2Volume control dial

3SOURCE (TUNER/TAPE/CD/MD) button

6, 8, 9, 11, 12, 16

4PRST/DISC +/– (cursor up/down) buttons

8, 10, 11, 12, 15, 17

During radio reception:

Preset stations select 12

During CD/MD playback:

Disc change 17

5DSPL (display mode change) button

10, 16, 17

6MODE button 9, 10, 11, 12, 16

During tape palyback:

Playback direction change 9

During radio reception:

BAND select 11

During CD/MD playback:

CD/MD unit select 16

7Display window

Z(eject) button (located on the front

side of the unit behind the front panel) 9

9OPEN button 7, 9, 19

q; D-BASS button 16

qa SOUND button 15

qs OFF button*6, 7, 8, 9

qd Reset button (located on the front side

of the unit behind the front panel) 7

qf SEEK/AMS –/+ (cursor left/right) buttons

8, 9, 10, 11, 12, 15, 17

Seek 11

Automatic Music Sensor 9, 17

Manual search 12, 17

qg ENTER button

8, 10, 11, 12, 15, 17

qh Frequency select switch

(located on the bottom of the unit)

See “Frequency select switch”in the

Installation/Connections manual.

qj Receptor for the card remote commander

qk Number buttons

During tape playback:

(1) REP 10

During radio reception

Preset number select 11, 12

During CD/MD playback:

(1) REP 18

(2) SHUF 18

*Warning when installing in a car

without ACC (accessory) position on

the ignition key switch

Be sure to press (OFF) on the unit for two

seconds to turn off the clock display after

turning off the engine.

When you press (OFF) only momentarily,

the clock display does not turn off and this

causes battery wear.

Optional

Card remote commander RM-X91

Notes on lithium battery

•Keep the lithium battery out of the reach of

children. Should the battery be swallowed,

immediately consult a doctor.

•Wipe the battery with a dry cloth to assure a

good contact.

•Be sure to observe the correct polarity when

installing the battery.

•Do not hold the battery with metallic

tweezers, otherwise a short-circuit may

occur.

WARNING

Battery may explode if mistreated.

Do not recharge, disassemble, or dispose of

in fire.

The corresponding buttons of the card

remote commander control the same

functions as those on this unit.

1OFF button

2MENU button

3SOURCE button

4SEEK/AMS (cursor </,) button

5SOUND button

6DSPL button

7ATT button

8LIST button (Not available for this model)

9DISC/PRST (cursor M/m) button

q; ENTER button

qa MODE button

qs VOL button

OFF

SEEK SEEK

OPEN/CLOSE

MENU LIST

SOUND

ENTER

DISC

SOURCE

DSPL MODE

VOLATT

+ side up

A unit turned off by pressing (OFF) for two seconds cannot be operated with the card remote

commander unless (SOURCE) on the unit is pressed or a casette is inserted to activate the unit first.

Replacing the lithium battery

When the battery becomes weak, the range of

the card remote commander becomes shorter.

Replace the battery with a new CR2025 lithium

battery.

Attaching the front panel

Place the hole Aof the front panel onto the

spindle Bon the unit as illustrated, then push

the left side in.

Notes

• Be careful not to attach the front panel upside

down.

• Do not press the front panel too hard against the

unit when attaching it.

• Do not press too hard or put excessive pressure

on the display window of the front panel.

• Do not expose the front panel to direct sunlight

or heat sources such as hot air ducts, and do not

leave it in a humid place. Never leave it on the

dashboard of a car parked in direct sunlight or

where there may be a considerable rise in

temperature.

Caution alarm

If you turn the car ignition off without

removing the front panel, the caution alarm

will beep for a few seconds.

If you connect an optional power amplifier and

do not use the built-in amplifier, the beep

sound will be deactivated.

Getting Started

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Remove the front panel and press the reset

button with a pointed object, such as a ball-

point pen.

Note

Pressing the reset button will erase the clock

setting, preset memory and some memorized

functions.

Detaching the front panel

You can detach the front panel of this unit to

protect the unit from being stolen.

1Press (OFF).

2Press (OPEN), then slide the front panel

to the right side, and pull out from the

left side.

Notes

• Be sure not to drop the panel when detaching it

from the unit.

• If you detach the panel while the unit is still

turned on, the power will turn off automatically

to prevent the speakers from being damaged.

• When you carry the front panel with you, use the

supplied front panel case.

Reset button

Turning the unit on/off

Turning on the unit

Press (SOURCE) or insert a cassette in the unit.

For details on operation, refer to page 9

(cassette player) and page 11 (radio).

Turning off the unit

Press (OFF) to stop tape playback or FM/

MW/SW reception (the key illumination and

display remains on.)

Press (OFF) for two seconds to completely

turn off the unit.

Note

If your car has no ACC position on the ignition key

switch, be sure to turn the unit off by pressing

(OFF) for two seconds to avoid car battery wear.

How to use the menu

This unit is operated by selecting items from a

menu.

To select, first enter the menu mode and

choose up/down (+/–of (PRST/DISC)), or

choose left/right (–/+ of (SEEK/AMS)).

(PRST/DISC)

(+) : To select upwards

(–) : To select downwards

(SEEK/AMS)

SOURCE

(+) : To select

rightwards

(–) : To select

leftwards

Setting the clock

The clock uses a 12-hour digital indication.

Example: To set the clock to 10:08

1Press (MENU), then press either side of

(PRST/DISC) repeatedly until “CLOCK”

appears.

1Press (ENTER).

The hour indication flashes.

2Press either side of (PRST/DISC) to set

the hour.

3Press (+) side of (SEEK/AMS).

The minute indication flashes.

4Press either side of (PRST/DISC) to set

the minute.

2Press (ENTER).

The clock starts.

After the clock setting is complete, the

display returns to normal playback mode.

Tip

When the D.INFO mode is set to ON, the time is

always displayed (page 15).

Cassette Player

Listening to a tape

1Press (OPEN) and insert a cassette.

Playback starts automatically.

2Close the front panel.

If a cassette is already inserted, to start

playback, press (SOURCE) repeatedly until

“FWD”or “REV”appears.

Tip

To change the tape‘s playback direction, press

(MODE) (o).

To Press

Stop playback (OFF)

Eject the cassette (OPEN) then Z

Fast-winding the tape

During playback, press and hold either

side of (SEEK/AMS).

To start playback during fast-forwarding or

rewinding, press (MODE) (o).

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, press either side of

(SEEK/AMS) momentarily for each track

you want to skip.

You can skip up to nine tracks at one time.

Note

The AMS function may not work when:

—the blanks between tracks are shorter than

four seconds

—there is noise between tracks

—there are long sections of low volume or quiet

sections.

In the Motion Display mode, all the items are

scrolled in the display one by one in order.

Tip

The Motion Display mode can be turned off. (See

“Changing the sound and display settings”on

page 15.)

To locate

preceding

tracks

To locate

succeeding

tracks

Rewind Fast-forward

The side facing up is played.

The side facing down is played.

SOURCE

Playing a tape in various

modes

You can play the tape in various modes:

•REP (Repeat Play) repeats the current track.

•BL SKP (Blank Skip) skips blanks longer than

eight seconds.

•ATA (Automatic Tuner Activation) turns on

the tuner automatically when fast-winding

the tape.

1During playback, press (MENU).

2Press either side of (PRST/DISC)

repeatedly until the desired item

appears.

Each time you press (–) side of

(PRST/DISC), the item changes as follows:

BL SKP tATA

3Press (+) side of (SEEK/AMS) to select

“ON.”

Play mode starts.

4Press (ENTER).

To return to normal playback mode, select

“OFF”in step 3.

Tip

While the ATA function is activated, the display

(TAPE yTUNER) can be changed by pressing

(DSPL).

MODE

DSPL

ENTER

123456

SEEK/AMS

REP SHUF

Playing tracks repeatedly

— Repeat Play

During playback, press (1) (REP)

repeatedly until “REP-ON”in the display

appears.

REP-ON yREP-OFF

Repeat Play starts.

To return to normal playback mode, select

“REP-OFF.”

Tip

During repeat playback, press (MODE). “REP”

disappears from the display and repeat mode is

canceled.

Otros manuales para XR-C5500

Tabla de contenidos

Otros manuales de Receptor de coche de Sony

Sony

Sony CDX-MP70 Installation/Connection Guía del producto

Sony

Sony AVD-C70ES Guía del usuario

Sony

Sony XAV-65/C1 Manual de usuario

Sony

Sony CDX-M630 Manual de usuario

Sony

Sony CDX-L300 Installation/Connection Manual de usuario

Sony

Sony XR-C5600X Guía

Sony

Sony CDX-F50M Installation/Connection Manual de usuario

Sony

Sony MEX-BT2500 Manual de usuario

Sony

Sony XR-CA350X - Fm-am Cassette Car Stereo Manual de usuario

Sony

Sony CDX-GT21W - 200w Cd Receiver Manual de usuario

Sony

Sony CDX-GT350MP - Fm/am Compact Disc Player Guía del producto

Sony

Sony CDX-GT285S Manual de usuario

Sony

Sony CDX-GT805DX - Cd Receiver Manual de usuario

Sony

Sony XR-C290 Manual de usuario

Sony

Sony MEX-XB100BT Manual de usuario

Sony

Sony XR-CA630X Guía del producto

Sony

Sony DSX-S200X - Fm/am Digital Media Player Guía del producto

Sony

Sony CDX-CA720X - Fm/am Compact Disc Player Manual de usuario

Sony

Sony CDX-L350 - Fm/am Compact Disc Player Manual de usuario

Sony

Sony CDX-L550X - Fm/am Compact Disc Player Manual de usuario

Sony

Sony CDX-S11 Manual de usuario

Sony

Sony CDX-GT57UPW Manual de usuario

Sony

Sony CDX-L380X Manual de usuario

Sony

Sony XR-C4100 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario

Medion

Medion Car Audio Manual de usuario

Philips

Philips CEM5000 Manual de usuario
