Sony XDCAM EX PMW-EX3 Manual de usuario

SOLID-STATE MEMORY CAMCORDER

PMW-EX3

SERVICE MANUAL

1st Edition

4-1

PMW-EX3

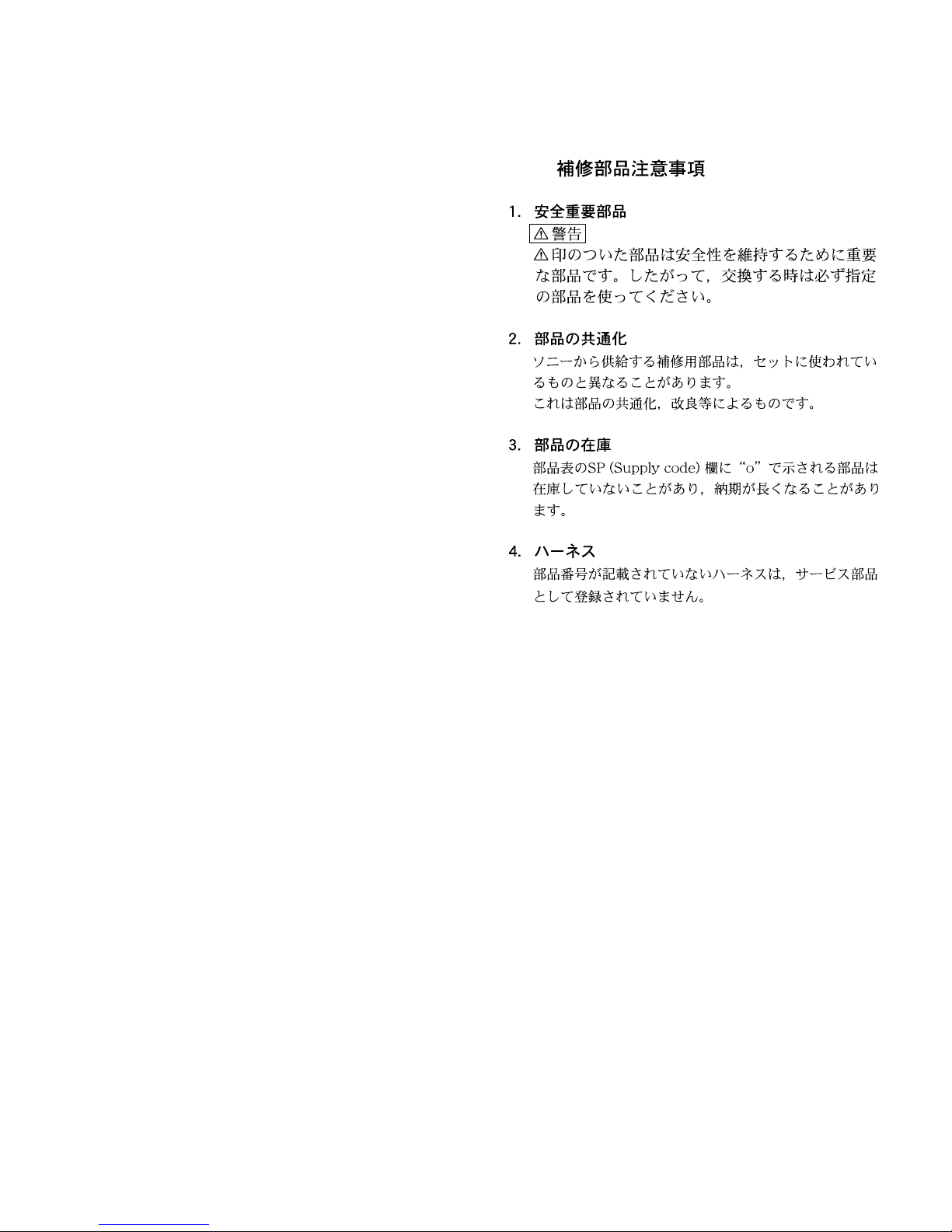

4-1. Notes on Repair Parts

1. Safety Related Components Warning

Components marked !are critical to safe operation.

Therefore, specified parts should be used in the case of

replacement.

2. Standardization of Parts

Some repair parts supplied by Sony differ from those

used for the unit. These are because of parts common-

ality and improvement.

3. Stock of Parts

Parts marked with “o” at SP (Supply Code) column of

the spare parts list may not be stocked. Therefore, the

delivery date will be delayed.

4. Harness

Harnesses with no part number are not registered as

spare parts.

Section 4

Spare Parts

4-1.

4-2 PMW-EX3

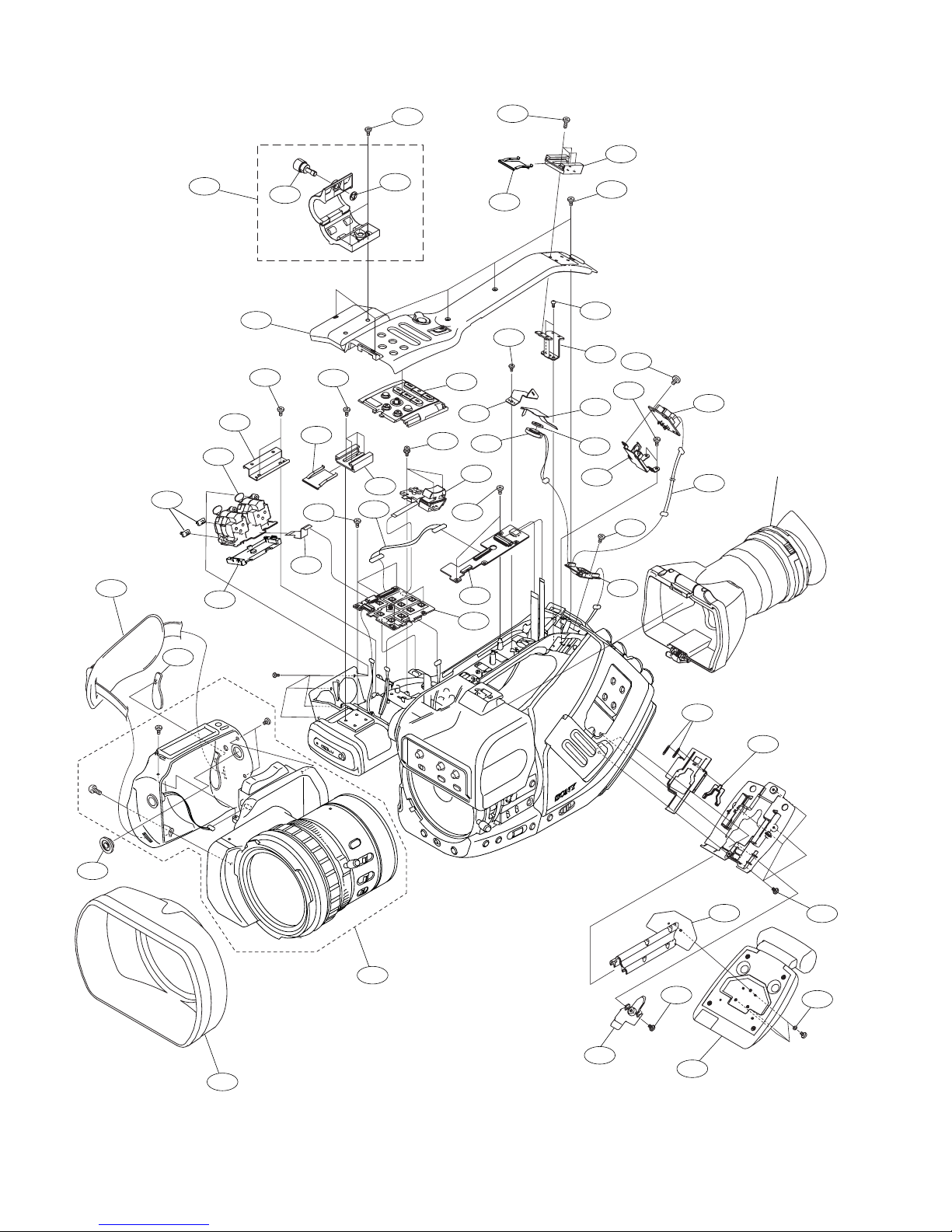

Handle Block 1

4-2. Exploded Views

VF REAR

25 14

34 35

BTB2.6 x8

40 PTT2.6 x6

4-3

PMW-EX3

Handle Block 1

No. Part No. SP Description

1 A-1545-701-A s MOUNTED CIRCUIT BOARD, AXM-36

2 A-1545-702-A s MOUNTED CIRCUIT BOARD, KSW-54

3 A-1545-707-A s MOUNTED CIRCUIT BOARD, LED-469

4 A-1545-709-A s MOUNTED CIRCUIT BOARD, IF-1069

5 A-1545-799-A s MOUNTED CIRCUIT BOARD, HP-144

6 X-2187-352-1 s MICROPHONE HOLDER ASSY

7 X-2318-445-2 s TOP COVER ASSY, HANDLE

8 X-2318-450-1 s PAD SUB ASSY

9 1-478-955-21 s SWITCH BLOCK, CONTROL (ZS-5610)

10 1-825-968-11 s LOUDSPEAKER (1.8CM)

11 1-966-163-11 s HARNESS, SUB (KSW54-IF1069)

12 1-966-170-11 s HARNESS, SUB (8PIN)

13 2-640-315-02 o SCREW (M2X5), SMALL, +P, SW

14 3-056-233-21 s SCREW (M2), LOCK ACE, P2

15 3-080-203-31 s SREW(M2),LOCK ACE, P2

16 3-080-203-51 s SREW(M2),LOCK ACE, P2

17 3-165-904-01 s WASHER, SCREW STOPPER

18 3-276-443-11 s SPEAKER CUSHION

19 3-278-666-02 s RAIL, XLR SW

20 3-295-151-01 s XLR SW KNOB 2

21 3-657-657-02 s SCREW (M5)

22 3-688-754-11 s SPRING

23 3-688-755-13 s SHOE, ACCESSORY

24 3-876-723-01 s BRACKET,OUT MICROPHONE

25 3-876-730-01 s BRACKET, REAR SHOE

26 3-876-731-01 s BRACKET, HP

27 3-876-782-02 s SHAFT PAD

28 3-876-783-01 s COVER,PAD CENTER

29 3-878-244-01 s BRACKET, SPEAKER

30 3-878-246-01 s COVER, PAD STOPPER

31 3-878-248-01 s SPRING PAD

32 3-878-252-01 s HARNESS COVER, HANDLE REAR

33 3-878-256-02 s RUBBER SW KEY

34 4-673-655-01 s SCREW +B

35 3-654-058-12 s SPACER (3X2)

36 1-877-244-11 s PRINTED WIRING BOARD, HN-349

37 4-110-064-01 s HOOD, LENS

38 1-788-858-11 s LENS, ZOOM (VCL-614B2X)

39 3-452-468-01 s BELT, GRIP

40 3-875-399-01 s LID, REAR

41 3-875-400-01 s CAP

7-685-534-19 s SCREW +BTP 2.6X8 TYPE2 N-S

7-685-792-09 s SCREW +PTT 2.6X6 (S)

4-4 PMW-EX3

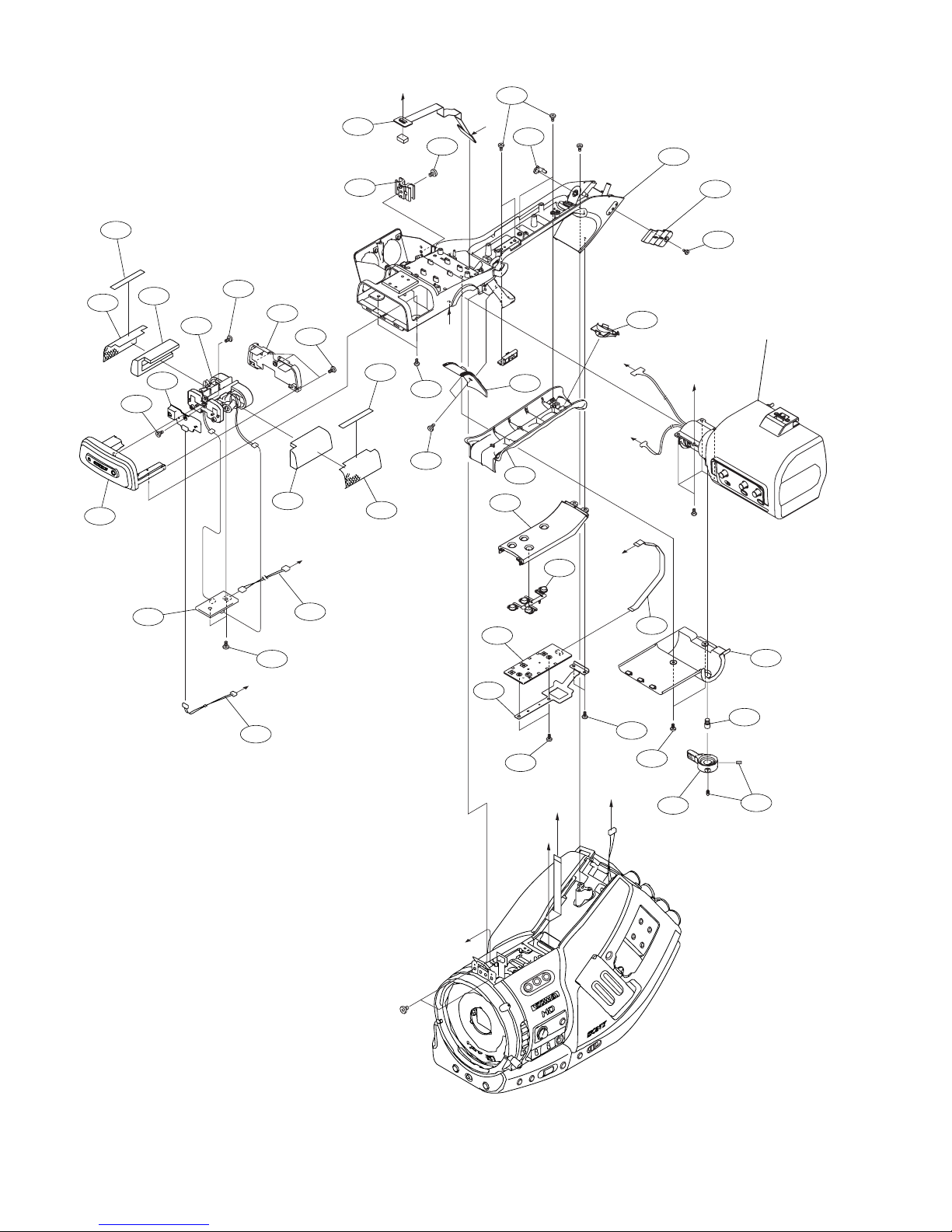

Handle Block 2

To IF-1069

board (CN5)

To KSW-54

board (CN7)

To KSW-54

board (CN2)

To KSW-54

board (CN1)

To KSW-54

board (CN300)

To IF-1069

board (CN4)

To LED-469

board (CN2)

VF FRONT

125

127

111

110

124

115 113

133

114

107

116

128

104

105

103

113

120

112

109

108

129

122

123

101

119

112

102

117

131

111

121

126

106

118

112

130

B2.6 x6

4-5

PMW-EX3

Handle Block 2

No. Part No. SP Description

101 A-1545-706-A s MOUNTED CIRCUIT BOARD, SWC-49

102 A-1545-708-A s MOUNTED CIRCUIT BOARD, HN-328

103 A-1545-710-A s MOUNTED CIRCUIT BOARD, MA-164

104 A-1545-711-A s MOUNTED CIRCUIT BOARD, RM-214

105 X-2318-443-2 s COVER ASSY,MICROPHONE

106 X-2318-444-1 s KEY TOP (TOP PANEL) ASSY

107 1-542-748-11 s MICROPHONE UNIT

108 1-966-160-11 s HARNESS, SUB (KSW54-RM214)

109 1-966-161-11 s HARNESS, SUB (KSW54-MA164)

110 3-056-233-21 s SCREW (M2), LOCK ACE, P2

111 3-080-203-31 s SREW(M2),LOCK ACE,P2

112 3-080-206-21 s SCREW, TAPPING, P2

113 3-278-656-02 s MIC SIDE GRILLE

114 3-278-657-01 s CASE, MICROPHONE

115 3-278-660-01 s MIC CUSION (R)

116 3-278-661-01 s MIC CUSION (L)

117 3-679-659-05 s CLAMP,CABLE

118 3-701-505-01 s SET SCREW, DOUBLE POINT 3X3

119 3-876-724-01 s BRACKET, TOP PANEL EARTH

120 3-876-775-01 s FRAME, HANDLE MAIN

121 3-876-776-01 s COVER, TOP PANEL

122 3-876-779-01 s HANDLE,FRONT COVER

123 3-876-880-02 s CLAMP (REAR), CABLE

124 3-876-881-01 s CASE, SPEAKER

125 3-878-238-01 s LOCK LEVER (SLIDE)

126 3-878-243-01 s HANDLE, GRIP COVER

127 3-878-245-01 s COVER, BOTTOM, FRONT

128 3-878-250-02 s SHIELD SHEET (MIC)

129 3-878-251-02 s COVER (HP), CONNECTOR

130 3-878-269-02 s LOCK,SCREW

131 4-641-726-13 s SCREW (M2), SPECIAL HEAD

133 1-887-248-11 s PRINTED WIRING BOARD, HN-348

7-621-770-67 s SCREW +B 2.6X6

4-6 PMW-EX3

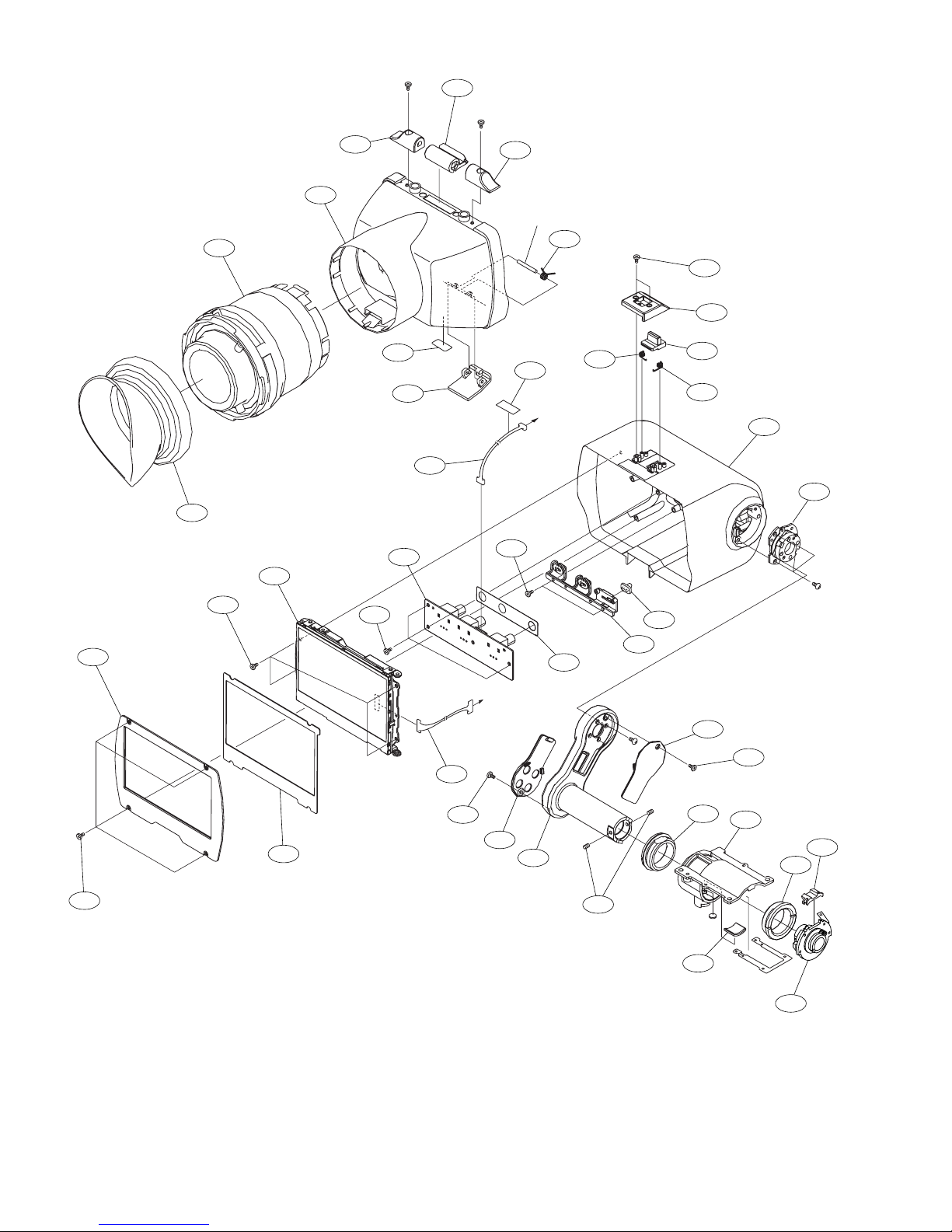

VF Front and VF Rear

To Main Frame 2

DPR-289 board

To KSW-54

board (CN300)

212

210

204

228

229

231

213

203

206

218

210

220

201

202

207

208

209

219

209

235

216

205

227

230

226

224

225

214

215

221

222

237

211

234

223

217

PIN2 x 16

+P2.6 x 4

210

236

4-7

PMW-EX3

VF Front and VF Rear

No. Part No. SP Description

201 A-1363-183-B s 3.5 INCH LCD ASSY

202 A-1545-705-A s MOUNTED CIRCUIT BOARD, CT-251

203 X-2318-436-1 s BOX ASSY, REAR

204 X-2318-442-1 s HINGE ASSY

205 X-2318-448-2 s SLIDE ASSY, ROTARY

206 1-788-766-11 s LOUPE, VF

207 1-966-171-11 s HARNESS, SUB (KSW54-CT251)

208 1-966-192-11 s HARNESS (DPR-LCD)

209 3-056-233-21 s SCREW (M2), LOCK ACE, P2

210 3-080-203-31 s SREW(M2), LOCK ACE,P2

211 3-878-205-01 s LEVER (REAR BOX)

212 3-878-206-02 s SPRING, TORSION COIL

213 3-878-207-01 s BLOCK, SHAFT FIXED

214 3-878-208-01 s EYE CUP

215 3-878-209-02 s HINGE, SWITCHING

216 3-878-226-01 s COVER, ARM

217 3-878-227-01 s BOX, FRONT

218 3-878-228-01 s COVER LCD

219 3-878-229-01 s PLATE, DISPLAY

220 3-878-230-01 s GUIDE, SLIDE

221 3-878-231-01 s SW SLIDE

222 3-878-232-01 s SPRING (A90), TORSION COIL

223 3-878-233-01 s SPRING (A-70), TORSION COIL

224 3-878-234-01 s SWITCH, VF

225 3-878-235-01 s PLATE, BLIND

226 3-878-236-01 s SWITCH (IMAGE), SLIDE

227 3-878-267-01 s REST, ARM

228 3-878-268-01 s TABLE, FIXED,VF SLIDE

229 3-878-270-02 s CUSION, STOPPER

230 3-878-271-02 s ARM

231 3-878-272-01 s GUIDE

234 4-109-147-01 s LABEL, CAUTION

235 4-641-726-13 s SCREW (M2), SPECIAL HEAD

236 3-701-505-01 s SET SCREW, DOUBLE POINT 3X3

237 4-108-765-01 s TAPE 25

7-621-284-00 s SCREW +P 2.6X4

7-626-314-31 s SPRING PIN 2X16

4-8 PMW-EX3

Outside Panel and Battery

To LED-469

board (CN2)

To IF-1069

board (CN4)

To HN-328

board (CN2)

305

318

311

320

311 319

312

314

313

301

321

303

308

316

306

309

325

311

302

324

307

317

304

308

308 308

309

310

315

323

322

In Side Panel

4-9

PMW-EX3

Outside Panel and Battery

No. Part No. SP Description

301 A-1548-381-A s CASE ASSY, BATTERY

302 X-2318-447-2 s PANEL ASSY, FRONT

303 X-2318-473-3 s PANEL SUB ASSY, OUTSIDE

304

1-528-174-31 s BATTERY, LITHIUM (CR2032 TYPE)

305 1-780-570-21 s TERMINAL BOARD, BATTERY

306 1-834-584-11 s CABLE, FLEXIBLE FLAT (30 CORE)

307 2-178-793-02 s BRACKET (TRIPOD)

308 3-056-233-21 s SCREW (M2), LOCK ACE, P2

309 3-080-203-31 s SREW(M2), LOCK ACE, P2

310 3-080-203-51 s SREW(M2), LOCK ACE, P2

311 3-080-206-21 s SCREW, TAPPING, P2

312 3-278-250-01 s LOCK LEVER BT

313 3-278-253-01 s CONNECTOR BRACKET

314 3-278-256-01 s SPRING, TORSION (BT)

315 3-278-644-01 s XDCAM EMBLEM

316 3-876-729-01 s BRACKET,SHOULDER

317 3-876-773-01 s LID, BUTTON BATTERY

318 3-876-774-01 s CASE BATTERY

319 3-876-777-01 s LEVER EJECT

320 3-876-778-01 s COVER, LEVER EJECT

321 3-876-781-01 s SW EJECT

322 3-877-746-02 s COVER, CONNECTOR (1)

323 3-877-980-01 s COVER, CONNECTOR (2)

324 3-878-253-02 s PANEL, BOTTOM

325 3-878-538-01 s PANEL (1), OUT SIDE
