Built-in Vari-focal Lens Camera

SSC-MX13V

SSC-CX13V

Sony introduces the SSC-MX13V and SSC-CX13V built-in

vari focal lens cameras to its extensive line-up of

surveillance video cameras.

The built-in auto iris vari-focal lens of 2.8 to 5.8 mm is

equivalent to a 2x zoom lens. The focal length and focus

can easily be accessed and adjusted from the top panel.

In addition, the Sony original style and compact design

of the cameras is perfectly suited for any commercial

and fashionable facilities such as department stores,

shopping malls, banks, etc.

As found in other Sony SSC Series cameras, necessary

functions such as Turbo AGC, Backlight Compensation

(BLC), ATW (for SSC-CX13V) are incorporated.

These cameras utilize Sony’s high resolution 1/4 type

Super HAD CCD™to realize over 570 TV lines

(SSC-MX13V) or 480 TV lines (SSC-CX13V) of horizontal

resolution, and superb sensitivity of 0.3 lx (SSC-MX13V)

or 1.8 lx (SSC-CX13V) at F1.4.

As for power source, these models are applicable to both

DC 12 V and AC 24 V and can automatically switch to

either of the two modes upon supplying power, providing

flexible operation.

Offering excellent performance, easy set-up and

sophisticated design and providing excellent cost-

performance ratio, the SSC-MX13V and SSC-CX13V are

the right choice for a wide range of surveillance

applications.

Built in auto iris vari-focal lens

The focal length of the vari-focal lens is 2.8 to 5.8 mm,

equivalent to 2x zoom. The large angle of view range: 75.9° to

37.8° (H), 56.4° to 28.4° (V) covers a wide range of viewing

application requirements.

Users can easily adjust the focal length and focus at the top

panel of the camera. The incorporated auto iris lens allows the

camera to have a wider dynamic range, making it suitable for

use in a wide variety of application.

Compact and Stylish design

The compact design allows the camera to be installed in

space-limited locations.

Stylish design of blue and silver is perfectly suited to various

commercial and fashionable facilities, and indeed will be a good

addition to them.

Tripod screw holes

Tripod screw holes are already provided at the top and bottom of

the camera body. Therefore, tripod adaptor is not required for

set-up, realizing easy installation.

High picture quality

Adoption of a 1/4 type Super HAD CCD allows the cameras to

realize min. illumination of 0.3 lx (SSC-MX13V) or 1.8 lx

(SSC-CX13V), achieve a horizontal resolution of over 570 TV lines

(SSC-MX13V) or 480 TV lines (SSC-CX13V), and ensures

excellent signal-to-noise ratio of 50 dB or more.

AC 24V/DC 12V operation

The camera automatically senses and adapts to the power being

supplied to it, either AC24V or DC12V, for proper operation.

AC Line Lock Capability

These cameras feature AC line lock for external synchronization.

Using the AC power frequency (60 Hz) as the vertical sync

reference provides roll-free switching in multi-camera

installations. These cameras also have an externally adjustable

Vertical Phase (±90°) control, so that completely accurate

synchronization can be attained. Additionally, when DC12V

power is supplied, the camera automatically switches to internal

sync mode.

AGC/Turbo AGC

AGC function boosts camera’s video gain so that the subject

under low illumination can be distinguished more clearly. Turbo

AGC (up to 24 dB)/Normal AGC (up to 18 dB) switchable.

BLC (Back Light Compensation)

Strong backlight can often cause the subject of the picture to be

cast into shadow. BLC function compensate for such backlight

conditions to make the subject more easily visible, providing an

improved level of object recognition.

Wide range ATW (SSC-CX13V)

The white balance can be automatically adjusted in response to

light conditions, such that pictures with an appropriate color

balance can always be obtained.

ATW color range: 2200 K to 10000 K

DSP (SSC-CX13V)

These cameras include DSP (Digital Signal Processing) LSI (Large

Scale Integration) technology to deliver excellent picture

performance. This technology also provides outstanding stability

over long periods of time and a level of reliability that cannot be

achieved with analog signal processing.

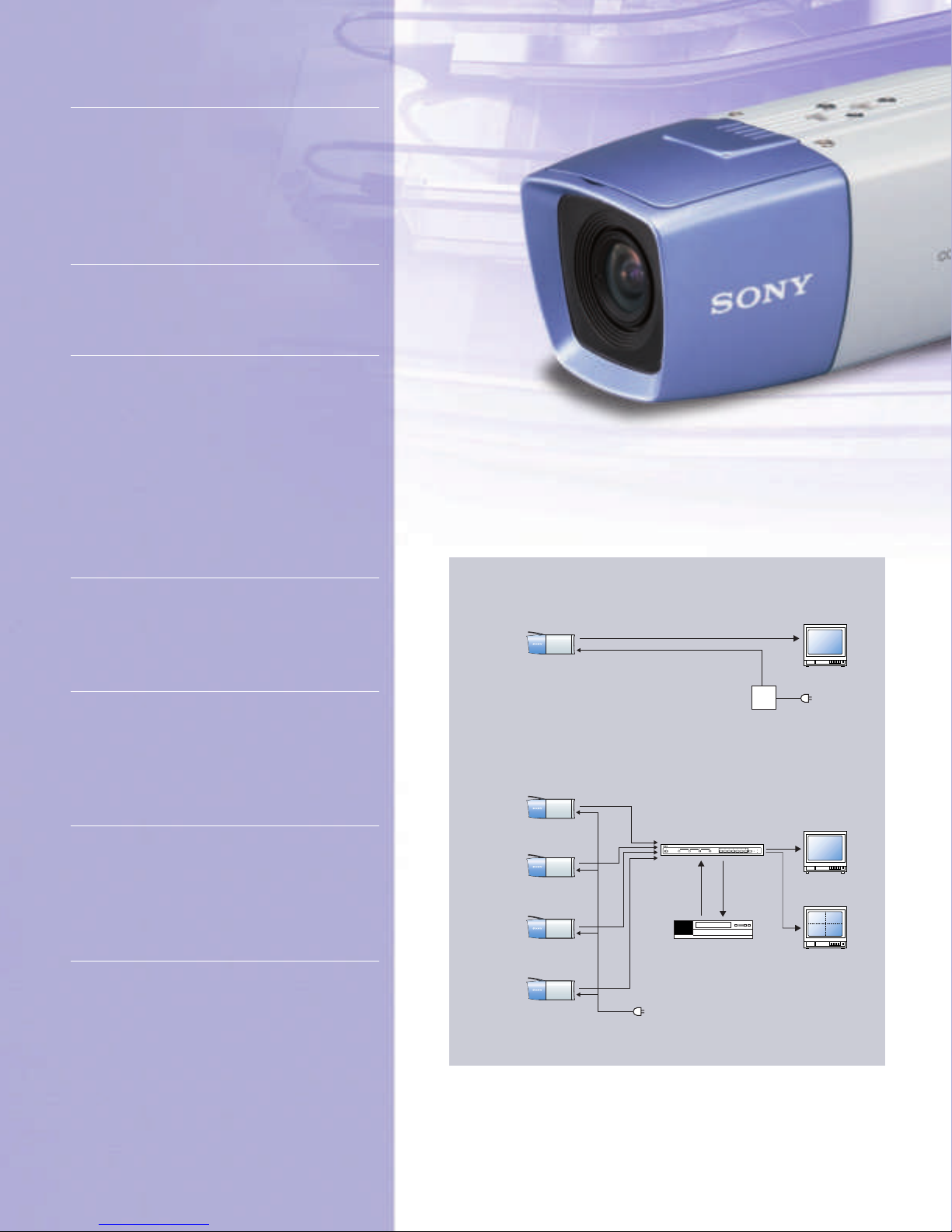

Typical System

VIDEO OUT

Video Monitor

AC 24 V or DC 12 V

Multiple camera operation

Single camera operation

Time Lapse VCR

AC outlet

Video Monitor

*In case of AC 24 V/DC 12 V powered model, power supply box is needed.

Multiplexer

SSC-MX13V SSC-CX13V

Image device 1/4 type Interline Transfer CCD

Sensing area 1/4 type format (3.6 x 2.7 mm)

Scanning system 525 lines 60 fields/30 frames, 2 : 1 interlaced

Effective picture elements 768 (H) x 494 (V)

Signal system EIA NTSC

Synchronization system Internal/Line lock (AC operation) switchable

Video signal 1.0 Vp-p, 75 Ω, negative sync

Horizontal resolution 570 lines 480 lines

S/N ratio More than 50 dB (AGC Off, Weight On)

Minimum illumination 0.2 lx at F1.4 (30 IRE,AGC ON, TURBO ON) 1.1 lx at F1.4 (30 IRE, AGC ON, TURBO ON)

0.3 lx at F1.4 (50 IRE, AGC ON, TURBO ON) 1.8 lx at F1.4 (50 IRE, AGC ON, TURBO ON)

AGC On/Off switchable, Turbo AGC/Normal AGC switchable

White balance — ATW (2200 to 10000 K)

BLC ON (Center measured)/OFF switchable

Built-in lens Vari-focal lens (f = 2.8 to 5.8 mm, F1.4)

View angle Wide: 95.7° (D), 75.9° (H), 56.4° (V)

Tele: 47.3° (D), 37.8° (H), 28.4° (V)

Minimum object distance 0.2 m

Iris Auto iris

Power requirement AC 24 V ±10 % (50 Hz) or DC 10.8 to 15.6 V for power source

Power consumption 1.8 W 3.0 W

Dimension 58 (W) x 54 (H) x 133 (D) mm

Mass Approx. 250 g

Operating temperature -10°C to +50°C (14°F to 122°F)

Storage temperature -40°C to +60°C (-40°F to 140°F)

Operating Humidity 20 % to 80 %, Non-condensing

Storage Humidity 20 % to 95 %, Non-condensing

Supplied accessories Operation instruction

Specifications

55.7

133

53.5

VIDEO OUT AC24V

DC12V

GND

LL-

AGC-

TURBO-

BLC-

LEVEL

V PHASE

DIP

1 2 3 4

■Dimensions ■Rear View

(Unit: mm)

S-SSCMX13V/CX13V

Printed in USA 12/01

Reproduction in whole or in part without written permission is prohibited.

Features and specifications are subject to change without notice.

All non-metric weights and measures are approximate.

Super HAD CCD is a trademark of Sony Corporation.

Sony is a registered trademark of Sony Corporation.

All other trademarks are the property of their respective owners.

Sony Security Systems

Broadcast and Professional Company

One Sony Drive

Park Ridge, NJ 07656-8003

Tel: (201) 358-4954

Fax: (201) 358-4927

www.sony.com/security
