Sony DCR-PC7 Manual de usuario

MICROFILM

SERVICE MANUAL

US Model

Canadian Model

DCR-PC7

AEP Model

UK Model

E Model

DCR-PC7E

Tourist Model

DCR-PC7/PC7E

For MECHANISM ADJUSTMENTS, refer to the

“DV MECHANICAL ADJUSTMENT MANUAL I”

(9-973-815-11).

RMT-806/807

Photo: DCR-PC7

: RMT-808

DIGITAL VIDEO CAMERA RECORDER

SPECIFICATIONS

DCR-PC7/PC7E

D MECHANISM

• Tourist model of DCR-PC7 is different from US model of DCR-

PC7 only in the accessory and packing materials.

• Tourist model of DCR-PC7E is different from E model of DCR-

PC7E only in the accessory and packing materials.

— Continued on next page —

— 2 —

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!!

LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE !SUR

LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES

PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE

FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS

QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT

DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS

PUBLIÉS PAR SONY.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINE

WITH MARK !ON THE SCHEMATIC DIAGRAMS AND IN THE

PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE

THESE COMPONENTS WITH SONY PARTS WHOSE PART

NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUP-

PLEMENTS PUBLISHED BY SONY.

1. Check the area of your repair for unsoldered or poorly-soldered

connections. Check the entire board surface for solder splashes

and bridges.

2. Check the interboard wiring to ensure that no wires are

“pinched” or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly

transistors, that were installed during a previous repair. Point

them out to the customer and recommend their replacement.

4. Look for parts which, though functioning, show obvious signs

of deterioration. Point them out to the customer and

recommend their replacement.

5. Check the B+ voltage to see it is at the values specified.

6. Flexible Circuit board Repairing

• Keep the temperature of the soldering iron around 270°C

during repairing.

• Do not touch the soldering iron on the same conductor of

the circuit board (within 3 times).

• Be careful not to apply force on the conductor when

soldering or unsoldering.

SAFETY CHECK-OUT

After correcting the original service problem, perform the following

safety checks before releasing the set to the customer:

— 3 —

SERVICE NOTE

1Ejecting with the cabinet (L) assembly removed

• Refer to “2. DISASSEMBLY”, and supply power with the

cabinet (L) assembly removed (however leave the flexible board

connecting the cabinet (L) assembly and main unit connected).

• Ejecting:

Operate the CS bracket assembly, open the cassette lid, turn

OFF the CC DOWN SW, and press the Eject button again.

• Loading:

Close the cassette lid.

(Turn ON the CC DOWN SW)

2Handling the VC. MR board

Never heat the VC and MR boards with hot air. (Malfunctions

may result.)

Also remove after dehumidifying.

3Special precautions on disconnection of connector

attached to the flexible board

• Apply force in the arrow direction and disconnect.

• Do not apply force in the direction as this will cause the solder

(of the pin) to float easily.

• When touching the pins with the solder iron, do not touch other

parts. (deformation may occur.)

• Ensure no folding lines are formed on the flexible board.

(This will cause the internal copper film to cut easily.)

Slide the CS lock plate in the arrow

direction, and open the cassette lid.

CC DOWN SW

CS bracket assembly

Connect to the main unit.

OFF ON

CC DOWN SW

Cassette lid

Connector Flexible boar

2-1

SECTION 2

DISASSEMBLY

2-1. REMOVAL OF CABINET (L) ASSEMBLY

DCR-PC7/PC7P

Special head screw (M2.6)

Screw (M1.7 x 2.5)

!º

Two screws (M1.7 x 2.5)

!¡

Cabinet (L) assembly

Grip belt

Two screws (K2 x 4)

Open the grip cover.

Accessory shoe

Accessory plate

!™

FZ4800 control switch block

CN6103,5P

MR-36 board

8

Screw

(M1.7 x 2.5)

2-2. REMOVAL OF FZ4800 CONTROL SWITCH BLOCK

Two screws (M1.7 x 2.5)

Three screws (M1.7 x 2.5)

Screw (M1.4 x 1.6)

CC DOWN SW (FZ4800)

Remove the two claws, and

remove the cassette lid.

FZ4800 control switch block

Note : Be careful not to damege the flexible board.

Cassette lid bracket assembly and CS bracket assembly.

Note : Be careful not to damage the flexible board

of the CC DOWN SW.

Two claws.

Slide the CS lock plate in

the arrow direction, and

open the cassette lid.

2-2

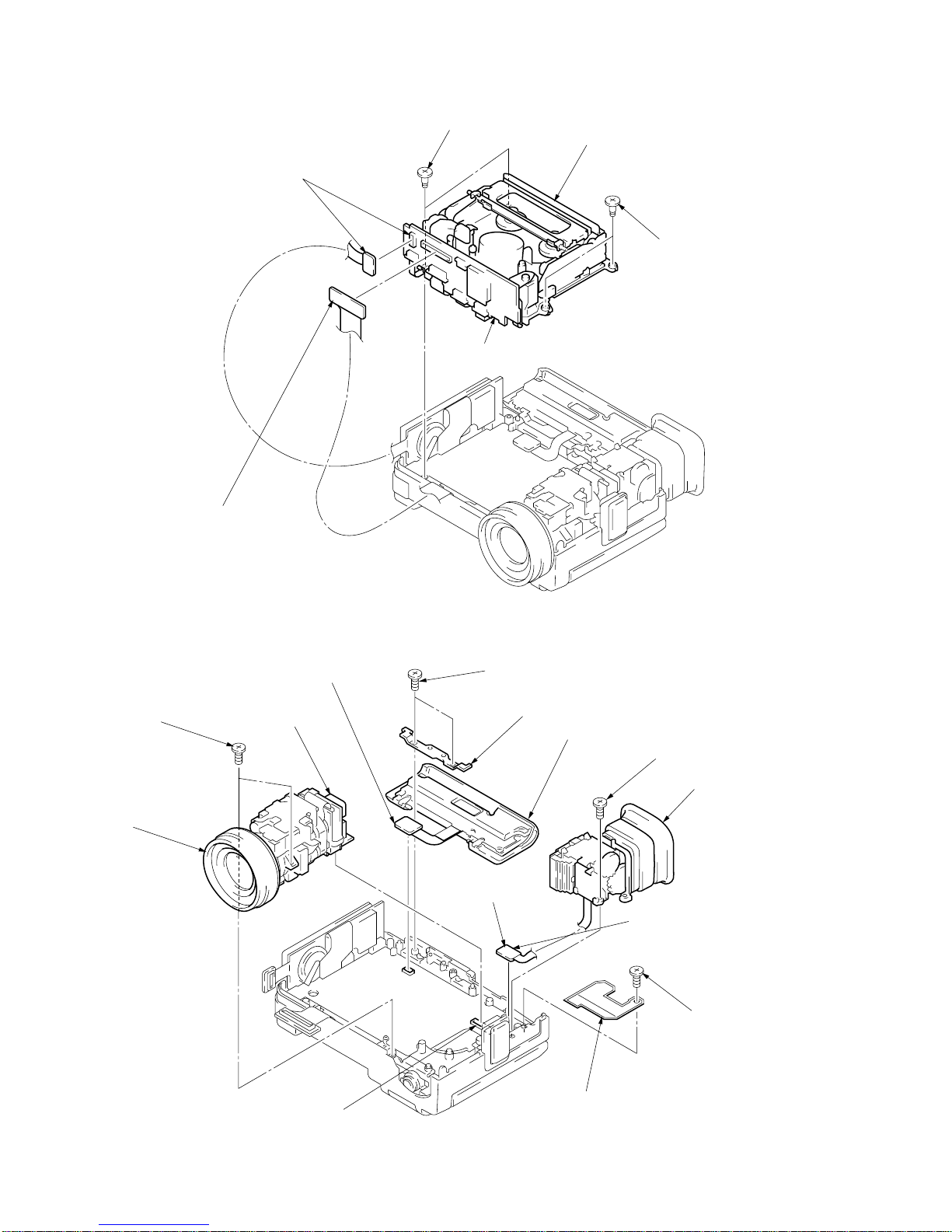

2-3. REMOVAL OF MECHANISM DECK

2

Board-to-board connector 80P

CN6101, MR-36 board

CN6250, CC-97 board

1

Board-to-board connector 30P

CN6102, MR-36 board

CN3900, DD-91 board

3ç

Two step screws (M2)

4

Two step screws (M2)

5

Mechanism deck

MR-36 board

2-4. REMOVAL OF ZOOM LENS, EVF, VK4800 CONTROL SWITCH BLOCK

Board-to-board connector 50P

CN100, CD-159 board

CN200, VC-183 board

Board-to-board connector 20P

CN4400, VF-106 board

CN1000, VC-183 board

Screw (M1.7 x 2.5)

VC shield plate

EVF assembly

Screw (M1.7 x 2.5)

!º

Two screws (M1.7 x 2.5)

Borad-to-board connector 20P

CN2300, VC-183 board

!¡

VK shaft holder

!™

VK4800 control switch block

Two screws (M1.7 x 4)

Zoom lens

(VCL-4010VA)

CD-159 board

VF-106 board

2-3

2-5. REMOVAL OF VC-183 BOARD

3

Board-to-board connector 60P

CN6200, VC-183 board

CN3700, DD-91 board

8

Two screws (M1.7 x 2.5)

1

Two screws (M1.7 x 2.5)

2

Battery plate

!™

Two screws

(M1.7 x 2.5)

!¡

Two screws

(M1.7 x 2.5)

7

Connector

CN4701, 2P

4

Connector

CN4700, 4P

5

Two connectors

CN1001, 6P

CN1002, 11P

6

ME4800 control switch block

CN2301, 5P

!º

Remove the DV terminal cover

in the arrow

direction.

9

Remove the cabinet bottom assembly

in the arrow

direction.

Be careful not to damege the flexible

board of the DD-91 board.

!£

Remove the VC-183 board in the arrow

direction.

When assembling, pay attention to the

positioning of the harness. See Fig. 1.

Position the harness as

shown in the figure.

Two zoom lens attaching

positioning pins.

The harness does not ride onto the

positioning pin.

CN4700

CN1002

CN2301

CN4701

CN1001

Fig.1 Arranging the Harness of VC-183 Board

2-4

2-6. REMOVAL OF DD-91 BOARD

Note : Be careful not to damage the flexible board.

Cabinet bottom assembly

DD-91 board

(Video terminal)

Three screws (M2 x 6)

Two screws (M1.7 x 2.5)

Remove the battery terminal board

in the arrow direction.

DD-91 board

(S terminal, 26-pin multi connector)

!º

Screw (M1.7 x 2.5)

Open the liquid crystal panel

in the arrow directioen.

Three screws (M1.7 x 4)

LCD case (Inner)

PD ground plate

Screw (M1.7 x 2.5)

!¡

PD-71 board

!™

Cold cathode fluorescent tube with

conductive light plate.

Liquid crystal display module

(LQ3FN31)

FP-484 flexible boar

Flexible board

CN5801, 24P

Two connectors

CN5600, 6P

CN5601, 11P

2-7. REMOVAL OF PD-71 BOARD, LIQUID CRYSTAL DISPLAY MODULE

2-5

2-8. SERVICE POSITION-1 (MAINLY VIDEO/AUDIO SYSTEM CHECKSAND ADJUSTMENTS)

CPC-6 terminal board

(J-6082-371-A)

CPC-6 : 26P multi connector

Flexible board (CPC-6) for pulling out CPC terminal

(J-6082-370-A)

VC-183 : CN6202

I/O board 1

(J-6082-372-A)

DD-91 : 26P multi connector

Remove each board according to “DISASSEMBLY”.

2

Connect the specified tool as shown in the figure.

Take note that connectors can be connected in the opposite

direction depending on their shapes.

MR-36 board

Mechanism deck

Zoom lens

Box or table.

CD-159 board

VC-183 board

DD-91 board

VK4800 control switch block

2-9. SERVICE POSITION-2 (MAINLY CAMERA SYSTEM CHECKS OR ADJUSTMENTS)

Remove each board according to “DISASSEMBLY”.

2

Connect the specified tool as shown in the figure.

Take note that connectors can be connected in the opposite

direction depending on their shapes.

DD-91 board

VC-183 board

VK4800 control switch block

FZ4800 control switch block

MR-36 board

Mechanism deck

I/O board 1

(J-6082-372-A)

DD-91 : 26P multi connector

Flexible board (CPC-6) for pulling out CPC terminal

(J-6082-370-A)

VC-183 : CN6202

CPC-6 terminal board

(J-6082-371-A)

CPC-6 : 26P multi connecto

MR-36 : CN3100

Capstan motor flexible board

extension cord (18P)

(J-6082-374-A)

2-6

2-10. INTERNAL VIEWS

Zoom lens

(VCL-4010VA)

1-547-966-11

M903

LM motor

assembly (Loading)

A-7026-007-A

M901

Drum assembly

(DEH-07A-R)

A-7044-007-A

M902

Capstan motor

8-835-524-01

Pinch roller

S reel table

assembly

X-3748-614-2

T reel table

assembly

X-3748-615-2

M904

Focus motor assembly

3-709-159-01

M905

Zoom motor

assembly

3-709-158-01

2-7

CD-159

(CCD Imager • Steady Shot Sensor)

PD-71

(RGB Decoder)

MR-36

(REC/PB Amp, Servo

)

DD-91

(Power)

VF-106

(Color EVF)

VC-183

Camera, IN/OUT, Blocking, ECC • TBC • CHCD,Audio Processor,

Clock Synchronize Processor, DV IN/OUT, Mode Control, Audio,

Audio Control

CC-97

(Connector

)

2-11. CIRCUIT BOARDS LOCATION

Otros manuales para DCR-PC7

Este manual sirve para los siguientes modelos

Otros manuales de Videocámara de Sony

Sony

Sony DCR-IP5 Network Function Manual de usuario

Sony

Sony Handycam HDR-XR260V Manual de usuario

Sony

Sony Handycam DCR-DVD300 Manual de usuario

Sony

Sony Handycam CCD-TR600 Manual de usuario

Sony

Sony Handycam HDR-CX130 Manual de usuario

Sony

Sony NEX-VG20 Handycam® Manual de usuario

Sony

Sony PXW-Z750 Manual de usuario

Sony

Sony Handycam DCR-SR30E Manual de usuario

Sony

Sony DCR-PC109 - Digital Handycam Camcorder Manual de usuario

Sony

Sony HDR-CX380 "Handycam Manual de usuario

Sony

Sony HDR-CX210/B Manual de usuario

Sony

Sony HDR-CX190 Manual de usuario

Sony

Sony Handycam DCR-PC1 Manual de usuario

Sony

Sony Handycam DCR-PC9 Manual de usuario

Sony

Sony Handycam HDR-PJ810 Manual de usuario

Sony

Sony ExwaveHAD SSC-DC50A Manual de usuario

Sony

Sony Handycam DCR-VX2000 Manual de usuario

Sony

Sony Handycam FDR-AX100 Manual de usuario

Sony

Sony CCD-TR78 - Video Camera Recorder 8mm Manual de usuario

Sony

Sony Handycam HDR-TG5VE Instrucciones de funcionamiento

Sony

Sony DXC-325P Manual de usuario

Sony

Sony HDR-CX320 Manual de usuario

Sony

Sony 500WSPL Manual de usuario

Sony

Sony DCR-PC101 Manual de usuario

Manuales populares de Videocámara de otras marcas

Toshiba

Toshiba CAMILEO Z100 Manual de usuario

Panasonic

Panasonic NV-VS40B Manual de usuario

Canon

Canon RC 260 Manual de usuario

Brinno

Brinno TimeLapse TLC200 Manual de usuario

JVC

JVC GR-SXM68AC Guía de inicio rápido

Panasonic

Panasonic AG-HMC152EN Manual de usuario

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manual de usuario

MYDLINK

MYDLINK DCS-6100LH Manual de usuario

SECURECOM

SECURECOM V-5014B Manual de usuario

Panasonic

Panasonic HDC-SD100 Manual de usuario

Sharper Image

Sharper Image U-VIDEO Manual de usuario

JVC

JVC AA-V15EG Manual de usuario

Canon

Canon LEGRIA HV40 Manual de usuario

RCA

RCA CC616 Manual de usuario

Panasonic

Panasonic NVM40 Manual de usuario

ATIK Cameras

ATIK Cameras Horizon Manual de usuario

Sharp

Sharp ViewcamZ VL-Z8H Manual de usuario

Philips

Philips M620/21 Manual de usuario
