Sony Ericsson R306c Manual de usuario
R306c
User guide
This is the Internet version of the User's guide. © Print only for private use.
2
Congratulations on your purchase of the Sony Ericsson
R306c. For additional phone content, go to
www.sonyericsson.com/fun. Register now to get free online storage
and special offers at www.sonyericsson.com/myphone. For product
support, go to www.sonyericsson.com/support.
Instruction symbols
The following instruction symbols appear in this User guide:
> Use the navigation key to scroll and select.
Press the navigation key centre.
Press the navigation key up.
Press the navigation key down.
Press the navigation key to the left.
Press the navigation key to the right.
Note
Tip
Warning
Indicates that a service or function is network- or
subscription-dependent. All menus or functions may not be
available in your phone. Consult your network operator for
more information.
This is the Internet version of the User's guide. © Print only for private use.
3
Preparing the phone

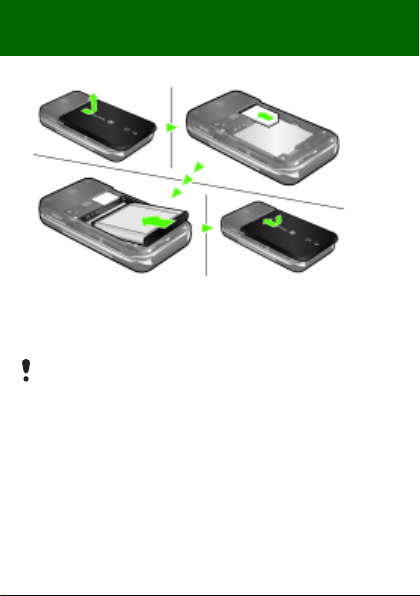

To insert the SIM card and battery
1Remove the battery cover.
2Slide the SIM card into its holder with the contacts facing down.
3Insert the battery with the label side up and the connectors facing
each other.
4Replace the battery cover.
Do not force the battery cover into place. Slide the battery cover
carefully onto the phone and close it.
This is the Internet version of the User's guide. © Print only for private use.
4
Charge the battery
Your phone battery is partly charged when you buy it.

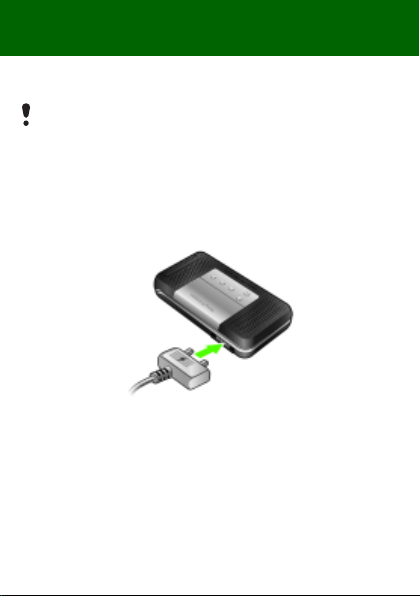

Using the USB charger
To connect the charger and charge the battery (The illustrations are
for guidance only and may not accurately depict the actual phone)
1Connect the USB cable (you can get instruction for three conditions from
Note) plug to the AC adapter USB socket, as shown in the above
illustration. The USB cable is supplied with your phone.
2Connect the USB cable connector to your phone. Press a key to view
the charging status on the screen. It takes approximately 2.5 hours to
fully charge the battery.
It may take 30 minutes for the battery icon to appear on the screen.
This is the Internet version of the User's guide. © Print only for private use.
5

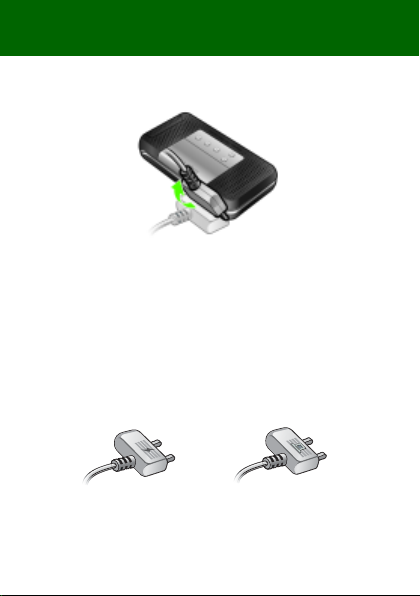

To remove the charger
1Charge your battery until the battery icon indicates a full charge.
2Tilt the USB charger connector upwards to remove it.
Note:
1If there are two USB cables in the kit (USB cable for charging and USB
cable for data transferring. See the illustrations as below), then the
USB cable for charging is only intended for charging your phone.
Do not use it for transferring data.
The USB cable for the USB charger is only intended for connection
to the AC adapter to charge your phone. It must not be used for
connection to a PC. It can only be used for charging your phone.
Never use it for charging accessories.
USB cable for charging USB cable for transferring
This is the Internet version of the User's guide. © Print only for private use.
6
2If there is only one USB cable in the kit, it is intended for charging your
phone as well as transferring data.
3If there is only one USB cable for the USB charger in the phone kit,
this USB cable is only intended for charging your phone.
4Sony Ericsson strongly recommends that you use only Sony Ericsson
branded original batteries, the part of power supply device in
accordance with YD/T 1591-2006 specifications of Communications
Industry Standards of P. R. China and the USB cable supplied with
your phone to charge the phone. The use of third-party products may
decrease the performance of your phone and/or pose a risk to your
health or safety.
You can charge the battery for more or less than 2.5 hours. Interrupted
charging will not damage the battery.
Performance depends on temperatures, signal strenth, usage
patterns, features selected and voice or data transmissions. The
stand-by time for this battery is up to xxx hours.
Use only Sony Ericsson branded original batteries intended for use
with your mobile phone. If you use other batteries you may not be
able to charge your phone.
This is the Internet version of the User's guide. © Print only for private use.
7
Turning on the phone
To turn on the phone
1Press and hold down .
2Enter your PIN if requested. To correct mistakes, press .
3Select OK.
4Select a language.
5Enter the time and date and select Save.
To turn off the phone
•Press and hold down .
Standby
After you have turned the phone on and
entered your PIN, the name of your operator appears on the screen.
This is called standby. You can now make and receive calls.
This is the Internet version of the User's guide. © Print only for private use.
8
SIM and PIN
SIM card
The SIM (Subscriber Identity Module) card, which you get
from your network operator, contains information about your
subscription. Always turn off your phone and detach the
charger before you insert or remove the SIM card.
PIN code
You may need a PIN (Personal Identification Number) to activate the
services in your phone. Your PIN is supplied by your network operator.
Each PIN digit appears as *, unless it starts with emergency number
digits, for example, 112 or 911. You can call an emergency number
without entering a PIN.
You can save contacts on the SIM card before removing it from
your phone. Contacts may also be saved in the phone memory.
See Contacts on page 16.
If you enter the wrong PIN three times in a row, this message
displayes, PIN blocked. To unblock, enter your PUK code provided
by your network operator. To unblock it, you need to enter your
PUK (Personal Unblocking Key).
This is the Internet version of the User's guide. © Print only for private use.
9
Phone overview
Call key
Selection key
Selection key
Shortcut key
Centre navigation
key
Screen
C key
Ear speaker
Radio shortcut
key
Silent key
On/off key,
End key
This is the Internet version of the User's guide. © Print only for private use.
10
Volume keys
Camera
Connector for charger,
handsfree and USB
cable
Radio preset
keys
Channel up &
down keys
Stereo Speakers
Audio enhancer key
