SOMFY Clever Manual de usuario

Tilt Blind Motorization Kit

Installation Guide

Trousse de motorisation de store inclinable

Guide de montage

CONTENTS

Pre-check 1

Product compatibility 2

Inside this package 2

Other items you may need 3

Blind components 4

Step 1 - Remove the blinds 5

Step 2 - Prepare for motor installation 8

Step 3 - End-mount installation 13

Step 4 - Center-mount installation 14

Step 5 - Finishing up 16

Step 6 - Remote control setup 17

TABLE DES MATIÈRES

Vérification préliminaire 25

Compatibilité du produit 26

Compris dans cet emballage 26

Autres articles possiblement requis 27

Composants du store 28

Étape 1 - Dépose du store 29

Étape 2 - Préparation pour l’installation du moteur 32

Étape 3 - Montage en extrémité du store 37

Étape 4 - Montage en partie intermédiaire du store 38

Étape 5 - Finalisation de l’installation 40

Étape 6 - Configuration de la télécommande 41

Scan this code with your smart device

for a helpful video showing how easy your

Clever™ installation can be. Or, visit

somfysystems.com/clever

Pour obtenir un clip vidéo montrant à quel point

l’installation de votre moteur Clever™ peut être

facile, balayez ce code avec votre appareil intelligent.

Ou, visitez somfysystems.com/clever

PRE-INSTALLATION CHECK-LIST

We want your Clever™installation to go as smoothly and easily as possible, so please take a moment to answer the

questions below and read the important safety information before you begin.

Are your blinds 2” to 2-1/2” in depth, measured front to back? Yes

Are your blinds made of wood, composite or imitation wood?

Yes

No, they’re vinyl or aluminum

Are the blinds located indoors?

Yes

No, they’re outside

Do you raise and lower them using a cord?

Yes

No, they’re cordless

2⁄”

(57mm)

2” (51mm)

2⁄”

(57mm)

1½” (38mm)

2⁄”

(57mm)

1½” (38mm)

CAUTION Check headrail

for any visible damage.

Does the headrail of your blinds match one of styles shown here?

Yes

See page 4 for reference to find headrail and other blind components.

Are your headrails metal? Yes No

Are you ready to start enjoying the convenience and luxury of motorized blinds? Yes No

If you answered “No” to any of these questions, this may not be the right motorization solution for your blinds. Please visit

somfysystems.com to connect with a Somfy Expert.

Installation Guide

PRODUCT COMPATIBILITY

Clever is intended for the tilt function control of made-to-measure horizontal blinds. Clever is typically not compatible with off-the-shelf

blinds or blinds that are cut down to size at big box retailers.

Clever is compatible with popular brands widely available through online stores,as well as major retailers. It is still important to verify that

the headrail style is compatible before installing,as there is some variation in the market.

Not sure of your brand? No worries. Simply try each of the included adaptors until you find the perfect fit.

INSIDE THIS PACKAGE

NOTE: Ensure you also have a Somfy battery option & remote control device.

If you are missing any of these items from your kit, please contact Somfy.

B1 B2 B3

A -Somfy Clever motor B -Headrail Adaptors – 3 sets of 2 each

(to fit the profiles shown on the previous page)

C -Tilt Rod Adaptors - set of 7

.24” (6mm)

Square

.16” (4mm)

Square

.24” (6mm)

Hexagonal

.22” (5.6mm)

Hexagonal

.2” (5mm)

Hexagonal

D-rod

Adaptor

.25” (6.4mm)

Square

OTHER ITEMS YOU MAY NEED

• A flat-head screwdriver

• A hammer

• A ruler or measuring tape

• A pair of pliers

• A pair of scissors

• A step ladder

• A second set of hands when taking down and

re-attaching the blinds can be helpful

• A can-do, positive attitude – because you’ve got this!

IMPORTANT INSTALLATION & SAFETY TIPS

• Use reasonable care and caution when handling the Clever motor and control device.

• Make sure you use a genuine Somfy controller for all your Clever motorized blinds. Somfy offers multi-channel remote control devices

to accommodate any motorized blind application, whether single blind or multiple blind installations. Please visit somfysystems.com for

more information.

• Use care when inserting the motor into the headrail. The edge of the blind headrail can be sharp.

• Be careful not to drop, impact,or puncture the Clever motor or immerse it in any liquid. If your motor has been damaged in any way, please

contact Somfy for assistance.

• Follow each of the steps outlined in the installation instructions that follow. Failure to follow these instructions may result in accidental damage

to your window blind. Also, please don’t use Somfy Clever for anything other than its intended use, as this will void the product warranty.

• And most importantly,don’t worry too much. Just roll up your sleeves, follow the steps, and you’ll be done in no time!

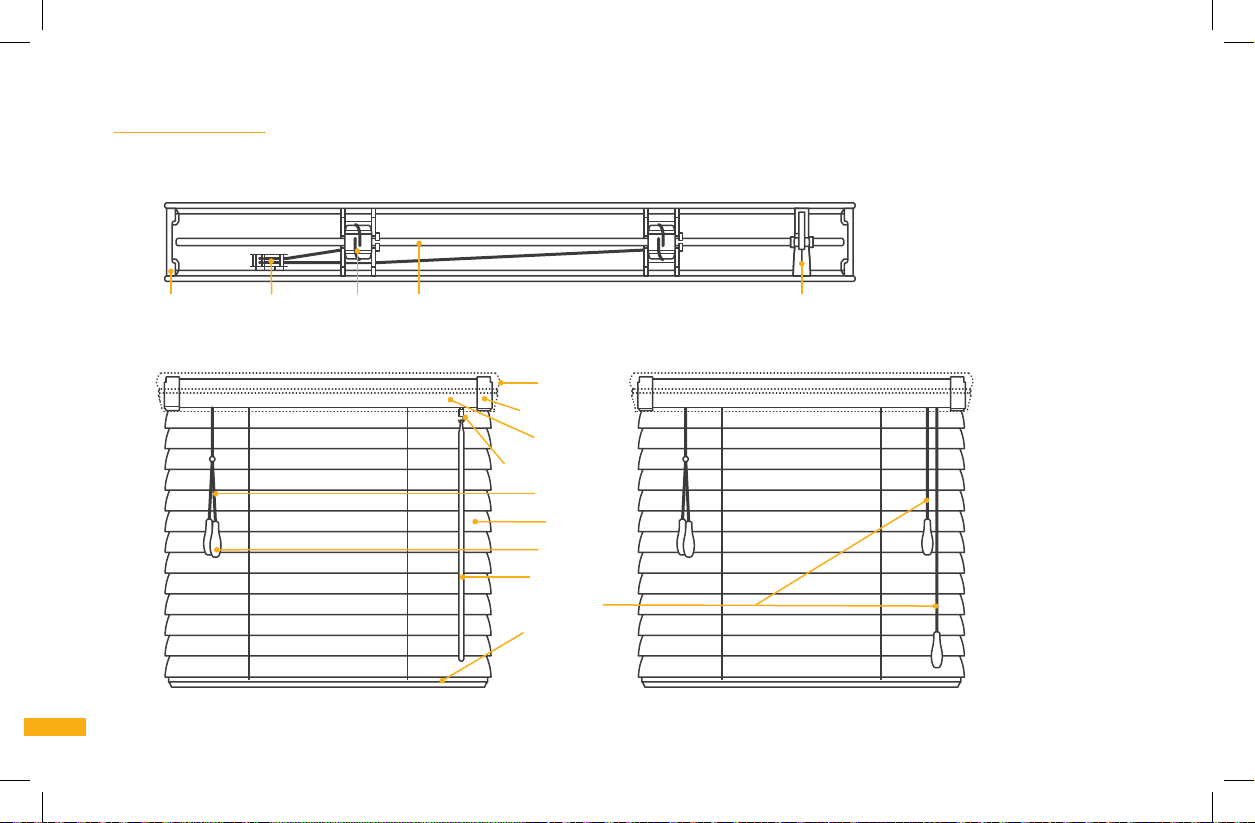

BLIND COMPONENTS

Before you dive right in, please take a moment to get familiar with the names of the various parts inside your blinds.

End Cap Cord Lock

(Lift Mechanism) Tumbler Tilt

Rod

Valance

Blind Bracket

Headrail

Tilter Hook/Sleeve

Lift Cord

Slats

Tassels

Bottom Rail

Tilt Mechanism

(Wand or Cord)

HEADRAIL - TOP VIEW

FULL BLIND ASSEMBLY WITH TILT WAND OR FULL BLIND ASSEMBLY WITH TILT CORDS

Tilt Wand

Tilt Cords

NOTE: LIFT OR TILT CORDS AND/OR WAND POSITION MAY DIFFER.

STEP 1REMOVE THE BLINDS

1a. Carefully remove any valances or decorative covers from the top-front of each blind to be motorized.

1b. Manually tilt the blinds to the fully open position. Then raise the blinds all the way up. If your blind has a tilt wand, remove it now.

Tilt Wand

Removal

1c. Open the blind brackets on each end of the blind. NOTE: Some brackets open upward from the bottom; others may swing outward to

the side. You may need to use a screwdriver to help open them.

Upward Swing Outward Swing

1d. Carefully remove the blind away from the open brackets, as shown. Then remove the blind from the window area and place on

a flat work surface.

1e. Use a hammer and screwdriver to gently tap off both end caps.

CAUTION Headrail edges may be sharp, so take care when working with it.

STEP 2PREPARE FOR MOTOR INSTALLATION

IMPORTANT Before you install the Clever motor, it is important to make certain that it and the headrail adaptors

will fit securely in the headrail. Remove the headrail adaptors included in the packaging and make certain that

at least one pair fits properly in the headrail – not too loose or too tight. If the fit isn’t right, please contact Somfy at

1-800-822-7468 and do not proceed with the installation.

2a. Select the correct pair of headrail adaptors (B) that best match the size & shape of your blind’s headrail. Set them aside.

B1 B2 B3

2b. Select the tilt rod adaptor (C) that best matches your blind’s tilt rod. NOTE: Only one tilt rod adaptor is required. Set it aside.

C1 C2 C3 C4 C5 C6 C7
