SOMFY Sonesse 28 WF Zigbee Manual de usuario

Sonesse 28 WF RTS

EN Instructions

EN Sonesse 28 WF RTS

ORIGINAL INSTRUCTIONS

These instructions apply to all Sonesse 28 WF RTS drives, the different versions of

which are available in the current catalogue.

CONTENTS

Prior information...........................................................................................

1.1.

Field of application............................................................................

1.2.

Liability ...............................................................................................

Installation......................................................................................................

2.1.

Assembly ............................................................................................

2.2.

Wiring .................................................................................................

2.3.

Commissioning ..................................................................................

2.4.

Tips and advice on installation.........................................................

Use and maintenance ....................................................................................

3.1.

Mode selection: Roller or Tilting Mode..........................................

3.2.

Controlling Up, Down, My: in Roller mode ....................................

3.3.

Controlling Up, Down, My: in Tilting mode....................................

3.4.

Favourite position (my) ....................................................................

3.5.

Adjusting the speed...........................................................................

3.6.

Tips and advice on operation...........................................................

Technical data ................................................................................................

Sonesse 28 WF RTS EN

GENERAL INFORMATION

Safety instructions

DANGER

Indicates a danger which may result in immediate death or

serious injury.

WARNING

Indicates a danger which may result in death or serious

injury.

PRECAUTION

Indicates a danger which may result in minor or moderate

injury.

CAUTION

Indicates a danger which may result in damage to or

destruction of the product.

EN Sonesse 28 WF RTS

1.PRIOR INFORMATION

1.1.Field of application

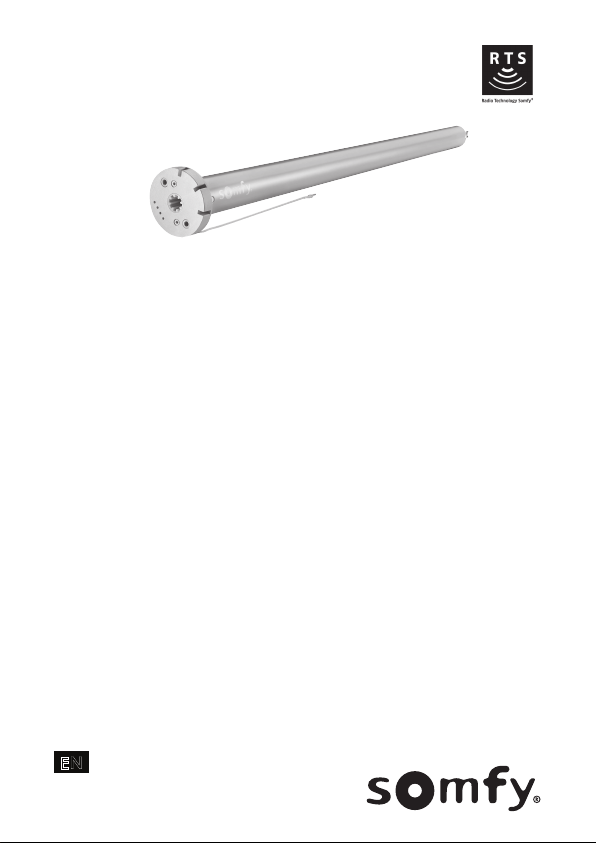

The Sonesse 28 drives are designed to drive all types of interior blinds except

pantographs.

The installer, who must be a motorisation and home automation professional, must

ensure that the motorised product is installed in accordance with the standards in

force in the country in which it is installed such as EN 13120 relating to interior blinds.

1.2.Liability

Before installing and using the drive, please read these instructions carefully.

In addition to the instructions provided in this guide, please also comply with the

instructions provided in the attached Safety instructions document.

The drive must be installed by a home motorisation and automation

professional, in accordance with Somfy’s instructions and the applicable

regulations in the country of installation.

Any operation of the drive outside the field of application described above is

prohibited. Such use, and any failure to comply with the instructions given in this guide

and in the attached Safety instructions document, absolves Somfy of any liability and

invalidates the warranty.

After installing the drive, the installer must inform his customers of the operating and

maintenance conditions for the drive and must provide them with the operating and

maintenance instructions, and the attached Safety instructions document. Any After-

Sales Service operation on the drive must be performed by a home motorisation and

automation professional.

Never begin installing without first checking the compatibility of this product with the

associated equipment and accessories. If in doubt when installing this product and/or

to obtain additional information, contact a Somfy representative or visit the website

www.somfy.com.

Sonesse 28 WF RTS EN

2.INSTALLATION

CAUTION

•

These instructions are mandatory for the home motorisation and

automation professional installing the drive.

•

Never drop, knock or puncture the drive or immerse it in liquid.

•

Install an individual control point for each drive.

NOTICE

Make sure that LED, programming button and input connection remain visible and

easily accessible after installation.

2.1.Assembly

2.1.1.Preparing the drive

CAUTION

Sonesse 28 WF RTS : interior diameter of the tube has to be Ø26.6 mm or

greater.

1] Fit the crown (a) and drive wheel (b) to the

motor.

2] Measure the length (L) between the end of

the drive wheel and the head end.

(a)(b)

2.1.2.Preparing the tube

1] Cut the tube to the required length.

2] Deburr the tube and remove the debris.

1] 2]

EN Sonesse 28 WF RTS

2.1.3.Assembling the drive-tube

1] Slide the drive into the tube. Insert the

wheel by aligning the wheel to the tube

profile. Insert the drive half way and then

slide the crown down the drive and insert

it in the tube. Finally, push the motor

inside the tube.

2] Not required, but if needed, fix the tube to

the drive with self-tapping screws or steel

pop rivets depending on the dimension (L).

2.1.4.Mounting the tube-drive assembly on the brackets

(a) Standard bracket.

(b) Drive plate for specific bracket.

NOTICE

For optimal radio reception, the motor

antenna should be kept straight and should be

positioned outside of headrail (if used).

(a) (b)

2.2.Wiring

PRECAUTION

To ensure electrical safety, this Class III motor

must be powered by a «SELV» voltage source

(Safety Extra Low Voltage).

Plug the battery with the motor supply cable.

CAUTION

Do not unplug the battery when the motor

works.

Sonesse 28 WF RTS EN

2.3.Commissioning

NOTICE

Orange LED blinks continuously in setting mode.

Green LED blinks once when any order from paired remote is received.

2.3.1.Pre-programming the control point

Press the Up and Down buttons simultaneously

on the control point:

→The motorised product moves up and down and

the control point is temporarily programmed.

2.3.2.Checking the direction of rotation

Press the Up button on the control point:

a] If the motorised product rises, the direction of

rotation is correct: move onto Setting the end

limits [}7]

b] If the motorised product lowers, the direction

of rotation is incorrect: move onto the next step.

b1] Press the My button on the control point until

the motorised product moves up and down: The

direction of rotation has been modified and green

LED blinks 5 times.

b2] Press the Up button on the control point to

confirm the direction of rotation.

b1] b2]

2.3.3.Setting the end limits

NOTICE

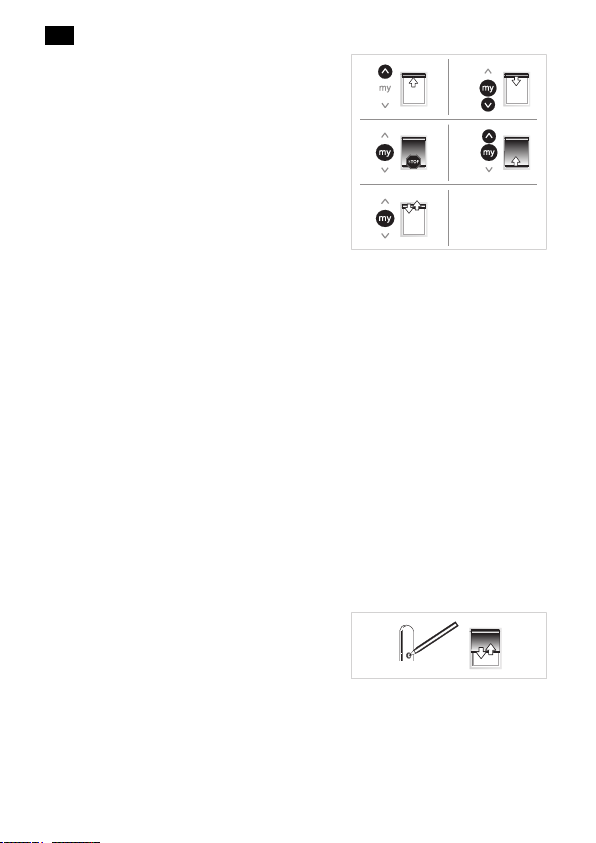

The end limits can be set in any order.

EN Sonesse 28 WF RTS

1] Press and hold the Up button to move the

motorised product to the desired up

position. If necessary, adjust the up

position using the Up or Down buttons.

2] To memorize the up limit: Press the My

and Down buttons simultaneously and

release once the motorised product

begins to move. The up limit is now

memorized and green LED blinks 5 times.

3] Press the My button when the motorised

product reaches the desired down

position. If necessary, adjust the down

position using the Up or Down buttons.

4] To memorize the down limit: Press the

My and Up buttons simultaneously and

release when the motorised product

begins to move. The down limit is now

memorized. The motorised product

moves up and will stop at its upper limit

and green LED blinks 5 times.

5] To confirm and complete limit

programming: Press and hold the My

button until the motorised product briefly

moves up and down. The end limits are

now recorded.

1] 2]

2.3.4.Recording “Pairing” the control point

After recording the end limits:

Briefly press the control point Prog. button.

→The motorised product briefly moves up and

down to confirm pairing.

The control point is recorded “paired” to the

motorised product and green LED blinks 5 times.

PROG.

Sonesse 28 WF RTS EN

2.4.Tips and advice on installation

2.4.1.Questions about the drive?

Observations Possible causes Solutions

The motorised product

does not operate.

External battery is low and

requires charge.

Charge the battery.

The control point battery is

low. LED doesn't light

when any button of a

paired control point is

pressed.

Check the battery and

replace it as required.

The control point is not

compatible or not

programmed. LED doesn't

light when any button of

control point is pressed.

Check the compatibility or

pair the control point as

required referring to

Adding/Deleting Somfy

control points [}18].

An obstacle hinders the

movement of the

motorised product. The

Red LED lights fixed on.

Remove the obstacle.

Drive position is out of the

end limits. Red LED blinks 2

times intermittently and

continually.

Proceed to Setting the

end limits [}7].

Motor is neither set nor

paired. Orange LED lights

fixed on.

Proceed to

Commissioning.

The thermal protection has

activated. LED blinks red

continuously.

Wait for the drive to cool

down (LED will switch off)

Motor is in setting mode.

Orange LED blinks.

Proceed to Setting the

end limits [}7].

EN Sonesse 28 WF RTS

Observations Possible causes Solutions

Proceed to Recording

“Pairing” the control

point [}8];

Disconnect and reconnect

the battery.

The motorised product

stops too soon.

The end limits are

incorrectly set.

Reset the end limits.

The motorised product has

exceeded recommended

weight limit.

Replace the motorised

product.

Battery is low. Charge the battery.

Setting is not allowed. The

drive moves briefly 3 times

in one direction and 3 times

in the other direction. Red

LED blinks 3 times and 3

times intermittently.

Maximum number of

control points reached.

Erase control points from

memory to add a new

control point referring to

Erasing control points

from memory [}12]

Maximum/minimum value

of the setting is reached.

Perform correct setting.

End limits are too close Readjust the end limits

referring to Readjusting

the end limits [}10].

2.4.2.Readjusting the end limits

CAUTION

Control point must be paired to the motorised product.

NOTICE

Orange LED blinks slowly until the new end limit is recorded.

Otros manuales para Sonesse 28 WF Zigbee

Tabla de contenidos

Otros manuales de Accionamiento de CC de SOMFY

SOMFY

SOMFY ALTUS RTS Series Manual de usuario

SOMFY

SOMFY Altus RTS Manual de usuario

SOMFY

SOMFY FTS50 Instrucciones de montaje

SOMFY

SOMFY Sonesse 28 WF Zigbee Manual de usuario

SOMFY

SOMFY Sonesse 28 WF Zigbee Manual de usuario

SOMFY

SOMFY ilmo 50 WT Manual de usuario

SOMFY

SOMFY Sunea Screen 40 io Manual de usuario

SOMFY

SOMFY SONESSE 30 WF RTS LI-ION Manual de usuario

SOMFY

SOMFY Pergola io Instrucciones de montaje

SOMFY

SOMFY ALTUS 40 RTS Manual de usuario

SOMFY

SOMFY MAESTRIA Plus 50 io Manual de usuario

SOMFY

SOMFY Sonesse 28 WireFree RTS Li-ion Manual de usuario

SOMFY

SOMFY Sonesse Ultra 50 RTS Instrucciones de funcionamiento

SOMFY

SOMFY LT 50 CSI RTS Manual de usuario

SOMFY

SOMFY Sonesse 50 RTS Guía de instalación

SOMFY

SOMFY MAESTRIA+ 50 RTS Manual de usuario

SOMFY

SOMFY Sunea 40 Solar io Manual de usuario

SOMFY

SOMFY Sonesse 40 Zigbee Manual de usuario

SOMFY

SOMFY J4 WT Manual de usuario

SOMFY

SOMFY ILMO2 50 io Manual de usuario

SOMFY

SOMFY JR RU 30 Manual de usuario

SOMFY

SOMFY Sonesse 50 Manual de usuario

SOMFY

SOMFY Sonesse Ultra 50 RS485 Manual de usuario

SOMFY

SOMFY sonesse 30 rts Manual de usuario

Manuales populares de Accionamiento de CC de otras marcas

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Manual de usuario

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Manual de lista de piezas

Chamberlain Garog

Chamberlain Garog D Series Manual de usuario

Parker

Parker PDS Series Manual de usuario

Festo

Festo DGC G Series Guía de configuración

Binks

Binks QS-5012-1-CE Manual de usuario

Danfoss

Danfoss VLT 2800 Series Hoja de especificaciones

ABB

ABB ACQ580-01 Series Manual de instalación

YASKAWA

YASKAWA CANopen SI-S3 Manual de usuario

GE D20A6 Manual de usuario

Unex

Unex MC-D-250-1000-050W-TW Manual de usuario

Geckodrive

Geckodrive G213V Manual de usuario

ABB

ABB RSYC-01 Manual de usuario

Rockwell Automation

Rockwell Automation PowerFlex 700S Manual del propietario

WEG

WEG DeviceNet CFW500 Manual de usuario

Siemens

Siemens SINAMICS G Hoja de datos

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Instrucciones de funcionamiento

Beckhoff

Beckhoff AX8911 Manual del operador
