SOLTEK 86SP2 Manual de usuario

Contents

Item Checkup ........................................................ 7

Chapter 1 Specification ............................................. 8

1-1 Mainboard Layout ...................................................................9

1-2 Mainboard Specifications .................................................... 10

1-2.1 CPU Socket ................................................................................... 10

1-2.2 System Chipsets ........................................................................... 10

1-2.3 Memory ......................................................................................... 10

1-2.4 Advanced System Power Management .................................... 10

1-2.5 Accelerated Graphics Port (AGP) Interface........................... 11

1-2.6 AMI BIOS ..................................................................................... 11

1-2.7 Multi-I/O Functions :.................................................................. 11

1-2.8 Expansion Slots ............................................................................ 12

1-2.9 LAN on board (for 86SP2-L only) ............................................ 12

1-2.10 Hardware Monitor on board ................................................... 12

1-2.11 AC’97 Audio Codec on board ................................................. 12

1-2.12 Form Factor................................................................................ 12

1-3 Mainboard Specification Table ........................................... 13

1-4 Chipset System Block Diagram........................................... 14

Chapter 2 Hardware Setup ..................................... 16

2-1 CPU Installation with Socket 478B .................................... 17

2-1.1 To Identify a Pentium 4 CPU..................................................... 17

2-1.2 CPU Installation with Socket 478B .......................................... 18

2-2 Pentium 4 CPU Fan Installation: ....................................... 19

2-3 Memory Installation ............................................................. 20

2-3.1 To Install DDR SDRAM Module .............................................. 21

Contents

2-3.2 To Remove a DIMM .................................................................... 21

2-4 AGP 8X/4X Slot Installation ................................................ 22

2-5 IDE Connectors Installation................................................ 23

2-6 Serial ATA Connectors Installation .................................... 24

2-7 Floppy Drive Connector Installation ................................. 25

2-8 ATX V2.03 Power Supply Installation ............................... 26

2-9 Jumper Settings ..................................................................... 27

2-9.1 JFSB1 & JFSB2: CPU Frequency Select................................. 28

2-9.2 JBAT1: Clear CMOS .................................................................. 29

2-9.3 LJP1: LAN Controller Select (86SP2-L only) ........................ 30

2-9.4 JKB1: KB / Mouse Power On / Wake Up ................................ 30

2-10 Other Connectors Configuration...................................... 31

2-10.1 On Board Fan Connectors ....................................................... 31

2-10.2 USB Ports and USB Pin-headers ............................................ 32

2-10.3 Chassis Panel Connectors ........................................................ 33

2-10.4 CD-ROM Audio Connectors.................................................... 33

2-10.5 PS/2 Mouse And PS/2 Keyboard............................................. 34

2-10.6 Front Panel Audio Connector ................................................ 34

2-10.7 LAN Connector (86SP2-L Only) ............................................. 35

2-10.8 Thermal Resistor ....................................................................... 35

2-10.9 Complex Pin-header.................................................................. 36

Chapter 3 Software Setup ....................................... 38

3-1 To Open up the Support CD ................................................ 39

3-2 Intel Chipset Software Installation Utility........................ 40

3-3 AC’97 Audio Driver Installation......................................... 41

3-3.1 Install AC’97 6-channel Audio Driver ..................................... 41

3-3.2 Verify 6-channel Audio ............................................................... 42

3-4 To Install Hardware Monitor Utility.................................. 45

3-4.1 Installation ................................................................................... 45

3-4.2 Verification .................................................................................. 46

3-5 To Install LAN Drivers (for 86SP2-L only)....................... 47

Contents

3-5.1 RTL8101L LAN driver on Windows ME / 2000 / XP ............ 47

3-5.2 RTL8101L LAN driver on Windows 9X .................................. 47

3-6 To Install USB 2.0 Driver for Windows 2000/XP ............. 49

Chapter 4 AMI BIOS Setup.................................... 50

4-1 About BIOS Setup ................................................................. 51

4-2 To Run BIOS Setup ............................................................... 51

4-3 About CMOS .......................................................................... 51

4-4 The POST ( Power On Self Test ) ....................................... 51

4-5 To Update BIOS ..................................................................... 52

4-6 BIOS SETUP --- CMOS Setup Utility................................ 54

4-6.1 CMOS Setup Utility .................................................................... 54

4-6.2 Standard BIOS Features ............................................................ 55

4-6.3 Advanced BIOS Features ........................................................... 57

4-6.3.1 CPU Configuration................................................................... 58

4-6.3.2 IDE Configuration.................................................................... 59

4-6.3.3 Floppy Configuration ............................................................... 63

4-6.3.4 Super IO Configuration ........................................................... 64

4-6.3.5 Hardware Health Configuration............................................. 66

4-6.3.6 ACPI Configuration ................................................................. 67

4-6.3.7 USB Configuration ................................................................... 69

4-6.3.8 Frequency/Voltage Control ...................................................... 71

4-6.3.9 Power Management .................................................................. 72

4-6.4 Advanced Chipset Features ....................................................... 74

4-6.4.1 NorthBridge Configuration ..................................................... 75

4-6.4.2 SouthBridge Configuration ..................................................... 77

4-6.5 PCI/PNP Resource Management .............................................. 78

4-6.6 Boot Configuration Setup .......................................................... 80

4-6.6.1 Boot Settings Configuration .................................................... 81

4-6.6.2 Boot Device Priority ................................................................. 82

4-6.7 Boot Security Features ............................................................... 83

4-6.7.1 Supervisor Password ................................................................ 83

Contents

Item Checkup

4-6.7.2 User Password........................................................................... 83

4-6.7.3 Change Supervisor Password .................................................. 84

4-6.7.4 Change User Password ............................................................ 85

4-6.7.5 Clear User Password ................................................................ 85

4-6.7.6 Boot Sector Virus Protection ................................................... 86

4-6.8 Save Changes and Exit ............................................................... 86

4-6.9 Discard Changes ( and Exit )..................................................... 87

4-6.10 Load Optimal Defaults ............................................................. 87

4-6.11 Discard Changes ........................................................................ 87

APPENDICES.......................................................... 88

Appendix-1 Identify Mainboard Model Number ................... 89

Appendix-2 Technical Terms ...................................................... 90

• Mainboard

• Multi-lingual Quick Installation Guide

• User Manual (Mainboard)

• Support CD

• Bundled Bonus Pack CD

• Bundled Bonus Pack Manual

• Cable :

ATA66/100 IDE Cable

2 x Serial ATA Cable

FDD Cable

USB Cable (Optional)

86SP2 / 86SP2-L

Topics included in this chapter are:

1-1 Mainboard Layout

1-2 Mainboard Specifications**

1-3 Mainboard Specification Table

1-4 Chipset Diagram

Introduction

Chapter 1 Specification

This series of mainboards features an integration of the powerful pro-

cessor Intel Pentium 4 and the single-chip North Bridge Intel

SPRINGDALE-P. The Intel P4 processor is a rapid execution engine

providing 800/533/400MHz system bus, while North Bridge Intel

SPRINGDALE-P is a high performance integrated chipset providing Dual

Channel DDR 333/266 SDRAM memory interface, Hub interface as well

as AGP interface.

Integrated with SPRINGDALE-P, South Bridge Intel ICH5 supports

the LPC I/O, upstream Hub interface, PCI interface, IDE interface, Serial

ATA interface, USB 2.0 interface, AC’97 2.2 (6-channel) Audio interface

and the interrupt control. This chapter is to introduce to users every

advanced function of this high performance integration.

** If any difference is found between the mainboard description

and the Mainboard you are using, please look up the Errata/

Update Slip enclosed inside for the correction or updated

information, or else contact the mainboard Dealer or visit our

Web Site for the latest manual update.

Chapter 1 Specification

BIOS

mPGA478B

USB3

USB2

Fan1

+12V Power

AGP 8X/4X

IDE1IDE2

SPRINGDALE

Intel

ICH5

Intel

Dual Channel DDR 333/266MHz

ATA2

DIMM1

DIMM2

PCI 1

PCI 2

PCI 3

PCI 4

PCI 5

LPT1

COM1

COM2

PS/2 K/B (underside)

PS/2 Mouse

USB1 (underside)

USB0

FD1

Main

RTL

Winbond

W83627HF

Fan3

JBAT1

JKB1

RT2

CD-IN1

JFSB2

Intel 82865

(on top)

650

8101L

JAUD1

Battery

ATA1

Power

HDD IR PWR

SPK RST

PWLED

NJ1

LED

ALC

Fan4

JFSB1

RJ45

(on top)

(middle)

Linein

(ontop)

Mic

(underside)

LineOut

(middle)

USB3 (underside)

USB2 (middle)

Fan2

LJP1

1-1 Mainboard Layout

for 86SP2-L only

RJ45

LAN Controller

LJP1 }

86SP2 / 86SP2-L

1-2.4 Advanced System Power Management

• ACPI 1.0B compliant (Advanced Configuration and Power Interface),

including ACPI suspend mode support (See ACPI Configuration of

Advanced BIOS Features in BIOS Setup)

• APM V1.2 compliant (Legacy Power Management)

• Keyboard / Mouse Power On/Wake Up(See ACPI Configuration of

Advanced BIOS features in BIOS Setup)

• Supporting Wake-on-LAN

• Real Time Clock (RTC) with date alarm, month alarm, and century

field

1-2 Mainboard Specifications

1-2.1 CPU Socket

CPU Socket 478B on board, supporting Intel®Pentium 4 processors

(including Intel Hyper-Threading CPUs) in 478-pin package for :

-- 800/533/400MHz System Bus;

-- Hyper-pipelined technology;

-- Advanced dynamic execution;

-- Advanced transfer cache;

1-2.2 System Chipsets

North Bridge Intel SPRINGDALE-PE:

• Supporting 533/400MHz Front Side Bus officially

• Supporting 800MHz Front Side Bus by jumper setting

• A high performance integrated chipset providing processor interface

(including Hyper-Threading Technology), Dual channel DDR 333/266

SDRAM memory interface, Hub interface, AGP interface.

• Showing Hyper-Threading Logo when booting with a Hyper-thread-

ing CPU.

South Bridge Intel ICH5:

• Supporting the LPC I/O, upstream Hub interface, PCI interface, IDE

interface, Serial ATA interface, USB 2.0 interface, AC’97 2.2 (6-

channel) Audio interface and the interrupt control.

1-2.3 Memory

2 DDR DIMM 184-pin slots on board :

• Supporting unregistered, non-ECC Dual-channel DDR 333/266

SDRAM up to 2GBs

• DIMMs to be populated in identical pairs for Dual-channel operation

• SPD (Serial Presence Detect) Scheme for DIMM Detection supported

Chapter 1 Specification

1-2.7 Multi-I/O Functions :

• Serial ATA Controller integrated in ICH5, supporting:

-- 2x Serial ATA connectors supporting up to 150MByte/s transfer rate

• PCI EIDE Controller, supporting:

-- 2x UATA100/66/33 IDE connectors supporting up to 4 IDE devices

• Dedicated IR Functions:

-- Third serial port dedicated to IR function either through the two

complete serial ports or the third dedicated port Infrared-IrDA (HPSIR)

and ASK (Amplitude Shift Keyed) IR

• Multi-mode Parallel Data Transfer:

-- Standard mode, high speed mode ECP and enhanced mode EPP

• Floppy Disk Connector:

-- One FDD connector supporting 2 floppy drives with drive swap support

• Universal Serial Bus Transfer Mode:

-- USB V2.0 compliant; 480Mb/s USB Bus, supporting Windows 2000 or

later operating system (no support for Windows 9X/ME)

-- 4 built-in USB connectors and 2 USB Headers which require 2 additional

USB cables to provide 4 more optional USB ports

• PS/2 Keyboard and PS/2 Mouse

• UARTs (Universal Asynchronous Receiver / Transmitter):

-- Two serial ports (COM1 & COM2) on board

1-2.5 Accelerated Graphics Port (AGP) Interface

AGP Controller embedded on board, supporting:

• 1.5V (4x/8x) power mode only

• 8x 66MHz AD and SBA signalling, AGP pipelined split-transection

longburst transfers up to 2GB/sec

• AGP 8X/4X supported, AGP V3.0 compliant

1-2.6 AMI BIOS

Flash Memory for easy upgrade, supporting BIOS Writing Protection,

Year 2000 compliant, and supporting various hardware configuration

during booting system (See Chapter 4 BIOS Setup):

• Standard BIOS Features(Times, Date, System Information etc.)

• Advanced BIOS Features (CPU,IDE, Floppy, SuperIO, Hardware

Health, ACPI, USB, and Frequency/Voltage Control)

• Advanced Chipset Features (NorthBridge, SouthBridge Configuration)

• PCI/PNP Resource Management (IRQ Settings, Latency Timers etc.)

• Boot Configuration Setup (Boot Settings, Boot Device Priority etc.)

• BIOS Security Features (Supervisor Password, User Password)

86SP2 / 86SP2-L

1-2.11 AC’97 Audio Codec on board

AC’97 Audio Codec 2.2 compliant on board

• Supporting 6-channel display of PCM audio output

• 6 channel audio consists of Front Left, Front Right, Back Left, Back

Right, Center and Subwoofer for complete surround sound effect

• AC’97 Audio Codec Driver enclosed in Support CD for user’s

installation.

1-2.9 LAN on board (for 86SP2-L only)

PCI local bus single-chip Fast Ethernet Controller RTL8101L on board:

• Supporting 10/100Mb data transfer

• Supporting Wake On LAN function through the on-board RJ45 LAN

Connector

• LAN Driver enclosed in Support CD for user’s installation.

1-2.10 Hardware Monitor on board

• Hardware Monitor supported by W83627HF, providing monitoring and

alarm for flexible desktop management of hardware voltage, tempera-

tures and fan speeds.

• Utility Software Soltek Hardware Monitor for displaying system status

is enclosed in Support CD for user’s installation.

1-2.12 Form Factor

• ATX Form Factor, ATX Power Supply, version 2.03 compliant, sup-

ported by one Main Power Connector, one +12V Power Connector.

• Mainboard size: 305mm x 210mm

1-2.8 Expansion Slots

• 5 PCI Bus Master slots

• 1 AGP slot

• 2 DDR SDRAM DIMM slots

Chapter 1 Specification

1-3 Mainboard Specification Table

CPU

North Bridge

South Bridge

BIOS

Memory

I/O Chip

AGP interface

Audio

IDE Interface

SATA Interface

PCI Slots

I/O Connectors

Networking

Other common

features

Socket 478B for P4 CPU( HT CPU included)

Intel SPRINGDALE-P,supporting 533/400MHz

FSB

Intel ICH5

AMI BIOS

Supporting Dual-channel DDR 333/266 SDRAM,

up to 2GB in 2 DIMM slots

W83627HF, with Hardware Monitor

AGP8X/4X Mode only; 1 AGP Slot on board

AC’97 Audio 2.2 compliant, 6 channel audio

2 UATA 66/100 IDE ports

2 Serial ATA connectors

5 PCI Master slots on board

8 USB V2.0, 1 FDD port, 2 COM ports, 1 LPT,

1 IrDA, 1 PS/2 K/B, 1 PS/2 Mouse

LAN Controller RTL8101L and Connector RJ45

(for 86SP2-L only)

PS/2 Keyboard/Mouse Power On / Wake Up

ATX 2.03 Power Supply

ATX Form Factor

86SP2/86SP2-L Specifications and Features

86SP2 86SP2-L

No Yes

LAN Controller

on board

Optional

Features

Models

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de SOLTEK

SOLTEK

SOLTEK 85LIR-C Manual de usuario

SOLTEK

SOLTEK 85DRV5-L Manual de usuario

SOLTEK

SOLTEK SL-67EZ Manual de uso y cuidado

SOLTEK

SOLTEK KT400-C Manual de usuario

SOLTEK

SOLTEK SL-85LIR3 Manual de usuario

SOLTEK

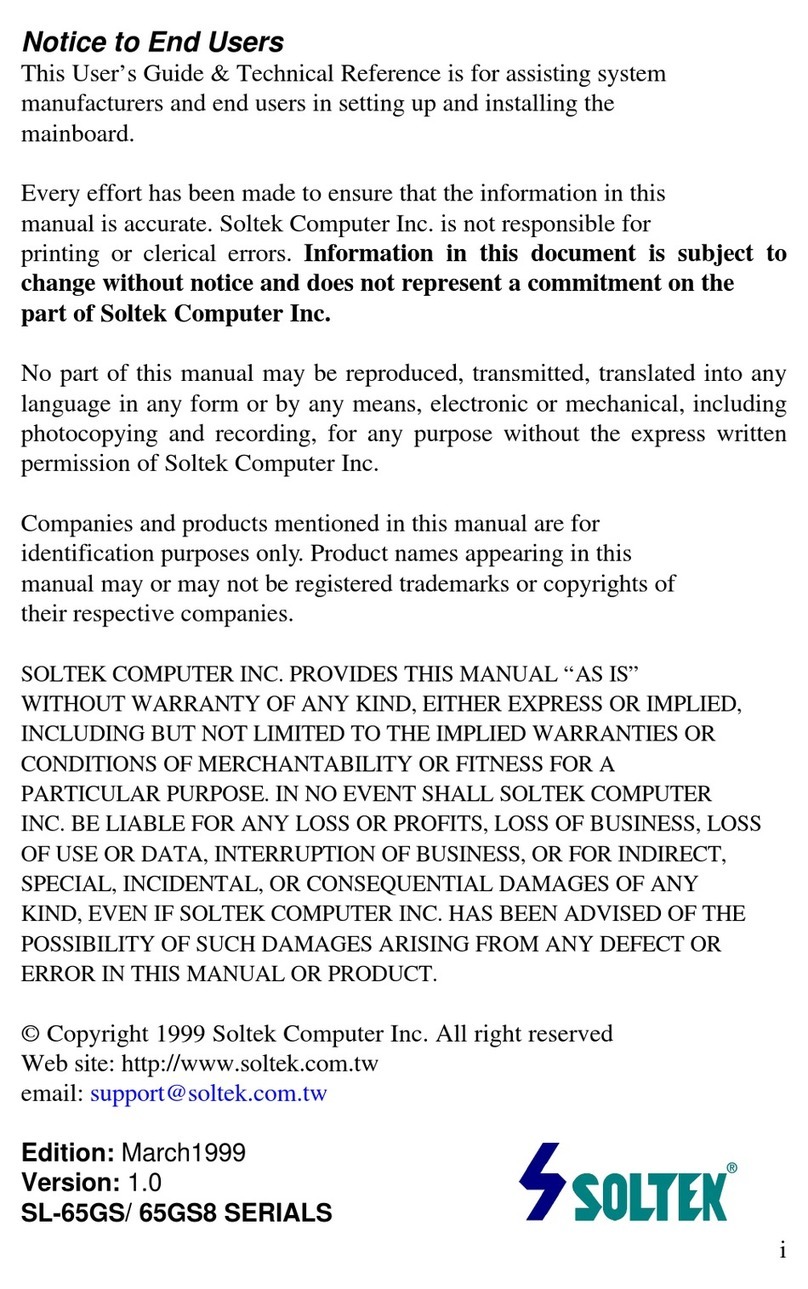

SOLTEK SL-65GS Manual de usuario

SOLTEK

SOLTEK SL-85SD-C Manual de usuario

SOLTEK

SOLTEK SL-65DVB Manual de usuario

SOLTEK

SOLTEK SL-65EP+-T Manual de usuario

SOLTEK

SOLTEK SL-PM800I Manual de usuario

SOLTEK

SOLTEK SL-85ERV4-R Manual de usuario

SOLTEK

SOLTEK B9A-FGR Manual de usuario

SOLTEK

SOLTEK SL-855GEI-FDGR Manual de usuario

SOLTEK

SOLTEK SL-67EV1 Manual de uso y cuidado

SOLTEK

SOLTEK SL-85DRV+ Manual de usuario

SOLTEK

SOLTEK SL-65LIV-T Manual de usuario

SOLTEK

SOLTEK SL-53A2 Manual de uso y cuidado

SOLTEK

SOLTEK SL-75MIV Manual de usuario

SOLTEK

SOLTEK SL-K890-754G Manual de usuario

SOLTEK

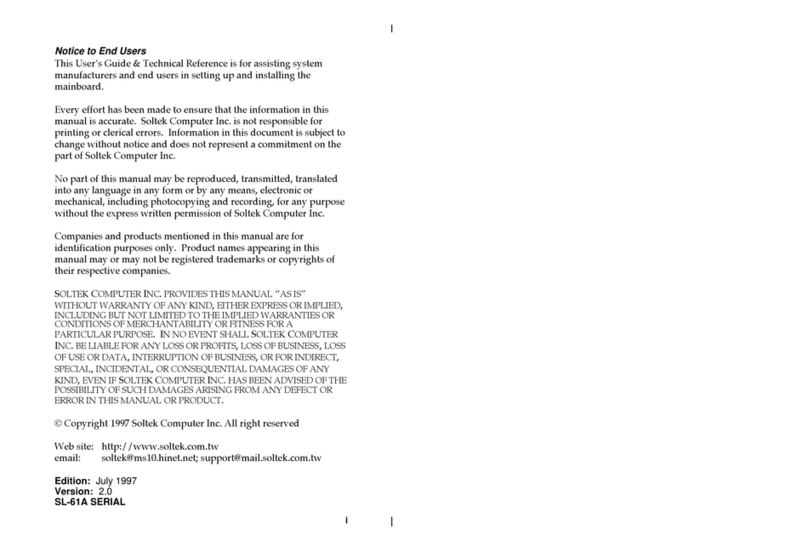

SOLTEK SL-61A Manual de uso y cuidado

SOLTEK

SOLTEK SL-65F+ Manual de usuario

SOLTEK

SOLTEK SL-65MV Manual de uso y cuidado

SOLTEK

SOLTEK 85ERV2 Manual de usuario

SOLTEK

SOLTEK KT333A Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
