GA N° 671473 1

D2SERVICE

Design of 2 Technologies & Applications to Service

Work package

WP4: Design changes required for an easier and more competitive

service of SP’s μCHP appliance

Deliverable

D4.4: Service manual (prescriptions and instructions to installer)

Period covered:

15.02.2017 –31.01.2019

Dissemination status:

Name, title and organization of the scientific representative of the project's

coordinator:

Dr. Andreas Linhart

DLR-Institut für Vernetzte Energiesysteme e. V.

Carl-von-Ossietzky-Str. 15

26129 Oldenburg / Germany

Tel: + 49 441 999 06 371

Fax: + 49 441 999 06 109

E-mail: andreas.linhart@dlr.de

www.d2service-project.eu

This project has received funding from the Fuel Cells and

Hydrogen 2 Joint Undertaking under grant agreement No

671473. This Joint Undertaking receives support from the

European Union’s Horizon 2020 research and innovation

programme, Hydrogen Europe and Hydrogen Europe

research.

D4.4: Service manual (prescriptions and instructions to installer)

GA N° 671473 2

Document history

Version

Date

Description

31.01.2019

First version

BlueGEN BG-15 Generic Installation Manual

- Europe

Manual

Manual - BlueGEN BG-15 Generic Installation Manual - Europe

Document properties

Document Name: BlueGEN BG-15 Generic Installation Manual - Europe

Document Type: Manual

Document ID: 002-MC 999246

Revision Number: 4

Created: December 2018

SOLIDpower Spa [SP] has prepared this document for use by staff or authorised contractors of SP. The information, logos,

ios ad iages i this douet ae popietay to SP ad its affiliated opaies ad ae poided upo the eipiets

promise to keep such information confidential and to use it for the sole purpose of installing or using SP`s products. The

information in this document must not be supplied to third parties without SP`s written consent. This notice must be

reproduced on any copies.

Disclaimer

SP has prepared this document in good faith and has endeavoured to ensure that the information in this document is

oet. Hoee, ay fatos outside SPs uet koledge o otol ay affet the eipiet's use o opeatio of

SPs poduts. SP does ot aat o epeset that the douet is fee fo eo o oissions.

To the fullest extent possible SP expressly excludes any express or implied warranty as to condition, fitness,

ehataility o suitaility of this douet ad liits its liaility fo diet o oseuetial loss at SPs optio to e-

supplying the document or the cost of correcting the document.

Like all eletial o gas poduts, SPs poduts ust e istalled ad opeated oetly. You ust esue that you ead,

udestad ad follo SPs istutios — and any local laws or safety standards —and use reasonable care when

istallig o usig SPs poduts.

If you do not understand the instructions or information provided in this document, contact SP at the address below for

assistance.

Feedback

For any comments or questions about this document, please contact SOLIDpower:

SOLIDpower SpA

viale Trento 115/117 –c/o BIC –Mod C/D

38017, Mezzolombardo (TN) - Italy

t: +39 0461.17.55.068

f: +39 0461.17.55.050

C.F./P.I./VAT nr. IT 02000340220

www.solidpower.com

This project has received funding from the Fuel Cells

and Hydrogen 2 Joint Undertaking under grant

agreement No 671473. This Joint Undertaking

receives support fro the Europea Uio’s Horizo

2020 research and innovation programme, Hydrogen

Europe and Hydrogen Europe research.

Manual - BlueGEN BG-15 Generic Installation Manual - Europe

CONTENT

1. INTRODUCTION ....................................................................................................................3

1.1. Purpose................................................................................................................................... 3

1.2. Legend .................................................................................................................................... 3

1.3. Background ............................................................................................................................ 4

2. HEALTH AND SAFETY ............................................................................................................6

2.1. OH&S requirements............................................................................................................... 6

2.2. Emergency procedures......................................................................................................... 6

2.2.1. Gas leak ..................................................................................................................................................... 6

3. SITE SELECTION.....................................................................................................................7

3.1. Appliance dimensions........................................................................................................... 7

3.2. Installation location ............................................................................................................... 8

3.3. Installation configuration...................................................................................................... 8

3.4. Installation clearance ............................................................................................................ 8

3.5. Installation positions........................................................................................................... 11

4. MAINTENANCE ...................................................................................................................12

4.1. Instructions for BG Evo 1 yearly maintenance................................................................. 13

4.1.1. Air filter replacement ............................................................................................................................. 13

4.1.2. Desulphurizing cartridge replacement ..................................................................................................18

4.1.3. Water Treatment System (WTS) replacement...................................................................................... 23

APPENDIX A SPECIFICATIONS.............................................................................................29

APPENDIX B ABBREVIATIONS.............................................................................................32

Manual - BlueGEN BG-15 Generic Installation Manual - Europe

1. INT‘ODUCTION

1.1. Pupose

This manual explains how to install a BlueGEN appliance, the latest Solid Oxide Fuel Cell (SOFC) technology

manufactured by SOLIDpower Spa.

The BlueGEN appliance can be installed in two configurations:

1. Electrical generator system (with no heat recovery).

2. Co-Generation system (with heat recovery).

Depending on the installation configuration additional space may be required for hot water tanks or other

equipment.

If the installer has any concerns relating to the installation of the BlueGEN appliance, the installer should

contact SP for further advice. Contact details are shown in the Feedback section of this document.

NOTE: This installation manual does not include instructions for the installation of the fuel cell stack onto the

Fuel Cell Module. This activity is to be performed only by appropriately qualified service personnel.

1.2. Leged

The symbols used in this document are:

Symbol

Description

Caution

Ignoring these warnings may result in damage to the BlueGEN appliance or cause

death or serious injury.

Fire danger

Indicates fire danger or safety precautions required in the event of a fire.

Hot surface

Warning that the surface may be hot.

Refer to additional information

Details any steps required before undertaking, or helpful information to assist with,

the installation or maintenance tasks described.

European Declaration of Conformity

Certifies that this product has met European Union consumer safety, health and

environmental requirements. The appliance has been designed and built so as to

operate safely and present no danger to persons, domestic animals or property

when normally use, as defined in Article 1 of the Gas Appliance Regulation (EU)

2016/426.

Manual - BlueGEN BG-15 Generic Installation Manual - Europe

1.3. Bakgoud

Fuel cells are increasingly recognised for their environmental benefits and their potential in energy efficient

distributed power generation systems. Energy utilities worldwide are facing serious problems including

demand growth, limitations of traditional power plants, fuel shortages and greenhouse emission constraints.

SP has developed a residential scale fuel cell system, the BlueGEN appliance, designed to provide a secure,

reliable and highly efficient supply of base load power.

BlueGEN is the latest in SOFC technology and operates as a grid-connected electrical generator and can vary

the output power level to suit a number of differing electricity production requirements.

The BlueGEN appliance operates on natural gas from the mains gas supply and water from the mains water

supply. Through an electrochemical reaction, the BlueGEN appliance provides both electricity for export to

the grid and heat that can be used for heating water.

Key features of the BlueGEN appliance are:

•0.5 to 1.5 kW net output of AC electrical power operating on natural gas.

•High electrical efficiency up to 55 per cent net electrical efficiency.

•Conversion of input fuel into electrical energy with negligible noise, vibration and emissions.

•Power output modulation from 33 to 100 per cent allowing flexible operation for different conditions

and installations.

•Fuel Cell Module, consisting of balance-of-plant and fuel cell stack integration, resulting in a compact

and thermally efficient design.

•Integrated heat exchanger (waste heat recovery unit) to recover the heat from the fuel cell module

allows the BlueGEN appliance to either be installed as an electric generator system or as a co-generation

system.

•Remote data access via ethernet for monitoring and control.

The main parts of the BlueGEN appliance can be seen in Figure 1 below.

SP has developed the BlueGEN appliance to operate in a safe and reliable manner. In order to do so, proper

installation is essential.

Manual - BlueGEN BG-15 Generic Installation Manual - Europe

1. Concentric flue adapter (60/100 mm)

2. Fuel Cell Module

3. Waste heat recovery unit

4. Gas safety double block valves (hidden from view)

5. Condensate tank (hidden from view)

6. Air delivery system

7. Water treatment system

8. Power system

9. Gas desulphuriser

Figure 1: BlueGEN appliance main components

Manual - BlueGEN BG-15 Generic Installation Manual - Europe

2. HEALTH AND SAFETY

2.1. OH&S euieets

The BlueGEN appliance must be operated in accordance with applicable local occupational health and safety

requirements, and the following SP recommendations:

•Ensure site is clean and tidy and there are no access restrictions.

•Use the following personal protection equipment:

osafety goggles or glasses when working on the unit.

oprotective clothing (e.g. labcoat or overalls).

osafety footwear.

ogloves and safety masks for handling chemicals or insulation.

•Hot surface gloves should be within easy access.

•Observe all warning and prohibition signs posted on the BlueGEN appliance and on the plant room (if

applicable).

•It is the installers responsibility to instruct the user in the operation and the safety devices and to give

him the user manual

Caution

Only appropriately qualified service personnel may install this appliance. Improper

installation will void the warranty.

2.2. Eegey poedues

The BlueGEN appliance is fitted with a CE approved gas safety control system. In the event of the BlueGEN

appliance operating outside its normal parameters, the safety system is designed to isolate the internal gas

supply and safely shut the system down.

2.2.1. Gas leak

The BlueGEN appliance generates deodorised natural gas internally via the desulphuriser assembly. If an

internal leak occurred, downstream of the desulphuriser, it would not be detectable by smell. It is important

that the appliance be commissioned and maintained by authorised personnel only, following approved

safety procedures.

In an emergency situation natural gas, electricity and water supply to the BlueGEN appliance are to be

isolated, only if safe to do so.

Manual - BlueGEN BG-15 Generic Installation Manual - Europe

3. SITE SELECTION

This section outlines the basic site requirements for installing the BlueGEN appliance.

3.1. Appliae diesios

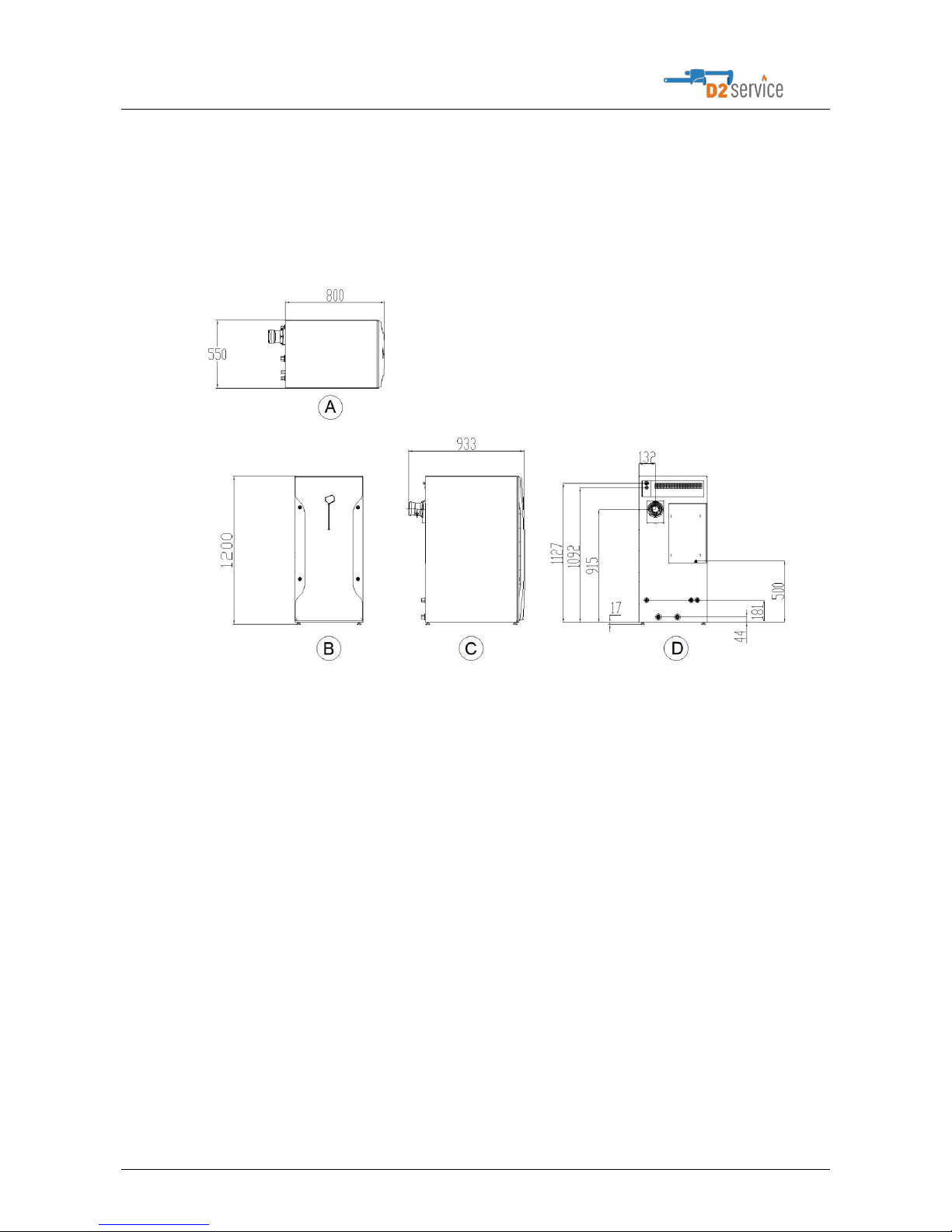

Figure 2 shows the BlueGEN appliance as it will be supplied to the customer. The connection interfaces are

provided with the appliance.

A. Top view

B. Front view

C. Side view

D. Rear view (service connections)

Figure 2: Appliance dimensions (mm)
