Sofar solar AMASS GTX2500 Manual de usuario
Shenzhen SOFARSOLAR Co., Ltd.
Lithium-Ion Storage Battery
Product Model: GTX2500
User manual
Version 1.1
AMASS GTX2500 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
I
Contents
1General Information....................................................................................... 1
1.1 Validity .............................................................................................. 1
1.2 Intended Use...................................................................................... 1
1.3 Identifying The Product..................................................................... 3
2Safety ............................................................................................................. 5
3Technical Data................................................................................................ 7
4Technical Items .............................................................................................. 9
5Product Overview..........................................................................................11
5.1 Brief Introduction .............................................................................11
5.2 Interface Introduction .......................................................................12
5.2.1 Start Button ..............................................................................13
5.2.2 LED Indicator Definition .........................................................14
5.2.3 Link Port and Automatic Coding Function...............................15
5.2.4 CAN / RS485 Port....................................................................16
5.2.5 RS232 Port ...............................................................................17
5.2.6 Output Dry Contact Terminal...................................................17
5.2.7 Extend LCD Terminal ..............................................................18
6Installation Guide..........................................................................................19
6.1 Checking Before Installation ............................................................19
6.1.1 Checking Outer Packing Materials...........................................19
6.1.2 Checking Deliverables .............................................................20
6.2 Tools .................................................................................................22
6.3 Installation requirements ..................................................................22
AMASS GTX2500 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
II
6.3.1 Installation environment requirements.....................................22
6.3.2 Installation carrier requirements...............................................23
6.4 Installation Instructions ....................................................................24
6.4.1 Dimensions...............................................................................24
6.4.2 Installation Step........................................................................25
7Cleaning and Maintenance............................................................................33
7.1 Cleaning............................................................................................33
7.2 Maintenance......................................................................................33
7.2.1 Recharge Requirements During Normal Storage .....................33
7.2.2 Recharge Requirements When Over Discharged (90%DOD)..34
8Compatible Inverter List ...............................................................................35
9Common Issues and Solutions ......................................................................37
9.1 Common Issues and Solutions..........................................................37
9.2 Emergency........................................................................................39
AMASS GTX2500 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
1
1General Information
This manual introduces AMASS GTX2500 LFP Battery Product from SOFAR.
Please read this manual before you use the battery.
Any confusion, please contact SOFAR immediately for advice and clarification.
1.1 Validity
This user manual is applicable to AMASS GTX2500.
This user manual contains AMASS GTX2500 product information, usage
guidance, safety information, installation guide and details on common operating
issues and subsequent corrective actions.
1.2 Intended Use
AMASS GTX2500 is an energy storage unit that is designed to be used in
residential on-grid applications with the capability for short-term backup.
Notes regarding intended use:
AMASS GTX2500 is not suitable for supporting life-sustaining medical devices.
AMASS GTX2500 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
2
This product is intended for use only in accordance with the information provided
in the enclosed documentation and with the locally applicable standards and
regulations. Any other application may cause personal injury or property damage.
The illustrations in this manual are meant only to help explain system
configuration concepts, includes usage guidance, safety precautions, and common
operating issues and subsequent corrective actions.
Alterations to the product, e.g. changes or modifications, are only permitted with
the express written permission of SOFAR. Unauthorized alterations will void
warranty claims. SOFAR shall not be held liable for any damage caused by such
changes. Any use of the product other than that described in the Intended Use
section does not qualify as appropriate. The enclosed documentation is an integral
part of this product. Keep the documentation in a convenient place for future
reference and observe all instructions contained therein. The type label (see
Section 1.3) must remain attached to the product.
AMASS GTX2500 series products must work with compatible inverters which are
listed in the “Compatible Inverter List” section of this manual.
Please contact SOFAR or local after-service providers within 1 week once the user
decides to cease using their SOFAR Battery products.
AMASS GTX2500 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
3
1.3 Identifying The Product

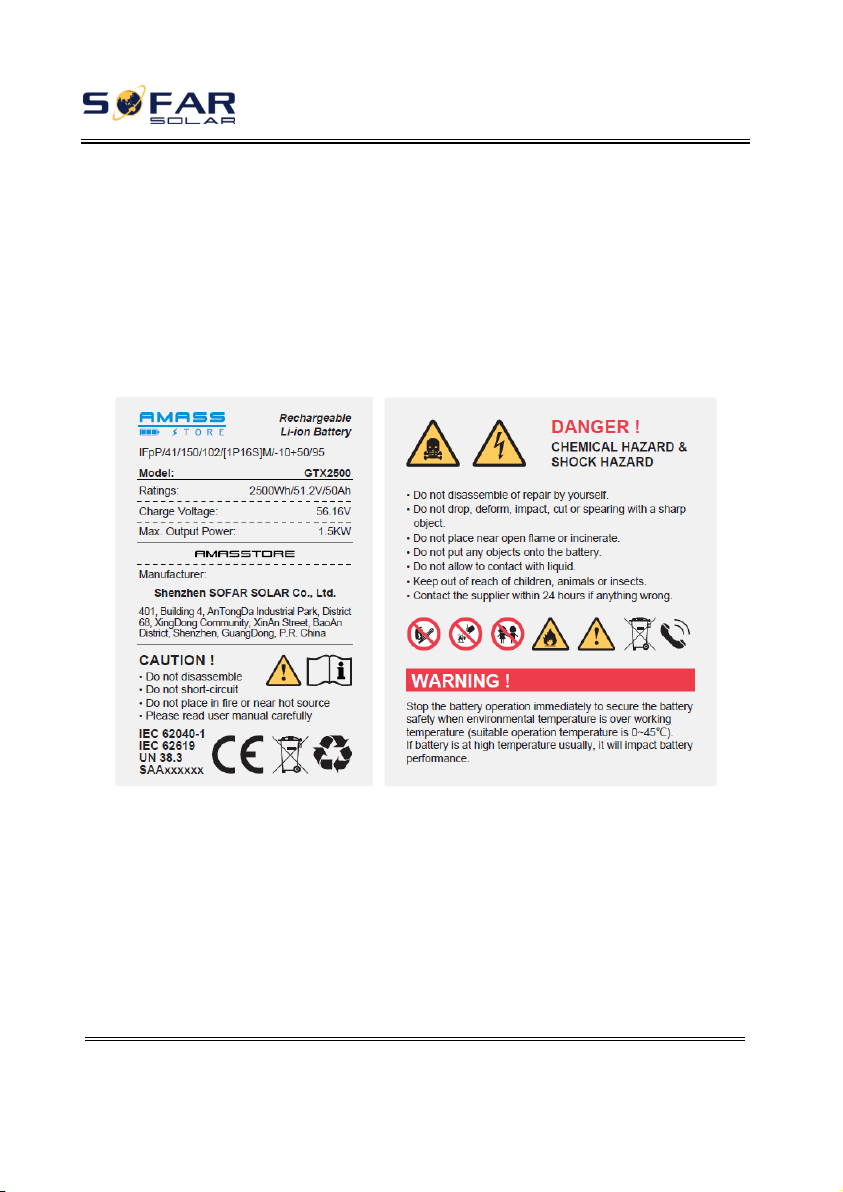

The type labels were attached on the product, which contain the product
identification information. For safe usage, the user must be well-informed of the
contents in the type labels.
The type labels include:
AMASS GTX2500 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
4
AMASS GTX2500 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
5
2Safety
This section contains safety information that must be observed at all times when
working on or with batteries. To prevent personal injury or property damage and
to ensure long-term operation of the batteries, read this section carefully and
observe all safety information at all times.
WARNING
Environmental Requirement
℃
eat sources
ive objects such as
wires
AMASS GTX2500 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
6
Operation Precautions
the polarity or connect in series
short circuit before installation and handling
battery in a manner in accordance with this user manual
installation and maintenance
ive
package
stipulated on the package
may cause severe injury due to electrical shock.
AMASS GTX2500 User manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd
7
3Technical Data
Basic Parameters
Specification
Nominal Capacity（Ah）
50AH
Nominal Voltage（V）
51.2Vdc
Total Energy
2500Wh
Usable Energy(90% DOD)
2250Wh
Charge Voltage（V）
55.68~56.16Vdc
Discharge Voltage（V）
45.6-56.16Vdc
Nominal Charge Current(A)
25A
MAX. Charge Current(A)
30A
Nominal Discharge Current(A)
25A
Max. Discharge Current(A)
30A（1.5kw）
Communication
RS232、RS485、CAN
Working Temperature
-20℃~ 60℃
Storage Temperature
≤25℃，12 months;
≤35℃，6 months;
≤45℃，3 months
Operating humidity
≤95%RH
Storage humidity
≤95%RH
Max.Operating Altitude
≤2000m
Scalable
Up to 4
Enclosure Protection Rating
IP20
