Snapper SS5200E Manual de usuario

Parts Manual fo

Revision 3,

520 Single Stage Snow Throwe

Series 0 & 1

TP 400-5006-3-LE-N

11/20/2006 Manual No. 7006178

McDonough, GA, 30253 U.S.A.

Briggs & Startton Yard Power Products Group

Briggs & Startton Corporation

MODEL

SS5200

SS5201

Table Of Content

TP 400-5006-3-LE-N

Manual No. 7006178520 Single Stage Snow Thrower

Series 0 & 1 3

PAGE GROUP

4Frame, Handle, & Engine Group

8Auger Housing and Chute Group

12 Auger and Drive Group

16 Decal Group

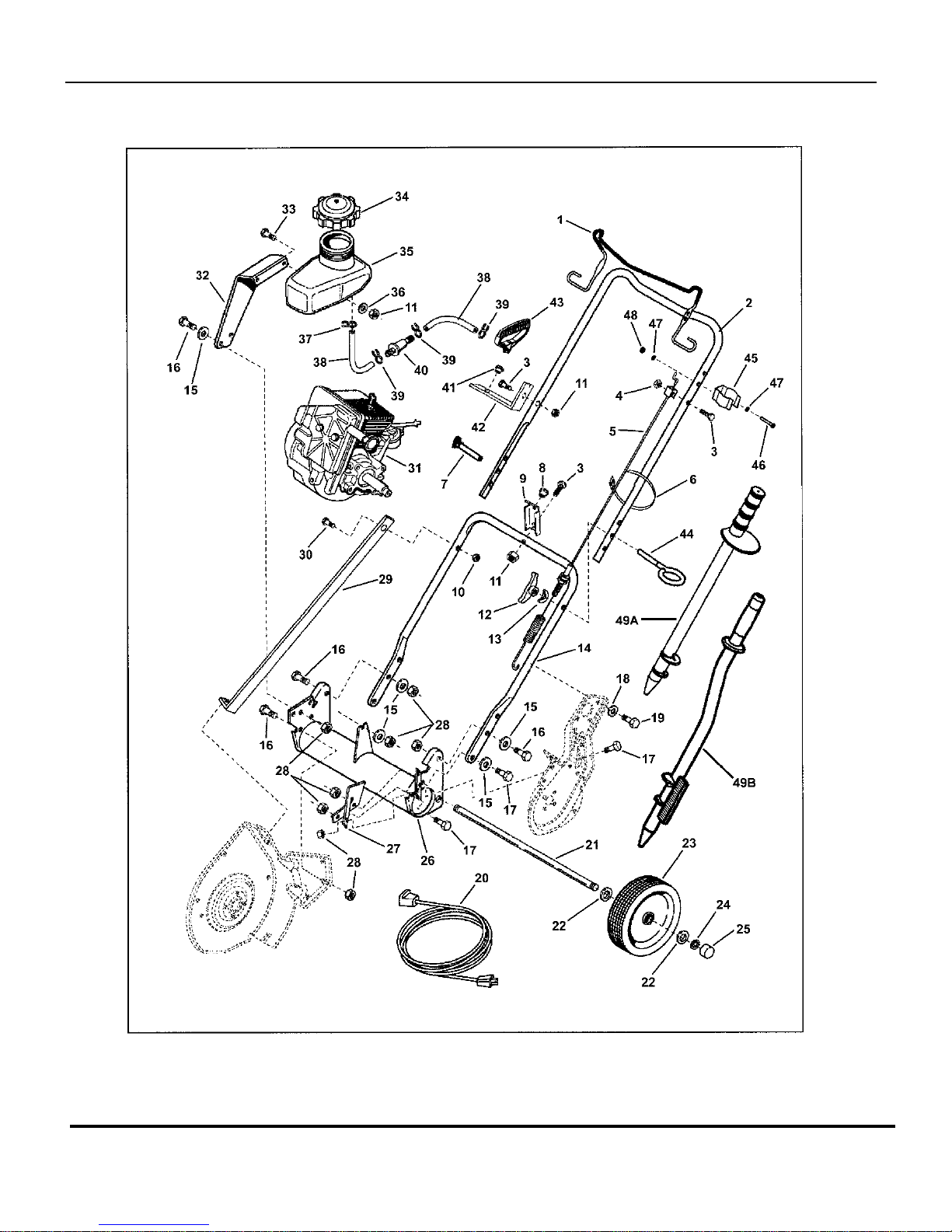

Frame, Handle, & Engine Group

TP 400-5006-3-LE-N

Manual No. 7006178 520 Single Stage Snow Thrower

Series 0 & 1

Frame, Handle, & Engine Group

Footnotes:

TP 400-5006-3-LE-N

Manual No. 7006178520 Single Stage Snow Thrower

Series 0 & 1 5

Part No Descri

tionItem Qt

Note

1 1720525 1 HANDLE, Auger Control

2 1720641 1 HANDLE, Upper

3 1921961 3 CAPSCREW, Hex Head, 1/4-20 x 1-1/4”

4 1923358 1 NUT, Hex Centerlock, 1/4-20

5 1720323 1 CABLE, Auger Control

6 925094 1 TIE, Self Locking

7 1931338 2 BOLT, 5/16-18 x 1-3/4” Round Head

8 1716678 1 SNAP BUSHING, 3/8

9 1720574 1 BRACKET, Chute Rotator Rod

10 1933896 1 NUT, Hex Lock, #10-24

11 1920397 4 NUT, Hex Lock Esna, 1/4-20

12 7035744 2 KNOB, Wing (5/16-18 Black) was 1716632

13 1717312 2 WASHER, Curved, 5/16”

14 1720573 1 HANDLE, Lower

15 1919326 6 WASHER, 5/16 I.D. x 3/4 O.D. Flat

16 1921332 6 CAPSCREW, Hex Head, 5/16-18 x 3/4”

17 1921333 2 CAPSCREW, Hex Head, 5/16-18 x 1” ref. Snapper part no. 7027168

18 1917356 4 LOCKWASHER, 5/16”

19 1921332 4 CAPSCREW, Hex Head, 5/16-18 x 3/4”

20 7015368 1 CORD, Extension (Electric Start Models)

21 1716608 1 SHAFT, Axle

22 1924940 4 WASHER, .41 I.D. x .87 O.D.

23 7100909 2 TIRE, Semi-pneumatic replaces 1716607

24 1716622 2 RING, Retainer, Ext., #37

25 7100088 2 CAP, Hub replaces 1716664

26 1716613 1 WELDMENT, Frame Assy.

27 1719541 1 BRACKET, Reinforcement

28 1919438 9 NUT, Hex Lock, Esna, 5/16-18

29 1720322 1 STRAP, Support

30 960604 1 SCREW, Hex Washer Head, #10-24 x 1-1/4”

31 1 * ENGINE, Manual Start Mod HSK850-8319D

31 1 * ENGINE, Electric Start Mod HSK850-8325D

32 1716638 1 BRACKET, Fuel Tank

33 1923341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4”

34 1716646 1 CAP, Fuel Tank

35 1716634 1 TANK, Fuel

36 1921319 2 WASHER, .27 I.D. x .62 O.D.

NOTE: * See your local Tecumseh distributor for service parts.

Frame, Handle, & Engine Group

TP 400-5006-3-LE-N

Manual No. 7006178 520 Single Stage Snow Thrower

Series 0 & 1

Frame, Handle, & Engine Group

Footnotes:

TP 400-5006-3-LE-N

Manual No. 7006178520 Single Stage Snow Thrower

Series 0 & 1 7

Part No Descri

tionItem Qt

Note

37 1723104 1 HOSE CLAMP (worm type) or 1679061 (Hose Clamp, Wire)

38 1716681 1 HOSE, Fuel, 5-1/2” long

38 7076272 1 HOSE, Fuel, 8-1/2” long

39 1960112 3 HOSE CLAMP, Wire Form

40 173206 1 FILTER, Fuel

41 1716676 1 SNAP BUSHING, 1/4”

42 1720640 1 BRACKET, Starter Handle

43 7041954 1 HANDLE, Start (Mitten)

44 7075342 1 HOLDER, Snostik- Lower (5/16-18 thread)

45 7071895 1 HOLDER, Snostik- Upper

46 7091757 1 SCREW, #10-24 x 1-1/4” Hex Head Cap

47 7090011 2 WASHER, #10 Internal Tooth Lock

48 7091267 1 NUT, #10-24 Hex Center Lock

49A 7075909 1 SNOW STICK

49B 1733209 1 SNOW STICK w/Brush replaces 7075909

NOTE: * See your local Tecumseh distributor for service parts.

Auger Housing and Chute Group

TP 400-5006-3-LE-N

Manual No. 7006178 520 Single Stage Snow Thrower

Series 0 & 1

Auger Housing and Chute Group

Footnotes:

TP 400-5006-3-LE-N

Manual No. 7006178520 Single Stage Snow Thrower

Series 0 & 1 9

Part No Descri

tionItem Qt

Note

1 7075689 1 HOUSING, Upper Plastic w/Louvers 520 Snow Snapper Red Part

2 1928732 2 SCREW, Hex Head, Taptite #10-24 x 1”

3 1960593 2 NUT, Retainer, Speed #10-24 w/Extrusion

4 1716628 1 COLLAR

5 1923341 9 CAPSCREW, Hex Head, 1/4-20 x 3/4” GR 5

6 1716640 1 GASKET

7 1716625 2 RETAINER

8 1716641 1 RETAINER, Gasket

9 1960521 8 NUT, Push for .156 dia. Stud

10 1716611 1 BASE, Chute

11 1960093 1 NUT, Push, Pal, 3/8”

12 1714084 1 KNOB, Chute, Rotate

13 1720578 1 HANDLE, Chute Rotator Upper

14 918454 2 PIN, Cotter, 1/8 x 1-1/2”

15 1716630 1 BRACKET, Gear

16 1716636 1 GEAR, Idler

17 1716635 1 GEAR, Drive

18 1927429 4 SCREW, Hex Head Taptite, 1/4-20 x 5/8”

19 1716658 1 ASSEMBLY, Universal Joint

20 1916622 2 NUT, Hex, 1/4-20

21 1916964 2 LOCKWASHER, Spring, 1/4”

22 1920397 11 NUT, Hex Lock Esna 1/4-20

23 1960001 3 SCREW, Hex Washer Slotted Head Plastite #10-14 x 5/8”

24 1716609 1 HOUSING, Auger

25 1921319 9 WASHER, 1/4”

26 1931318 4 CARRIAGE BOLT, 1/4-20 x 7/8”, GR 5

27 1716606 1 SCRAPER BAR

28 1716596 1 SCOOP

29 1933896 1 NUT, Hex Lock, #10-24

30 1933126 2 NUT, Wing 5/16-18 Lock

31 1960570 1 SCREW, Truss Head Torx, #10-24 x 5/8” GR 5

32 1716610 1 PLATE, Chute Base

33 1960001 2 SCREW, Hex Washer Slotted Head Plastite #10-14 x 5/8”

34 1960282 3 CARRIAGE BOLT, 5/16-18 x 3/4”

35 1919326 3 WASHER, 5/16

36 1919438 4 NUT, Hex Lock ESNA Light 5/16-18

Auger Housing and Chute Group

TP 400-5006-3-LE-N

Manual No. 7006178 520 Single Stage Snow Thrower

Series 0 & 1
