Parts Manual fo

Revision 4,

LAWN TRACTORS MANUAL CLUTCH

SERIES "G"

2006

McDonough, GA, 30253 U.S.A.

TP 400-5170-4-TC-N

2/24/2006 Manual No. 7006448

SNAPPER PRODUCTS, INC.

HYDRO DRIV

MODEL

ELT145H33GBV

LT145H33GB

LT145H38GB

LT150H38GK

WLT145H38GKV

Table Of Content

TP 400-5170-4-TC-N

Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH

SERIES "G" 3

PAGE GROUP

4Wheels, Front & Rear

6Hood, Bumper, Headlights & Components

8Steering Wheel, Console, Fuel Tank

10 Cast Front Axle

12 Frame, Clutch, Brake & Steering Components

18 Blade Engagement & Transmission Controls

22 Implement Lift Parts

24 Transmission Group (Hydro Drive)

26 Hydro Reservoir Assembly

28 Engine Components

30 Belt Guide Assembly

32 Seat, Rear Fender & Components

34 Decals (Part 1)

36 Decals (Part 2)

38 33" Cutting Deck, Belts, Brakes

44 Spindle - 33" Cutting Deck

46 38" Cutting Deck Assembly (Part 1)

48 38" Cutting Deck Assembly (Part 2)

52 38" Cutting Deck, Belts, Brakes

56 Spindle - 38" Cutting Deck

58 Electrical Components

60 Electrical Illustrated Diagram - Wiring Harness P/N 26616

62 Electrical Schematic - Wiring Harness P/N 26616

Wheels, Front & Rear

TP 400-5170-4-TC-N

Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH

SERIES "G"

Wheels, Front & Rear

Footnotes:

TP 400-5170-4-TC-N

Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH

SERIES "G" 5

Part No Descri

tionItem Qt

Note

1 7058515 ASSEMBLY, Front Tire & Rim (Includes items 2, 3, 4, 5 & 6)

(Models: LT145H33GBV &

ELT145H33GBV)

7058517 ASSEMBLY, Front Tire & Rim (Includes items 2A, 3, 4, 5 & 6)

(Model: LT145H38GBV &

LT150H38GBV)

2 7072702 TIRE, 13 x 5.00

2A 7072704 TIRE, 15 x 6.00

3 7022772 RIM, 6.00 x 3.50

4 7014483 4 BEARING, Wheel

5 7012234 4 VALVE, Air (Snap-in)

6 7076998 2 FITTING, Lube 1/4-28 Tapered Thread Was 13876

7 7034453 2 WASHER, Flat, 5/32 x 25/32" I.D. x 1-1/2" O.D.

8 7029618 4 WASHER, Hub-Cap Retaining

9 7029617 8 WASHER, Flat, 1/16 x 49/64 I.D. x 1-5/16" O.D.

10 7011022 4 HUB-CAP

11 7091516 2 COTTER-PIN, 5/32 x 1"

12 7010746 2 RING, External Retaining, 3/4" Was 29738

13 7058518 ASSEMBLY, Rear Tire & Rim (Includes items 5, 14 & 15)

14 7024454 RIM, 8 x 7.00

15 7072705 TIRE, 18 x 8.50-8

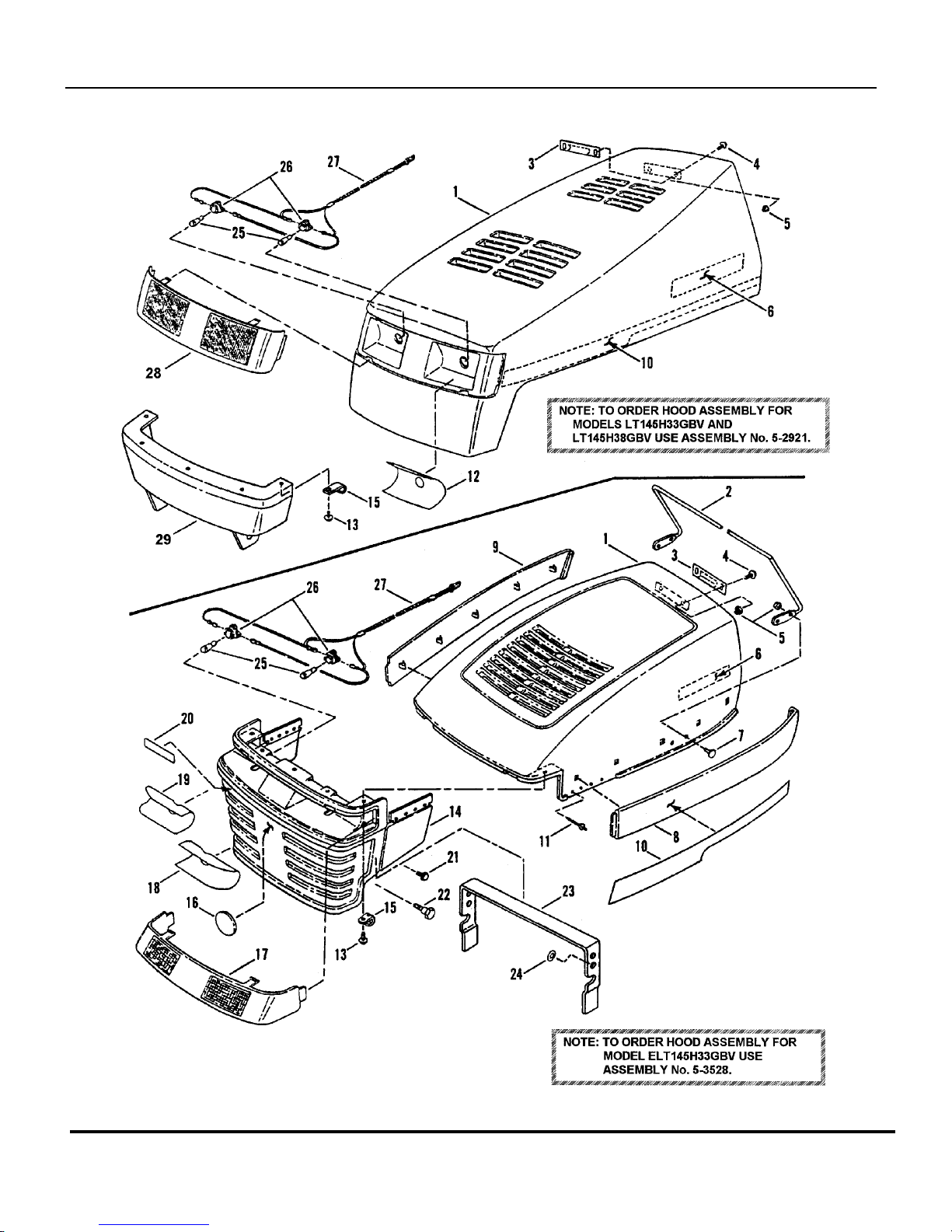

Hood, Bumper, Headlights & Components

TP 400-5170-4-TC-N

Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH

SERIES "G"

Hood, Bumper, Headlights & Components

Footnotes:

TP 400-5170-4-TC-N

Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH

SERIES "G" 7

Part No Descri

tionItem Qt

Note

1 7063298 HOOD Was 24605 (All Models except

ELT145H33GBV)

7024471 HOOD, Mozart (Model ELT145H33GBV)

2 7016766 ROD, Hood Support

3 7024718 LATCH, Spring

4 7090999 2 SCREW, 1/4-20 x 5/8" Truss Head, Torx

5 7076978 6 NUT, 1/4-20 Hex Nyloc

6 7022971 DECAL - SNAPPER, 8" Molded Logo, Silver Letters

7 7090803 4 BOLT, 1/4-20 x 5/8" Flat Head Carriage, Grade 5

8 7029572 PANEL, Hood (Left Hand) (Black) (Model ELT145H33GBV)

9 7029571 PANEL, Hood (Right Hand) (Black) (Model ELT145H33GBV)

10 7029076 DECAL, Hood (Right Hand) (Model ELT145H33GBV)

7029075 DECAL, Hood (Left Hand) (Model ELT145H33GBV)

11 7091095 8 RIVET, 1/8" Pop

12 7017175 DECAL, Clear Lens (Left Hand) (All Models except

ELT145H33GBV)

7017174 DECAL, Clear Lens (Right Hand) (All Models except

ELT145H33GBV)

13 7091106 5 SCREW, M4.8 x 1.59 x 16.00MM, Special

14 7029570 GRILLE, Hood (Model ELT145H33GBV)

15 7026482 CLIP, "J"

16 7026377 DECAL, Molded Medallion Was 71544

17 7029602 LENS, Grille (Headlights)

18 7026180 DECAL, Reflect (Left Hand) (Model ELT145H33GBV)

19 7026179 DECAL, Reflect (Right Hand) (Model ELT145H33GBV)

20 7022968 DECAL - SNAPPER, 4" Molded Logo (Silver Letters - Blue Stripe)

21 7090858 4 SCREW, 5/16-18 x 1/2" Self-Tapping, Grade 5

22 7024061 2 BOLT, Shoulder, 3/8-16 x 1-1/4" Hex Socket, Torx

23 7034324 BRACE, Hood Support

24 7011791 4 RETAINER, 5/16" Bolt

25 7026172 2 BULB, Headlights

26 7024709 2 SOCKET, Headlight Bulb

27 7026171 HARNESS, Headlight Wiring

28 7024893 LENS, Clear (Models with Headlights)

29 7029620 BUMPER, Front Hood Support

Steering Wheel, Console, Fuel Tank

TP 400-5170-4-TC-N

Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH

SERIES "G"

Steering Wheel, Console, Fuel Tank

Footnotes:

TP 400-5170-4-TC-N

Manual No. 7006448LAWN TRACTORS MANUAL CLUTCH

SERIES "G" 9

Part No Descri

tionItem Qt

Note

1 7053746 ASSEMBLY, Console (Includes items 2 thru 7)

2 7028565 CONSOLE

3 7011791 4 RETAINER

4 7091495 2 SCREW, 1/4-20 x 3/4" Hex Head Cap, Grade 5

5 7052891 2 ASSEMBLY, Strap-Clinch Stud

6 7076978 2 NUT, 1/4-20 Hex Nyloc

7 7026196 ASSEMBLY, Flange Bearing

8 7091575 4 NUT, 5/16-18 Hex Center Lock, Grade 5

9 7022368 GEAR, Pinion, Steering Shaft

10 7022369 PIN, Dowel, 1/4 x 1-1/4"

11 7024641 TIE, Wire

12 7052907 ASSEMBLY, Fuel Tank (Includes item 13)

13 7012515 CAP, Fuel Tank Was 14363

14 7091290 2 NUT, #10-24 Hex Nyloc Was 91599

15 7026343 KEYSWITCH (Includes item 27)

16 7090951 NUT, 5/16-18 Hex Flange Center Lock

17 7033883 BRACKET, Hood Latch Catch

18 7022380 SHAFT, Steering

19 7012765 ROLL-PIN

20 7035496 BUSHING

21 7029595 STEERING WHEEL

22 7028561 DECAL, Console (Hydro Drive Models - With

Lights)

23 7011138 KEY, Pair

24 7091001 SCREW, 5/16-18 x 5/8" Truss Head, Torx

25 7023187 SWITCH, Lights

26 7029714 SPACER

27 7012685 NUT, 5/8-32 Hex Was 29721

28 7023506 BEZEL

29 7091188 2 SCREW, #10-24 x 5/8" Machine

30 7091018 NUT, #8-32 Hex

31 7023655 HANDLE, Throttle Control

32 7024642 CONTROL, Throttle

33 7091017 SCREW, #8-32 x 3/8" Cross-Recessed, Machine

Cast Front Axle

TP 400-5170-4-TC-N

Manual No. 7006448 LAWN TRACTORS MANUAL CLUTCH

SERIES "G"
