Snapper RO21380 Manual de usuario

Parts Manual fo

Revision 1,

21" OPENING PRICE POIN

SERIES 0

2005

McDonough, GA, 30253 U.S.A.

TP 400-5123-1-WB-N

10/11/2005 Manual No. 7006048

SNAPPER PRODUCTS, INC.

WALK BEHIND MOWER

MODEL

RO21380

Table Of Content

TP 400-5123-1-WB-N

Manual No. 700604821" OPENING PRICE POINT

SERIES 0 3

PAGE GROUP

4Handles & Controls

6Cutting Deck, Blade, Interlock

8Wheels, Guards, Axles

10 Side Chute, Adapter

12 Decals

Handles & Controls

TP 400-5123-1-WB-N

Manual No. 7006048 21" OPENING PRICE POINT

SERIES 0

Handles & Controls

Footnotes:

TP 400-5123-1-WB-N

Manual No. 700604821" OPENING PRICE POINT

SERIES 0 5

Part No Descri

tionItem Qt

Note

1 7074384 HANDLE, Upper Was 33473

2 7033406 HANDLE, Middle

3 7091022 2 SCREW, 1/4-28 x 1-3/4" Hex Head Cap

4 7090053 WASHER, 1/4 Internal Tooth Lock Was 91023

5 7017072 CONTROL, Blade

6 7033904 CLIP, Blade Control

7 7016707 CABLE, Blade Control

8 7014343 BUSHING

9 7023813 CLIP, Wiring Harness

10 7026141 GUIDE, Pull Rope

11 7090095 NUT, 1/4-28 Hex Was 91024

12 7016544 2 PLUG

13 7091508 4 BOLT, 5/16-18 x 3/4" Short Neck Carriage Was 90001

14 7091601 4 NUT, 5/16-18 Hex Flange Lock Was 91070

15 7024211 DECAL, Blade Control

Cutting Deck, Blade, Interlock

TP 400-5123-1-WB-N

Manual No. 7006048 21" OPENING PRICE POINT

SERIES 0

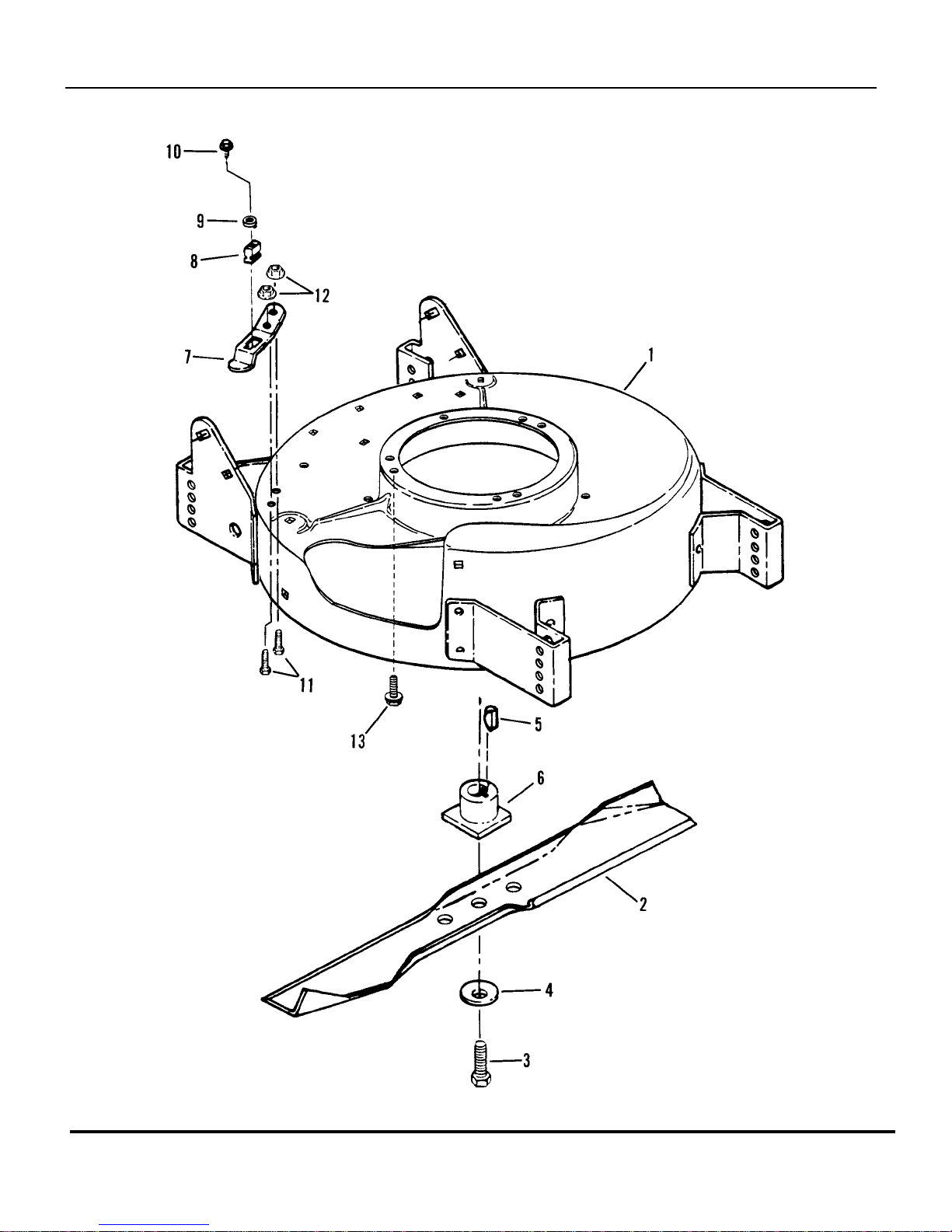

Cutting Deck, Blade, Interlock

Footnotes:

TP 400-5123-1-WB-N

Manual No. 700604821" OPENING PRICE POINT

SERIES 0 7

Part No Descri

tionItem Qt

Note

1 7053271 DECK, Mower (Includes painted deck with

decals)

2 7017168 BLADE, Cutter

3 7090167 SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5)

4 7012063 WASHER, Cone

5 7010783 KEY, Hi-Pro

6 7012927 HUB, Blade Drive

7 7033408 SPRING, Interlock

8 7012048 INSULATOR, Interlock

9 7090385 WASHER, #8 Tab

10 7090379 SCREW, #8-18 x 3/4" Self-Tapping

11 7090071 2 SCREW, 1/4-20 x 3/4" Hex Head Cap

12 7091584 2 NUT, 1/4-20 Hex Flange Was 90583

13 7090324 3 SCREW, 3/8-16 x 1" Self-Tapping

Wheels, Guards, Axles

TP 400-5123-1-WB-N

Manual No. 7006048 21" OPENING PRICE POINT

SERIES 0

Wheels, Guards, Axles

Footnotes:

TP 400-5123-1-WB-N

Manual No. 700604821" OPENING PRICE POINT

SERIES 0 9

Part No Descri

tionItem Qt

Note

1 7022374 2 WHEEL, Front & Rear 8 x 2.00

2 7026667 GUARD, Rear Foot

3 7026643 SUPPORT, Foot Guard

4 7090913 2 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)

5 7091221 4 BOLT, 3/8-16 x 2-7/16" Shoulder

6 7011121 4 WASHER, 5/8 Belleville

7 7091220 4 WASHER, 9/16 x 1-1/16" O.D. Thrust

8 7091619 4 NUT, 3/8-16 Hex Flange Lock Was 90613

Side Chute, Adapter

TP 400-5123-1-WB-N

Manual No. 7006048 21" OPENING PRICE POINT

SERIES 0
