Parts Manual fo

21" VARIABLE SPEED

REAR DISCHARGE MOWERS

Revision C, TP 400-5362-C-WB-N4/23/2008

Briggs & Stratton Yard Power Products Group

Manual No. 7102346

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

MODEL

NSPV21675 (7800231)

NSPV21675E (7800232)

SPV21675 (7800179)

SPV21675E (7800195)

Table Of Content

TP 400-5362-C-WB-N

21" VARIABLE SPEED

Manual No. 7102346

PAGE GROUP

4Handles and Controls (SPV21)

6Deck Assembly (SPV21)

10 Engine and Blade Assembly (SPV21)

12 Front and Rear Wheels (SPV21)

14 Transmission (21")

16 Decals (21")

18 Wiring Schematic

TP 400-5362-C-WB-N

Manual No. 7102346 21" VARIABLE SPEED

Handles and Controls (SPV21)

Footnotes:

TP 400-5362-C-WB-N

Manual No. 710234621" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

1 7100225 4 SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix

2 7300670A 1 PLATE, Control Panel- Plastic Handle

3 2860694 2 NUT, 1/4-20, Hex Flange Nyloc

4 7101410 1 ROPE GUIDE (1/4-20 thread)

5 7101312 1 HANDLE, Plastic Upper, WBM

6 7101321BH 1 BAIL, Plastic Handle, WBM

7 7101416 1 ASSY, Control Head, 21” WBM, RD, Snapper (includes cable &

lever)

8 7090015 1 BOLT, 1/4-20 x 1-3/4” Round Head Square Neck, GR 2

9 7011138 1 KEY, Ignition (Pair)

10 7100330 1 CAP, Electric Start

11 7100329 1 NUT, 5/8”-32 Electric Start

12 7028765 1 SWITCH, E/S (Start/Run)

13 7100328 1 HOUSING, Snap-On E-Start

14 7300649BH 2 HANDLE, Connecting 21”/22” WBM

16 7300639BH 1 HANDLE, Lower, 21” WBM, RD

17 7101198 2 PIN, Handle Adjust

18 7101200 2 SPRING, Compression

19 7101199 2 BUSHING, Handle Pin

20 7101202 2 KNOB, Quick Release

21 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2

22 7090391 2 WASHER, 5/16” Internal Tooth Lock

23 7035744 2 KNOB, 5/16-18 Wing (Black)

24 7101504 1 WIRE HARNESS, Snapper, RD 21”

25 7101399 1 CABLE, Bail, 21” WBM, RD, Snapper 44.20” length

25 7101400 1 CABLE, Bail, 21” WBM, RD, Snapper, E/S 40.50” length

26 7024649 3 WIRE TIE,11 Inch Standard Black Nylon

27 7091508 2 BOLT, 5/16-18 x 3/4” Round Head Short Square Neck, GR5 YZ

28 7300567BH 1 BRACKET, Lower Handle, LH 21” WBM

29 7300566BH 1 BRACKET, Lower Handle RH 21” WBM

30 7090951 2 NUT, 5/16-18 Large Head Center Lock, Black

31 7091601 4 NUT, 5/16-18 Flange Lock, YZ

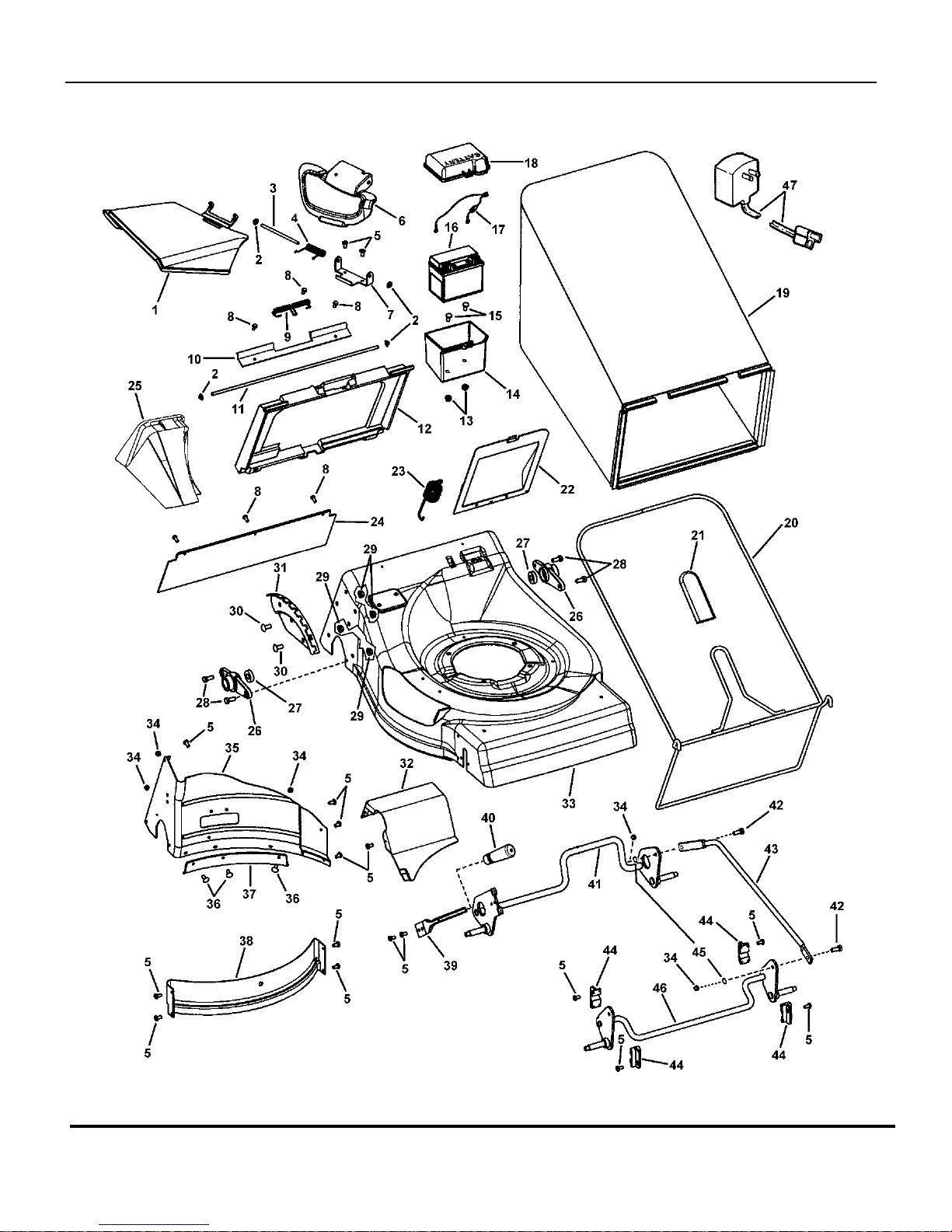

Deck Assembly (SPV21)

TP 400-5362-C-WB-N

Manual No. 7102346 21" VARIABLE SPEED

Deck Assembly (SPV21)

Footnotes:

TP 400-5362-C-WB-N

Manual No. 710234621" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

1 7101490 1 CHUTE, 21” Side Discharge

2 7091020 4 PUSHNUT, 1/4”

3 7101471 1 ROD, Pivot, Mulch Cover

4 722507 1 SPRING, Torsion, Chute

5 722848 17 SCREW, 1/4-20 x 11/16” Pan Head Torx, Self-Tap

6 7101437 1 COVER, 21” Mulching

7 7300590D 1 BRACKET, Chute Deflector

8 7091286 5 SCREW, #10-24 x 1/2” Hex Washer Self-Tap, SEMS

9 722503 1 SPRING, Torsion

10 720735 1 SPACER, Rear Door, 21”

11 7101314 1 ROD, Pivot, Rear Door, 21” RD

12 727785 1 DOOR, 21” Black

13 2860694 2 NUT, 1/4-20 Hex Flange, Nyloc,YZ

14 7101523 1 BOTTOM, Battery Box- 21” JD WBM

15 7090803 2 BOLT, 1/4-20 x 5/8” Flat Head Square Neck, GR 5

16 7101320 1 BATTERY KIT, 12V, 4.0AH (Includes harness 7015488)

17 7015488 1 HARNESS, Battery

18 7101522 1 TOP, Battery Box - 21” WBM

19 7101304 1 GRASSBAG, 21” Rear Discharge

20 7101303A 1 BAG FRAME- 21” RD WBM

21 7026421 1 GRIP, Rectangular (Black)

22 7300723D 1 TRANSMISSION COVER, Rear 21”

23 7101434 1 SPRING, Extension, Height-of-Cut Assist

24 7101553 1 DEFLECTOR, Rear, 21” WBM, RD

25 720723 1 PLUG, Mulching

26 7101418 1 BEARING HOLDER, 21” WBM,RD

27 7078243 1 BALL BEARING, Axle

28 7091318 4 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5 YZ

29 7091601 6 NUT, 5/16-18 Hex Flange Lock, GR 5, YZ

30 7091508 2 BOLT, 5/16-18 x 3/4” Round Head Short Square Neck, GR 5, YZ

31 7300587D 1 INDEX PLATE, Height-of-Cut, 21” WBM, RD

32 7300591D 1 BAFFLE, Right Rear, 21” WBM, RD

33 7300584D 1 DECK, 21” Rear Discharge

34 7091290 3 NUT, #10-24 Hex Nyloc

35 7300589D 1 BAFFLE, Left Rear, 21” RD, WBM

36 7091711 3 BOLT, #10-24 x 5/8” Flat Head Square Neck, YZ

37 7101502 1 BAFFLE, Extension, 21” RD WBM

Deck Assembly (SPV21)

TP 400-5362-C-WB-N

Manual No. 7102346 21" VARIABLE SPEED

Deck Assembly (SPV21)

Footnotes:

TP 400-5362-C-WB-N

Manual No. 710234621" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

38 7300585D 1 BAFFLE, Front 21” WBM, RD

39 724970 1 LEVER, Spring Height-of-Cut

40 724887 1 GRIP, Height-of-Cut

41 7400203D 1 WELDMENT, Rear Crossbar 21” WBM, RD

42 7023590 1 COTTER, 1/4” Self-Lock

43 7400247 1 WELDMENT, Lifter Link, 21” WBM, RD

44 7101241 4 BUSHING, Front, 21”

45 7091892 1 PUSHNUT, 1/4 Black

46 7400204D 1 WELDMENT, Front Crossbar 21” WBM, RD

47 206838YP 1 CHARGER, Battery 120V/12V was 7018834

Engine and Blade Assembly (SPV21)

TP 400-5362-C-WB-N

Manual No. 7102346 21" VARIABLE SPEED
