Parts Manual fo

Revision A,

21" VARIABLE SPEED

McDonough, GA, 30253 U.S.A.

TP 400-5322-A-WB-N

1/16/2008 Manual No. 7006260

REAR DISCHARGE MOWERS

Briggs & Startton Yard Power Products Group

Briggs & Startton Corporation

MODEL

NSPV21675 (7800231)

NSPV21675E (7800232)

SPV21675 (7800179)

SPV21675E (7800195)

Table Of Content

TP 400-5322-A-WB-N

Manual No. 700626021" VARIABLE SPEED

PAGE GROUP

4Handles and Controls (NSPV21)

6Deck Assembly (NSPV21)

10 Engine and Blade Assembly (NSPV21)

12 Front and Rear Wheels (NSPV21)

14 Transmission (21")

16 Decals (21")

18 Wiring Schematic

TP 400-5322-A-WB-N

Manual No. 7006260 21" VARIABLE SPEED

Handles and Controls (NSPV21)

Footnotes:

TP 400-5322-A-WB-N

Manual No. 700626021" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

1 7100225 4 #8-16 TORXPLUS RECESSED PAN HEAD, TWIN HELIX

2 7300670A 1 PLATE, CONTROL PANEL - PLASTIC HANDLE

3 2860694 2 NUT, HEX FLANGE, 1/4-20, ESNA,YZ

4 7101410 1 GUIDE, ROPE

5 7101312 1 HANDLE, PLASTIC UPPER, WBM

6 7101321BH 1 BAIL, PLASTIC HANDLE, WBM

7 7101416 1 ASSY, CONTROL HEAD, 21” WBM, RD, SNAPPER (includes 4

items below)

7100259 1 BOTTOM BOX - BLACK (N/A Separately)

7101398 1 CABLE, DRIVE, 21” WBM, RD, SNAPPER

7101404 1 CASE HALF, TOP - VARIABLE SPEED (N/A Separately)

7101408 1 CLUTCH LEVER - WBM - VARIABLE SPEED

8 7090015 1 RHSNB, 1/4CX1-3/4 GR2 YELLOW ZINC

9 7011138 1 IGNITION KEY PR

10 7100330 1 CAP, E-START

11 7100329 1 NUT, 5/8”-32 E-START

12 7028765 1 SWITCH, E/S (START/RUN)

13 7100328 1 HOUSING, SNAP-ON E-START

14 7300649BH 2 HANDLE, CONNECTING 21”/22” WBM

15 7500538 1 ASSY, LOWER HANDLE, 21” WBM,RD (includes items 16 thru

20 below)

16 7300639BH 1 HANDLE, LOWER, 21” WBM,RD

17 7101198 2 PIN, HANDLE ADJUST

18 7101200 2 SPRING, COMPRESSION

19 7101199 2 BUSHING, HANDLE PIN

20 7101202 2 KNOB, QUICK RELEASE

21 7091189 2 CHSNB, 5/16-18 X 2 GR2

22 7090391 2 ITLW 5/16

23 7035744 2 KNOB, 5/16-18 WING (BLACK)

24 7101504 1 WIRE HARNESS, SNAPPER, RD 21”

25 7101399 1 CABLE, BAIL, 21” WBM, RD, SNAPPER (44.20” length)

25 7101400 1 CABLE, BAIL, 21” WBM, RD, SNAPPER, ES (40.50” length)

26 7024649 3 WIRE TIE, 11 INCH STD BLK NYLON

27 7091508 2 RHSSNB, 5/16-18 X 3/4 GR5 YZ

28 7300567BH 1 BRKT, LOWER HANDLE, LH 21” WBM

29 7300566BH 1 BRKT, LOWER HANDLE RH 21” WBM

30 7090951 2 LHCLN, 5/16-18- BLACK

31 7091601 4 FLN, 5/16-18 YZ

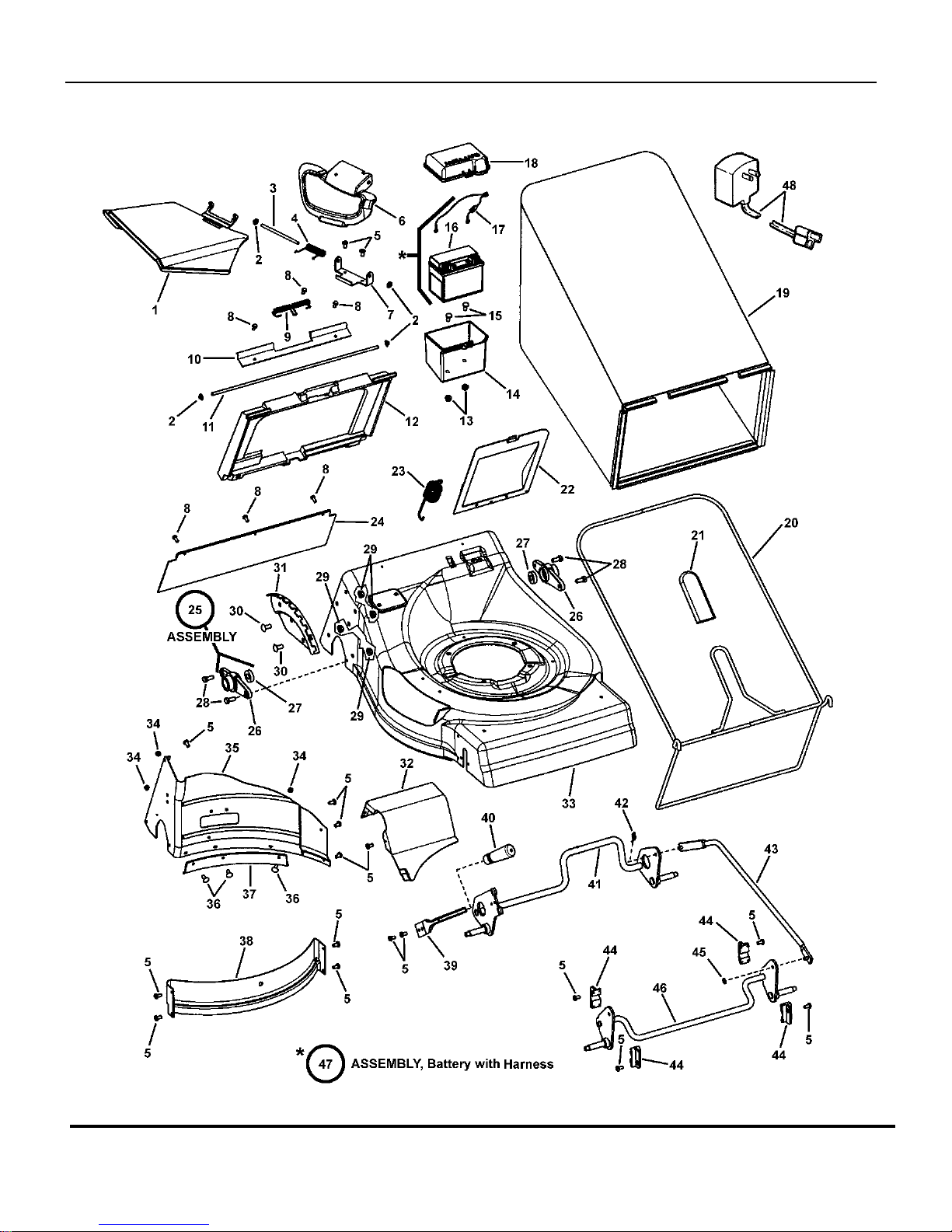

Deck Assembly (NSPV21)

TP 400-5322-A-WB-N

Manual No. 7006260 21" VARIABLE SPEED

Deck Assembly (NSPV21)

Footnotes:

TP 400-5322-A-WB-N

Manual No. 700626021" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

1 7101490 1 CHUTE, 21” SIDE DISCHARGE

2 7091020 4 PUSHNUT 1/4

3 7101471 1 ROD, MULCH COVER PIVOT

4 722507 1 SPRING, TORSION, CHUTE

5 722848 17 TORX ST, 1/4-20 X 11/16

6 7101437 1 COVER, 21” MULCHING

7 7300590D 1 BRACKET, CHUTE DEFLECTOR

8 7091286 5 HWST, 10-24X.50 SEMS

9 722503 1 SPRING, TORSION

10 720735 1 SPACER, REAR DOOR 21”

11 7101314 1 ROD, REAR DOOR PIVOT, 21” RD

12 727785 1 DOOR, 21” BLACK

13 2860694 2 NUT, HEX FLANGE, 1/4-20, ESNA, YZ

14 7101523 1 BOTTOM, BATTERY BOX - 21” JD WBM

15 7090803 2 FHSNB, 1/4-20X5/8

16 7100204 1 SEALED LEAD ACID BATTERY, 12V

17 7015488 1 HARNESS, BATTERY

18 7101522 1 TOP, BATTERY BOX - 21” WBM

19 7101304 1 GRASSBAG, 21” RD

20 7101303A 1 BAG FRAME - 21” RD WBM

21 7026421 1 GRIP, RECTANGULAR (BLACK)

22 7300723D 1 TRANSMISSION COVER, REAR 21”

23 7101434 1 SPRING, EXTENSION, HOC ASSIST

24 7101553 1 DEFLECTOR, REAR, 21” WBM, RD

25 7500558 2 ASSY, BEARING HOLDER, 21” WBM, RD

26 7101418 1 BEARING HOLDER, 21” WBM, RD

27 7078243 1 BEARING, BALL, AXLE

28 7091318 4 HHCS, 5/16 X 3/4 GR5 YZ

29 7091601 6 FLN, 5/16-18 YZ

30 7091508 2 RHSSNB, 5/16-18 X 3/4 GR5 YZ

31 7300587D 1 PLATE, HOC INDEX, 21” WBM, RD

32 7300591D 1 BAFFLE, RIGHT REAR, 21” WBM, RD

33 7300584D 1 DECK, 21” RD

34 7091290 3 HLN, 10-24 UNC-2B W/NYLON INSERT

35 7300589D 1 BAFFLE, LEFT REAR, 21”RD, WBM

36 7091711 3 FHSNB, 10-24 X 5/8 YZ

37 7101502 1 BAFFLE, EXTENSION, 21” RD WBM

Deck Assembly (NSPV21)

TP 400-5322-A-WB-N

Manual No. 7006260 21" VARIABLE SPEED

Deck Assembly (NSPV21)

Footnotes:

TP 400-5322-A-WB-N

Manual No. 700626021" VARIABLE SPEED

Part No Descri

tionItem Qt

Note

38 7300585D 1 BAFFLE, FRONT 21” WBM, RD

39 724970 1 LEVER, SPRING HOC

40 724887 1 GRIP HOC

41 7400203D 1 WELDMENT, REAR CROSSBAR 21” WBM, RD

42 7023590 1 1/4 SELF-LOCK COTTER

43 7400247 1 WELDMENT, LIFTER LINK, 21” WBM, RD

44 7101241 4 BUSHING, FRONT 21”

45 7091892 1 PUSHNUT, 1/4 BLK

46 7400204D 1 WELDMENT, FRONT CROSSBAR 21” WBM, RD

47 7101320 1 ASSY, BATTERY W/HARNESS

48 7018834 1 CHARGER, BATTERY 120V/12V

49 720723 1 PLUG, MULCHING (not shown)

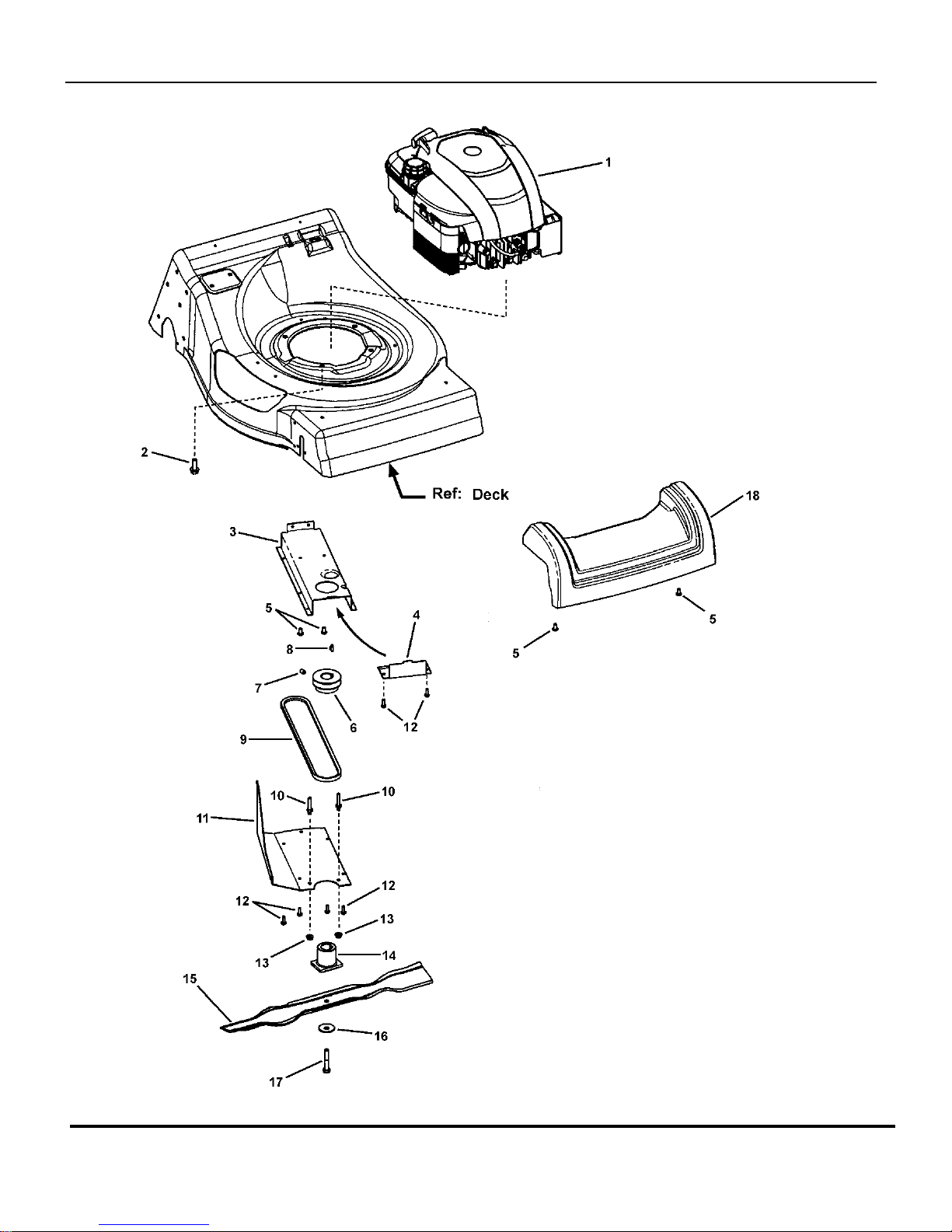

Engine and Blade Assembly (NSPV21)

TP 400-5322-A-WB-N

Manual No. 7006260 21" VARIABLE SPEED
