Snapper LT1644 Manual de usuario

Parts Manual fo

Revision R1,

LAWN TRACTOR

SERIES 0

2005

McDonough, GA, 30253 U.S.A.

TP 400-5011-R1-TC-N

8/29/2005 Manual No. 7006451

SNAPPER PRODUCTS, INC.

ELECTRIC CLUTCH HYDRO DRIV

MODEL

LT1644

(

2690117

)

Table Of Content

TP 400-5011-R1-TC-N

Manual No. 7006451LAWN TRACTOR

SERIES 0 3

PAGE GROUP

4Wheels & Tires Group

6Hood, Grill & Dash Group

8Steering Group - Manual Steering

10 Frame & Front Axle Group

14 Controls Group

18 Cruise Control Group

20 Transmission Group - Tuff Torq K-57

22 Transmission Service Parts - Tuff Torq K-57A

28 Seat & Seat Deck Group

30 Engine & Electric Clutch Group - 16HP Briggs & Stratton, Vanguard

32 Lift Group - Manual Lift

34 44" Mower Deck - Belt, Idler Arm & Hitch

36 44" Mower Deck - Height Adjustment & Roller Bar

40 44" Mower Deck - Housing, Arbors & Blades

44 Decal Group

46 Electrical Group

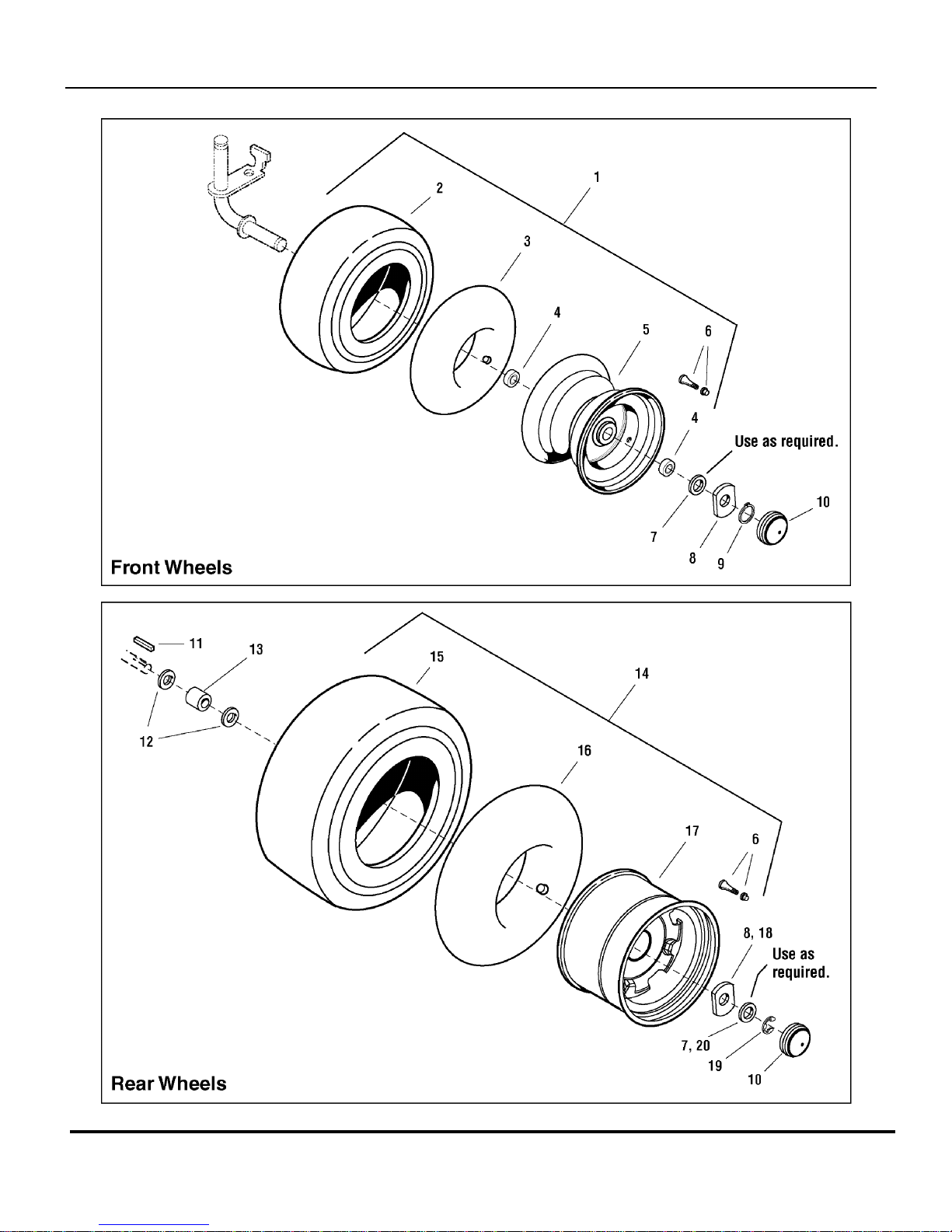

Wheels & Tires Group

TP 400-5011-R1-TC-N

Manual No. 7006451 LAWN TRACTOR

SERIES 0

Wheels & Tires Group

Footnotes:

TP 400-5011-R1-TC-N

Manual No. 7006451LAWN TRACTOR

SERIES 0 5

Part No Descri

tionItem Qt

Note

1 1722065 2 WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4,

5, & 6)

2 1722838 1 TIRE, 15 x 6, Super Turf

3 1664090 1 TUBE, Tire, Front, 4.10/3.50

4 1717056 2 BEARING, Ball

5 1722837 1 WHEEL, 4-1/2” x 6”

6 2172353 4 VALVE STEM & CAP ASSEMBLY

7 1919394 4 WASHER, 1, (As Required for All Front)

8 1722726A 4 WASHER, Special, (As Required for All Front)

9 2832577 2 RING, Retaining, External #98

10 1722676 4 CAP, Hub, Gray

11 1729279 2 KEY, Parellel, 3/16 x 3/16 x 1-1/2

12 2860202 4 WASHER, 3/4

13 1709527 2 SPACER

14 1721694 2 WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 6, 15, 16 & 17)

15 1722826 1 TIRE, 20 x 10, 8 Super Turf

16 2173477 1 TUBE, Tire, 20 x 8, Rear

17 1722835 1 WHEEL, 7 x 7.96, W/ 3/4 OD

18 1722717A 2 WASHER, Special

19 2827794 2 RING, “E” External

20 1960114 2 WASHER, 3/4

Hood, Grill & Dash Group

TP 400-5011-R1-TC-N

Manual No. 7006451 LAWN TRACTOR

SERIES 0

Hood, Grill & Dash Group

Footnotes:

TP 400-5011-R1-TC-N

Manual No. 7006451LAWN TRACTOR

SERIES 0 7

Part No Descri

tionItem Qt

Note

1 1721804D 1 PANEL, RH Side, Red

2 1721801D 1 HOOD, Red

3 1960295 12 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8

4 1960392 1 SCREW, Pan Head Phillips, #10-24 x 1/2

5 1724082 1 DASHBOARD

6 1723123 1 ROD, Dash Support

7 1933896 1 NUT, Hex Lock, w/Nylon Insert, 10-24

8 1930641 12 NUT, Hex Flange Whiz Lock, 1/4-20, Large, Black

9 1721803D 1 PANEL, LH Side, Red

10 1721808A 1 HINGE, LH

11 1721802D 1 GRILLE, Red

12 1721810 1 HEADLIGHT ASSEMBLY, 4 Bulb (See Electrical Group for

internal components)

13 1721809A 1 HINGE, RH

14 1722391A 1 DUCT, Air Inlet

Steering Group - Manual Steering

TP 400-5011-R1-TC-N

Manual No. 7006451 LAWN TRACTOR

SERIES 0

Steering Group - Manual Steering

Footnotes:

TP 400-5011-R1-TC-N

Manual No. 7006451LAWN TRACTOR

SERIES 0 9

Part No Descri

tionItem Qt

Note

1 1722318 1 STEERING WHEEL, Straight, Shaft

2 1725024 1 CAP, Steering Wheel, Plain

3 1960540 1 PIN, Spring, 5/16 x 2-1/2

4 1722749 1 COVER, Rubber, Upper Steering Shaft

5 1960114 5 WASHER, 3/4

6 2176440 2 BUSHING, 15/32 x 7/8 x 7/8, Nylon

7 2828372 2 NUT, Hex KEPS 1/4-20

8 1721736A 1 PLATE, Mounting Steering

9 1960518 2 NUT, Push

10 1960655 2 CARRIAGE BOLT, 1/4-20 x 1-1/4

11 1722385 1 GEAR & SHAFT ASSEMBLY, Steering

12 1960032 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black

13 1930645 1 NUT, Hex Flange Two-Way Lock, 3/8-16

14 1664847 2 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4

15 1721626 1 SHAFT & PINION ASSEMBLY, Steering Manual

16 1611710 1 RING, Clipring Extension

17 1722459 1 BEARING, 3/4 x 1-11/16 x 13/16, 3” Long Housing

18 1722461 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal

19 1931211 2 NUT, Hex Flange Whiz Lock, 3/8-16, Small

20 1933260 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black

21 1919314 1 PIN, Cotter, 1-1/4, Black

Frame & Front Axle Group

TP 400-5011-R1-TC-N

Manual No. 7006451 LAWN TRACTOR

SERIES 0
