Parts Manual for

LAWN TRACTORS

MANUAL CLUTCH

HYDRO DRIVE

SERIES “G”

MODELS

LT145H33GBV

LT145H38GBV

WLT145H38GBV

LT150H38GKV

ELT145H33GBV

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND

PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS

AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

MANUFACTURED PREVIOUSLY.

SNAPPER INC.

(Rev. 3, 01/27/04) MANUAL No. 06448

CONTENTS

GROUP PAGE

WHEELS, FRONT AND REAR ..........................................................................................................3

HOOD, BUMPER, HEADLIGHTS & COMPONENTS..................................................................4 & 5

STEERING WHEEL, CONSOLE, FUEL TANK ...........................................................................6 & 7

SEAT, REAR FENDER & COMPONENTS..................................................................................8 & 9

CAST FRONT AXLE ............................................................................................................... 10 & 11

TRANSMISSION GROUP (Hydro Drive) ............................................................................... 12 & 13

FRAME, CLUTCH, BRAKE & STEERING COMPONENTS .................................................. 14 & 15

BLADE ENGAGEMENT & TRANSMISSION CONTROLS.................................................... 16 & 17

BELT GUIDE ASSEMBLY ...............................................................................................................18

ELECTRICAL COMPONENTS ........................................................................................................19

33” CUTTING DECK, BELTS, BRAKES................................................................................ 20 & 21

38” CUTTING DECK, BELTS, BRAKES...........................................................................22 Thru 25

SPINDLE (30” & 33” Decks) ...........................................................................................................26

SPINDLE (38” Decks)......................................................................................................................27

ENGINE COMPONENTS......................................................................................................... 28 & 29

ELECTRICAL (Wiring Schematic)..................................................................................................30

IMPLEMENT LIFT PARTS...............................................................................................................31

DECALS................................................................................................................................... 32 & 33

HYDRO RESERVOIR ASSEMBLY.................................................................................................. 34

MANUAL No. 06448

WHEELS, FRONT & REAR

ITEM PART NO. DESCRIPTION

1 5-8515 ASSEMBLY, Front Tire & Rim (Includes items 2, 3, 4, 5 & 6)

(Models: LT145H33GBV & ELT145H33GBV)

-- 5-8517 ASSEMBLY, Front Tire & Rim (Includes items 2A, 3, 4, 5 & 6)

(Model: LT145H38GBV & LT150H38GBV)

2 7-2702 TIRE, 13 x 5.00

2A 7-2704 TIRE, 15 x 6.00

3 2-2772 RIM, 6.00 x 3.50

4 1-4483 BEARING, Wheel (4)

5 1-2234 VALVE, Air (Snap-in) (4)

6 1-3876 FITTING, Lube (2)

7 3-4453 WASHER, Flat, 5/32 x 25/32” I.D. x 1-1/2” O.D. (2)

8 2-9618 WASHER, Hub-Cap Retaining (4)

9 2-9617 WASHER, Flat, 1/16 x 49/64 I.D. x 1-5/16” O.D.(8)

10 1-1022 HUB-CAP (4)

11 9-1516 COTTER-PIN, 5/32 x 1” (2)

12 2-9738 RING, External Retaining, 3/4” (2)

13 5-8518 ASSEMBLY, Rear Tire & Rim (Includes items 5, 14 & 15)

14 2-4454 RIM, 8 x 7.00

15 7-2705 TIRE, 18 x 8.50-8

MANUAL No. 06448

7 6

2, 2A

4 9

Spindle Weldment

See Page 10

14 12

NOTE: TO ORDER HOOD ASSEMBLY FOR

MODELS LT145H33GBV AND

LT145H38GBV USE ASSEMBLY No. 5-2921.

NOTE: TO ORDER HOOD ASSEMBLY FOR

MODEL ELT145H33GBV USE

ASSEMBLY No. 5-3528.

25 5

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

MANUAL No. 06448

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

ITEM PART NO. DESCRIPTION

1 2-4605 HOOD, (All Models except ELT145H33GBV)

-- 2-4471 HOOD, Mozart (Model ELT145H33GBV)

2 1-6766 ROD, Hood Support

3 2-4718 LATCH, Spring

4 9-0999 SCREW, 1/4-20 x 5/8” Truss Head, Torx (2)

5 7-6978 NUT, 1/4-20 Hex Nyloc (6)

6 2-2971 DECAL - SNAPPER, 8” Molded Logo, Silver Letters

7 9-0803 BOLT, 1/4-20 x 5/8” Flat Head Carriage, Grade 5 (4)

8 2-9572 PANEL, Hood (Left Hand) (Black) (Model ELT145H33GBV)

9 2-9571 PANEL, Hood (Right Hand) (Black) (Model ELT145H33GBV)

10 2-9076 DECAL, Hood (Right Hand) (Model ELT145H33GBV)

-- 2-9075 DECAL, Hood (Left Hand) (Model ELT145H33GBV)

11 9-1095 RIVET, 1/8” Pop (8)

12 1-7175 DECAL, Clear Lens (Left Hand) (All Models except ELT145H33GBV)

-- 1-7174 DECAL, Clear Lens (Right Hand) (All Models except ELT145H33GBV)

13 9-1106 SCREW, M4.8 x 1.59 x 16.00MM, Special (5)

14 2-9570 GRILLE, Hood (Model ELT145H33GBV)

15 2-6482 CLIP, “J”

16 7-1544 DECAL, Molded Medallion

17 2-9602 LENS, Grille (Headlights)

18 2-6180 DECAL, Reflect (Left Hand) (Model ELT145H33GBV)

19 2-6179 DECAL, Reflect (Right Hand) (Model ELT145H33GBV)

20 2-2968 DECAL - SNAPPER, 4” Molded Logo (Silver Letters - Blue Stripe)

21 9-0858 SCREW, 5/16-18 x 1/2” Self-Tapping, Grade 5 (4)

22 2-4061 BOLT, Shoulder, 3/8-16 x 1-1/4” Hex Socket, Torx (2)

23 3-4324 BRACE, Hood Support

24 1-1791 RETAINER, 5/16” Bolt (4)

25 2-6172 BULB, Headlights (2)

26 2-4709 SOCKET, Headlight Bulb (2)

27 2-6171 HARNESS, Headlight Wiring

28 2-4893 LENS, Clear (Models with Headlights)

30 2-9620 BUMPER, Front Hood Support

MANUAL No. 06448

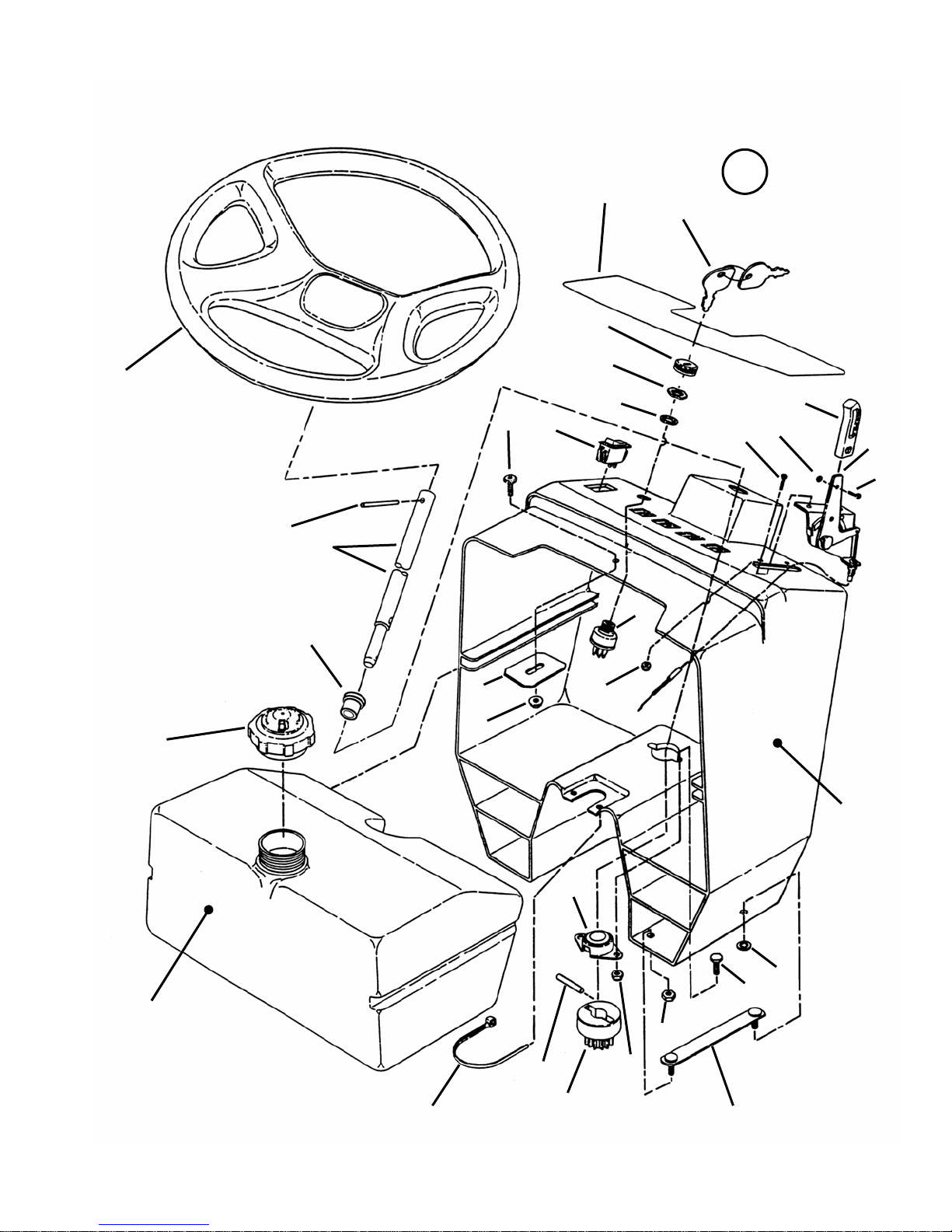

STEERING WHEEL, CONSOLE, FUEL TANK

MANUAL No. 06448

19 18

24 30

1 ASSEMBLY

STEERING WHEEL, CONSOLE, FUEL TANK

ITEM PART NO. DESCRIPTION

1 5-3746 ASSEMBLY, Console (Includes items 2 thru 7)

2 2-8565 CONSOLE

3 1-1791 RETAINER (4)

4 9-1495 SCREW, 1/4-20 x 3/4” Hex Head Cap, Grade 5 (2)

5 5-2891 ASSEMBLY, Strap-Clinch Stud (2)

6 7-6978 NUT, 1/4-20 Hex Nyloc (2)

7 2-6196 ASSEMBLY, Flange Bearing

8 9-1575 NUT, 5/16-18 Hex Center Lock, Grade 5 (4)

9 2-2368 GEAR, Pinion, Steering Shaft

10 2-2369 PIN, Dowel, 1/4 x 1-1/4”

11 2-4641 TIE, Wire

12 5-2907 ASSEMBLY, Fuel Tank (Includes item 13)

13 1-4363 CAP, Fuel Tank

14 9-1599 NUT, #10-24 Hex Nyloc (2)

15 2-6343 KEYSWITCH (Includes item 27)

16 9-0951 NUT, 5/16-18 Hex Flange Center Lock

17 3-3883 BRACKET, Hood Latch Catch

18 2-2380 SHAFT, Steering

19 1-2765 ROLL-PIN

20 3-5496 BUSHING

21 2-9595 STEERING WHEEL

22 2-8561 DECAL, Console (Hydro Drive Models - With Lights)

23 1-1138 KEY, Pair

24 9-1001 SCREW, 5/16-18 x 5/8” Truss Head, Torx

25 2-3187 SWITCH, Lights

26 2-9714 SPACER

27 2-9721 NUT, 5/8-32 Hex

28 2-3506 BEZEL

29 9-1188 SCREW, #10-24 x 5/8” Machine (2)

30 9-1018 NUT, #8-32 Hex

31 2-3655 HANDLE, Throttle Control

32 2-4642 CONTROL, Throttle

33 9-1017 SCREW, #8-32 x 3/8” Cross-Recessed, Machine

MANUAL No. 06448

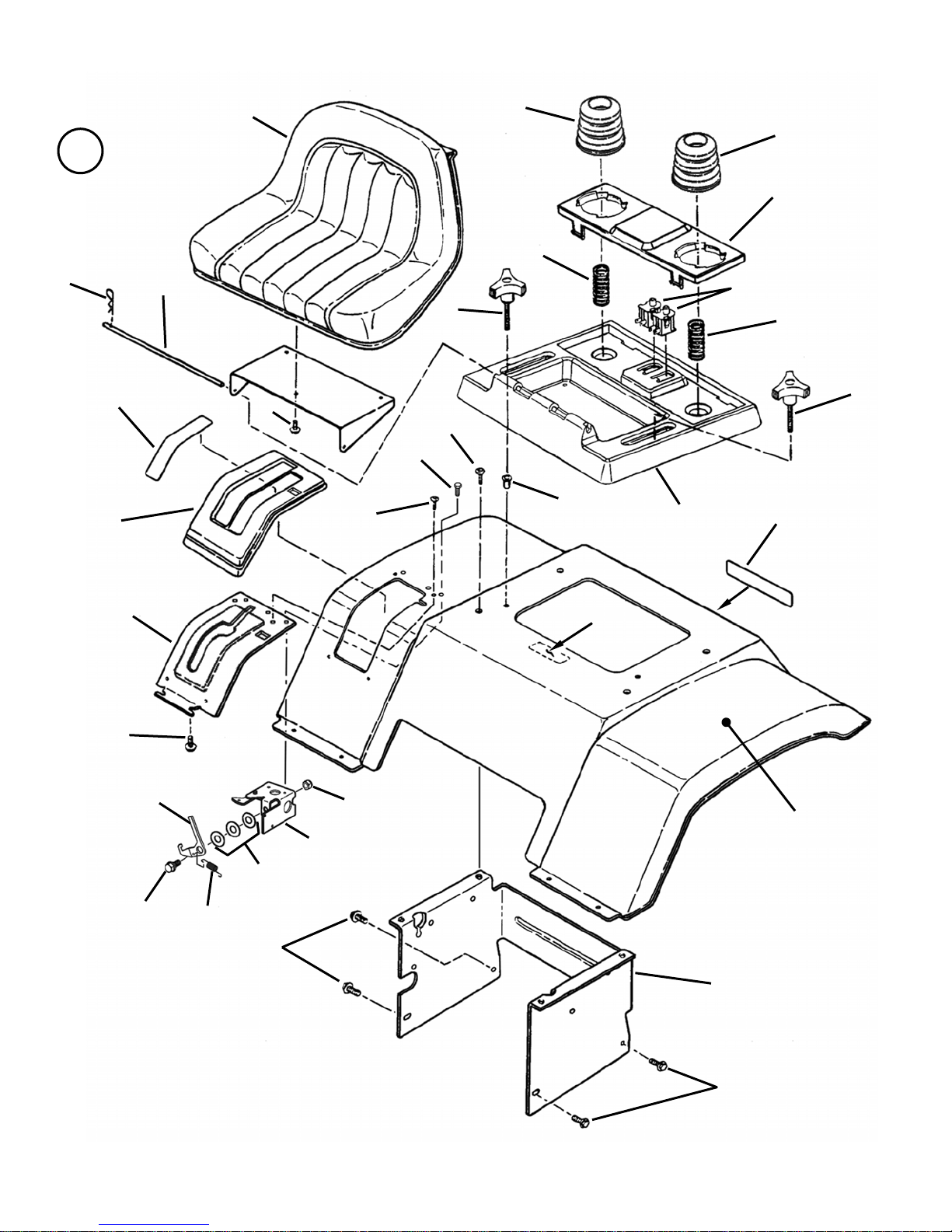

SEAT, REAR FENDER & COMPONENTS

MANUAL No. 06448

24 23

20 7

1 ASSEMBLY

SEAT, REAR FENDER & COMPONENTS

ITEM PART NO. DESCRIPTION

1 5-3761 ASSEMBLY, Seat Support (Includes items 2, 3, 4 & 5)

2 2-8579 SUPPORT, Seat

3 2-3354 SWITCH, Seat, Gray, NC

4 7-3266 SPRING (2)

5 2-8580 HOLDER, Cushion

6 1-9109 CUSHION, Seat (2)

7 1-7875 KNOB, Seat Adjustment (2)

8 9-1001 SCREW, 5/16-18 x 5/8” Truss Head, Torx (4)

9 9-0362 SCREW, 1/4-20 x 5/8” Hex Washer Head, Self-Tapping (4)

10 7-3346 PAN, Seat (Fender)

11 9-1761 RIV-NUT, 5/16-18 Round (2)

12 2-2971 DECAL - SNAPPER, 7.28” Molded Logo, Silver Letters & Blue Stripe

13 2-6415 DECAL - CAUTION, Battery Location

14 7-3344 SUPPORT, Fender

15 9-1523 SCREW, 5/16-18 x 5/8” Hex Washer Head (2)

16 9-1524 SCREW, 5/16-18 x 1-1/4” Hex Washer Head (2)

17 9-1105 SCREW, #10-16 x 1/2” Hex Washer Head, Self-Tapping (4)

18 7-3347 DETENT, Shift (Hydro Drive Models)

19 7-3408 COVER, Shift

20 1-6576 DECAL, Shift Cover, 5-Speed (Hydro Drive Models)

21 9-1525 BOLT, 5/16-18 x 1/2” Hex Flange Lock, Grade 5 (3)

22 3-3318 BRACKET, Seat Support

23 3-3435 ROD, Seat Hinge

24 9-1503 PIN, 3/32 x 1-1/2” Hair

25 2-8621 SEAT, Operator’s

26 5-8851 ASSEMBLY, Lockout Latch/Stop

27 7-3306 OVERIDE, Latch

28 1-5761 BOLT, 5/16-18 x Shoulder

29 9-0953 WASHER, 5/16 Flat (3)

30 9-1298 NUT, 5/16-18 Hex Top Lock

31 7-3223 SPRING

32 9-0307 SCREW, #10-24 x 1/2” Self Tapping (2)

MANUAL No. 06448

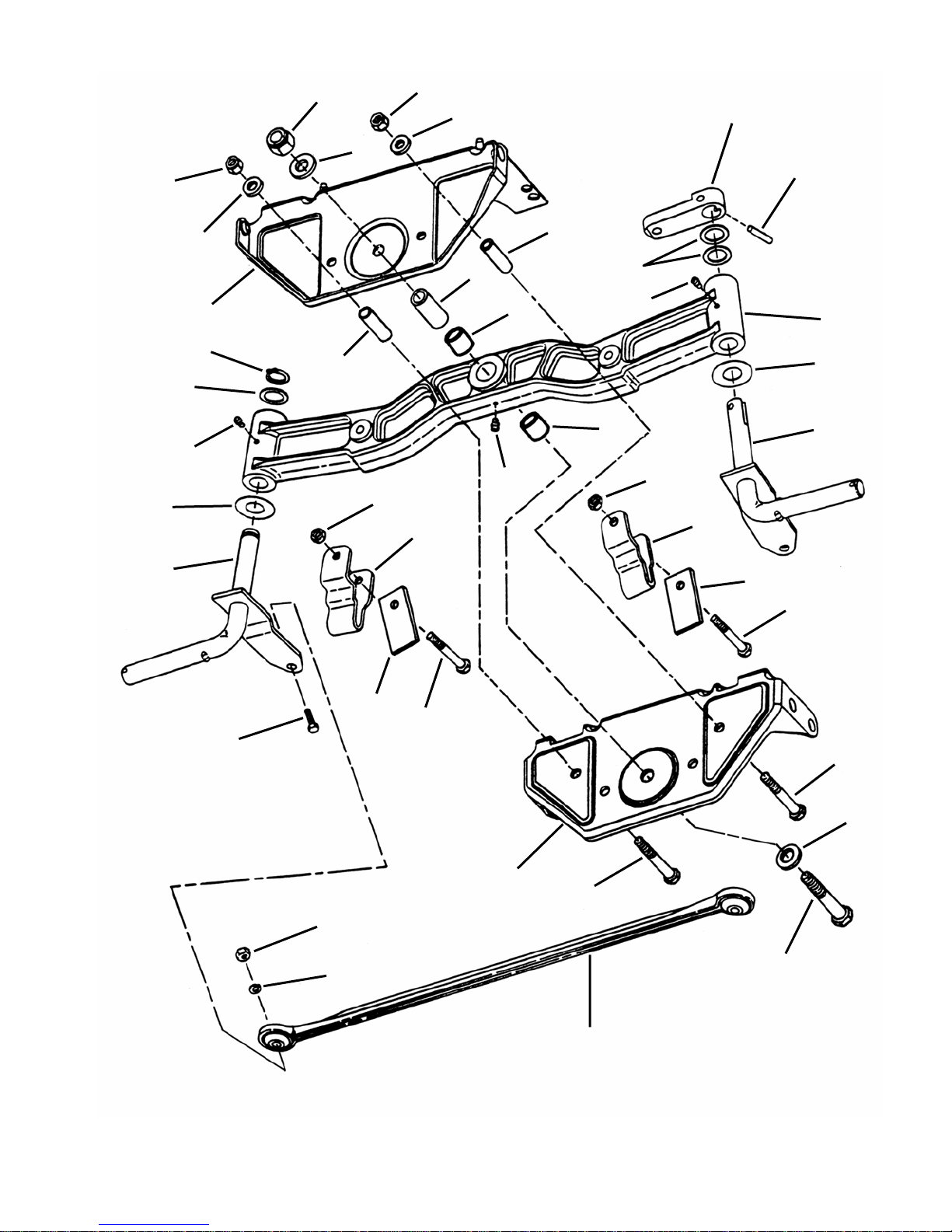

CAST FRONT AXLE

MANUAL No. 06448

8 9

26 20

10 18

3 16

26 20
