Snapper 21351D Manual de usuario

Parts Manual fo

Revision 3,

21" STEEL DECK WALK MOWERS

SERIES 1 & 5

2005

McDonough, GA, 30253 U.S.A.

TP 400-5124-3-WB-N

10/14/2005 Manual No. 7006041

SNAPPER PRODUCTS, INC.

(

1982 to 1989

)

PUSH MODELS PROPELLED

MODELS

21351 21351P

21351D 21351PD

21351S 21351PS

21355 21355P

21401 21401P

21401S 21401PD-

21405 21401PS

21405-

21405P

21405S 21405P-2

214X1 21405PS

214XR 214X1P

214X1

214X1PR

214X5 214X1PR-2

214X5-2 214X1PS

214X5

214X5P

21RX1 214X5P-

214X5R-

214X5PR

21RX1P 214X5PR-2

G21355 214X5PS

G21405 21RX1P

G214X5-2 G21405P

G21405P

G214X5P-

Table Of Content

TP 400-5124-3-WB-N

Manual No. 700604121" STEEL DECK WALK MOWERS

SERIES 1 & 5 3

PAGE GROUP

4Handles & Controls (Series 1)

8Handles & Controls (Series 5)

12 Cutting Deck, Blade, Interlock

14 Front Wheels, Bracket, Latches

16 Rear Wheels, Brackets, Latches

20 Drive System-Self-Propelled

24 Transmission (Differential) ('88 Models & Earlier)

26 Transmission (Differential) ('89 Models & Later)

28 Side Chute, Adapter

30 Grass Catcher

32 Grass Bag

34 Decals

36 Throttle Controls & Engine Specs

40 Electric Start ('84 Models & Earlier)

42 Electric Start ('85 Models & Later)

44 Mulcherizer

46 Snapperizer

48 Thatcherizer

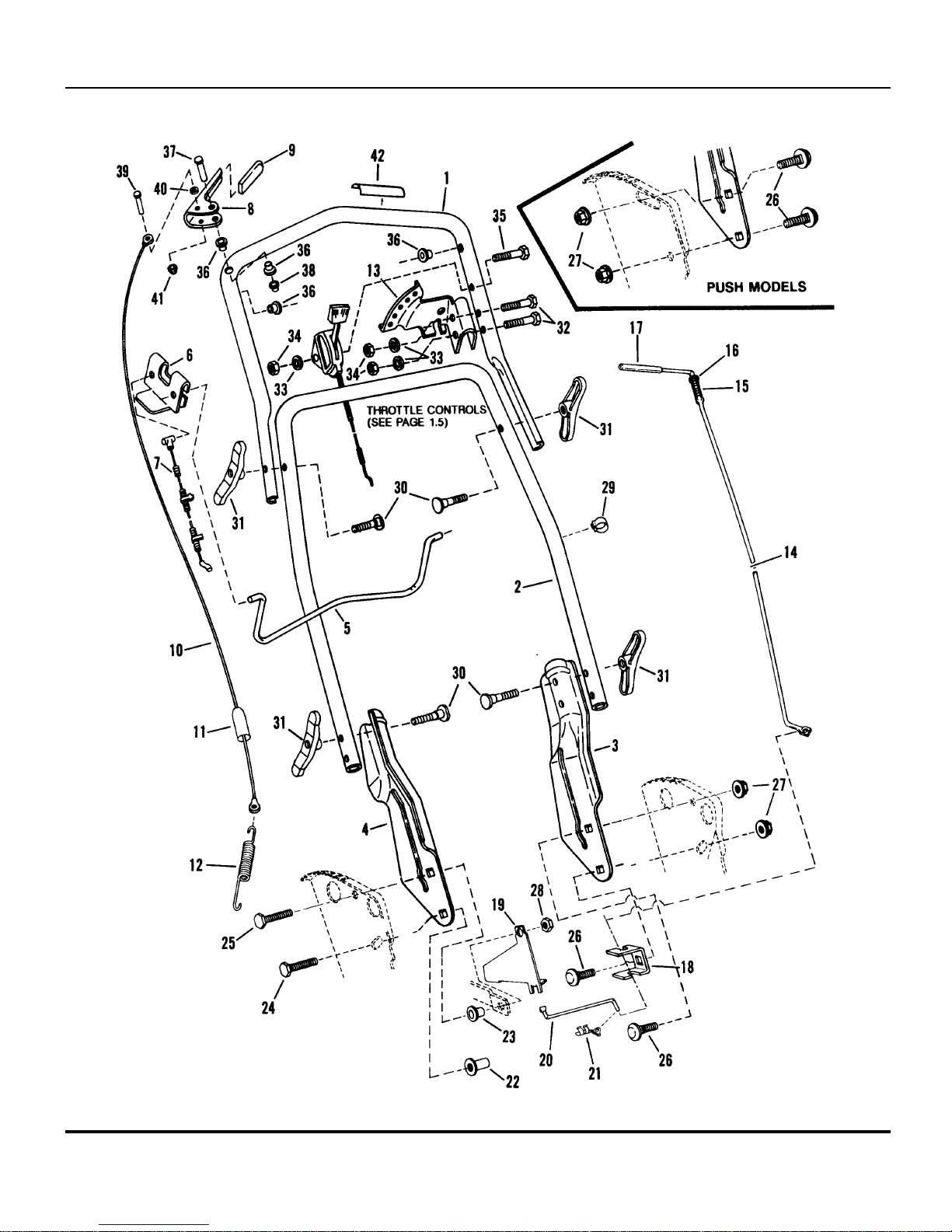

Handles & Controls (Series 1)

TP 400-5124-3-WB-N

Manual No. 7006041 21" STEEL DECK WALK MOWERS

SERIES 1 & 5

Handles & Controls (Series 1)

Footnotes:

TP 400-5124-3-WB-N

Manual No. 700604121" STEEL DECK WALK MOWERS

SERIES 1 & 5 5

Part No Descri

tionItem Qt

Note

1 7033444 HANDLE, Upper Used On ; Push Models

7036133 HANDLE, Upper Used On ; Push Electric Start

7033444 HANDLE, Upper Used On ; Self-Propelled

2 7036037 HANDLE, Middle

3 7038247 HANDLE, Lower L.H.

4 7038246 HANDLE, Lower R.H.

5 7019714 CONTROL, Blade

6 7033904 CLIP, Blade Control (Same either side)

7 7014305 CABLE, Blade Control For Briggs Engines

7018561 CABLE, Blade Control For Tecumseh Engines

7023093 CABLE, Blade Control For Robin Engines

8 7032826 HANDLE, Wheel Drive Used On ; Self-propelled

9 7014307 GRIP, Handle Used On ; Self-propelled

10 7023134 CABLE, Clutch Pull Used On ; Self-propelled

11 7012121 COVER, Vinyl Used On ; Self-prop.(part of item

10)

12 7012122 SPRING, Clutch Used On ; Self-propelled

13 7038478 SECTOR, Speed Used On ; Self-propelled

14 7012317 LEVER, Speed Control Used On ; Self-propelled

15 7012093 SPRING, Speed Control Used On ; Self-propelled

16 7090188 WASHER, 3/8" Flat

17 7023801 GRIP, Speed Contr. Handle Used On ; Self-propelled

18 7032830 ANCHOR, Speed Control Used On ; Self-propelled

19 7032408 GUIDE, Lower(V-Belt) Used On ; Self-propelled

20 7012255 ROD, Transfer Used On ; Self-propelled

21 7010937 CLIP, Transfer Rod Used On ; Self-propelled

22 7090895 TEE-NUT, 5/16-18 Used On ; Self-propelled

23 7012114 BUSHING, Differential Used On ; Self-propelled

24 7090595 BOLT, 5/16-18x1" Hex Flange Lock Used On ; Self-propelled

25 7090238 CAPSCREW, 5/16-24x1 Used On ; Self-propelled

26 7090799 BOLT,5/16x18x5/8 Carr.

27 7090189 LOCKWASHER, 5/16 I.E.Tooth

28 7091601 NUT, 5/16-18 Hex Flange Lock Was 90585

29 7090222 NUT, 5/16-24 Center Lock Used On ; Self-propelled

30 7090552 CAPSCREW, 1/4-28x1-3/8 Used On ; Grade 5

31 7090053 LOCKWASHER, 1/4 Int. Tooth

32 7090095 NUT, 1/4-28 Hex

33 7090111 CAPSCREW, 1/4-28x1-3/4

Handles & Controls (Series 1)

TP 400-5124-3-WB-N

Manual No. 7006041 21" STEEL DECK WALK MOWERS

SERIES 1 & 5

Handles & Controls (Series 1)

Footnotes:

TP 400-5124-3-WB-N

Manual No. 700604121" STEEL DECK WALK MOWERS

SERIES 1 & 5 7

Part No Descri

tionItem Qt

Note

34 7090950 BOLT, 1/4-20x1-7/8" Carriage Used On ; Push

35 7015693 WING-NUT, 1/4-20 Was 14207, Used On ; Push

36 7014343 BUSHING

37 7091020 PUSH-NUT Was 90489

38 7023792 PIN, Clutch Handle Was 11886 Used On ; Self-

propelled

39 NA DECAL, Blade Control Was 14310

40 7023813 CLIP, Cable/Wiring Was 14374

41 7014734 PUSH-NUT Used On ; Self-propelled

42 7014733 PIN, 3/16x1-3/4" Clevis Used On ; Self-propelled

43 7090010 WASHER, #10 Flat (2) Used On ; Self-propelled

Handles & Controls (Series 5)

TP 400-5124-3-WB-N

Manual No. 7006041 21" STEEL DECK WALK MOWERS

SERIES 1 & 5

Handles & Controls (Series 5)

Footnotes:

TP 400-5124-3-WB-N

Manual No. 700604121" STEEL DECK WALK MOWERS

SERIES 1 & 5 9

Part No Descri

tionItem Qt

Note

1 7036200 HANDLE, Upper Was 36199 Used On ; Push

7036200 HANDLE, Upper Used On ; Self-Propelled

2 7036202 HANDLE, Middle

3 7046502 HANDLE, Lower Left Hand

4 7035342 HANDLE, Lower Right Hand

5 7019714 CONTROL, Blade

6 7033904 CLIP, Blade Control (Same either side)

7 7014305 CABLE, Blade Control Briggs & Stratton Engines

7015636 CABLE, Blade Control Tecumseh Engines (2-cycle)

7015601 CABLE, Blade Control Tecumseh Engines (4-cycle)

7023093 CABLE, Blade Control Robin Engines (was 01-5258)

8 7032826 HANDLE, Wheel Drive Was 32237, Self-propelled

9 7014307 GRIP, Wheel Drive Handle Used On ; Self-propelled

10 7023134 CABLE, Clutch Pull (includes #11) Was 51672, Used On ; Self-

propelled

7023134 CABLE, Clutch Pull (89 Models, Z-BEND) Used On ; Self-propelled

11 7012121 COVER, Vinyl (included on #10) Used On ; Self-propelled

12 7012122 SPRING, Clutch Used On ; Self-propelled

13 7038478 SECTOR, Speed Used On ; Self-propelled

14 7023795 LEVER, Speed Control Used On ; Self-propelled

15 7012093 SPRING, Speed Control Used On ; Self-propelled

16 7090188 WASHER, 3/8" Flat Used On ; All-different locations

17 7023801 GRIP, Speed Control Handle Used On ; Self-propelled

18 7032830 ANCHOR, Speed Control Used On ; Self-propelled

19 7032408 GUIDE, Lower V-Belt Used On ; Self-propelled

20 7012255 ROD, Transfer Used On ; Self-propelled

21 7010937 CLIP, Transfer Rod Used On ; Self-propelled

22 7090895 TEE-NUT, 5/16-18 Used On ; Self-propelled

23 7012114 BUSHING, Differential Used On ; Self-propelled

24 7090595 BOLT, 5/16-18x3/4 Flange Lock Used On ; Self-propelled

25 7090238 CAPSCREW, 5/16-24x1 Used On ; Self-propelled

26 7090799 BOLT, 5/16-18x5/8 Carriage Used On ; All (different locations)

27 7091601 NUT, 5/16-18 Hex Flange Lock Was 90585

28 7090222 NUT, 5/16-24 Center Lock Used On ; Self-propelled

29 7023813 CLIP Cable/Wiring Was 14374, Used On ; All

30 7090965 SCREW, 1/4Cx1-7/8 Curved Head Used On ; All

31 7015693 WING-NUT, 1/4C Used On ; All

32 7090552 CAPSCREW, 1/4-28x1-3/8 Used On ; Self-propelled

Handles & Controls (Series 5)

TP 400-5124-3-WB-N

Manual No. 7006041 21" STEEL DECK WALK MOWERS

SERIES 1 & 5
