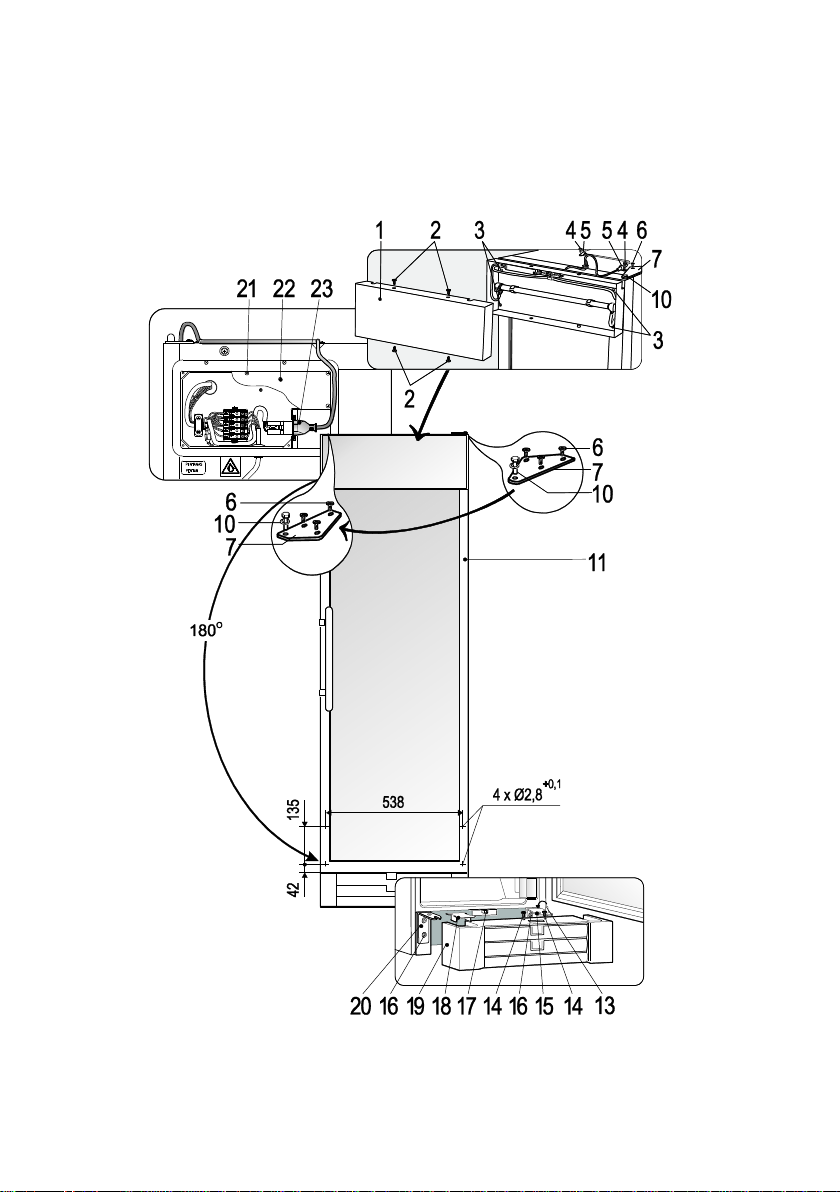

1. In the back part unscrew four screws 21, remove the cover 22 and disconnect the
supply plug 23 of the connection cable;
2. Unscrew four fixing screws 3 of the promotional shield and remove the promotional
shield;
3. Unscrew three fixing screws 6 of the upper door hanging bracket 7 and remove the
bracket together with the axle 10;
4. Raising upwards, remove the door 11;
5. Unscrew fixing screws 14 of the bottom grid 19 and remove the grid by unlinking grid
hooks from the cabinet. The lock cam 17 must be in a horizontal position;
6. Remove the cover 18 on the left of the grid to the opposite side;
7. Unscrew four fixing screws 16 of the bottom door bracket 15 and two fixing screws 16
of door holding bracket 20. Remove brackets together with screws and washers.
8. Screw the axle 13 of the bottom door bracket into another threaded hole symmetrically
to a present position;
9. Screw brackets 15 and 20 counterchanging them;
10. Reverse the door by 180°and drill four holes (ø 2,8 +0,1) mm for fixing of the
promotional shield; Hang the door on the left side;
11. Turn the bracket 7 by 180° (before that unscrewing the axle 10 with the spring
washer), screw the axle to the opposite bracket side;
12. Fix the bracket 7 to opposite cabinet side symmetrically to initial position;
13. Put connection wires together with holders to another side of the cabinet, fix them and
connect the connection cable of the promotional shield.
OPERATION PROBLEMS AND THEIR SOLUTIONS. What if …
•The appliance is plugged in to the mains but it does not work. Check if your
house electricity supply installations are in order. Check if the plug is correctly inserted
into the electricity supply socket.
•The noise has become louder. Check if the appliance is standing stable, on a level
place. To make it level, regulate the front feet. Check if the appliance is not touching
any furniture and if no part of the refrigeration system at the back part of the appliance
body is touching the wall. Pull the appliance away from any furniture or walls. Check if
the cause of increased noise isn’t due to bottles, cans in the appliance that might be
touching each other.
•Water has appeared at the bottom of the refrigerator compartment. Check
whether a thaw water channel space isn’t blocked. Clean the thaw water channel space
with a cleaner intended for that purpose.
•When the appliance door is opened, the rubber sealing gasket pulls out. The
gasket is smeared with sticky foodstuffs (fat, syrup). Clean the sealing gasket and the
groove for it with warm water containing soap or dishwashing detergent and wipe dry.
Put the rubber sealing gasket back into the place.
•High temperature in appliance, the compressor operation pauses are short.
Ascertain whether the appliance door/doors are shutting tightly, whether the door
wasn’t kept open longer than necessary when taking out or putting in foodstuffs or
whether a large amount of warm food was placed in the appliance.
•The top of the appliance has condensation on it. The ambient relative air humidity
is above 65 %. Ventilate the room where the appliance stands and if possible remove
the cause of the humidity.
