SMTAV

PTZ Video Camera

User Manual

V2.5

Model Nos: BA30S | BA30N | BA30S-W | BA30N-W

(English)

The entire contents of this manual, whose copyright belongs to SMTAV Corporation, may not be cloned, copied or

translatedin any way without the explicit permission of the company. Product specifications and information

referred to in thisdocument are for reference only and as such are subject to updating at any time without prior

notice

SMTAV

Preface

Thank you for using the HD Professional Video Conferencing Camera. This manual introduces the function, installation and

operation of the HD camera. Prior to installation and usage, please read the manual thoroughly.

Precautions

This product can only be used in the specified conditions in order to avoid any damage to thecamera:

•Don’t subject the camera to rain or moisture.

•Don’t remove the cover. Removal of the cover may result in an electric shock, in addition to voiding thewarranty.

In case of abnormal operation, contact the manufacturer.

•Never operate outside of the specified operating temperature range, humidity, or with any other powersupply

than the one originally provided with the camera.

•Please use a soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted neutraldetergent;

do not use any type of solvents, which may damage the surface.

Note

This is an FCC Class A Digital device. As such, unintentional electromagnetic radiation may affect the image quality of TV in a

home environment.

SMTAV

Table of Contents

Supplied Accessories...............................................................................................................................1

Notes.......................................................................................................................................................1

Quick Start ..............................................................................................................................................2

Features ..................................................................................................................................................4

Product Specifications.............................................................................................................................5

Back of the Camera.................................................................................................................................7

IR Remote Controller ..............................................................................................................................8

Using the IR Remote Controller ............................................................................................................10

Dimensional Drawings (mm)...................................................................................................................7

RS-232 Interface....................................................................................................................................13

VISCA Network Configuration...............................................................................................................14

Serial Communication Control..............................................................................................................14

Command List .......................................................................................................................................15

Menu Settings.......................................................................................................................................30

Network Connection.............................................................................................................................34

Setting up a Network Video Stream......................................................................................................35

Additional Network Info .......................................................................................................................37

Camera Web Interface ..........................................................................................................................38

Menu ...........................................................................................................................................................38

Live ..............................................................................................................................................................38

DirectionalArrows .......................................................................................................................................38

Video............................................................................................................................................................39

Image...........................................................................................................................................................40

Network.......................................................................................................................................................41

Information .................................................................................................................................................43

Language .....................................................................................................................................................43

Network Camera Control Protocol........................................................................................................43

Photobooth Functionality.....................................................................................................................47

Maintenance andTroubleshooting .......................................................................................................49

Page 1

SMTAV

Supplied Accessories

When you unpack your camera, check that all the supplied accessories areincluded:

Camera ............................................................1PCS

AC power adaptor ...........................................1PCS

Power cord........................................................1PCS

RS232 cable......................................................1PCS

Remote control.................................................1PCS

User manual......................................................1PCS

Notes

⚫Electrical Safety

Installation and operation must be in accordance with national and local electric safety standards.

Do not use any power supply other than the one originally supplied with this camera.

⚫Polarity of power supply

The power supply output for this product is 12VDC with a maximum current supply of 2A. Polarity of

the power supply plug is critical and is as follows.

⚫Handling

■

Avoid any stress, vibration, or moisture during transportation, storage, installation andoperation.

■

Do not lift or move the camera by grasping the camera head. Do not turn the camera head by hand. Doing so may

result in mechanical damage.

■

Do not expose camera to any corrosive solid, liquid, or gas to avoid damage to the cover which is made of a plastic

material.

■

Ensure that there are no obstacles in the tilt or pan ranges of the camera lens.

■

Never power camera on before installation is complete.

■

DO NOT DISMANTLE THE CAMERA –The manufacturer is not responsible for any unauthorized modification

or dismantling.

Page 2

SMTAV

Quick Start

Step1. Please check that all connections are correct before powering on the camera.

Page 3

SMTAV

Step2. Set the system select switch for your desired video output resolution and frame rate.

For many applications, setting 0 (1080p-60) will provide the best overallperformance.

For highest possible resolution, use setting 0 (1080p-60) or 6 (1080p-30), however your actual realized frame rate may

be limited to a lower value than 60 fps by your software and/or networkconnection.

NOTE: After changing this dial, you need to restart the camera to see the effect. Turn the camera off.

VIDEO SYSTEM

1080p60

720p30

1080p50

720p25

1080i60

1080p59.94

1080i50

1080i59.94

720p60

1080p29.97

720p50

576i

1080p30

480i

1080p25

720p59.94

CAUTION: After changing the system (rotary) switch, you need to restart the camera to takeeffect.

CAUTION: A, B, C, & F Broadcast frame rate options are considered BETA features and may not be supported byall

platforms

Step3. Press the Switch ON button on the rear of the camera, the power lamp willilluminate.

Step 4. The Pan-Tilt mechanism will rotate the lens to the maximum position of top right after the camera starts, then it will

return to the “center”. The process of initialization is now complete.

(Note: If the position preset 0 has been stored, the position preset 0 will be called up after initialization in lieu of“center”)

Step 5. (Optional) If you want to restore the factory default settings, press [MENU] button to display the OSD menu. Select the

item [MENU] -> [RESTORE DEFAULT] -> [Restore]. Set the value [Yes], press [HOME] button to restore the factory default

settings. Or when using the IR remote, press [*] + [#] + [6] in succession to restore to factory defaultsettings.

RESTORE DEFAULT

Restore

Yes

Change Value

[Home] OK

[Menu] Back

Page 4

SMTAV

Features

•Image Sensor

oPanasonic 1/2.7”, 2.07 million effective pixels, HD CMOS sensor

oOlympus high quality telephoto lens supporting 30X optical zoom and optional 8X digitalzoom

oFull HD 1920x1080p resolution up to 60 frames per second

o2D & 3D noise reduction with our latest “low noise CMOS sensor”

o0.05 Lux @ F1.8 AGCOn

oWide angle 60.7°horizontal field of view

oDynamic Range Control (DRC) for higher image quality and detail across simultaneously well lit and shadowed

scenes.

oImage Freeze to temporarily pause the video while calling presets (so viewers won’t see camera movement)

oHigh SNR (signal to noise ratio) of the CMOS sensor (≥55dB), combined with 2D & 3D noisereduction algorithms,

effectively reduces noise, even under low illumination conditions.

•Video Outputs

oSimultaneous IP network streaming, 3G-SDI, and HDMI videooutputs.

o3G-SDI High Definition video output up to 60 frames per second

oHDMI 1.3 High efinition video output up to 60 frames per second

oRTSP,RTMP,& RTMPS streaming using H.264, H.265, & MJPEG

oLine level audio embedding over IP network stream & HDMI. UsesAAC audio encoding for better sound quality

and lower bandwidth usage.

oSupport for ultra-high FPS mode 1280x720p @ 120 frames per second over IP networkstream.

oSupports non-simultaneous CVBS (composite video) output via 3.5mm connector (480i or576i)

•Control and Settings

oVISCA overIP

oIR Remote Control

oWeb-based IP remote control interface

oRS232 & RS485 VISCA, Pelco-D, & Pelco-Pcontrol

•Installation

oStandard 1/4-20 female thread for camera mounting

oPower over Ethernet –Supports 802.3af

o12VDC 2A Power Supply provided for non-PoE infrastructure

*Please note: The camera is unable to perform 1080@60 over IP stream & SDI/HDMIsimultaneously.

Page 5

SMTAV

Product Specifications

Camera

Video System

1080p-60/50/30/25/59.94*/29.97*, 1080i-60/50/59.94*, 720p-60/50/59.94*

CVBS: 576i, 480i

*Broadcast frame rates are considered BETAfeatures and may not be supported by all platforms

Please note: The camera is unable to perform 1080p60 over IP stream & SDI/HDMIsimultaneously

Sensor

1/2.7", CMOS, Effective Pixel: 2.07M

Scanning Mode

Progressive

Lens

30x, f4.42mm ~ 132.6mm, F1.8 ~ F2.8

Digital Zoom

Minimal Illumination

0.05 Lux (@F1.8, AGCON)

Shutter

1/30s ~ 1/10000s

White Balance

Auto, 3000K/Indoor, 4000K,5000K/Outdoor, 6500K_1,6500K_2,6500K_3, One Push, Manual

Backlight Compensation

Support

Digital Noise Reduction

2D & 3D Digital Noise Reduction

Video S/N

≥55dB

Horizontal Angle of View

2.28°~ 60.7°

Vertical Angle of View

1.28°~ 34.1°

Horizontal Rotation Range

±170°

Vertical Rotation Range

-30°~ +90°

Pan Speed Range

1.7°~ 100°/s

Tilt Speed Range

1.7°~ 69.9°/s

Image Flip

Support

Image Mirror

Support

Image Freeze

Support

PoE

Support (802.3af)

Local Storage

Support

Number of Preset

255

PresetAccuracy

0.1°

Input/Output Interface

HD Output

1 x HDMI: Version 1.3

1 x 3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard

Page 6

SMTAV

1 x RJ45 IP Network streaming 10/100/1000 Ethernetport

SD Output

1 x CVBS: RCA jack, 1Vp-p,75Ω

Network Interface

1 x RJ45: 10/100/1000M Adaptive Ethernet ports (Support POE)

Audio Input

1-ch 3.5mm audio interface, Line In (IP Network stream only) (Unbalanced stereo)

USB

1 x USB2.0: type Ajack

Communication Interface

1 x RS-232 IN: 8pin Min DIN, Max Distance: 30m, Protocol:VISCA/Pelco-D/Pelco-P

1 x RS-232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network useonly

1 x RS-485: 2pin Phoenix port, Max Distance: 1200m, Protocol:VISCA/Pelco-D/Pelco-P

Power Jack

JEITA type (DC IN 12V)

IP Codec Features

Video Compression

H.264 / H.265 / MJPEG

Video Stream

Two (2) IP video output streams available (Main Stream, Sub Stream)

First Stream Resolutions

1920x1080, 1280x720, 1024x576, 960x540, 640x480,640x360

Second Stream Resolutions

1280x720, 1024x576, 720x480, 720x408, 640x360, 480x270, 320x240,320x180

Video Bit Rate

32Kbps ~ 102400Kbps

Bit Rate Type

Variable Rate, Fixed Rate

Frame Rate

50Hz: 1 FPS ~ 50 FPS, 60Hz: 1 FPS ~ 60 FPS

Audio Compression

AAC

Audio Bit Rate

96Kbps, 128Kbps, 256Kbps

Supported Protocols

TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc.

Generic Specification

Input Voltage

DC 12V / PoE (802.3af) (optional)

Current Consumption

1.0A (Max)

OperatingTemperature

-10°C ~ 40°C (14°F ~ 104°F)

StorageTemperature

-40°C ~ 60°C (-40°F ~ 140°F)

Operating Humidity

10% - 80%

Power Consumption

12W (Max)

MTBF

>30000h

Size in. (W x D x H)

5.6” W x 6.7” D x 6.5” H (7.8” H w/ maxtilt)

Size mm. (W x D x H)

142mm W x 169mm D x 164mm H (168mm H w/ max tilt)

Camera Weight

3.01 lbs [1.35 kg]

Box Weight

5.4 lbs [2.45 kg]

Page 7

SMTAV

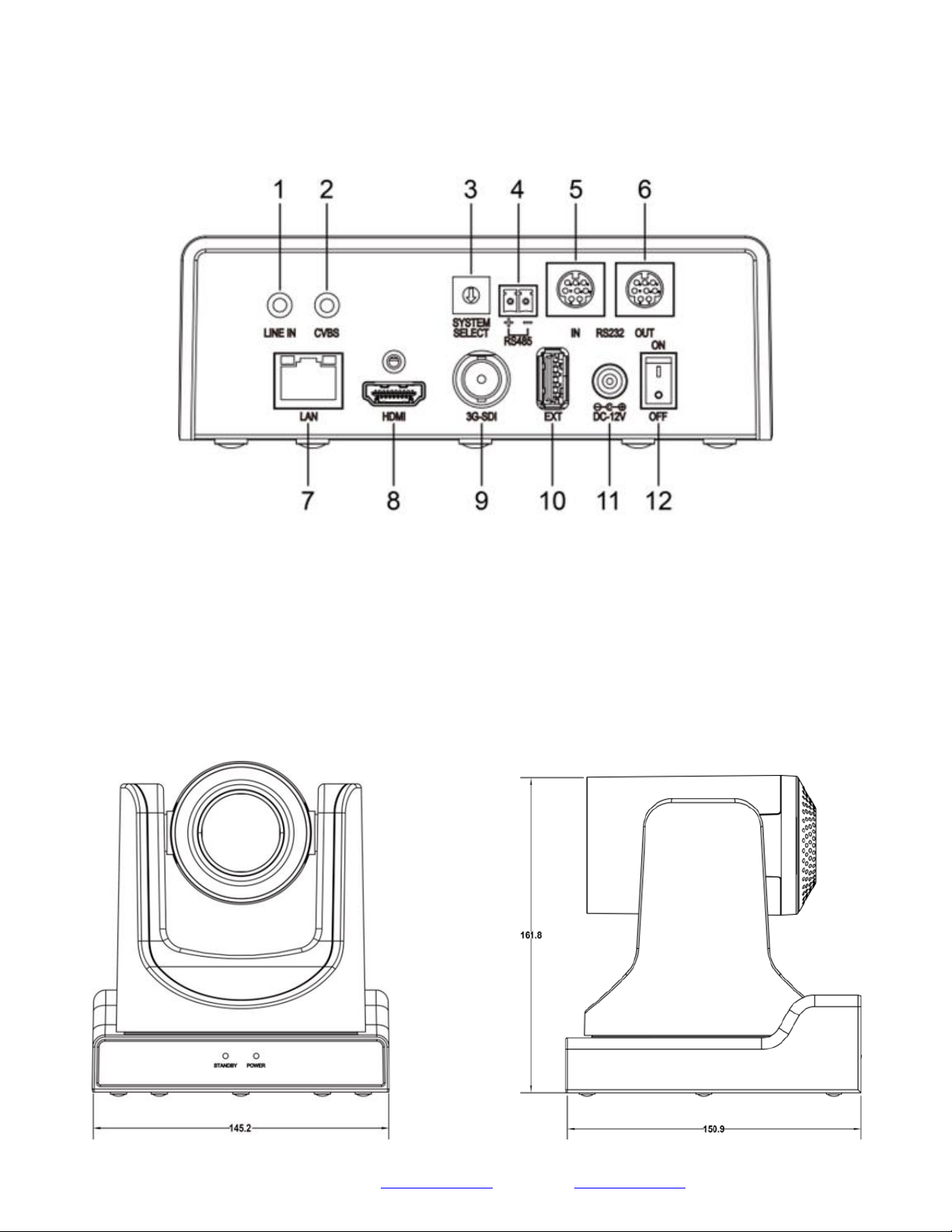

Back of the Camera

1. Audio LINE IN Interface (HDMI & IP) 7. Network (IP streaming & control)

2. CVBS (composite video SD) Interface 8. HDMI (Digital Video Output)

3. System select dial (resolution) 9. HD-SDI (Serial Digital VideoOutput)

4. RS485 jack 10. USB 2.0 (*no video out* Future - USB Storage)

5. RS232 IN jack 11. DC 12V power jack

6. RS232 OUT jack (pass through for daisychain) 12. Power switch

Dimensional Drawings (mm)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Videocámara de SMTAV

SMTAV

SMTAV BA12S Manual de usuario

SMTAV

SMTAV BA20S Manual de usuario

SMTAV

SMTAV BV30S Manual de usuario

SMTAV

SMTAV BV20S Manual de usuario

Manuales populares de Videocámara de otras marcas

Toshiba

Toshiba CAMILEO Z100 Manual de usuario

Panasonic

Panasonic NV-VS40B Manual de usuario

Canon

Canon RC 260 Manual de usuario

Sony

Sony Handycam DCR-DVD7E Manual de usuario

Brinno

Brinno TimeLapse TLC200 Manual de usuario

JVC

JVC GR-SXM68AC Guía de inicio rápido

Panasonic

Panasonic AG-HMC152EN Manual de usuario

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manual de usuario

MYDLINK

MYDLINK DCS-6100LH Manual de usuario

Sony

Sony video Hi8 Handycam CCD-TR555 Manual de usuario

SECURECOM

SECURECOM V-5014B Manual de usuario

Panasonic

Panasonic HDC-SD100 Manual de usuario

Sharper Image

Sharper Image U-VIDEO Manual de usuario

JVC

JVC AA-V15EG Manual de usuario

Canon

Canon LEGRIA HV40 Manual de usuario

Sony

Sony Handycam DCR-VX2000 Manual de usuario

RCA

RCA CC616 Manual de usuario

Panasonic

Panasonic NVM40 Manual de usuario
