Instructions for Use

Washing machine

155620

Thank you for your condence in purchasing our

washing machine, and congratulations on the

excellent choice.

Your new washing machine meets the requirements

of modern treatment of laundry. It is rational in the

consumption of energy, water and washing agents.

Our appliances are friendly to the environment.

Some of the materials may be recycled, others

deposited or decomposed. To avoid pollution of

environment, once your appliance is no longer

useful, take it to your local authorized waste

appliance dealer.

Description of washing machine ..................... 3

Cautions ............................................................. 4

Installation and connection.............................. 6

Operation ......................................................... 10

Tips for washing and saving energy ............. 23

Cleaning and maintenance............................. 25

Failures............................................................. 28

Tables ............................................................... 31

155620

1. Front panel

2. Detergent dispenser

3. Door (depending on the

model)

4. Filter lid

5. Adjustable legs

6. Water outlet hose

7. Water inlet hose

8. Mains power cable

• Model (WA63xxx, WA64xxx)

Dimensions (w x d x h):

600 mm x 600 mm x 850 mm

Depth with door open: 106 cm

Weight (net): 90 kg

Nominal voltage: 230 V, 50 Hz

Power: 2300 W

Max. load: 6 kg

Power socket: (230 V, 50 Hz, 10 A)

Water pressure:

min. 0,05 MPa, max. 0,8 MPa

Fuse: 10 A

Description of washing machine

Technical information

155620

• Be sure to remove transport brackets prior

rst use of the appliance. Attempted operation

of the blocked machine may result in

irreparable damage which is not covered by the

manufacturer’s warranty!

• When connecting your washing machine to water

supply, be sure to use brand new water inlet hose

and appropriate sealing gaskets (attached).

• Do not locate the machine in a room with

temperature below 0°C. Parts of the machine may

be damaged if frozen.

• Install the washing machine in a perfectly

horizontal position, on solid at concrete oor.

• Follow the instructions for correct installation and

water and mains connections.

• Never immerse the end of the drain hose into the

draining water.

• Prior starting the washing cycle lock the door by

pressing them at the designed spot.

• Door may not be open during the washing cycle.

• Use only detergents and softeners for

machine wash. Manufacturer may not assume

responsibility for any damage and eventual

discoloring of gaskets and plastic components as

a consequence of incorrect use of bleach and/or

coloring agents.

• For removal of lime residues use such agents

with added anti-corrosion agents. Follow the

manufacturer’s instructions. Finish the lime

removal by multiple rinsing to remove completely

eventual acid residues.

• Never use detergents containing solvents, since

there is a danger of creating toxic gasses which

may damage the machine and result in ignition or

explosion.

• Upon completion of washing operation close the

water faucet.

Cautions

155620

• Before any transport block the machine by

inserting at least one transport blocking rod. Prior

this operation disconnect the appliance from the

mains power!

• Rating plate with basic information is located

above the opening of the machine.

Before connecting the appliance read

these instructions carefully. Repairing

the failure arising from inappropriate

connections or use of the appliance is not

covered by the guarantee.

The belt can be replaced by a servising

engineer only, who incorporates an

original spare part with the marking MIG

OPTIBELT 6EPJ 1260, code 111622 or 6EPJ

1278 code 587612.

The symbol on the product or on its

packaging indicates that this product

may not be treated as household

waste. Instead it shall be handed over

to the applicable collection point for the

recycling of electrical and electronic

equipment. By ensuring this product

is disposed of correctly, you will help

prevent potential negative consequences

for the environment and human health,

which could otherwise be caused

by inappropriate waste handling of

thisproduct. For more detailed information

about recycling of this product, please

contact your local city ofce, your

household waste disposal service or the

shop where you purchased the product.

155620

In removing the wrapping be careful not to

damage the appliance with a sharp object.

• Our appliances are packed in environmentally

friendly materials which may be recycled,

deposited or decomposed without any threat to

the environment.

• To this end all wrappings are marked accordingly.

• Move the pipes.

• Loosen screws A at the rear of the machine

(Fig. 1).

• Remove the brackets B (Fig. 1) and slide them

into the groove on the blocking rod (Fig. 2) - the

right one should be turned around.

• Use the brackets to rotate blocking rods for 90°

and pull them out.

• Close the openings with attached plastic pegs.

Save transport brackets for eventual later use.Save

the transport brackets for eventual later use.

Be sure to remove the transport brackets

prior rst use, otherwise the appliance

may be permanently damaged. In such

cases the warranty conditions are void.

Fig. 1

Fig. 2

Installation and connection

Package removal

Removal of transport

brackets

155620

• Put the appliance in horizontal position by turning

the adjustable legs.

The legs are adjustable up to +/- 1 cm.

The oor below the appliance should have

concrete base, and must be dry and clean,

otherwise the appliance may slide.

• If you have a tumble dryer of the same

dimensions, you can place it on top of the

washing machine.

To ensure correct operation of the appliance,

water pressure inlet must be between 0,05

and 0,8 MPa.

Minimum water pressure can be established

by measuring the quantity of poured out

water. 3 litres of water must be poured out

from completely opened tap in 15 seconds.

• Insert the gasket with screen into the water inlet

hose thread Screw the hose thread to the water

faucet

• In case of hot and cold water connection, connect

one hose to cold and other to hot water faucet as

marked at the rear of the appliance (letters C and

H) (C - cold; H - hot)

Water inlet connection

Leveling the appliance

155620

Partial Aqua-stop (water stop system)

In case of damage on the interior pipe, leaking is

prevented by automatic closing system which stops

water inlet to the machine. In such cases display A

turns red.

Inlet pipe must be replaced.

Complete Aqua-stop

In case of damage on the interior pipe, leaking is

prevented by automatic closing system which stops

water inlet to the machine.

Security system also detects whether there is any

water leakage within the interior of the machine.

In such cases washing is suspended, machine

switches on the pump and signals error.

Do not immerse the Aqua-stop system inlet

pipe into the water, because it contains the

electric valve!

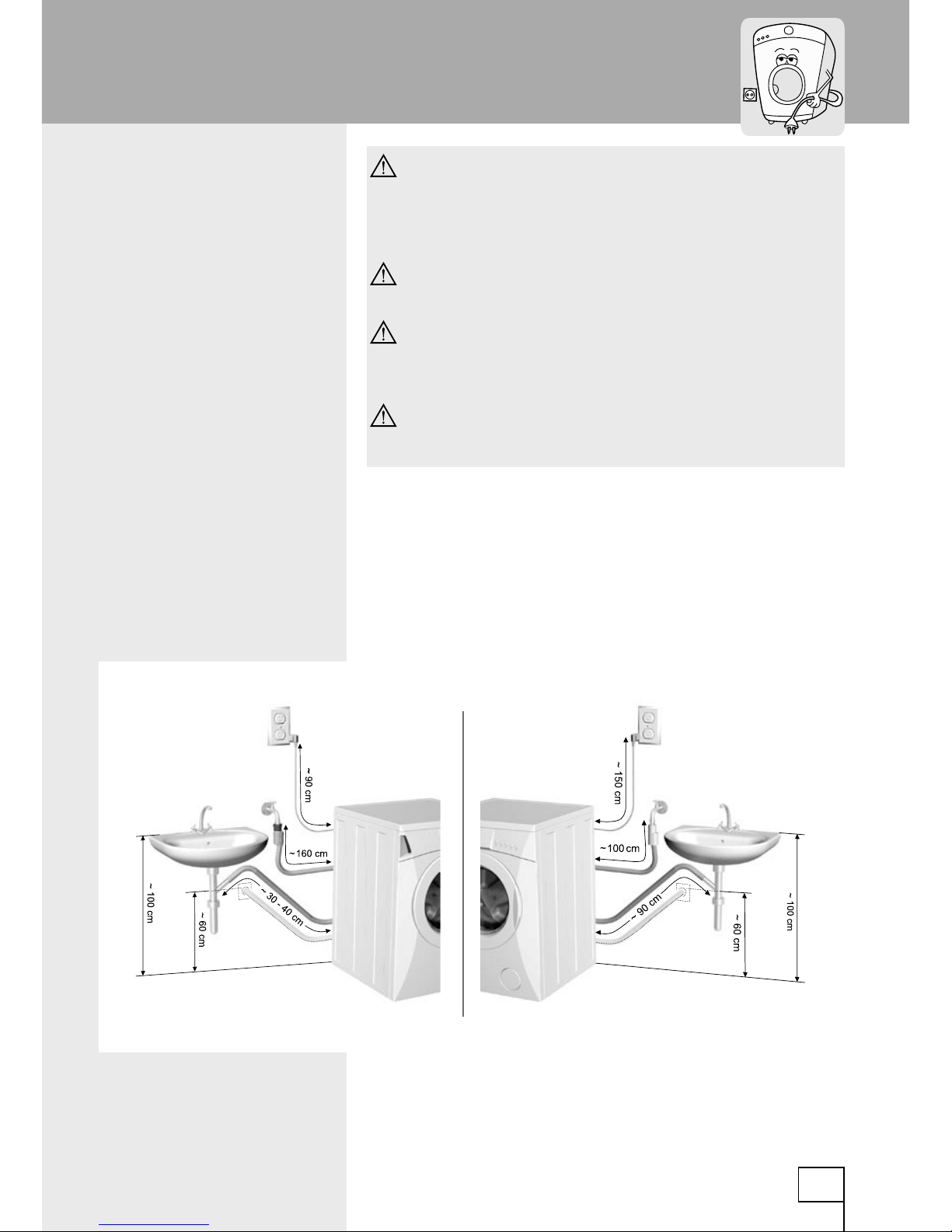

• Fix the outlet hose to run into the sink or the

bathtub, or connect it directly to the wall drain

outlet (diameter min. 4 cm).

• Wall drain must be installed properly and must

enable occasional cleaning.

• Fasten the outlet hose support with a piece of

rope led through the hose elbow, to prevent the

hose from slipping to the oor.

The end of outlet hose should be placed between

minimum 60 cm and maximum 100 cm above the

oor level.

• Plug the mains power cable to the wall mains

socket.

• Required voltage and other information are written

on the rating plate above the door opening of the

machine.

Water outlet connection

Connect the appliance

to the mains supply

155620

The wall socket must be accessible at all

times and must be equipped with an earth

lead (in accordance with the local safety

regulations).

The permanent connection must be tted by

an authorized personnel only.

Damaged mains power cable may be

replaced only by the producer or his

authorized personnel.

Never plug the appliance into the electric

shaver socket or hair dryer socket.

If the socket, the machine is connected to, is protected by

the overload protection switch (FID), the nominal differential

current of the switch must be 30 mA (switch mark Idn or

I∆n). In case of a smaller nominal current in the switch, the

machine may be switched off during its normal operation.

155620

Functional knobs

Knob B (MENU) - Use this knob to scroll around main menu.

Knob C (SELECTION) - Use this knob to scroll around main menu.

Knob F (START/PAUSE) - Use it to start or nish the program.

A - program selector

B - MENU knob

C - SELECTION knob

D - short program knob

E - easy ironing knob

F - START/PAUSE knob

G - door knob (depending on the

model)

H - display

Program selector Basic programs Partial programs

Cotton

Heavy duty Rinse

Synthetics Softening

Delicate Pumping water

Wool Spinning

Manual wash

Jogging

Mix

Operation
