Smeg FC340X Manual de usuario

• Manual de instrucciones.

• Manual de instruções.

• Mode d’emploi.

• Operating instructions

• Bedienungsanleitung.

• Manuale di istruzioni.

FQ8B200A0 27/1/04 17:27 Página 1

FQ8B200A0 27/1/04 17:27 Página 2

ENGLISH

CONTENS

If your old refrigerator has a manual or automatic door locking

device DO NOT FORGET TO DESTROY OR INCAPACITATE

THE LOCKING SYSTEM before throwing it away, in order to

prevent children from locking themselves inside whilst

playing.

DO NOT DAMAGE THE PIPES to avoid an uncontrolled leakage

of coolant into the atmosphere.

WARNING

Page

Installation ............................................................ 2

General Description.............................................. 3

Starting up ............................................................ 4

Using the refrigerator............................................ 5

Using the freezer................................................... 7

Cleaning and Maintenance .................................. 11

Changing the direction of the doors .................... 12

Problems ..............................................................15

Electrical diagram ............................................... 16

Specifications....................................................... 16

FQ8B200A0 27/1/04 17:28 Página 51

INSTALLATION

RECOMMENDATIONS

Allow air to circulate behind the refrigerator.

Do not cover the front grill or top of the

refrigerator with any object. If the refrigerator is

placed underneath a cupboard, leave a space for

air to circulate.

As far as possible avoid locating near to

heat sources.

If the refrigerator needs to be laid down for

unpacking or to change the direction of the

doors, ONLY LAY IT DOWN ON THE REAR

SECTION.

NOTE: The door hinges are on the right. If this is inconvenient the

hinges can be changed to the other side. Instructions are

contained in the section on changing the direction of door

opening.

IMPORTANT. Ensure that the refrigerator is

well seated on the ground (without

movement) and is properly levelled (without

tilting) by adjusting the levelling feet.

This refrigerator operates at 220/230 v. If the voltage

in your home is different, a transformer should be

used with an outpout of not less than 700 W.

Use an EARTHED plug.

NOTE: The manufacturer will not accept any liability

in the event that these recommendations are not

followed.

BEFORE CONNECTING TO THE POWER

1.- Clean the inside of the refrigerator.

2.- Wait for 2 hours before connecting, to ensure proper functioning.

3.- Connect to the power.

Your refrigerator’s climate classification is stated on the specifications plate, and defines the

room temperature range for which the cooling unit

is designed, at which the apparatus is guaranteed

to operate correctly. Where two classes are indicated,

the unit will operate correctly in both.

Type Temperature range

N 16º - 32º

ST 18º - 38º

T 18º - 43º

FQ8B200A0 27/1/04 17:28 Página 52

ENGLISH

GENERAL DESCRIPTION

REFRIGERATOR

FREEZER

Control panel.

Water

collection

compartments.

Fruit and

vegetable

compartments.

Ventilation grill. Drain.

Pilot

light

Ligth bouton

Pilot

light

Thermostat Thermostat

Pilot light

super

Alarm

On/Off

buttom On/Off

buttom Super freezing

buttom

REFRIGERATOR REFRIGERATOR

FREEZER

Freezer tray.

Bottle shelf

Trays

NOTE: It is possible

that the internal

distribution of your

appliance does not

correspond to the

figure.

Freezer

compartments.

FREEZER REFRIGERATOR

Alarm

Pilot light super

Pilot

light Pilot light

Specifications

Plate

FQ8B200A0 27/1/04 17:28 Página 53

Press the on/off button . The

freezer will begin operating and the

pilot light, , will light up. The

alarm, , will also come on as the

freezer will not yet be cold.

Access the thermostat control, , by

pushing it. Select a colder (MAX) or

less cold (MIN) temperature in the

freezer by turning the control. An

intermediate position is initially

recommended.

Close the freezer door but do not

place any food in it yet.

Food can be placed in the freezer 24

hours later. The alarm, , will have

gone off.

Press the on/off buttom .

The refrigerator will begin operating

and the pilot light will light up.

Pull out the thermostat control, , to

select a colder (MAX) or less cold (MIN)

temperature inside the refrigerator.

An intermediate position is initially

recommended.

STARTING UP

REFRIGERATOR

FREEZER

FAGOR

Min Min Max

Predilect

DUOELECTRONIC













FQ8B200A0 27/1/04 17:28 Página 54

USING THE REFRIGERATOR

FOOD

ATTENTION

• The temperature inside the refrigerator can be selected by turning the

thermostat control.

• Remenber that the temperature is not totally uniform within the

interior as a whole and different sections are more suitable for different

types of food (as shown in the diagram).

• The temperature inside the refrigerator can be affected by the

ambient temperature, the location of the refrigerator and the frequency

with which the door is opened.

• Do not place uncovered liquids or hot food in the refrigerator.

• NEVER place volatile, inflammable or explosive liquids in the

refrigerator, such as solvents, alcohols, acetone or petrol as there will

be a risk of explosion.

• Meat and fish should be wrapped to avoid smells developing.

ENGLISH

LEAST COLD AREA

INTERMEDIATE AREA

COLDEST AREA

FQ8B200A0 27/1/04 17:28 Página 55

USING THE REFRIGERATOR

DEFROSTING

The refrigerator has an automatic defrosting system and it is

not therefore necessary to take any action.

The back wall of the refrigerator

is normally covered with drops

of water or ice. This is

completely NORMAL and is part

of the automatic defrosting

process.

Periodically, or if the water

collection channel is

obstructed by dirt or foreign

material, remove the cleaning

cover, clean and replace it. This

will prevent water from spilling

outside the water collection

channel.

Ensure that foods does not

touch the back wall. The trays

have a limit point for this

purpose which should not be

exceeded.

FQ8B200A0 27/1/04 17:28 Página 56

ENCGLISH

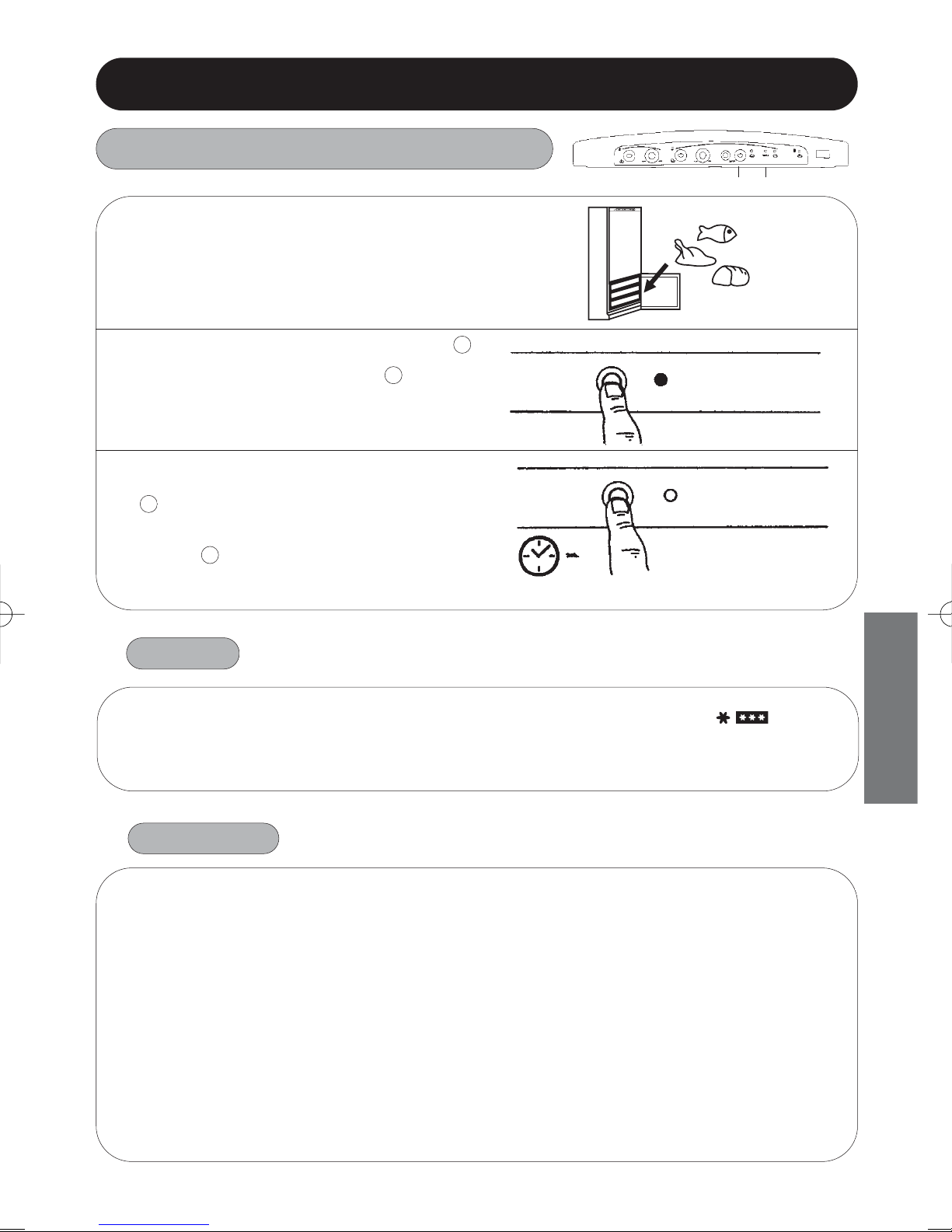

Place food to be frozen inside the

freezer.

Press the superfreezing button,

(SUPER). The pilot light, , will

light up.

24 hours later press the button

, again to disconnect the

superfreezing system. The pilot

light, , will go off. Your food

will be properly frozen.

USING THE FREEZER

FREEZING FRESH FOOD

• All baskets in the freezer section of this refrigerator are in the 4 star

category and up to 10 kg (20 kg mod. 1FFC-49) of fresh food can be frozen in

24 hours.

NOTE

ADVICE

• Wrap products to be frozen in aluminium foil or place them in sealed

containers.

• Prepare foods in single consumption portions.

• Never refreeze food which has been defrosted.

• Label food with details of the contens and date frozen.

• Do not place food to be frozen in direct contact with food already frozen.

• Do not place fizzy drinks in the freezer section.

• Ice-cream, etc. should not be consumed at too low a temperature.

FAGOR

Min Min Max

Predilect

DUOELECTRONIC



FQ8B200A0 27/1/04 17:28 Página 57

FISH AND SHELLFISH

Lobsters 3

Shrimps 3

Cold 2

Sardines and similar 3/4

Trout 2/3

Salmon 2/3

Sole 3

Turbot 2/3

MEAT

Beef 10/12

Mutton 6/8

Veal 9

Pork 6

Fillets/Chops 4

Liver/Kidneys 10

Brain/Tongue 2

Mincemeat, sausages 2

Rabbit 5/7

POUTRY AND GAME

Chickens 10

Turkey (in portions) 7

Duck, goose 5

Hare 6

Partidrige-Quail 8

Pheasants 7/8

Big game 10

READY TO SERVE FOOD

Tomato sauce 3

Stock 3

Beef, veal pork or chicken stews 2/3

Assorted vegetables 3

Stewed meat 3

Hamburguers 2

Stuffed peppers 2

Espinach 2

Brench beans 2

Tarts, confectionery, etc 5/6

Fruit salad 3

Sandwiches 6

SORT OF FOOD

Number

of months

• When you buy frozen food in your shop, try to introduce the products

into the freezer as soon as possible.

• Observe the preservation time that appear on the product packing,

taking into account this a freezer.

• When freezing food by yourself, consult the list of preservation times.

meses

FAGOR

Min Min Max

Predilect

DUOELECTRONIC

DIRECTIONS FOR USE YOUR FREEZER

FROZEN FOOD PRESERVATION

A FEW HINTS

CONSERVATION TIMES

VEGETABLES

Salt-wort 12

Artichoke 12

Carrots 12

Cauliflower 6/8

Brussels sprouts 6

Asparragus 12

Cabbage 6/8

Beans 12

Mushrooms 6

Parsley 12

Peppers 12

Spinach 12

Broad beans 12

FRUITS

Apricots 8

Cherises, plums, raspberries, 10

gooseberries, blackberries

Peaches 10/12

Strawberries 12

Stewed fruit (apples, pears) 10

Grapes 10/12

Fruit juices 10

Pineaple 10/12

BREAD CONFECTIONERY

Biscuits-tarts 6

Flaky pastry tart 1

Pastry (unbaked) 3

Bread and rolls 2

EGGS AND DAIRY PRODUCE

Eggs (shelled) 6

UHT Milk 3

Burter 6

Cheese (samall portions) 6/8

Fresh cream 3

SORT OF FOOD

Number

of months

FQ8B200A0 27/1/04 17:28 Página 58
