Instructions for use

Upright

refrigerator

- freezer

142468

Thank you for your conﬁdence in buying our

appliance and congratulations on the excellent

choice. We hope it will successfully serve its

purpose for many years.

Upright refrigerator - freezer (hereinafter: the

appliance) is combined from two parts: top part is

refrigerator and bottom part is upright freezer.

Refrigerator is used in households for storage of

fresh food at temperatures above 0°C).

Freezer is used in households for freezing fresh

food and storage of frozen food for up to one year

(depending on the type of food).

Before ﬁrst operation ........................................ 3

Description of the appliance ............................ 5

Installation and connection.............................. 7

Reverse door swing ........................................ 9

Control panel .................................................. 11

Recommended distribution of food .............. 21

Storing fresh food ......................................... 22

Freezing and storage of frozen food ............. 25

Defrosting the appliance................................. 28

Cleaning ........................................................... 29

Troubleshooting guide.................................... 30

Noise level........................................................ 32

142468

•Before connecting the appliance read these

instructions carefully. They describe the appliance

and provide instructions for its safe and correct

use. The instructions are prepared for different

types and models of the appliance so they may

contain descriptions of functions and components

your appliance may not have.

Instructions also contain the NO FROST freezer

version, with integrated fan and automatic defrost.

•Remove the wrapping protecting the appliance

during transport.

•Door corners are ﬁtted with protective spacers.

Remove the spacers and replace them with the

attached pegs (certain models only).

•Before connecting the appliance to the mains

supply, leave it in upright position for about 2

hours. This will reduce possibility of malfunctions

in the cooling system resulting from prior transport

and handling.

•The appliance must be connected to the

mains supply in accordance with the standing

regulations and local requirements.

•The appliance must not be used in open air or

exposed to weather precipitation.

•Always disconnect the appliance from power

supply (pull the power cord from wall socket)

before cleaning and before replacing the light

bulb.

•If the power supply cord is damaged, in order to

avoid hazard it must be replaced by the service or

by qualiﬁed personnel.

•In event of long periods without use, switch off

the appliance off with the ON/OFF button and

disconnect it from mains supply. Empty the

appliance, clean the interior and leave the door

ajar.

•For the protection of environment, please contact

local Borough or Council for correct disposal

arrangements.

Before ﬁrst operation

142468

•Wrappings contain environmentally friendly

materials which can be recycled, recovered or

disposed without threat to the environment.

•To prevent any pollution be careful not to damage

the insulation or refrigeration tubes at the rear wall

during the installation, cleaning and disposal of

the appliance.

•Never let the children play with the appliance.

•Self closing door hinge (certain models only) pulls

the door to the cabinet just before closing, thereby

preventing the door to remain ajar. Equally it limits

the door opening angle and prevents damage to

adjacent elements.

•Rating plate with basic information is located in

the interior of the appliance. If the sticker plate is

not suitable for your language, replace it with the

attached one.

The symbol on the product or on its

packaging indicates that this product

may not be treated as household waste.

Instead it shall be handed over to the

applicable collection point for the

recycling of electrical and electronic

equipment. By ensuring this product is

disposed of correctly, you will help prevent

potential negative consequences for the

environment and human health, which

could otherwise be caused by

inappropriate waste handling of

thisproduct. For more detailed information

about recycling of this product, please

contact your local city ofﬁce, your

household waste disposal service or the

shop where you purchased the product.

142468

• Interior accessories of the appliance may vary according to the model.

• Drawers are protected against accidental extraction. To extract the drawer from the appliance,

open it and lift front part upwards, then pull it out. Certain models are ﬁtted with pull-out slide

guides which facilitate opening. Pull-out guide drawers (or shelves) are extracted by lifting the rear

end and pulling out inclined under the 45° angle. Reinsert in opposite sequence.

• Pull-out guide drawers (or shelves) are extracted by lifting the rear end and pulling out inclined

under the 45° angle. Reinsert in opposite sequence.

* Certain models only.

A Refrigerator (traditional and

NO FROST appliance)

1 Control panel

2 Fan*

3 Interior illumination light

4 Shelf (adjustable height)

5 Foldable egg tray

(closed 6, open 12 eggs)

6 Crisp tray

7 Door trays (options: deep,

shallow, cover or no cover)

8 Bottle tray with holder

15 Leg

16 Wheel

B Freezer (traditional appliance)

9 Freeze drawer

10 Storage drawer

11 Storage drawer

12 Door tray

13 Ice tray

14 Defrost water groove*

B Freezer (NO FROST

appliance)

9 Storage drawer

10 Freeze drawer

11 Storage drawer

Description of the appliance

142468

• Interior accessories of the appliance may vary according to the model.

• Drawers are protected against accidental extraction. To extract the drawer from the appliance,

open it and lift front part upwards, then pull it out. Certain models are ﬁtted with pull-out slide

guides which facilitate opening. Pull-out guide drawers (or shelves) are extracted by lifting the rear

end and pulling out inclined under the 45° angle. Reinsert in opposite sequence.

• Pull-out guide drawers (or shelves) are extracted by lifting the rear end and pulling out inclined

under the 45° angle. Reinsert in opposite sequence.

* Certain models only.

A Refrigerator

1 Control panel

2 Fan*

3 Interior illumination light

4 Shelf (adjustable height)

5 Foldable egg tray

(closed 6, open 12 eggs)

6 Crisp tray

7 Door trays (options: deep,

shallow, cover or no cover)

8 Bottle tray with holder*

15 Leg

16 Wheel

B Freezer

9 Freeze drawer

10 Storage drawer

11 Storage drawer

12 Door tray

13 Ice tray

14 Defrost water groove*

142468

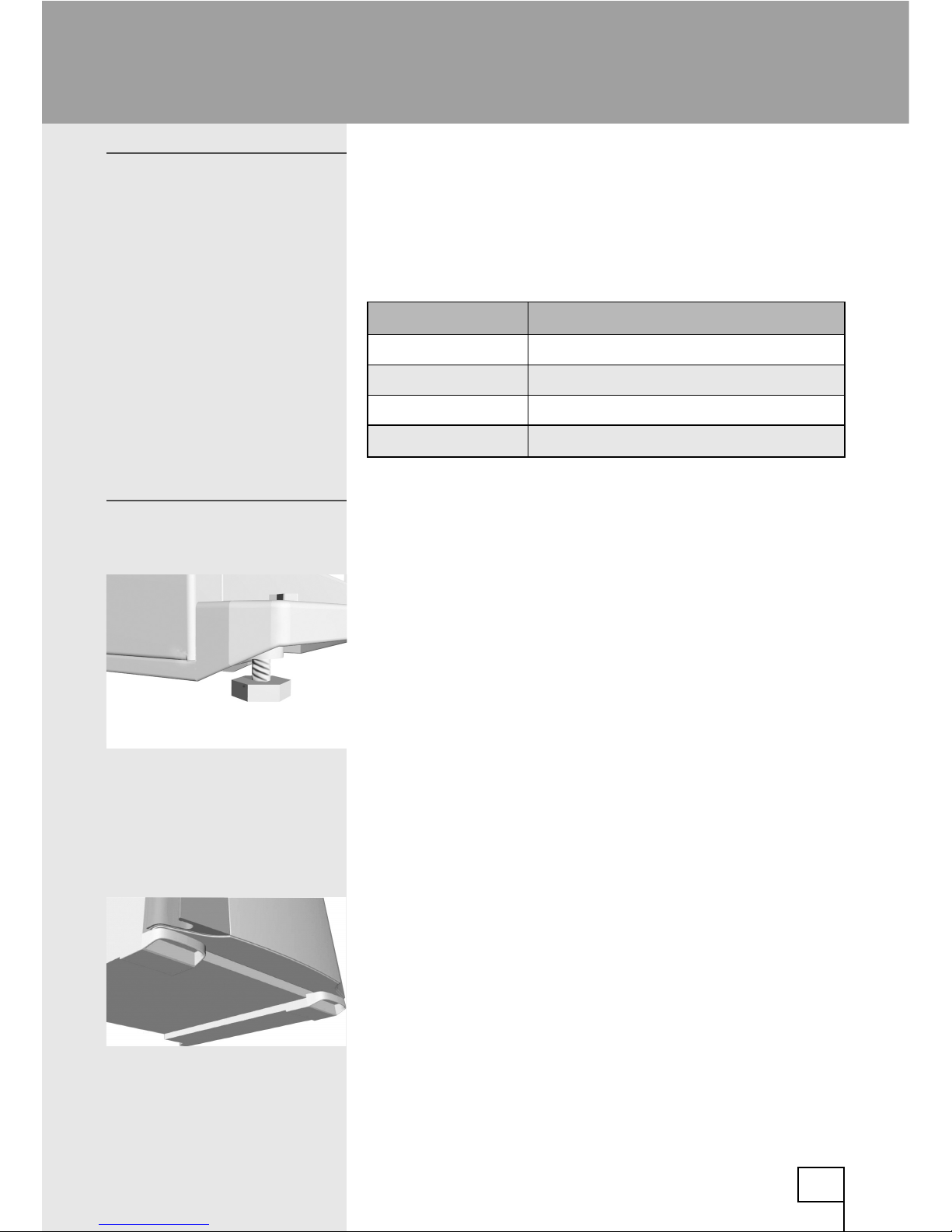

•Place the appliance in dry and well aired room.

The appliance operates best at temperature

ranges indicated in the chart below. Relevant

class of the appliance is indicated on the rating

plate.

Positioning the appliance requires two persons in

order to avoid injuries or damage to the appliance.

•Place the appliance ﬂatly and ﬁrmly on a solid

base. The appliance is ﬁtted with adjustable feet

on the front side, used to level the appliance.

Rear side of the appliance is ﬁtted with wheels

(certain models only) facilitating the positioning of

the appliance at the preselected place.

•The element above the appliance must be at

least 5 cm away to allow sufﬁcient cooling of the

condenser.

•Avoid exposing the appliance to direct sunlight

or heat sources. If this is not possible, install

insulation plate between the appliance and

adjacent heat source.

•Bottom front corners of the appliance is ﬁtted with

handles to facilitate moving. The appliance may

stand independently or adjacent to a furniture

element or wall. Be sure to leave enough space

for the opening of the door, to avoid damage to

the appliance or personal injury. Also leave ample

space for extracting shelves (see installation

diagram).

Class Ambient temperature

SN (subnormal) from +10°C to +32°C

N (normal) from +16°C to +32°C

ST (subtropical) from +18°C to +38°C

T (tropical) from +18°C to +43°C

Installation and connection

Selecting the location

Positioning the

appliance

142468

Remark:

* Applies to OLD TIMER appliances (in the model marking

…O…).

• Use the power cord to connect the appliance to

the mains power. Wall outlet must be ﬁtted with

ground terminal (safety socket). Nominal voltage

and frequency are indicated on the relevant label

or rating plate of the appliance.

•Mains power connection and grounding must be

in accordance to standing regulations and local

requirements.

The appliance is able to accommodate minor

temporary voltage ﬂuctuations, which do not exceed

-10% to +6%.

Connecting to power

supply

142468

Required tools; socket spanner nr. 8,

screwdriver, torx 25.

Caution! After unscrewing of before ﬁxing hinges,

hold the door to prevent it from falling and

damaging.

1. Remove upper hinge cover (save it for eventual

later use), remove also the cover on the opposite

side of the upper hinge cover (on the opposite

side you will insert the attached cover during the

assembly), and remove the cover on the opposite

side of the upper part of the door.

2. Unscrew upper hinge screws and remove the

upper door from the middle hinge.

3. On the bottom side of the upper door unscrew the

swing stopper screws and remove the stopper

(A). Keep this for eventual use later on. Fix the

attached stopper with its bearing on the opposite

side of the door.

4. Unscrew the forced door closure system (B)

and ﬁx it to the opposite side of the door (certain

models only).

5. Unscrew middle hinge screws, remove the door

from bottom hinge.

6. Unscrew leg holder ﬁxing screws.

7. Tilt the appliance backward (max. 35°) to lean

to the rear side of the cabinet. Unscrew the

leg support screws (C) - left and right, and

remove the leg support cover (D) and place it to

the opposite side. Unscrew and remove, then

reciprocally replace the position of end switch (E)

and decorative peg (F) (for models with forced

door closing system). Unscrew three screws

ﬁxing the bottom hinge (save the hinge for later

use), and ﬁx the attached bottom hinge on the

opposite side.

8. Repeat the procedure 3 and 4 on the bottom

door. In case there is no bottom door limit peg,

transfer the bearing (G) and washer to the

opposite side of the door.

Reverse door swing

142468

9. Proceed with the assembly procedure in opposite

sequence.

Remark:

•At OLD TIMER appliances (in the model marking

…O…) alteration of door opening direction is not

possible.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Smeg

Smeg

Smeg Refrigerator Manual de usuario

Smeg

Smeg FA28A1 Manual de usuario

Smeg

Smeg FAB50RAW Manual de usuario

Smeg

Smeg FAB 30 Manual de usuario

Smeg

Smeg FR238WAP Manual de usuario

Smeg

Smeg Universale FS09FS Manual de usuario

Smeg

Smeg FD260P Manual de usuario

Smeg

Smeg FTU171X7 Manual de usuario

Smeg

Smeg FAB28LO Manual de usuario

Smeg

Smeg FAB50RWH5AU Manual de usuario

Smeg

Smeg S4L120E Manual de usuario

Smeg

Smeg S7147LS2P Manual de usuario

Smeg

Smeg FC60EN3XL Manual de usuario

Smeg

Smeg C7194N2P Manual de usuario

Smeg

Smeg FAB10RBL5 Manual de usuario

Smeg

Smeg CVI618NRS Manual de usuario

Smeg

Smeg Refrigerator CR325A Manual de usuario

Smeg

Smeg CV 250 AP Manual de usuario

Smeg

Smeg FAB32UPBLN Manual de usuario

Smeg

Smeg FL281A Manual de usuario

Smeg

Smeg FA100A1 Manual de usuario

Smeg

Smeg CR321AP Manual de usuario

Smeg

Smeg FAB28UAZR Manual de usuario

Smeg

Smeg UKFC36RX1 Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
