Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE ______________ 23

2. INSTALLATION _________________________________________ 25

3. DESCRIPTION OF CONTROLS ____________________________ 27

4. USE OF THE OVEN______________________________________ 29

5. AVAILABLE ACCESSORIES _______________________________ 30

6. COOKING HINTS ________________________________________ 31

7. CLEANING AND MAINTENANCE ___________________________ 37

8. EXTRAORDINARY MAINTENANCE _________________________ 39

INSTRUCTIONS FOR THE INSTALLER: these are intended for the

qualified technician who must install the appliance, set it functioning

and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the commands and the correct procedures for cleaning

and maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. WE ADVISE

CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS

THEREIN BEFORE USING THE OVEN. INSTALLATION MUST BE CARRIED

OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE

REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC

USES AND CONFORMS TO CURRENT REGULATIONS IN FORCE. THE

APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING

FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES

ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT

BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE

COMPLYING WITH APPLICABLE REGULATIONS.

THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN

BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL

SLITS.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE OVEN, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD

THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND

CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

Introduction

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE “ZERO” (OFF)

POSITION WHEN YOU FINISH USING THE OVEN.

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE

ACCIDENTALLY LIGHTED AND CAUSE FIRES.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO

TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND

BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.

THE PLATE MUST NOT BE REMOVED.

THE OVEN IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN

TO GO NEAR OR PLAY WITH IT.

REPLACED APPLIANCES MUST BE TAKEN TO A SPECIAL GARBAGE

COLLECTION CENTRE.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the user

2. INSTALLATION

2.1 Electrical connection

Check that mains voltage and power cable ratings are as per the

indications provided on the label attached to the oven door frame.

This label must never be removed.

It is obligatory for the electrical system to be grounded according to the

methods required by safety rules.

If a plug and socket connection is being used make sure that the plug

and socket are compatible. Avoid use of adapters and shunts as these

could cause overheating and risk of burns.

If a fixed connection is being used fit power line with an omnipolar circuit

breaker with a contact opening gap equal to or greater than 3 mm in an

easily accessible position in proximity to the oven.

For operation on 230-240V

∼

use an

H05RR-F / H05RN-F type three-

core cable

(3 x 1.5 mm2).

The cable end to be connected to the

appliance must be provided with an ground

wire (yellow-green) at least 20 mm longer.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance.

Instructions for the user

2.2 Mounting the oven

The oven is designed for mounting into any piece of furniture as long as

heat-resistant. Proceed according to the dimensions shown in figure.

Fixing is carried out using 4 screws at

the corners "C" of the oven door

frame, after removing the side panels

secured by the screws "A" and the

supports "B". To replace the side

panels, take care to engage the pins

inside them correctly with the supports

"B", then retighten the screws "A".

Never use the oven door to lever the oven into

place when fitting.

Avoid exerting too much pressure on the oven door

when open.

Instructions for the user

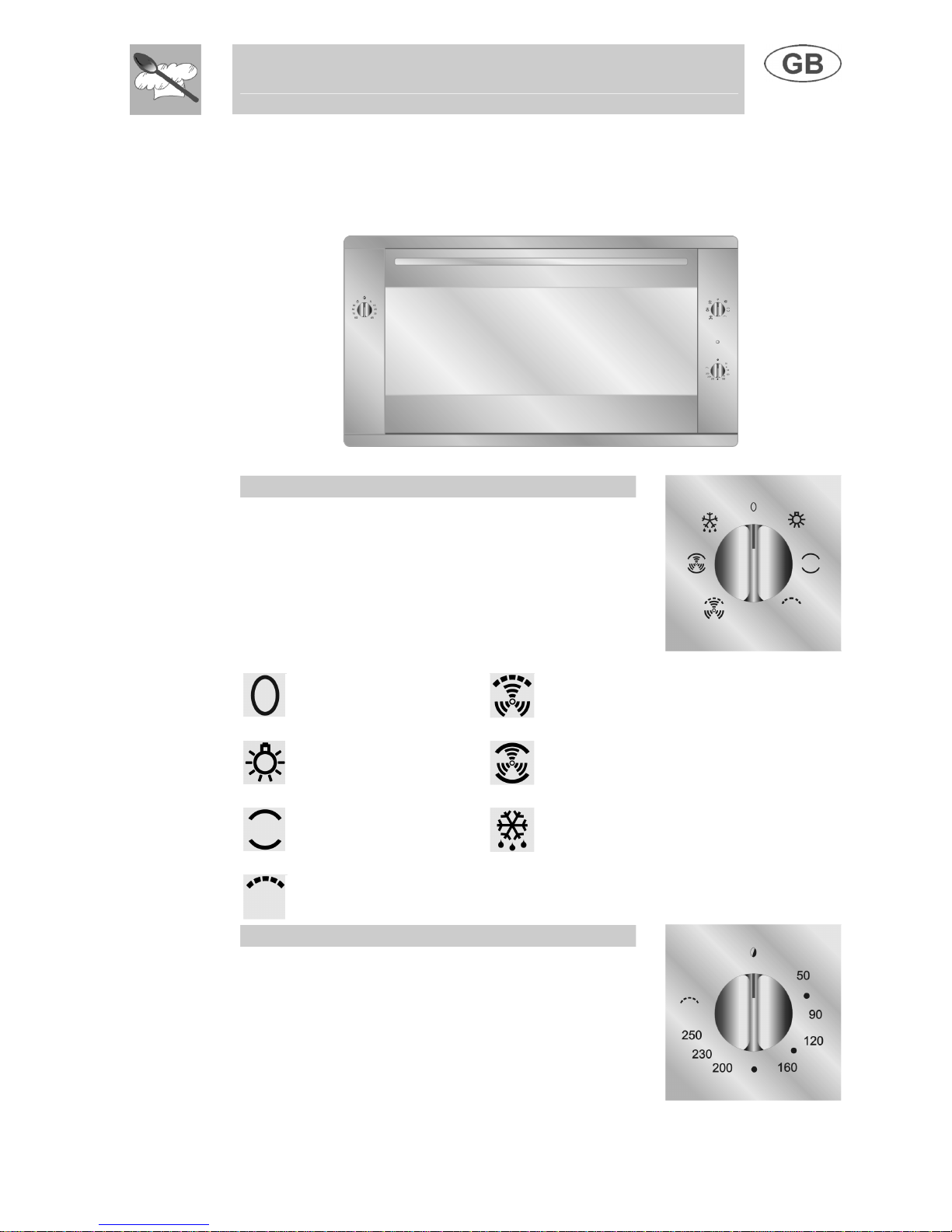

3. DESCRIPTION OF CONTROLS

3.1 Front control panel

All the oven controls are grouped together on the front panel.

FUNCTION SWITCH KNOB

Rotate the knob in either direction to select

desired function from the following:

NO FUNCTION SET GRILL ELEMENT +

VENTILATION

OVEN LIGHT UPPER AND LOWER

HEATING ELEMENT +

VENTILATION

UPPER AND LOWER

HEATING ELEMENT DEFROSTING

GRILL

ELEMENT

THERMOSTAT KNOB

Cooking temperature is selected by turning the

knob clockwise to the desired setting, between

50°and 250°C.

Instructions for the user

TIMER KNOB

Lets you choose manual cooking or the timer

with automatic turn-off of the oven when done.

For manual control of cooking time, turn the

knob anticlockwise to the symbol .

To set cooking time turn the knob clockwise.

The numbers from 5to 90 correspond to

minutes.

Adjustment is progressive and intermediate positions between the

numbers shown may be used.

At the end of programmed cooking, an audible alarm sounds which goes

off automatically after 4-5 seconds.

THERMOSTAT INDICATOR LIGHT

When this light comes on, the oven is heating

up.

When this light goes out, the preset heating

temperature has been reached.

When the light flashes, the temperature inside

the oven is steady.

Instructions for the user

4. USE OF THE OVEN

0DNHVXUHWKDW\RXKDYHHLWKHUWXUQHGWKHPLQXWHPLQGHUNQREWRWKH 

V\PERO RU VHW D FRRNLQJ WLPH  ,I WKH WLPHU NQRE LV RQ  QR KHDWLQJ

HOHPHQWVZLOOFRPHRQ

4.1 Warnings and general advice

Before using the oven for the first time, pre-heat it to maximum

temperature (250°C) long enough to burn any manufacturing oily

residues which could give the food a bad taste.

During cooking, do not cover the bottom of the oven with aluminium or

tin foil and do not place pans or oven trays on it as this may damage the

enamel coating. If you wish to use greaseproof paper, place it so that it

will not interfere with the hot air circulation inside the oven.

To prevent any steam in the oven creating

problems, open the door in two stages: half open

(5 cm approx.) for 4-5 seconds and then fully

open. To access food, always leave the door

open as short a time as possible to prevent the

temperature in the oven from falling and ruining

the food.

4.2 Cooling system

The oven is equipped with a cooling system

which automatically comes on upon the oven

being turned on.

Fans cause a steady outflow of air from above

the door which may continue for a brief period of

time even after the oven has been turned off.

4.3 Oven light

It comes on when the function switch knob is turned to position.

Instructions for the user

5. AVAILABLE ACCESSORIES

The oven features 4 support positions for

plates and racks of different height.

Some models do not feature all accessories.

Grill: useful for holding cooking vessels.

Plate grill: for placing above plate for

cooking foods that might drip.

Oven plate: useful for catching fat from

foods on the grill above.

Pastry plate: for baking cakes, pizza and

oven desserts.

Roasting spit: useful for cooking chicken,

sausages and anything else requiring

uniform cooking over the whole surface.

Only for auxiliary oven.

Main oven rotisserie frame: to be fitted

into the holes provided in the oven dish.

Accessories available on request

Original accessories may be ordered from any Authorised Service

Centre.

Instructions for the user

6. COOKING HINTS

In fan-assisted mode preheating should be carried out at 30/40°C above

the cooking temperature. This considerably shortens cooking times and

reduces power consumption, as well as giving better cooking results.

Keep the oven door closed during cooking

6.1 Traditional cooking

FUNCTION SWITCH

THERMOSTAT SWITCH

50 ÷250°C

This traditional cooking method, in which heat comes from above and

below, is suitable for cooking food on a single level. You have to pre-

heat the oven until the set temperature is reached. Place the food in the

oven only after the thermostat indicator light has turned off. very fatty

meats may be put in when the oven is still cold. Put frozen meat in

immediately, without waiting for it to thaw. The only precaution you need

to take is to set the temperature about 20°C lower and cooking time

about 1/4 longer than you would for fresh meat.
