Smeg ALFA135BM Manual de usuario

Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE_______________ 20

2. INSTALLATION OF THE OVEN_____________________________ 22

3. DESCRIPTION OF CONTROLS ____________________________ 25

4. USE OF THE OVEN______________________________________ 26

5. CLEANING AND MAINTENANCE ___________________________ 28

6. EXTRAORDINARY MAINTENANCE _________________________ 30

7. ADDITIONAL INSTRUCTIONS FOR STEAM OVENS______________ 31

INSTRUCTIONS FOR THE INSTALLER: these are intended for the

qualified technician who must install the appliance, set it functioning

and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the commands and the correct procedures for cleaning

and maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. WE ADVISE

READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE

USING THE OVEN. INSTALLATION MUST BE CARRIED OUT BY QUALIFIED

ENGINEERS IN ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS

OVEN IS INTENDED FOR COMMERCIAL USES AND CONFORMS TO

CURRENT REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO

CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP

OF FOOD. ALL OTHER USES ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT

BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE

COMPLYING WITH APPLICABLE REGULATIONS.

NEVER UNPLUG BY PULLING ON THE CABLE.

DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL

SLITS.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE OVEN, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD

THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND

CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE 0(OFF)

POSITION WHEN YOU FINISH USING THE OVEN.

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE

ACCIDENTALLY LIGHTED AND CAUSE FIRES.

Introduction

THE APPLIANCE BECOMES VERY HOT DURING USE. SUITABLE HEAT-

PROOF GLOVES SHOULD BE WORN FOR ALL OPERATIONS.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND

BRAND NAME IS LOCATED IN AN EXPOSED POSITION AT THE REAR OF

THE OVEN.

THE PLATE MUST NOT BE REMOVED.

THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE (INCLUDING

CHILDREN) OF REDUCED PHYSICAL AND MENTAL ABILITY, OR LACKING IN

EXPERIENCE IN THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY

ARE SUPERVISED OR INSTRUCTED BY ADULTS OR PEOPLE

RESPONSIBLE FOR THEIR SAFETY.

BEFORE USE, THE OVEN DISHES MUST BE WASHED WITH A SUITABLE

DISHWASHING DETERGENT (DO NOT USE ABRASIVE PRODUCTS).

THE OVEN DIMENSIONS ARE DESIGNED FOR A MAXIMUM LOAD OF 7 KG.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND

PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE

2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

(WEEE).

THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF

RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2. INSTALLATION OF THE OVEN

The oven must be set up on a perfectly flat surface and left standing

free. Make sure to allow enough room at the back for easy access to the

terminal strip for connection of the power cable to mains.

Installation must be carried out by a qualified technician in compliance

with applicable regulations in force.

2.1 Electrical connection

Make sure that the power line voltage matches the specifications

indicated on the rating plate located to the rear of the oven. This rating

plate must never be removed.

The connection terminals are

located at the rear of the

appliance. For electrical

connections see following

diagram. For access to the

terminal board, remove the

door located at the back of

the oven.

For operation on 380-415V3N

∼

:use an

H07RN-F-type five-core cable (5 x 1.5 mm2).

For operation on 220-240V

∼

:use an

H07RN-F-type three-core cable (3 x 4 mm2).

The cable end to be connected to the

appliance must be provided with an ground

wire (yellow-green) at least 20 mm longer.

Instructions for the installer

If connecting by plug and socket, make sure to use a 25 Amp. three-core

plug or a 16 Amp. five-core plug in case of operation at 380-415V3N∼.

Make sure that plug and wall socket are of the same type and are in

conformity with regulations in force. Also check that the power supply

line is provided with adequate earthing. Avoid using adapters or

shunters.

In case of permanent connection, ensure that power cable is equipped

with an easily accessible omnipolar switch fitted in proximity to the

apparatus and with a gap between contacts equal to or greater than

3 mm.

Instructions for the installer

2.1.1 Safety thermostat

The oven is fitted with a safety device which trips in case of serious

malfunction. To reset, contact the nearest servicing centre.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the oven.

2.2 Levelling

Adjust the four feet so as to set the oven on a perfectly level plane. For

this purpose, loosen the lock nut and unscrew the foot. The range of

adjustment of the screw is 10 mm.

2.3 Steam exhaust pipe

An exhaust pipe is fitted on the back of the

oven to allow the discharge of steam

during cooking. Make sure that it's no

way obstructed and take care do not

crush it.

Instructions for the user

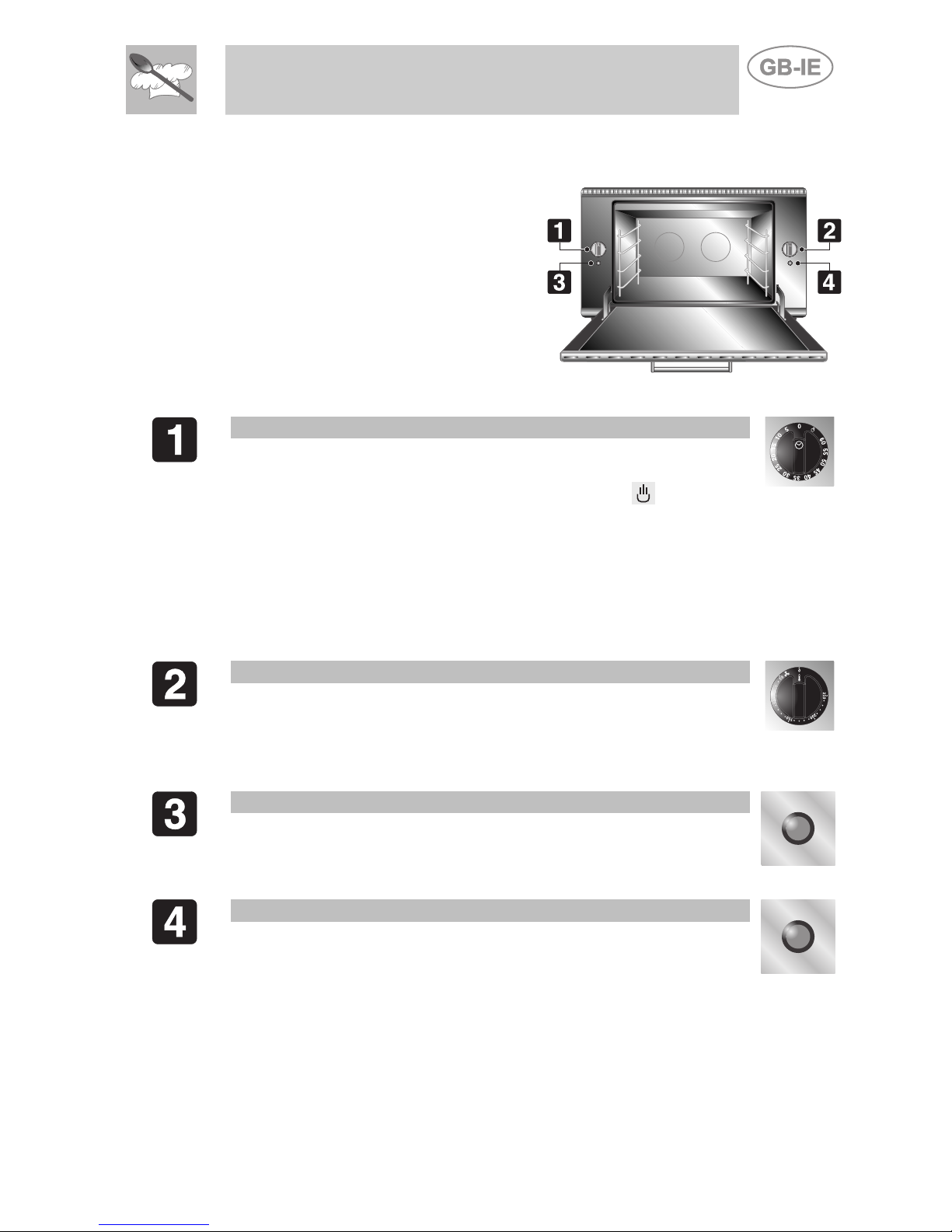

3. DESCRIPTION OF CONTROLS

All oven knobs and controls are

located on the side panels.

TIMER KNOB

This permits to select manual or timer-controlled cooking with

automatic turning off of the oven at end of the cooking cycle.

To set to manual, turn the knob anticlockwise to .

To set cooking time, turn the knob clockwise. Time is

expressed in minutes (5to 60). Adjustment is progressive so

that time can also be set to any intermediate value. Upon

completion of the cooking cycle, the knob automatically

returns to 0, the oven turns off and a buzzer signal is set off,

which switches off automatically after 20 seconds.

THERMOSTAT KNOB

This permits selection of the ideal cooking temperature.

Rotate clockwise to the desired temperature (50° to 250°C).

Adjustment is progressive so that the oven also operates at

any intermediate value.

GREEN LIGHT

When off, indicates that timed cooking is in progress. When

on, indicates that the timed cooking cycle has been

completed.

ORANGE LIGHT

When on, indicates that oven is heating up. When the set

temperature is reached, the light goes off. During the cooking

cycle, the light comes on and goes off various times signalling

that the temperature in the oven is being kept constant as per

the set value.

Instructions for the user

4. USE OF THE OVEN

4.1 Warnings and general advice

When using for the first time, it is advisable to

heat up the oven to its maximum temperature

(250°C) for enough time to burn off any

possible oily manufacturing residues.

It should be borne in mind that when the oven

door is opened, the heating elements and the

fan are automatically switched off. This means

that, if the food being cooked needs to be

checked, it is best to leave the door open for as

short a time as possible in order to avoid the

temperature inside the oven from dropping too

much and thus compromising cooking results.

4.2 Oven lights

The lights inside the oven come on automatically upon turning the

thermostat knob.

4.3 Defrosting

TIMER KNOB

SET TO MANUAL

THERMOSTAT KNOB

SET TO VENTILATION

Moving air at ambient temperature causes frozen food to quickly thaw.

This type of thawing is ideal as the taste and appearance of the de-

frozen food, whether previously deep-frozen or frozen in the domestic

freezer, remain unaltered.

4.4 Pre-heating

Before cooking, it is advisable to pre-heat the oven to the desired

temperature for at least 15 minutes.

Instructions for the user

4.5 Manual cooking

TIMER KNOB

SET TO MANUAL

THERMOSTAT KNOB

SET TO BETWEEN 50° AND 250°C

Es.

The oven heats up as signalled by the orange light going on. Upon the

set temperature being reached, the light goes off. The orange light

comes on and goes off various times during the cooking cycle indicating

that the temperature in the oven is being kept constant.

4.6 Timed cooking

TIMER KNOB

SET TO BETWEEN 5' AND 60'

Es.

THERMOSTAT KNOB

SET TO BETWEEN 50° AND 250°C

Es.

The oven heats up as signalled by the orange light going on. Upon the

set temperature being reached, the light goes off. The orange light

comes on and goes off various times during the cooking cycle indicating

that the temperature in the oven is being kept constant. Upon completion

of the cooking cycle, the oven automatically turns off, the green light

comes on and the buzzer sounds for a few seconds. To completely turn

off, set the thermostat knob to 0.

Instructions for the user

5. CLEANING AND MAINTENANCE

Important:

never spray water directly on to the oven. Never use pressure nozzles.

Before any intervention, disconnect the power supply of the oven.

5.1 Cleaning stainless steel parts

To maintain stainless steel parts in perfect condition, clean regularly at

the end of the work day. Allow to cool first.

To clean and preserve the stainless steel surfaces, always use only

specific products that do not contain abrasives or chlorine-based acids.

How to use: pour the product on a damp cloth and wipe the surface,

rinse thoroughly and dry with a soft cloth or deerskin.

Do not use metallic sponges or sharp scrapers: they will

damage the surface.

Use normal non-abrasive products for steel, and a wooden or

plastic tool if necessary.

Rinse thoroughly and dry with a soft cloth or deerskin.

Tabla de contenidos

Otros manuales de Horno de Smeg

Smeg

Smeg SFP140NE Manual de usuario

Smeg

Smeg Electric Multifunction Pizza Oven 166PZ-5 Manual de usuario

Smeg

Smeg SAP399X-8 Manual de usuario

Smeg

Smeg SF170 Manual de usuario

Smeg

Smeg SCP750AX8 Manual de usuario

Smeg

Smeg SOPA6301TX Manual de usuario

Smeg

Smeg SOP6604TPNR Manual de usuario

Smeg

Smeg SFP372X Manual de usuario

Smeg

Smeg SC855A-8 Manual de usuario

Smeg

Smeg SC4NE Manual de usuario

Smeg

Smeg C6GVXI8-2 Manual de usuario

Smeg

Smeg Free-standing Fan Oven 100.700 Instrucciones de montaje

Smeg

Smeg FMI325X Manual de usuario

Smeg

Smeg SY4110-8 Manual de usuario

Smeg

Smeg 91 477 1428/01 Manual de usuario

Smeg

Smeg SCP111EB2 Manual de usuario

Smeg

Smeg SC445MCX1 Manual de usuario

Smeg

Smeg SF750AS Manual de usuario

Smeg

Smeg SCM38X Manual de usuario

Smeg

Smeg SFA4920VC Manual de usuario

Smeg

Smeg FA166-5 Manual de usuario

Smeg

Smeg ALFA 43 XMF Manual de usuario

Smeg

Smeg FMI625CN Manual de usuario

Smeg

Smeg SFP6603NRE Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario

DeLonghi

DeLonghi XA660 Manual
