Smeg SER63LPG3 Manual de usuario

Contents

1INSTRUCTIONS FOR SAFE AND PROPER USE_______________________4

2POSITIONING OF THE HOB _______________________________________6

3ELECTRICAL CONNECTION_______________________________________8

4GAS CONNECTION ______________________________________________9

5ADAPTATION TO DIFFERENT TYPES OF GAS_______________________11

6FINAL OPERATIONS ____________________________________________14

7USING THE HOB _______________________________________________17

8CLEANING AND MAINTENANCE __________________________________20

INSTRUCTIONS FOR THE INSTALLER: these are for the qualifie

technician who must carry out a suitable check of the gas system, instal

the appliance, set it functioning and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice, descriptio

of the commands and the correct procedures for cleaning an

maintenance of the appliance.

Introduction

1INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN

ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE

COOKING HOB. WE ADVISE READING THIS MANUAL AND ALL THE

INSTRUCTIONS THEREIN BEFORE USING THE COOKING HOB. ALSO

KEEP THE SERIES OF NOZZLES SUPPLIED. INSTALLATION MUST BE

CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH

THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR

DOMESTIC USES AND CONFORMS TO CURRENT REGULATIONS IN

FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE

FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF FOOD.

ALL OTHER USES ARE CONSIDERED IMPROPER. THE

MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT.

SEPARATE THE VARIOUS WASTE MATERIALS AND TAKE THEM TO

THE NEAREST SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE

GROUNDED ACCORDING TO THE METHODS REQUIRED BY SAFETY

RULES.

THE PLUG TO BE CONNECTED TO THE POWER CABLE AND THE

SOCKET MUST BE THE SAME TYPE AND MUST CONFORM TO

CURRENT REGULATIONS.

NEVER UNPLUG BY PULLING ON THE CABLE.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF

INSPECTION TEST OF THE COOKING HOB, FOLLOWING THE

INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT FUNCTION,

DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST

TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION

"ZERO" (OFF) WHEN YOU FINISH USING THE HOB.

Introduction

THE IDENTIFICATION PLATE, WITH TECHNICAL DATA, SERIAL

NUMBER AND MARKING IS CLEARLY VISIBLE UNDER THE CASING.

THE PLATE ON THE CASING MUST NOT BE REMOVED.

BEFORE CONNECTING THE DEVICE, MAKE SURE THAT IT HAS

BEEN REGULATED FOR THE TYPE OF GAS THAT WILL FEED IT,

CHECKING THE LABEL UNDER THE HOB.

DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT

BOTTOMS ON THE COOKING HOB GRIDS.

DO NOT USE PANS OR GRIDDLE PLATES THAT EXTEND BEYOND

THE EXTERNAL PERIMETER OF THE HOB.

THE HOB IS TO BE USED BY ADULTS ONLY. DO NOT LET

UNSUPERVISED CHILDREN PLAY WITH THE HOB.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN

DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT (WEEE).

THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF

RETURN AND RECYCLING ON WASTE ELECTRICAL AND

ELECTRONIC EQUIPMENT.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2POSITIONING OF THE HOB

The following operation requires building and/or carpentry work so

must be carried out by a competent tradesman.

Installation can be carried out on various materials such as masonry,

metal, solid wood or plastic laminated wood as long as they are heat

resistant (T 90°C).

2.1 Attachment to support structure

Create an opening with the dimensions shown in the figure in the top

surface of the counter, keeping a minimum distance of 50 mm from

the rear border.

This appliance is classified as “type Y” in relation to fire hazards and

can therefore be mounted against walls higher than the work surface

on condition that a certain distance “X” be kept between the appliance

and the wall as shown in the figure so as to avoid damage from

overheating.

Make sure there is a minimum of 750 mm between the hot plate

flames and any shelf that may be installed directly above them.

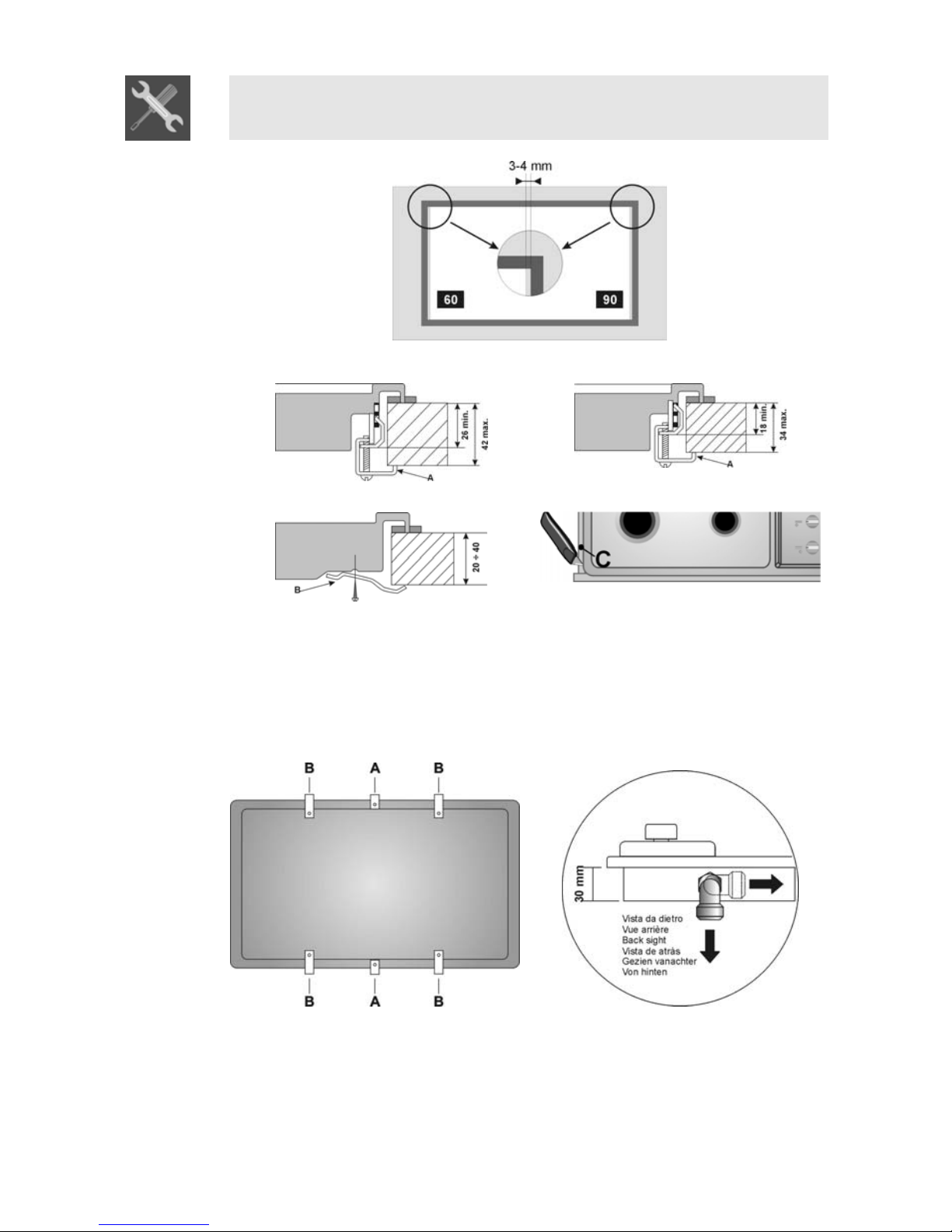

Accurately position the gasket provided all around the outer edge of

the hole in the top surface as shown in the figures below, pressing it

down so as to make it adhere properly. For measurements, refer to the

figure depending on the hob model to be installed, bearing in mind that

in both models the front and rear sides must skim the hole. Secure the

hob to the counter with brackets Aor B(supplied). Carefully trim any

excess from border Cof the gasket. The distances in the following

drawing refer to the hole on the inner side of the gasket.

Instructions for the installer

Bracket ‘A’ in the 1st slot

Bracket ‘A’ in the 2nd slot

Bracket ‘B’

2.2 Fixing 90 cm hobs on 60 cm base unit

If a 90 cm hob is to be bracketed to a 60 cm base unit, 2 central

brackets “A” have to be used in addition to the side brackets “B” as

shown in the drawing below. The gas connection also has to be

turned through 90° in relation to the original position(see paragraph 4

GAS CONNECTION).

Instructions for the installer

3ELECTRICAL CONNECTION

Make sure that the voltage and capacity of the power line conform to

the data shown on the plate located under the casing. Do not remove

this plate for any reason.

The plug on the end of the supply cable and the wall socket must be

the same type and conform to the current electrical system

regulations. Check that the power line is adequately grounded.

On the power line, install an omnipolar cut-off device with contact cut-

off distance greater than or equal to 3 mm, located in an easily

accessible position near the unit.

Do not use reducers, adapters or shunts.

If the power cable is replaced, the wire section on the new cable must

not be less than 1 mm 2

(3 x 1 cable), keeping in mind that the end to

be connected to the hob must have the ground wire (yellow-green)

longer by at least 20 mm. Use only H05V2V2-F cable or similar which

has a maximum temperature of 90°C. Any replacement needed should

be carried out by a specialised technician who should make the mains

connections according to the following diagram.

L= brown

N= blue

= yellow-green

The manufacturer will not be liable for any damage to persons or

property caused by non-observance of the above instructions or

deriving from the tampering of even a single part of the hob.

Instructions for the installer

4GAS CONNECTION

Connection to the gas mains may be made with a rigid copper pipe

or with a flexible pipe and conforming to the provisions defined by

standard regulations in force.

To facilitate connection, fitting Aon the rear of the appliance may be

adjusted laterally. For this purpose, loosen hexagon nut B, turn fitting

Ato the desired position, and retighten hexagon nut B(tightness is

ensured by a biconical brass ring). Use a soapy solution to check for

proper tightness. Never use a free flame. The hob has been inspected

for G20 (2H) natural gas at a pressure of 20 mbar. For use with other

types of gases, see Section “ ADAPTATION TO DIFFERENT TYPES

OF GAS”. The gas intake fitting is ½” gas external threaded.

Connection with rigid copper pipe: the

connection to the gas mains must not

provoke stress of any kind on the hob.

Connection may be made by using

biconical adapter Dwith insertion of gasket

C(supplied).

Connection with flexible pipe: use only

flexible pipes conforming to standard

regulations in force, inserting gasket C

(supplied) between fitting Aand flexible

pipe E.

The flexible pipe has to be installed so that pipe length does not

exceed 2 meters of maximum extension. Make sure that the pipes do

not touch any moving parts or become damaged.

Instructions for the installer

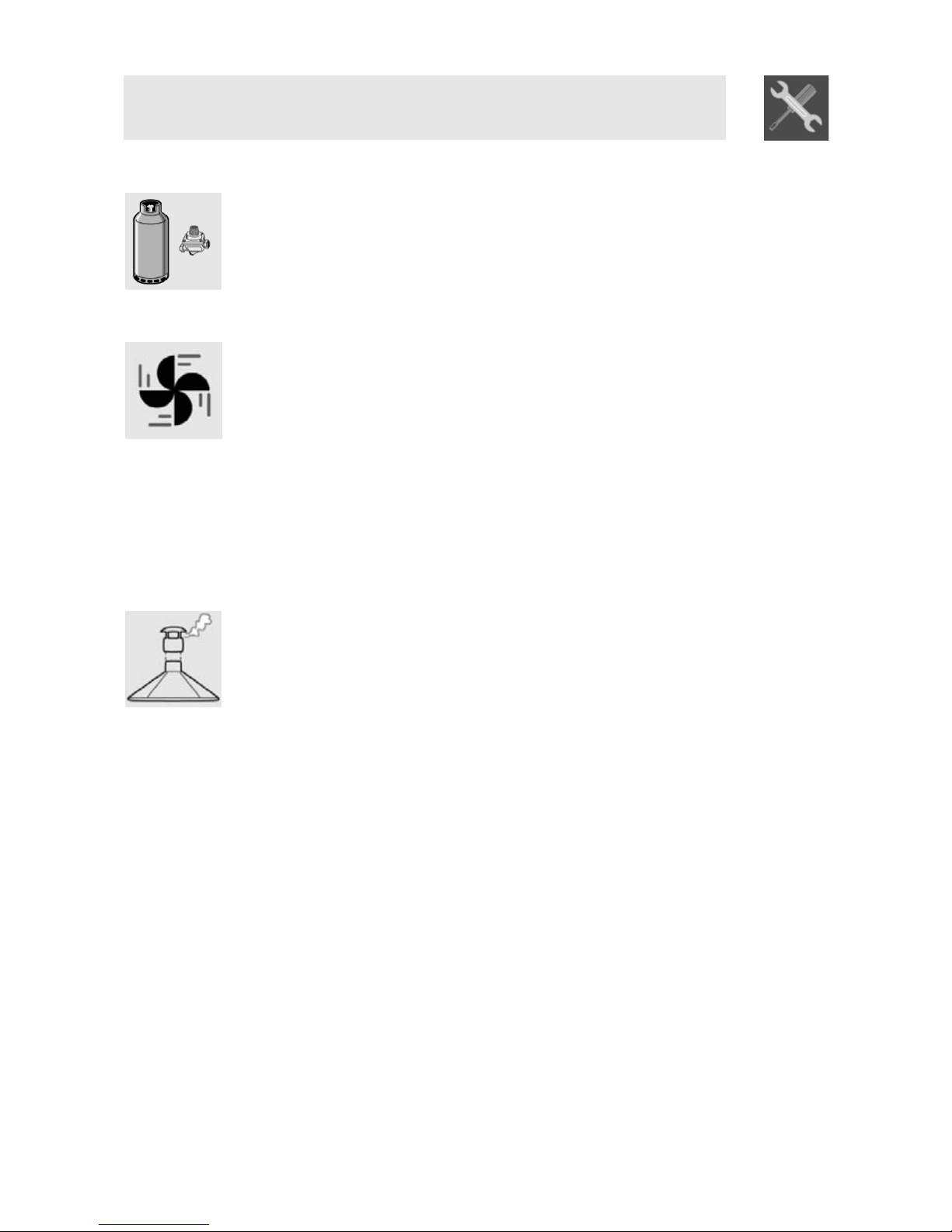

4.1 Connection to LPG

Use a pressure regulator and make the connection to the tank

according to the provisions of standards regulations in force. Make

sure that feed pressure conforms to the levels shown in the table in

paragraph “5.3 Regulation for LPG”.

4.2 Ventilation of rooms

The hob may be installed only in rooms with permanent ventilation, as

required by standards regulations in force. The room in which the hob

is installed must have sufficient air flow to satisfy the requirements of

normal gas combustion and of necessary air exchange in the room.

The air intakes, protected by screens, must be appropriately sized

(regulations in force) and placed so as not to be blocked in any way.

The room where the oven is installed should be suitably ventilated to

avoid overheating or excess humidity produced by cooking, and in the

case of lengthy use a window should be opened or the speed of any

ventilators should be increased.

4.3 Discharge of combustion products

Discharge of combustion products must be guaranteed by means of

hoods connected to a natural draught flue with certain efficiency, or by

means of forced aspiration.

An efficient aspiration system requires careful planning by a specialist

capable of installing it, respecting the positions and distances

prescribed by standards. After installation, the installer must issue a

certificate of conformity.

Instructions for the installer

5ADAPTATION TO DIFFERENT TYPES OF GAS

Before performing any cleaning or maintenance work, disconnect the

appliance from the electrical socket.

The hob has been inspected for LPG at a pressure of 30 mbar.

5.1 Removing the separable control panel (models with

separable control panel)

1. Remove the knobs and the knob

guard tube “A” by pulling them up;

2. Use a crosshead screwdriver to

remove the screws and the two

cylindrical supports “B”;

3. Raise the left-hand side of the

control panel slightly and shift it to

the right to remove it completely;

4. In models with electric hotplate, the

body of the pilot light has to be

removed to free the control panel;

5.2 Removing the hob (models with integrated control

panel)

1. Remove the knobs, the

griddles, the burner caps, the

flame caps and the two rear

plugs;

2. Remove the screws “A”

which fix the burner supports;

3. Raise the hob, sliding it off

the ignition plugs and/or the

thermocouples and the gas

tap rods;

Instructions for the installer

5.3 Regulation for LPG

Check that the connection has been made as described in the “Gas

connection” section.

Undo the screw “D” and push the air regulator “C” fully down. Use a

spanner to remove the nozzles “B” and fit those of suitable type

following the instructions given in the tables for bottled gas G30/G31 –

28/37 mbar. The nozzle must not be tightened to a torque of over 3

Nm. Regulate the air flow by moving the Venturi pipe “C”, until the gap

“A” is as shown in the table in point “5.4 Regulation of primary air” and

fix it with the screw “D”. After making the adjustments, restore the

seals with sealing wax or an equivalent material.

Burner

Rated

heating LPG

capacity

Nozzle

Diameter

1/100 mm

By-pass

1/100 mm

[V(1)]

By-pass

1/100 mm

[NV(1)]

Reduced

flowrate

(W)

Flowrate

g/h G30

Flowrate

g/h G31

Auxiliary 1.05 48 30 30 400 76 75

Semi-rapid 1.7 62 32 32 450 124 121

Rapid 2.55 76 42 42 750 185 182

Rapid large 3.1 85 42 42 750 225 222

Fish pan 2.9 82 48 50 950 211 207

Ultra rapid 4.0 95 63 65 1600 291 286

V= Valved; NV = Nonvalved

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Quemador de Smeg

Smeg

Smeg Hob Manual de instrucciones

Smeg

Smeg PDX12RUSB Manual de usuario

Smeg

Smeg PVA140BE1 Manual de usuario

Smeg

Smeg Hob Manual de instrucciones

Smeg

Smeg PI964X Manual de usuario

Smeg

Smeg SI2631D Manual de usuario

Smeg

Smeg NKT335EEU Manual de usuario

Smeg

Smeg PLDA21AC Manual de usuario

Smeg

Smeg Glass Ceramic Induction Hob SE2642ID2 Manual de usuario

Smeg

Smeg SIM592B Guía de solución de problemas

Smeg

Smeg PGF32GNL Manual de usuario

Smeg

Smeg SI764POM Manual de usuario

Smeg

Smeg PM3912WLDDE Manual de usuario

Smeg

Smeg Electric Hob 9FAZOI Manual de usuario

Smeg

Smeg SR775AO Manual de usuario

Smeg

Smeg SI2741D Manual de usuario

Smeg

Smeg PGFA95F-1 Manual de usuario

Smeg

Smeg Dolce Stil Novo Series Manual de usuario

Smeg

Smeg PS906 Manual de usuario

Smeg

Smeg Hob Manual de instrucciones

Smeg

Smeg PV164N-1 Manual de usuario

Smeg

Smeg SRV596GK5 Manual de usuario

Smeg

Smeg PTV64ES Manual de usuario

Smeg

Smeg PS9R-3 Manual de usuario

Manuales populares de Quemador de otras marcas

Siemens

Siemens EX875KYV1E Hoja de especificaciones

AEG

AEG CERAMIC HOB 6010 K Manual de usuario

VALERA

VALERA CT 70A Manual de usuario

Zanussi

Zanussi ZGF 6420 Manual de usuario

Gaggenau

Gaggenau CI 273 Manual de usuario

G3 Ferrari

G3 Ferrari Energy Manual de usuario

Pkm

Pkm IN4B Manual de usuario

Award

Award H903BG Manual de usuario

Zanussi

Zanussi VCH 5005 RZ Manual de usuario

Miele

Miele KM 523 Manual de usuario

Hotpoint

Hotpoint IS67V8CCXT/E Manual de usuario

AEG

AEG HK854870XB Manual de usuario

Cookology

Cookology SEP600BK Manual de usuario

Bauknecht

Bauknecht Hob Manual de usuario

Zanussi

Zanussi ZGM 782 Manual de usuario

dipo INDUCTION

dipo INDUCTION DIBK218S Manual de usuario

Miele

Miele KM 5987 Manual de usuario

Miele

Miele KM 360 G Manual de usuario
