1. Foreword
1.1 Safety Warnings
Your safety is important to us. Please read this information before using
your cooktop.
1.2 Installation
1.2.1 Electrical Shock Hazard
• Disconnect the appliance from the mains electricity supply before
carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a
qualiedelectrician.
• Failure to follow this advice may result in electrical shock or death.
1.2.2 Cut Hazard
• Take care - panel edges are sharp.
• Failure to use caution could result in injury or cuts.
1.2.3 Important safety instructions
• Read these instructions carefully before installing or using this
appliance.
• No combustible material or products should be placed on this
appliance at any time.
• Please make this information available to the person responsible for
installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according
to these instructions for installation.
• This appliance is to be properly installed and earthed only by a
suitablyqualiedperson.
• This appliance should be connected to a circuit which incorporates an
isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty
or liability claims.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lackofexperienceandknowledgeiftheyhavebeengivensupervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
EN-3
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer,itsserviceagentorsimilarlyqualiedpersonsinorder
to avoid a hazard.
• Warning:Ifthesurfaceiscracked,switchotheappliancetoavoid
the possibility of electric shock, for hob surfaces of glass-ceramic or
similar material which protect live parts
• Metallic objects such as knives, forks, spoons and lids should not be
placed on the hob surface since they can get hot
• A steam cleaner is not to be used.
• Do not use a steam cleaner to clean your cooktop.
• Theapplianceisnotintendedtobeoperatedbymeansofanexternal
timer or separate remote-control system.
• WARNING:Dangerofre:donotstoreitemsonthecookingsurfaces.
• The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerousandmayresultinre.NEVERtrytoextinguisharewith
water,butswitchotheapplianceandthencoveramee.g.witha
lidorareblanket.
1.3 Operation and maintenance
1.3.1 Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If the cooktop surface
shouldbreakorcrack,switchtheapplianceoimmediatelyatthe
mainspowersupply(wallswitch)andcontactaqualiedtechnician.
• Switchthecooktopoatthewallbeforecleaningormaintenance.
• Failure to follow this advice may result in electrical shock or death.
1.3.2 Health Hazard
• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants
(such as insulin pumps) must consult with their doctor or implant
manufacturer before using this appliance to make sure that their
implantswillnotbeaectedbytheelectromagneticeld.
• Failure to follow this advice may result in death.
1.3.3 Hot Surface Hazard
• During use, accessible parts of this appliance will become hot enough
to cause burns.
EN-4
• Do not let your body, clothing or any item other than suitable
cookware contact the Induction glass until the surface is cool.
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles
do not overhang other cooking zones that are on. Keep handles out of
reach of children.
• Failure to follow this advice could result in burns and scalds.
1.3.4 Cut Hazard
• Therazor-sharpbladeofacooktopscraperisexposedwhenthe
safetycoverisretracted.Usewithextremecareandalwaysstore
safely and out of reach of children.
• Failure to use caution could result in injury or cuts.
1.3.5 Important safety instructions
• Never leave the appliance unattended when in use. Boilover causes
smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects (e.g. credit cards,
memory cards) or electronic devices (e.g. computers, MP3 players)
neartheappliance,astheymaybeaectedbyitselectromagnetic
eld.
• Never use your appliance for warming or heating the room.
• Afteruse,alwaysturnothecookingzonesandthecooktopas
described in this manual (i.e. by using the touch controls). Do not rely
onthepandetectionfeaturetoturnothecookingzoneswhenyou
remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb
on it.
• Do not store items of interest to children in cabinets above the
appliance. Children climbing on the cooktop could be seriously
injured.
• Do not leave children alone or unattended in the area where the
appliance is in use.
• Children or persons with a disability which limits their ability to use
the appliance should have a responsible and competent person
toinstructtheminitsuse.Theinstructorshouldbesatisedthat
they can use the appliance without danger to themselves or their
surroundings.
• Donotrepairorreplaceanypartoftheapplianceunlessspecically
recommended in the manual. All other servicing should be done by a
qualiedtechnician.
EN-5
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction
glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to
clean your cooktop, as these can scratch the Induction glass.
• This appliance is intended to be used in household and similar
applicationssuchas:-stakitchenareasinshops,ocesandother
working environments; -farm houses; -by clients in hotels, motels
and other residential type environments; -bed and breakfast type
environments.
• WARNING: The appliance and its accessible parts become hot during
use.
• Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
Congratulations on the purchase of your new Ceramic Hob.
We recommend that you spend some time to read this Instruction / Installation
Manual in order to fully understand how to install correctly and operate it. For
installation, please read the installation section. Read all the safety instructions
carefully before use and keep this Instruction / Installation Manual for future
reference.
2. Product Introduction
2.1 Top View
1
2
3
4
5
1. Max. 700/1700 W zone
2. Max. 1200 W zone
3. Glass plate
4. ON / OFF
5. Control panel
EN-6
2.2 Control Panel
1
2
3
4
56
1. ON/OFF control
2. Power / Timer regulating controls
3. Heating zone selection controls
4. Timer control
5. Keylock control
6. Double zone control
2.3 Product Information
Themicrocomputerceramiccookerhobcanmeetdierentkindsofcuisinedemands
because of resistance wire heating, micro-computerized control and multi-power
selection, really the optimal choice for modern families.
The ceramic cooker hob centers on customers and adopts personalized design. The
hob has safe and reliable performances, making your life comfortable and enabling to
fully enjoy the pleasure from life.
2.4 Working Principle
This ceramic cooker hob directly employs resistance wire heating, and adjust the
output power by the power regulation with the touch controls.
2.5 Before using your New Ceramic Hob
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Removeanyprotectivelmthatmaystillbeonyourceramichob.
2.6 TechnicalSpecication
Cooking Hob SE232TD
Cooking Zones 2 Zones
Supply Voltage 220-240V~
Installed Electric Power 2600-3200W
Product Size D×W×H(mm) 300X510X55
Building-in Dimensions A×B (mm) 268X500
WeightandDimensionsareapproximate.Becausewecontinuallystrivetoimprove
ourproductswemaychangespecicationsanddesignswithoutpriornotice.
EN-7
3. Operation of Product
3.1 Touch Controls
• The controls respond to touch, so you don’t need to apply any pressure.
• Usetheballofyournger,notitstip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a
utensiloracloth)coveringthem.Evenathinlmofwatermaymakethecontrols
diculttooperate.
3.2 Choosing the right Cookware
Do not use cookware with jagged edges or a curved base.
Makesurethatthebaseofyourpanissmooth,sitsatagainsttheglass,andisthe
same size as the cooking zone. Always centre your pan on the cooking zone.Always
liftpansotheceramichob–donotslide,ortheymayscratchtheglass.
Alwaysliftpansotheceramichob–donotslide,ortheymayscratchtheglass.
3.3 How to use
3.3.1 Start cooking
After power on, the buzzer beeps once, all the indicators light up for 1 second then go
out, indicating that the ceramic hob has entered the stat of standby mode.
EN-8
Touch the ON/OFF control. all the indicators
show “-”.
Place a suitable pan on the cooking zone
that you wish to use.
• Make sure the bottom of the pan and
the surface of the cooking zone are
clean and dry.
Touching the heating zone selection
control.
Select a heat setting by touching the “-” or
“+” control.
• If you don’t choose a heat setting
within 1 minute, the ceramic hob will
automaticallyswitcho.Youwillneed
to start again at step 1.
• You can modify the heat setting at any
time during cooking.
• By holding down either of these
buttons, the value will adjust up or
down.
EN-9
3.3.2 Finish cooking

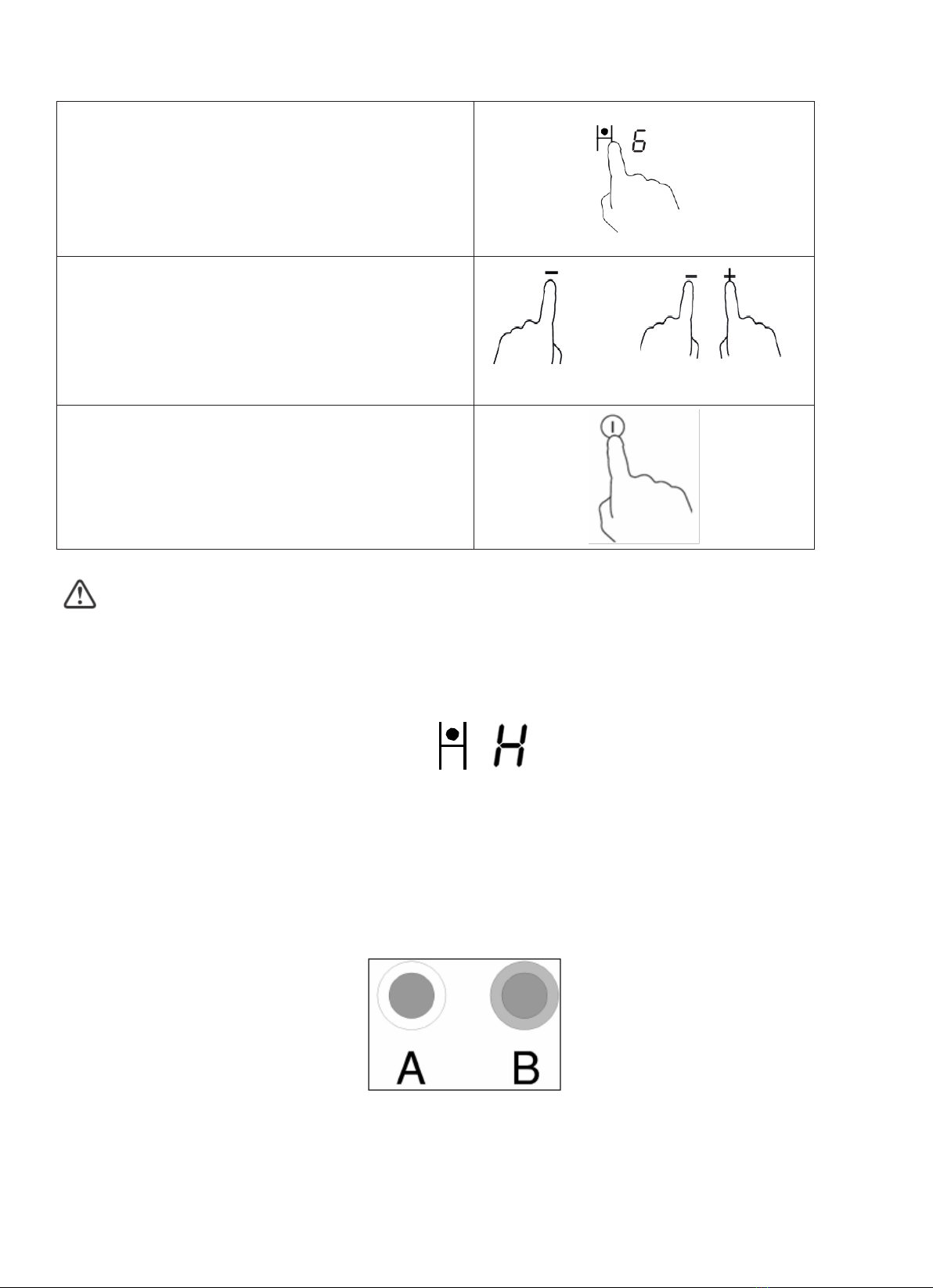

Touching the heating zone selection
controlthatyouwishtoswitcho.
Turnthecookingzoneobyscrolling
down to “ 0 ” or touching “-” and “+”
control together. OR
Turnthewholecooktopobytouching
the ON/OFF control.
Beware of hot surfaces
“H” will show which cooking zone is hot to touch. It will disappear when the surface has
cooled down to a safe temperature. It can also be used as an energy saving function if
you want to heat further pans, use the hotplate that is still hot.
3.3.3 Using the Double zone function
• The function only work in 2# cooking zone
• The Double cooking zone has two cooking areas that you can use a central
section and an outer section. You can use the central section (A) independently or
both sections (B)
EN-10
Tabla de contenidos
Otros manuales de Quemador de Smeg
Smeg
Smeg P652 Manual de usuario
Smeg
Smeg SY93-1 Manual de usuario
Smeg
Smeg SE2842ID2 Manual de usuario
Smeg
Smeg SE2541 Manual de usuario
Smeg
Smeg P864P-9 Manual de usuario
Smeg
Smeg SI1M4744D Manual de usuario
Smeg
Smeg SI1M7733B Manual de usuario
Smeg
Smeg CBE66MF Manual de usuario
Smeg
Smeg GM134EB Manual de usuario
Smeg
Smeg SI5641D Manual de usuario
Smeg
Smeg SIM3844D Manual de usuario
Smeg
Smeg SIH7933B Manual de usuario
Smeg
Smeg S135 Manual de usuario
Smeg
Smeg SI2631D Manual de usuario
Smeg
Smeg SE 640 Manual de usuario
Smeg
Smeg SIM580B Manual de usuario
Smeg
Smeg PI964X Manual de usuario
Smeg
Smeg PI764BS Manual de usuario
Smeg
Smeg SI2951D Manual de usuario
Smeg
Smeg SR64S Manual de usuario
