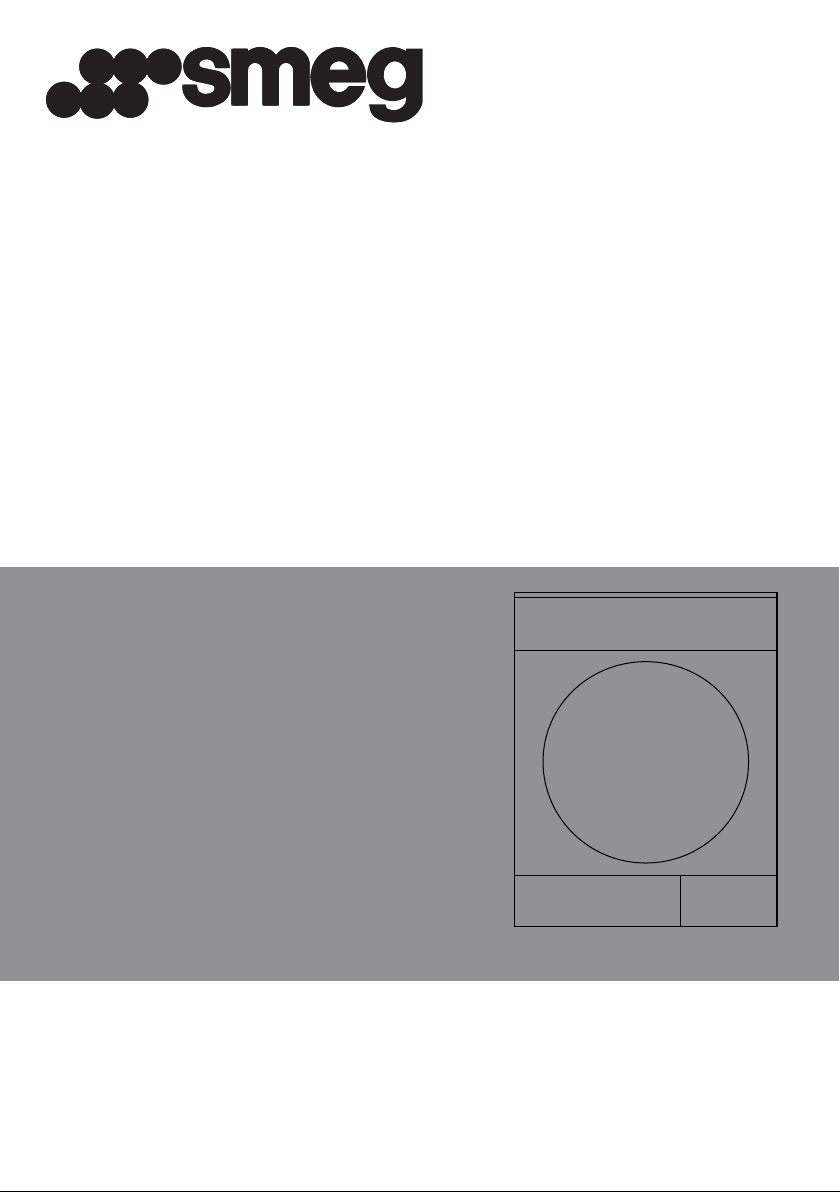

Smeg DHT83LIN Manual de usuario
DHT83LIN
Dryer
User Manual
Asciugatrice
Manuale utente
2960311114_EN/090615.1528
Please read this user manual first!
Dear Customer,
Thank you for prefering a Smeg product. We hope that your product which has been manufactured with high quality
and technology will give you the best results. We advise you to read through this manual and the other accompanying
documentation carefully before using your product and keep it for future reference. If you transfer the product to
someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and
follow the instructions given therein.
Use this user manual for the model indicated on the cover page.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful hints about
usage.
AWarning for hazardous situations with
regard to life and property.
BWarning against electric shock.
Warning against hot surfaces.
Warning against fire hazard.
Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated
collection points designated by the local authorities.
3 / 60 EN
Dryer / User Manual
1 Important instructions for safety and environment
This section contains safety instructions that will help protect from risk of
personal injury or property damage. Failure to follow these instructions shall
void any warranty.
1.1 General safety
•The dryer can be used by children at and above 8 years old and by
persons whose physical, sensory or mental capabilities were not fully
developed or who lack experience and knowledge provided that they
are supervised or trained on the safe usage of the product and the risks
it brings out. Children should not play with the product. Cleaning and
maintenance works should not be performed by children unless they are
supervised by someone.
•Children of less than 3 years should be kept away unless continously
supervised.
•Adjustable feet should not be removed. The gap between the dryer and
the floor should not be reduced with materials such as carpet, wood and
tape. This will cause problems with the dryer.
•Always have the installation and repairing procedures carried out by the
Authorized Service. Manufacturer shall not be held liable for damages
that may arise from procedures carried out by unauthorized persons.
•Never wash the dryer by spraying or pouring water onto it! There is the
risk of electric shock!
4 / 60 EN Dryer / User Manual
Important instructions for safety and environment
1.1.1 Electrical safety
AElectrical safety instructions should be followed while electrical
connection is made during the installation.
•Connect the dryer to a grounded outlet protected by a fuse at the value
specified on the type label. Have the grounding installation performed by
a qualified electrician. Our company shall not be liable for any damages
that will arise when the dryer is used without grounding in accordance
with the local regulations.
•The voltage and allowed fuse protection is stated on the type label plate.
•The voltage specified on the type label must be equal to your mains
voltage.
•Unplug the dryer when it is not in use.
•Unplug the dryer from the mains during installation, maintenance,
cleaning and repair works.
•Do not touch the plug with wet hands! Never unplug by pulling on the
cable, always pull out by grabbing the plug.
•Do not use extension cords, multi-plugs or adaptors to connect the dryer
to power supply in order to decrease the risk of fire and electric shock.
•Power cable plug must be easily accessible after installation.
BDamaged mains cable should be changed notifying the Authorized
Service.
BIf the dryer is faulty, it must not be operated unless it is repaired
by an authorized service agent! There is the risk of electric shock!
5 / 60 EN
Dryer / User Manual
Important instructions for safety and environment
1.1.2 Product safety
Points to be taken into consideration for fire hazard:
Below specified laundry or items must not be dried
in the dryer considering fire hazard.
•Unwashed laundry items
•Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain
removers, turpentine, paraffin or paraffin removers must be
washed in hot water with plenty of detergent before being dried
in the dryer.
For this reason especially the items containing the above
specified
stains must be washed very well, to do this
use adequate detergent and choose a high washing
temperature.
Below specified laundry or items must not be dried in the
dryer due to the fire hazard:
•Garments or pillows bolstered with rubber foam (latex foam),
shower bonnets, water resistant textiles, materials with rubber
reinforcement and rubber foam pads.
•Clothing cleaned with industrial chemicals.
Items such as lighter, match, coins, metal parts, needle etc.
may damage the drum set or may lead to functional problems.
Therefore check all the laundry that you will load into your dryer.
Never stop your dryer before
the programme completes. If you must do this, remove all
laundry
quickly and lay them out to dissipate the heat.
Clothes that are washed inadequately may ignite on their own
and even may ignite after drying ends.
6 / 60 EN Dryer / User Manual
Important instructions for safety and environment
•You must provide enough ventilation in order to prevent gases exiting
from devices operating with other types of fuels including the naked flame
from accumulating in the room due to the back fire effect.
AUnderwear that contains metal reinforcements should not be
dried
in the dryer. Dryer may be damaged if metal reinforcements come
loose and break off during drying.
CUse softeners and similar products in accordance with the
instructions of their manufacturers.
CAlways clean the lint filter before or after each loading. Never
operate the dryer without the lint filter installed.
•Never attempt to repair the dryer by yourself. Do not perform any repair
or replacement procedures on the product even if you know or have the
ability to perform the required procedure unless it is clearly suggested in
the operating instructions or the published service manual. Otherwise,
you will be putting your life and others’ lives in danger.
•There must not be a lockable, sliding or hinged door that may block
the opening of the loading door in the place where your dryer is to be
installed.
•Install your dryer at places suitable for home use. (Bathroom, closed
balcony, garage etc.)
•Make sure that pets do not enter the dryer. Check the inside of the dryer
before operating it.
•Do not lean on the loading door of your dryer when it is open, otherwise it
may fall over.
•The lint must not be allowed to accumulate around the tumble dryer
7 / 60 EN
Dryer / User Manual
Important instructions for safety and environment
1.2 Mounting over a washing machine
•A fixing device should be used between the two machines when installing
the dryer above a washing machine. The fitting device must be installed
by the authorized service agent.
•Total weight of the washing machine and the dryer -with full load- when
they are placed on top of each other reaches to approx. 180 kilograms.
Place the products on a solid floor that has sufficient load carrying
capacity!
AWashing machine cannot be placed on the dryer. Pay attention
to the above warnings during the installation on your washing
machine.
Installation Table for Washing Machine and Dryer
Dryer Depth Washing Machine Depth
62cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm
54 cm Can be
installed Can be
installed Can be
installed Can be
installed Can be
installed Can be
installed Cannot be
installed
60 cm Can be
installed Can be
installed Can be
installed Can be
installed Can be
installed Cannot be
installed Cannot be
installed
8 / 60 EN Dryer / User Manual
Important instructions for safety and environment
1.3 Intended use
•Dryer has been designed for domestic use. It is not suitable for
commercial use and it must not be used out of its intended use.
•Use the dryer only for drying laundry that are marked accordingly.
•The manufacturer waives any responsibility arisen from incorrect usage or
transportation.
•The service life of the dryer that you purchased is 10 years. During this
period, original spare parts will be available to operate the dryer properly.
1.4 Child safety
•Packaging materials are dangerous for the children. Keep packaging
materials away from children.
•Electrical products are dangerous for the children. Keep children away
from the product when it is operating. Do not let them tamper with the
dryer. Use the child-proof lock in order to prevent the children to tamper
with the dryer.
CChild-proof lock is on the control panel. (See Child lock)
•Keep loading door closed even when the dryer is not in use.
9 / 60 EN
Dryer / User Manual
Important instructions for safety and environment
1.5 Compliance with the WEEE regulation
and disposing of the waste product
This product complies with EU WEEE Directive (2012/19/EU). This
product bears a classification symbol for waste electrical and
electronic equipment (WEEE).
This product has been manufactured with high quality parts and
materials which can be reused and are suitable for recycling. Do
not dispose of the waste product with normal domestic and other
wastes at the end of its service life. Take it to the collection center for the
recycling of electrical and electronic equipment. Please consult your local
authorities to learn about these collection centers.
1.6 Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS Directive
(2011/65/EU). It does not contain harmful and prohibited materials
specified in the Directive.
1.7 Package information
Packaging materials of the product are manufactured from recyclable
materials in accordance with our National Environment Regulations. Do
not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated
by the local authorities.
Please visit the following website to get more information on the product.
http://www.smeg.com
10 / 60 EN Dryer / User Manual
Important instructions for safety and environment
1.8 Technical Specifications
* Min. height: Height with adjustable feet are closed.
Max. height: Height with adjustable feet are opened maximum.
** Dry laundry weight before washing.
*** Type label is located behind the loading door.
CTechnical specifications of the dryer are subject to specification
without notice to improve the quality of the product.
CFigures in this manual are schematic and may not match the
product exactly.
C
Values stated on markers on the dryer or in the other published
documentation accompanying with the dryer are obtained in
laboratory in accordance with the relevant standards. Depending
on operational and environmental conditions of the dryer, these
values may vary.
EN 2
Height (min. / max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 60,9 cm
Capacity (max.) 8 kg**
Net weight (plastic front door usage) 50,5 kg
Net weight (glass front door usage) 52,5 kg
Voltage
See type label***Rated power input
Model code
Otros manuales para DHT83LIN
1
Tabla de contenidos
Otros manuales de Secadora de Smeg
Smeg
Smeg AS73CES Manual de usuario
Smeg
Smeg DHT71EIT-1 Manual de usuario
Smeg
Smeg DGA39EX Manual de usuario
Smeg
Smeg DHT38PLIT Manual de usuario
Smeg
Smeg DNP83SLIN Manual de usuario
Smeg
Smeg DNP83SEUK Manual de usuario
Smeg
Smeg DNP82SEIN Manual de usuario
Smeg
Smeg Tumble Dyer AS 61 E Manual de usuario
Smeg
Smeg DRF81AUK Manual de usuario
Smeg
Smeg DHT93LIT Manual de usuario
Smeg
Smeg DNP92SEUK Manual de usuario
Smeg
Smeg WDI12 Manual de usuario
Smeg
Smeg SAHP86 Manual de usuario
Smeg
Smeg DHT71EUK Manual de usuario
Smeg
Smeg DTR38ID Manual de usuario
Smeg
Smeg DHT83LIT-1 Manual de usuario
Smeg
Smeg DHT82EIN Manual de usuario
Smeg
Smeg DHT81LUK Manual de usuario
Smeg
Smeg DNP83SEES Manual de usuario
Smeg
Smeg D3T7WSA Manual de usuario
Manuales populares de Secadora de otras marcas
Indesit
Indesit IDV 75 Manual de usuario
Infiniton
Infiniton SD-DG85C Manual de usuario
BOMANN
BOMANN WT 5019 Manual de usuario
Alliance Laundry Systems
Alliance Laundry Systems TMB795C Manual de usuario
Asko
Asko T793C Manual de usuario
Kenmore
Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
