User instructions

1. Description of the controls

1.1 Upper panel

All the dishwasher controls are grouped on the upper panel. Switching on,

programming, switching off, etc. are only possible when the door is open.

The panel shown is given as example: the form of the lights and buttons

may vary depending on the model.

1 ON/OFF BUTTON

Press this button to switch the dishwasher on/off.

SELECTED PROGRAM INDICATOR LIGHTS

This light indicates the program selected and the occurrence of a

fault (Troubleshooting).

PROGRAM SELECTION BUTTON

+ADJUSTING THEWATER SOFTENING SYSTEM

Used to select the wash program required and adjust the water

softening system.

WATER HARDNESS ADJUSTMENT ON INDICATOR LIGHT

The light flashes to indicate that the appliance is in “water hardness

adjustment” mode.

SALT WARNING LIGHT

This light Indicates the salt is finished.

5 RINSE AID WARNING LIGHT

This light indicates the rinse aid is finished.

6 OPTIONS and DISPLAY (on some models only)

User instructions

INFORMATION DISPLAY

(on some models only)

Information displayed

rogram duration

Remaining program time

Delayed start: 1

24 hours

Error message:

Err

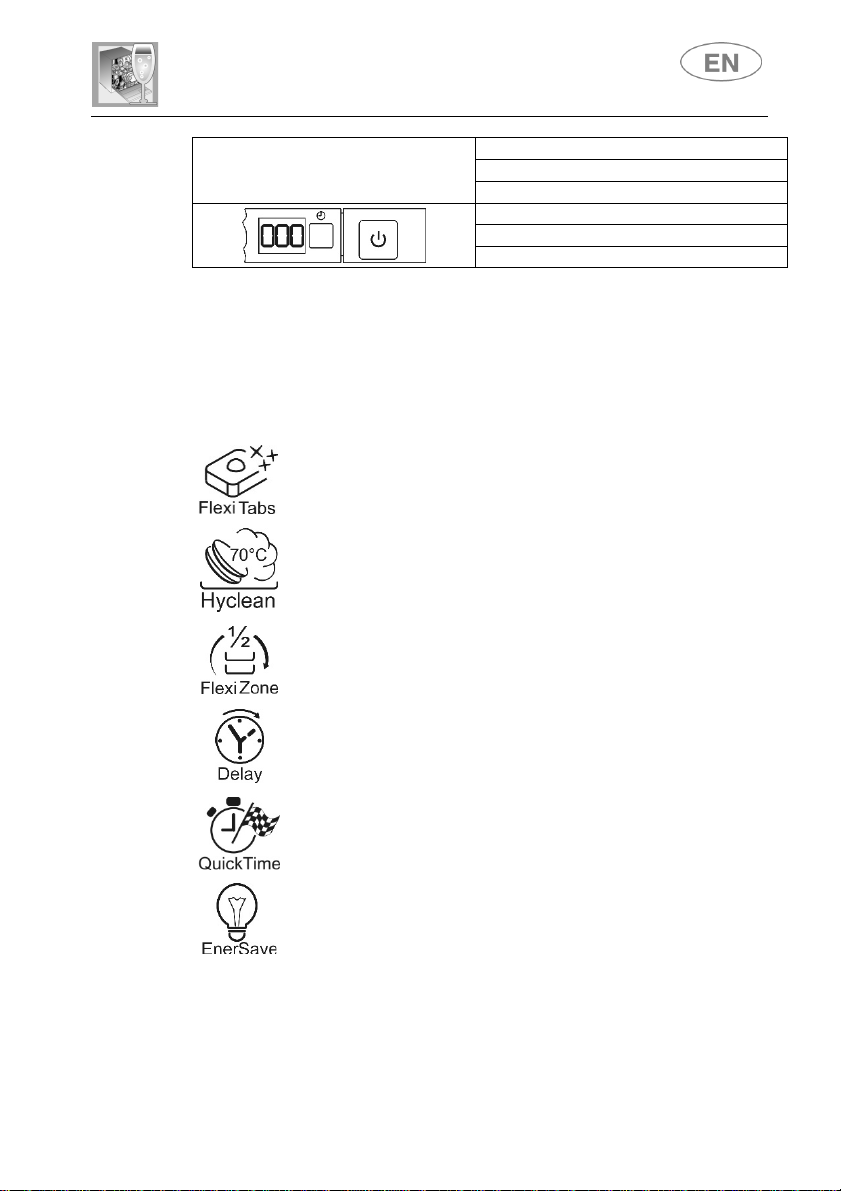

<<OPTIONS (6)>>

Depending on the model, this zone may contain the information display

and one or more of the following options, identified by symbols and

described in more detail later in the manual.

All optionsexcept "Flexi Tabs" aredisabled attheendofthewashcycle.

To disable the “Flexi Tabs”option, pressthebutton(thelight goesout).

Flexi Tabs

Option recommended for the use of multi-function tablet

detergent.

HYCLEAN

Removes bacteria more effectively by prolonging the last hot

rinse.

Spread HALF LOAD WASH

Recommended for washing small loads spread across both

baskets.

PROGRAM DELAY

Allows the start of the program to be delayed by 9, 12 or 24

hours depending on the model.

QUICK TIME

Select this option when a short wash program is required (see

programs table).

ENERSAVE

Energy saving option.

PROGRAMS TABLE

The manual may include the programs table for several models. The set

of symbols at the top of the table indicates theprograms availablefor your

dishwasher

User instructions

WITCHING ON, S

ETTING THE WASHING PROGRAM AND

STARTING THE PROGRAM

Press the ON/OFF button (1); the PROGRAM INDICATOR LIGHT

(2) will come on;

Keep pressing the PROGRAM SELECTION button (3) until the

indicator light for the required program lights up;

Select the required option (if any, depending on models);

Close the door and after about 2" the program will start; while it is

running, the corresponding LIGHT will flash (program running

indicator

PROGRAM IN PROGRESS INDICATOR LIGHT

(on some models only)

When a program is running, a flashing light is projected onto the floor

under the right-hand corner of the door. At the end of the program, the

light goes out to reduce stand-by electricity consumption.

User instructions

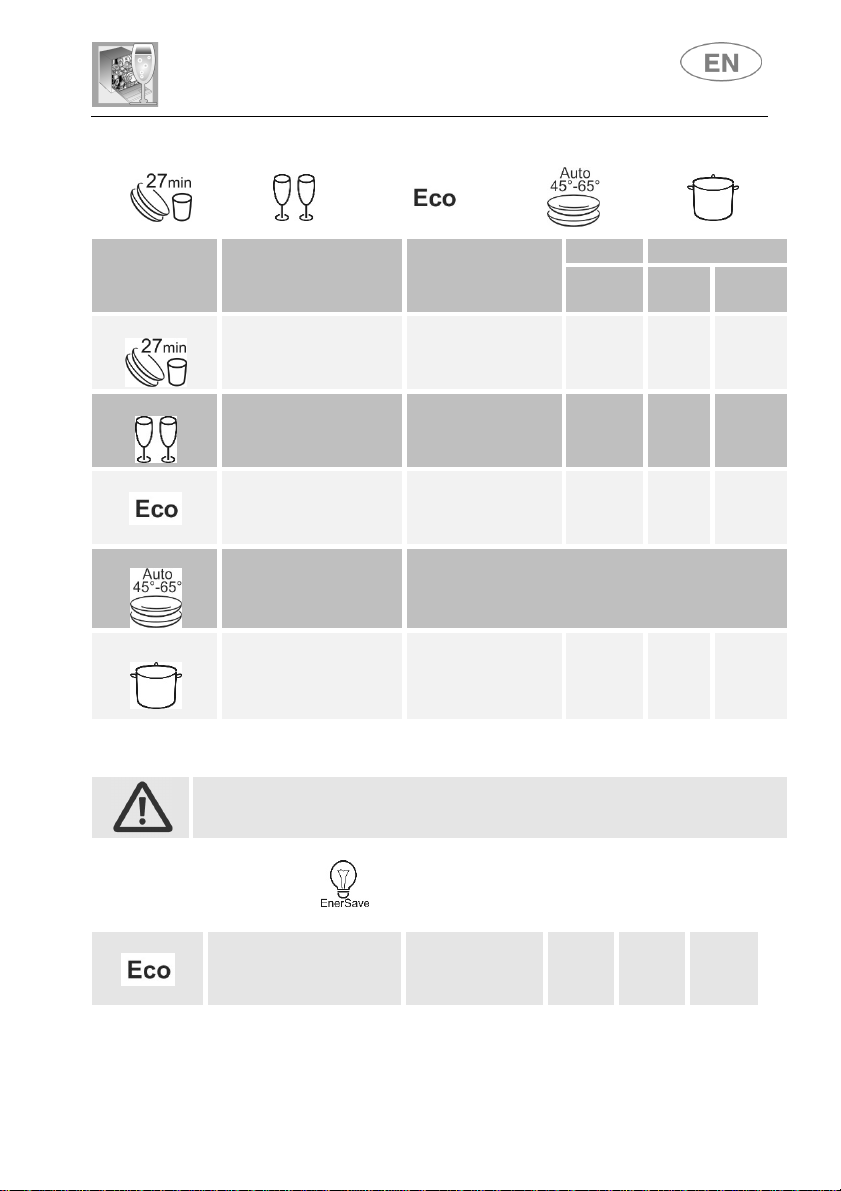

PROGRAMS TABLE

PROGRAMME

NUMBER

& SYMBOL

LOAD CROCKERY AND

CUTLERY PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTES

(1)

WATER

LITRES POWER

kWh (1)

1RAPID 27’

Dishes with light dirt,

washed immediately after

use

Wash at 38°C

Rinse at 50°C

6,5 0,70

2 GLASS

Glass, china and mixed

dishes with light dirt.

Wash at 45°C

Cold rinse

Rinse at 70°C

Dry

12 0,90

3 ECO (*)

EN 50242

Dishes with normal dirt,

even with dried-on

residues

Hot prewash

Wash at 45°C

Rinse at 65°C

Dry

** **

4 AUTO 45-65

Pans and dishes with

normal dirt, even with

dried-on residues.

When the "AUTO" program is selected, the dishwasher

recognises the type of dirt and automatically adjusts the

washing parameters as appropriate.

5 SUPER

Very dirty pans and

dishes, even with dried-on

residues.

Hot prewash

Wash at 70°C

Cold rinse (2)

Rinse at 70°C

Dry

135

20 1,50

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

If the dishwasher door is open or not properly closed, the washing cycle

will not start.

Models with ENERSAVE option

3 ECO (*)

EN 50242

Dishes with normal dirt,

even with dried-on residues.

Cold prewash

Wash at 45°C

Rinse at 55°C

Dry

** **

User instructions

QUICK TIME PROGRAMS

(see relevant section for explanation of functioning modes)

PROGRAMME

NUMBER E

SYMBOL

LOAD CROCKERY AND

CUTLERY PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTI

(1)

WATER

LITRES

POWER

kWh (1)

6SOAK

Pans and dishes awaiting

completion of the load Cold prewash 15 5 0,02

7 DELICATE

QUICK

Delicate dishes with normal

dirt.

Cold prewash

Wash at 50°C

Cold rinse

Rinse at 70°C

12,5 1,15

8 ECO

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 60°C

Cold rinse

Rinse at 70°C

12,5 1,25

9 NORMAL

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 70°C

Cold rinse

Rinse at 70°C

13 1,40

10 STRONG

and FAST

Mixed dishes with normal

dirt without dried-on

residues.

Wash at 65°C

Cold rinse

Rinse at 70°C 50 10 1,20

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

If the dishwasher door is open or not properly closed, the washing cycle

will not start.

User instructions

PROGRAMS TABLE

PROGRAMME

NUMBER

& SYMBOL

LOAD CROCKERY AND

CUTLERY PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTES

(1)

WATER

LITRES POWER

kWh (1)

1RAPID 27’

Dishes with light dirt,

washed immediately after

use

Wash at 38°C

Rinse at 50°C

6,5 0,70

2 AUTO 45-65

Pans and dishes with

normal dirt, even with

dried-on residues.

When the "AUTO" program is selected, the dishwasher

recognises the type of dirt and automatically adjusts the

washing parameters as appropriate.

3 ECO (*)

EN 50242

Dishes with normal dirt,

even with dried-on

residues

Hot prewash

Wash at 45°C

Rinse at 70°C

Dry

** **

4 HALF LOAD

Half load of dishes with

normal dirt, washed

immediately after use.

Wash at 65°C

Cold rinse

Rinse at 70°C

Dry

135

13 1,15

5 SUPER

Very dirty pans and

dishes, even with dried-on

residues.

Hot prewash

Wash at 70°C

Cold rinse (2)

Rinse at 70°C

Dry

190

20 1,50

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

If the dishwasher door is open or not properly closed, the washing cycle

will not start.

Models with ENERSAVE option

3 ECO (*)

EN 50242

Dishes with normal dirt,

even with dried-on residues.

Cold prewash

Wash at 45°C

Rinse at 55°C

Dry

** **

User instructions

QUICK TIME PROGRAMS

(see relevant section for explanation of functioning modes)

PROGRAMME

NUMBER E

SYMBOL

LOAD CROCKERY AND

CUTLERY PROGRAM

PROGRESS

DURATION

CONSUMPTION

MINUTI

(1)

WATER

LITRES

POWER

kWh (1)

6SOAK

Pans and dishes awaiting

completion of the load Cold prewash 15 5 0,02

7 DELICATE

QUICK

Delicate dishes with normal

dirt.

Cold prewash

Wash at 50°C

Cold rinse

Rinse at 70°C

12,5 1,15

8 ECO

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 60°C

Cold rinse

Rinse at 70°C

12,5 1,25

9 NORMAL

QUICK

Dishes with normal dirt,

washed immediately after

use.

Cold prewash

Wash at 70°C

Cold rinse

Rinse at 70°C

13 1,40

10 STRONG

and FAST

Mixed dishes with normal

dirt without dried-on

residues.

Wash at 65°C

Cold rinse

Rinse at 70°C 50 10 1,20

IMPORTANT: see “NOTES AND REFERENCES” table on the following pages.

If the dishwasher door is open or not properly closed, the washing cycle

will not start.

User instructions

NOTES AND REFERENCES

Only

run the soak program with partial loads.

The options cannot be used with the soak program.

The ENERSAVE option (if featured) cannot be used with soak, ultra clean, or any

programs which do not include the final drying stage.

* Standard program under

EN 50242

. The

ENERSAVE

option (if featured) must

enabled

See information sheet provided

(1) Programconsumption and durationfigures have been measured in accordance

with the EN 50242 standard. Values may vary depending on water supply and

ambient temperatures

and the type and quantity of dishes loaded.

(2)

1 or 2 cold rinses depending on the

model.

REFERENCES for the ENERGY LABEL supplied with the dishwasher:

- Annualenergy consumptionis based on280 standard wash cycles withcold

water using low-energy operating modes. Actual figures will depend on the

way in which the appliance is used.

- Water consumption is based on 280 standard wash cycles. Actual figures

will depend on the way in which the appliance is used.

- Information refers to the EN 50242 STANDARD program (identified in the

programs table), which is the most efficient in terms of combined energy and

water consumption. The program is recommended for dishes with a normal

level of dirt.

- Drying efficiency class on a scale from “G” (minimum efficiency) to “A”

(maximum efficiency).

User instructions

1.2 Wash programs

Before starting a wash program check that:

The water supply tap is open.

The softener container contains regenerating salt.

The correct amount of detergent has been added to

the dispenser.

The baskets have been correctly loaded.

The spray arms are able to rotate freely and without

obstruction.

The dishwasher door is securely closed.

OPTION SELECTION

Press the button to therequired option; the correspondinglight will come

on to confirm activation.

It is not possible to select any options when the soak

program is being used.

All options except "Flexi Tabs" are disabled at the end of the

wash cycle. To disable the “Flexi Tabs” option, press the

button (the light will turn off).

All options, including "Flexi Tabs" are disabled when a

program is CANCELLED after it has begun.

ADDITIONAL OPTIONS (on some models only)

These are activated by pressing two buttons simultaneously as

shown by the graphics on the control panel (e.g. “Flexi Tabs” in this

illustration)

QUICK TIME PROGRAMS

Select this option together with any washing program (except the soak

program) to SHORTEN the cycle by from a minimum of 10% to a

maximum of 55%, depending on the cycle selected. To activate this

option, press the QUICK OPTION button (light comes on) after

selecting the program required. The option is automatically deactivated at

the end of the program.

Tabla de contenidos

Otros manuales de Lavavajillas de Smeg

Smeg

Smeg STX4-3 Manual de usuario

Smeg

Smeg LSA645X Manual de usuario

Smeg

Smeg DFD13TP3X Manual de usuario

Smeg

Smeg Dishwasher ST48 Manual de usuario

Smeg

Smeg Dishwasher Manual de usuario

Smeg

Smeg DF612BL Manual de usuario

Smeg

Smeg LSA1257BE Manual de usuario

Smeg

Smeg EN Manual de usuario

Smeg

Smeg DWD44BL.1 Manual de usuario

Smeg

Smeg DI6013NH Manual de usuario

Smeg

Smeg Classica DW9QSDXSA-1 Manual de usuario

Smeg

Smeg LSAP6248X Manual de usuario

Smeg

Smeg 4060 Series Manual de usuario

Smeg

Smeg LVS222BIT Manual de usuario

Smeg

Smeg lvs367sx Instrucciones de instalación y funcionamiento

Smeg

Smeg LVF647B9 Manual de usuario

Smeg

Smeg CSE66-I2 Manual de usuario

Smeg

Smeg Dishwasher DWI710 Manual de usuario

Smeg

Smeg Dishwasher ST93P Manual de usuario

Smeg

Smeg UG405DSUK Manual de usuario

Smeg

Smeg DWAUP364X Manual de usuario

Smeg

Smeg DWAFI6314-2 Instrucciones de instalación

Smeg

Smeg PL4107NE1 Manual de usuario

Smeg

Smeg PL8605XTD Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
