INSTRUCTION MANUAL

Contents



1. Description of the controls________________________________16

2. Troubleshooting _______________________________________25

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use

of your dishwasher.

The individual sections are laid out to provide you with a step-by-step

guide to all your appliance's functions; the texts are easy to understand

and are complete with detailed illustrations.

This user-friendly manual will provide answers to all your questions

about use of the dishwasher.

For any other information about use and maintenance of the dishwasher,

read the enclosed manual carefully.

USER INSTRUCTIONS: useful information is provided for the use of the

washing programs and all the dishwasher's functions.

User instructions



1. Description of the controls

1.1 Upper panel

All the dishwasher controls are grouped on the upper panel. Switch-on,

programming, switch-off etc. procedures are only possible when the door

is open.

ON/OFF BUTTON

Pressing this button energises the appliance.

SELECTED PROGRAM INDICATOR LIGHTS

Illumination of this light denotes the program selected and the

occurrence of a fault (troubleshooting).

PROGRAM SELECTION BUTTON

By pressing this button in sequence it is possible to select the desired

program.

SALT WARNING LIGHT (certain models only)

Illumination of this light signals that salt container is empty.

RINSE AID WARNING LIGHT (certain models only)

Illumination of this light signals that rinse aid dispenser is empty.

EXTRA PROGRAM BUTTON

This button gives access to the one of the five extra programs (see

table).

EXTRA PROGRAM LIGHT

Illuminates to indicate that one of the five extra programs (see table) is

going to be executed.

User instructions



3 IN 1 OPTION BUTTON

Press this button to activate the option for use of 3 IN 1 products.

3 IN 1 OPTION LIGHT

Illuminates to indicate that the function is activated.

HALF LOAD BUTTON (on some models only)

Press this button to activate the half load wash option.

HALF LOAD LIGHT (on some models only)

One of the two buttons illuminates to indicate that the half load wash

option in the top or bottom basket has been selected.

PROGRAM DELAY BUTTON (on some models only)

Press this button to delay the start of the program by up to 9 hours.

13 INFORMATION DISPLAY (on some models only)

SETTING THE WASHING PROGRAM AND SWITCHING ON

To select the most suitable program for the dishes to be washed refer to

the table below, which indicates the most appropriate program according

to dish type and degree of soiling.

After using the table to identify the most appropriate washing program:

•press the

ON/OFF button (1) and wait for the PROGRAM

INDICATOR LIGHT (2) to illuminate;

•keep pressing the

PROGRAM SELECTION button (3) until the

indicator light corresponding to the desired program illuminates;

•close the door; after about 2" the program will start. While it is in

progress, the relative LIGHT will flash (indicating that the program is

being executed).

User instructions



DURATION CONSUMPTION

PROGRAMME,

NUMBER & SYMBOL

LOAD CROCKERY

AND CUTLERY

PROGRAM

PROGRESS MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

1SOAK

Pans and dishes

awaiting

a further wash

Cold prewash 16' 60,03

2DELICATE Dishes

with normal dirt

Cold prewash

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

75' 16 1,15

3AUTO 60-70

Normally soiled

dishes, including

dried-on residue

Cold prewash

Wash at 50°C

Wash at 65°C

Cold rinse

Rinse at 70°C

Dry

(**) (**) (**)

4BIO Dishes

with normal dirt

Cold prewash

Wash at 50°C

Cold rinse

Rinse at 62°C

Dry

180' 15 1,10

5SUPER

Very dirty

pans and dishes,

even with

dried-on dirt

Prewash at 45°C

Wash at 70°C

2 cold rinses

Rinse at 70°C

Dry

110’ 20 1,70

6QUICK Dishes

with light dirt

Wash at 38°C

Cold rinse

Rinse at 68°C

45' 13 0,85

7AUTO 40-60

Wash immediately

after use for dishes

with normal dirt

Cold prewash

Wash at 40°C

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

(**) (**) (**)

8ECO

(*) EN 50242

Wash immediately

after use for dishes

with normal dirt

Wash at 50°C

Cold rinse

Rinse at 66°C

Dry

180' 14 1,05

Only run the soak program with half loads.

To execute programs 6,7,8 users must first press the extra programs button (6).

(*) Reference program as per EN 50242 standard.

(**) When the "AUTO 40-60" or "AUTO 60-70" program is selected, the dishwasher

recognises the type of dirt and automatically adjusts the washing parameters as

appropriate.

(–) Not present.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and

room temperatures, and the type and amount of dishes.

User instructions



The washing cycle will not take place if the dishwasher door is left open or

not properly closed.

TABLE FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program ECO

Load 12 place-settings

Type of detergent B

Amount of detergent 30 g

Rinse aid setting 5/6

CANCELLING THE CURRENT PROGRAM

•To cancel the currently selected program, open the door and hold

down the PROGRAM SELECTION (3) button for a few seconds

until the indicator lights for programs 4and 5illuminate

simultaneously (the word "end" is displayed on the window).

•Close the door.

•After approximately 1 minute the dishwasher will advance to the end

of cycle.

CHANGING THE PROGRAM

To change the program in progress, simply open the door and select a

new program. When the door is closed the dishwasher will automatically

select the new program.

1.2 Washing programs

Before starting a washing program make sure that:

•The water supply tap is open.

•The correct amount of detergent has been added to the

dispenser.

•The baskets have been correctly loaded.

•The spray arms are able to rotate freely and without

obstruction.

•The dishwasher door is securely closed.

User instructions



SELECTING HALF LOAD WASH (on some models only)

This function is ideal for small loads and saves water and electricity. It is

controlled by the HALF LOAD (10) button, with two alternatives:

1) press the button once to select washing in the top basket (the

relative light comes on);

2) press the button a second time to select washing in the bottom

basket (the relative light comes on);

3) press the button a third time to return to the normal full load

washing mode (washing in both baskets, both lights off).

When washing in the bottom basket only, the cutlery basket can be

divided so that only half is used.

EXTRA PROGRAMS

Button (6) gives access to three extra programs in addition to the ones

which can be selected directly using the program selector button.

This button must be pressed (the light comes on) after selection of the

"main" program (2,3,4) and has no effect if it is pressed when programs

1 and 5 are selected.

This function is retained in the memory, so the button has to be

pressed again (the light goes out) if the user wishes to execute one of

the 5 main programs at the next cycle.

User instructions



"3 IN 1" OPTION BUTTON

Pressing this button (8) activates the "3 IN 1" option; the relative light

comes on to confirm the selection.

This option is specifically for the use of tablet or powder detergents

which already contain salt and rinse aid. If you decide to use a product of

this kind, press the button to allow the dishwasher to vary the necessary

parameters to ensure the best washing results by making full use of the

quantities of detergent, salt and rinse aid these special products contain.

At the end of the cycle, the appliance automatically presets for the use of

conventional products.

DELAYING THE PROGRAM

The PROGRAM DELAY button (12) can be pressed to delay the start of

the program by up to 9 hours. This means that the dishwasher can be

operated at the time of day of your choice. Press the button several

times in succession and the display will show the delay with which the

appliance will start, beginning from 9 hours.

TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

•Always try to run the dishwasher fully loaded.

•Do not wash the dishes in running water.

•Use the washing program that is most appropriate for each type of

load.

•Do not carry out any preliminary rinsing.

•If available, connect the dishwasher to a hot water supply up to 60°C.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT

THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the

environment. To avoid using excessive amounts of detergent and to save

on electricity, observe the following:

•separate the more delicate items from dishes that are more resistant

to aggressive detergents and high temperatures;

•do not pour the detergent directly on the dishes.

User instructions



ADJUSTING THE WATER SOFTENING SYSTEM

Depending on model, the setting may be made electronically or by

means of a selector switch.

ELECTRONIC SETTING (models with display)

N.B.: for the setting below to be possible, a washing program other than

the soak program must be set.

Press the PROGRAM DELAY button (12) and keep it pressed until the

preset value appears followed by a full stop (normally 3.).

Release the button then press it again in succession to display the value

required, referring to the table.

The 6setting levels available will appear in this order:

3.,4.,5.,0.,1.,2..

When the value required appears on the display, release the button;

after 5 seconds the system automatically returns to setting of the

program delay, and the setting will be made with the chosen value.

N.B.: the display shows the water hardness setting and the program

delay. The dot (.) after the number indicates that the water hardness

setting is being displayed. If the dot (.) does not appear, the program

delay is being displayed.

WATER HARDNESS TABLE

WATER HARDNESS

German Degrees (°dH) French Degrees (°dF) SETTING

0 - 5 0 - 9 0.

6 - 11 10 - 19 1.

12 - 21 20 - 36 2.

22 - 33 37 - 59 3.

34 - 45 60 - 79 4.

46 - 53 80 - 107 5.

Contact your local water board for information on the hardness of your

water supply.

User instructions



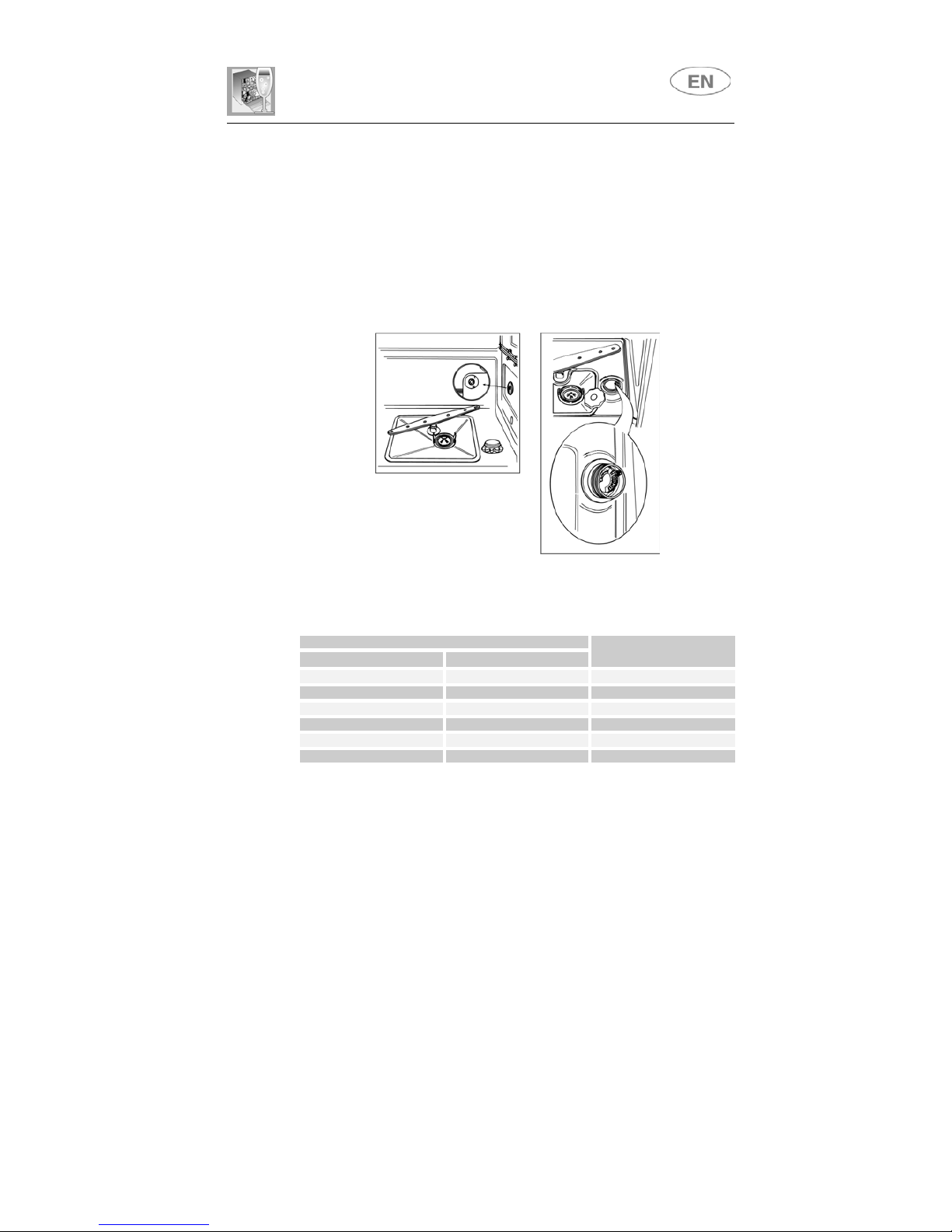

SWITCH SETTING (models without display)

According to the machine model, the selector which acts on the

adjustment may be located:

•inside the plastic locking ring located on the right-hand side, inside

the dishwasher;

•inside the water softener, just below the cap.

Both allow for adjustment to 5settings:

WATER HARDNESS TABLE

WATER HARDNESS

German Degrees (°dH) French Degrees (°dF) SETTING

0 - 4 0 - 7 Setting N. 1 NO SALT

5 - 15 8 - 25 Setting N. 1

16 - 23 26 - 40 Setting N. 2

24 - 31 41 - 60 Setting N. 3

32 - 47 61 - 80 Setting N. 4

48 - 58 81 - 100 Setting N. 5

Contact your local water board for information on the hardness of your

water supply.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Smeg

Smeg

Smeg PL364CX Manual de usuario

Smeg

Smeg STA6544L2 Manual de usuario

Smeg

Smeg Dishwasher Manual de usuario

Smeg

Smeg STX.1 Manual de usuario

Smeg

Smeg STU8649X Manual de usuario

Smeg

Smeg LS21X Instrucciones de operación

Smeg

Smeg DI453 Manual de usuario

Smeg

Smeg SA4510X Manual de usuario

Smeg

Smeg CSE66-I2 Manual de usuario

Smeg

Smeg ST12AABDT Manual de usuario

Smeg

Smeg Dishwasher DWI409C Manual de usuario

Smeg

Smeg DFD13TP3X Manual de usuario

Smeg

Smeg STU8642 Manual de usuario

Smeg

Smeg 3LBA500 Manual de usuario

Smeg

Smeg Dishwasher DF41-7 Manual de usuario

Smeg

Smeg DI6MAX Manual de usuario

Smeg

Smeg PL292DN Manual de usuario

Smeg

Smeg DI614H Manual de usuario

Smeg

Smeg Dishwasher 85028 Manual de usuario

Smeg

Smeg DWA6315 Series Manual de usuario

Smeg

Smeg KOA725 Instrucciones de operación

Smeg

Smeg CW-511 MDA Manual de usuario

Smeg

Smeg DWAI152XT Manual de usuario

Smeg

Smeg AS4060 Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
