INSTRUCTION MANUAL

Contents



1. Description of the controls________________________________16

2. Troubleshooting _______________________________________25

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use

of your dishwasher.

The individual sections are laid out to provide you with a step-by-step

guide to all your appliance's functions; the texts are easy to understand

and are complete with detailed illustrations.

This user-friendly manual will provide answers to all your questions

about use of the dishwasher.

For any other information about use and maintenance of the dishwasher,

read the enclosed manual carefully.

USER INSTRUCTIONS: useful information is provided for the use of the

washing programs and all the dishwasher's functions.

User instructions



1. Description of the controls

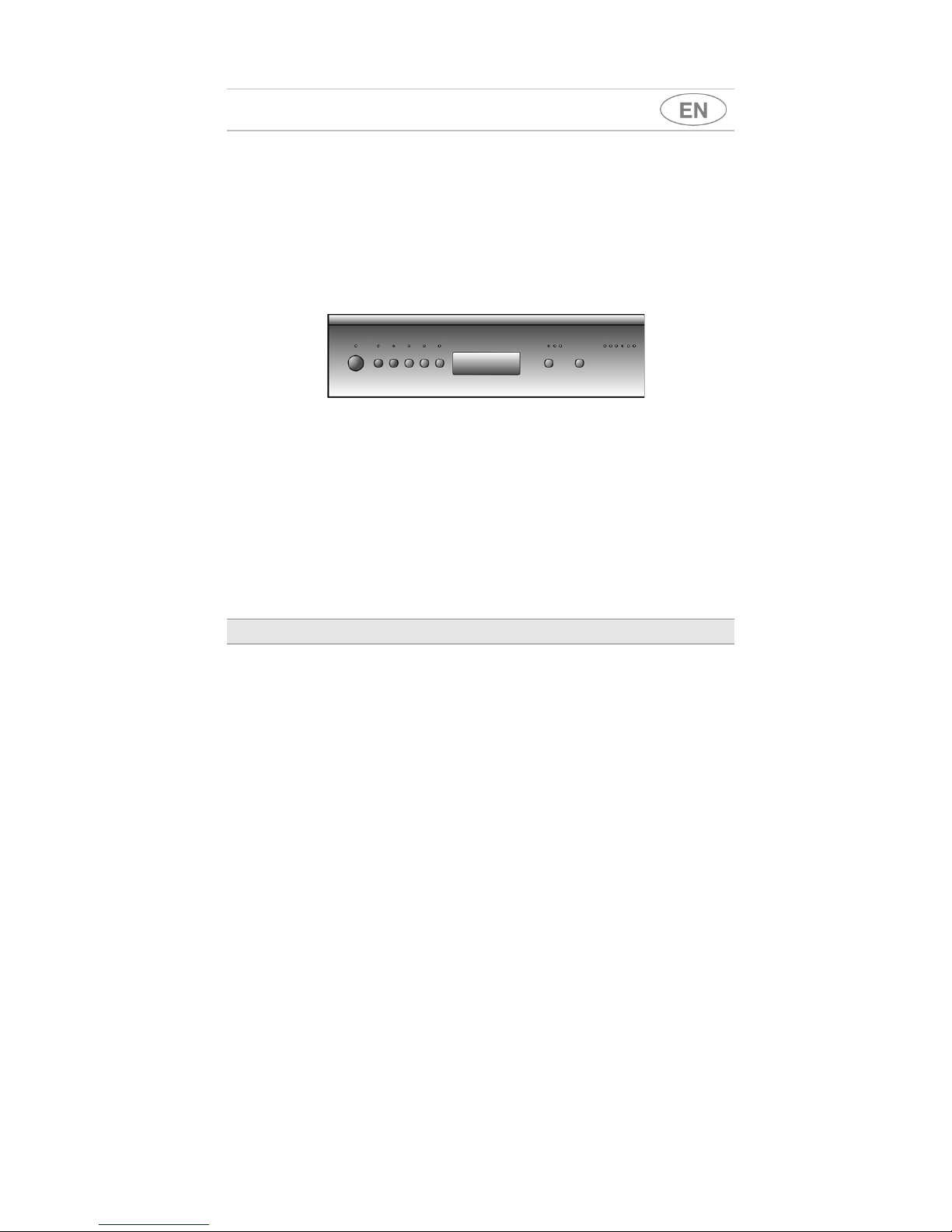

1.1 Front panel

All the dishwasher control are grouped on the front panel.

1ON/OFF BUTTON

2SELECTION PROGRAMS BUTTONS (P1...P5)

3DELAY PROGRAM BUTTON (on some models only)

4START/PAUSE BUTTON

5POWER ON LIGHT

6PROGRAMS LIGHTS

7DELAY PROGRAM LIGHTS (on some models only)

8PHASES/PROGRAM LIGHTS

9NO SALT LIGHT (on some models only)

10 NO RINSE AID LIGHT (on some models only)

11 RECESSED DOOR HANDLE

User instructions



DURATION CONSUMPTION

PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS

PROGRAM MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

SOAK

PANS AND DISHES

IN WAITING OF

COMPLETING

THE LOAD

Cold prewash 9' 50,02

QUICK

DISHES NOT MUCH DIRTY

AND WITH "FRESH DIRT"

WITHOUT RESIDUAL DRY

Wash at 38°C

Cold rinse

Rinse at 58°C

45' 13 0,70

ECO

(*)

PANS AND DISHES

NOT VERY DIRTY BUT

WITH DRY RESIDUALS

Wash at 55°C

Cold rinse

Rinse at 66°C

Dry

(**)

175' (AAA)

125' (AAB)

90' (BAB)

(**)

13 (AAA)

13 (AAB)

14 (BAB)

(**)

1,01 (AAA)

1,01 (AAB)

1,02 (BAB)

DAILY

PANS AND DISHES

WITH NORMAL DIRT,

WITHOUT DRY RESIDUAL

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

85' 14 1,25

STRONG PANS AND DISHES

VERY DIRTY

Wash at 70°C

2 cold rinses

Rinse at 70°C

Dry

85' 17 1,45

DELICATE +DISHES

NOT VERY DIRTY

Cold prewash

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

59' 16 0,98

BIO +PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 55°C

Cold rinse

Rinse at 68°C

Dry

85' 16 1,10

NORMAL +PANS AND DISHES DIRTY

AND WITH DRY RESIDUALS

Cold prewash

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

80' 17 1,20

SUPER +

PANS AND DISHES

VERY DIRTY AND WITH

DRY RESIDUALS

Prewash at 45°C

Wash at 70°C

2 cold rinses

Rinse at 70°C

Dry

105' 20 1,50

Only run the soak program with half loads.

(*) Reference program as per EN 50242 standard.

(**) Depending on the the models AAA-AAB-BAB (see energy label).

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

User instructions



TABLE FOR CERTIFICATION BODIES

Reference standard EN 50242

Reference program (*) Program ECO (P3)

Load 10 place-settings

Type of detergent B

Amount of detergent 25 g

Rinse aid setting 5/6

1.2 Washing programs

The dishwasher is equipped with a control panel, described in chapter

"1. Description of the controls", from which it is possible to carry out all

the power switch-on, switch-off and programming operations.

Before starting a washing program make sure that:

•The water supply tap is open.

•The correct amount of detergent has been added to the

dispenser.

•The baskets have been correctly loaded.

•The spray arms are able to rotate freely and without

obstruction.

•The dishwasher door is securely closed.

LIGHTING

When the ON/OFF button (1) is pressed, the dishwasher switches on

and the light (5) comes on. About 2 seconds later, the

PHASES/PROGRAM lights (8) will come on.

User instructions



PROGRAMMING

In this model of dishwasher, all programming procedures can only be

carried out with the door closed. As long as the door is open, the

PROGRAMS lights (6) and PHASES/PROGRAM lights (8) will remain

off.

SELECTION PROGRAM

The program selection is possible

through the relative buttons (2).

When the button relating to the program required is pressed, the relative

light will come on to confirm the operation.

START PROGRAM

To start the dishwasher, press the START/PAUSEbutton (4)forafew

seconds, until the light of the first phase of the selected program starts to

flash (confirmation beep).

This phase, that updates itself during the cycle, is “indicative” since it is

influenced by the washing conditions such as dishwasher type and

quantity, entry temperature etc. For this reason it is normal to see the

updating during a program (increment and decrease of minutes)

specially in the passage from one phase to the other (for example, from

washing to rinse).

As the program runs, the PHASES/PROGRAMlights(8)will indicate

the current cycle status.

The light of the phase in progress will

flash, while the lights of the previous and

subsequent phases remain on.

N.B. during execution of programs which

do not include a prewash, the first

PHASES/PROGRAMlight (8)will remain

off.

Wash

Rinse

User instructions



END PROGRAM

When the program finishes, a buzzer sounds

briefly and all the PHASES/PROGRAM lights

(8) flash.

Press any of the SELECTION PROGRAMS buttons (2), stops the light

flashins, and the dishwasher is now ready to perform a new cycle;

opening and shutting the door or switching the appliance off and on has

the same effect.

INTERRUPTION OF A PROGRAM

In order to interrupt a running program it is necessary:

•press the

START/PAUSE button (4), the light of the current phase

goes out;

•keep the button pressed until the PHASES/PROGRAM lights (8)

come on (confirmation buzzer).

TO CHANGE A PROGRAM

To change the running program it is necessary:

•to interrupt the running program (see “INTERRUPTION OF A PROGRAM”);

•select the new program;

•to press again the START/PAUSE button (4) to make start the new

program.

User instructions



ANNULLING A PROGRAM

To annul the program in progress, it must first be interrupted (see

“INTERRUPTION OF A PROGRAM”).

Now press buttons P1+P2 simultaneously and

the first three program lights will come on.

In case that the door is opened during the operation, to the next door

closing it is going to be necessary to start the program as shown in

paragraph “START PROGRAM”. The program will resume from the point in

which it was interrupted.

In case that the tub temperature is higher than 50°C the program

will start about 30 seconds later.

The washing cycle will not take place if the dishwasher door is left open

or not properly closed.

DELAY PROGRAM (on some models only)

(available in all programs except the soak program)

The PROGRAM DELAY button (3) can be pressed to delay the start of

the washing program by 3, 6or 9 hours. This function allows you to set

the dishwasher to work at your preferred time of day.

After selecting the delay, start the program (see relative section).

The appliance will prewash the dishes, after which the "program delay"

set previously will come into effect (the light corresponding to 3, 6 or 9

hours flashes).

To reset or change the delay once the program has started:

•press the

START/PAUSE button (4)for a few seconds, until the

PHASES/PROGRAMlights (8) come on;

•press the

DELAY PROGRAMbutton (3) several times“until the

program delay” returns to zero (all the lights indicating the delay go

out);

•press the

START/PAUSE button (4)to start the new program.

User instructions



To set the delay once the program has started, proceed as follows.

If the program you wish to carry out is the same as the one already

in progress:

•press the

START/PAUSE button (4) for a few seconds, until the

PHASES/PROGRAM lights (8) come on;

•annul the program in progress (see relative section) and wait for the

cycle to come to an end;

•select the program again;

•select the delay required;

•press the

START/PAUSE button (4) to start the new program.

If the program you wish to carry out is different from the one

already in progress:

•press the

START/PAUSE button (4) for a few seconds, until the

PHASES/PROGRAM lights (8) come on;

•change the program;

•select the delay required;

•press the

START/PAUSE button (4) to start the new program. The

dishwahser will pump out the water and restart with the delay set

and the new program.

User instructions



TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

•Always try to run the dishwasher fully loaded.

•Do not wash the dishes in running water.

•Use the washing program that is most appropriate for each type of

load.

•Do not carry out any preliminary rinsing.

•If available, connect the dishwasher to a hot water supply up to

60°C.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT

THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the

environment. To avoid using excessive amounts of detergent and to

save on electricity, observe the following:

•separate the more delicate items from dishes that are more

resistant to aggressive detergents and high temperatures;

•do not pour the detergent directly on the dishes.

REMOVING THE DISHES

At the end of the washing program, wait at least 20 minutes before

removing the dishes, to allow them to cool down. To prevent any water

droplets on the upper basket from falling on the dishes in the lower

basket, it is advisable to unload the lower basket first, and then the

upper basket.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavavajillas de Smeg

Smeg

Smeg Universale LVS533PXIN Manual de usuario

Smeg

Smeg LVS262DSX Manual de usuario

Smeg

Smeg LVS1249B Manual de usuario

Smeg

Smeg KSB801 Instrucciones de operación

Smeg

Smeg ST2FABR2 Manual de usuario

Smeg

Smeg DIL45 Manual de usuario

Smeg

Smeg PL364CX Manual de usuario

Smeg

Smeg DF410BL1 Manual de usuario

Smeg

Smeg Dishwasher 85028 Manual de usuario

Smeg

Smeg ST331L Manual de usuario

Smeg

Smeg 3LBA500 Manual de usuario

Smeg

Smeg Dishwasher Manual de usuario

Smeg

Smeg ST0904 Manual de usuario

Smeg

Smeg PL8210X-1 Manual de usuario

Smeg

Smeg LBST70M Manual de usuario

Smeg

Smeg DI361C Manual de usuario

Smeg

Smeg Dishwasher DWI710 Manual de usuario

Smeg

Smeg Classica Aesthetic STX325BLLC Manual de usuario

Smeg

Smeg STA8639L Manual de usuario

Smeg

Smeg 19590 0434 Manual de usuario

Smeg

Smeg LSP1453B Manual de usuario

Smeg

Smeg PL60XME Manual de usuario

Smeg

Smeg STX1-5 Manual de usuario

Smeg

Smeg HTY511DSH Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
