Smeg DD612SC Manual de usuario

INSTRUCTION MANUAL

Contents



1. Description of the controls________________________________14

2. Troubleshooting _______________________________________21

Thank you for choosing one of our products.

You are advised to read this manual carefully; it contains all the

information you need about the right conditions for the proper, safe use

of your dishwasher.

The individual sections are laid out to provide you with a step-by-step

guide to all your appliance's functions; the texts are easy to understand

and are complete with detailed illustrations.

This user-friendly manual will provide answers to all your questions

about use of the dishwasher.

For any other information about use and maintenance of the dishwasher,

read the enclosed manual carefully.

USER INSTRUCTIONS: useful information is provided for the use of the

washing programs and all the dishwasher's functions.

User instructions



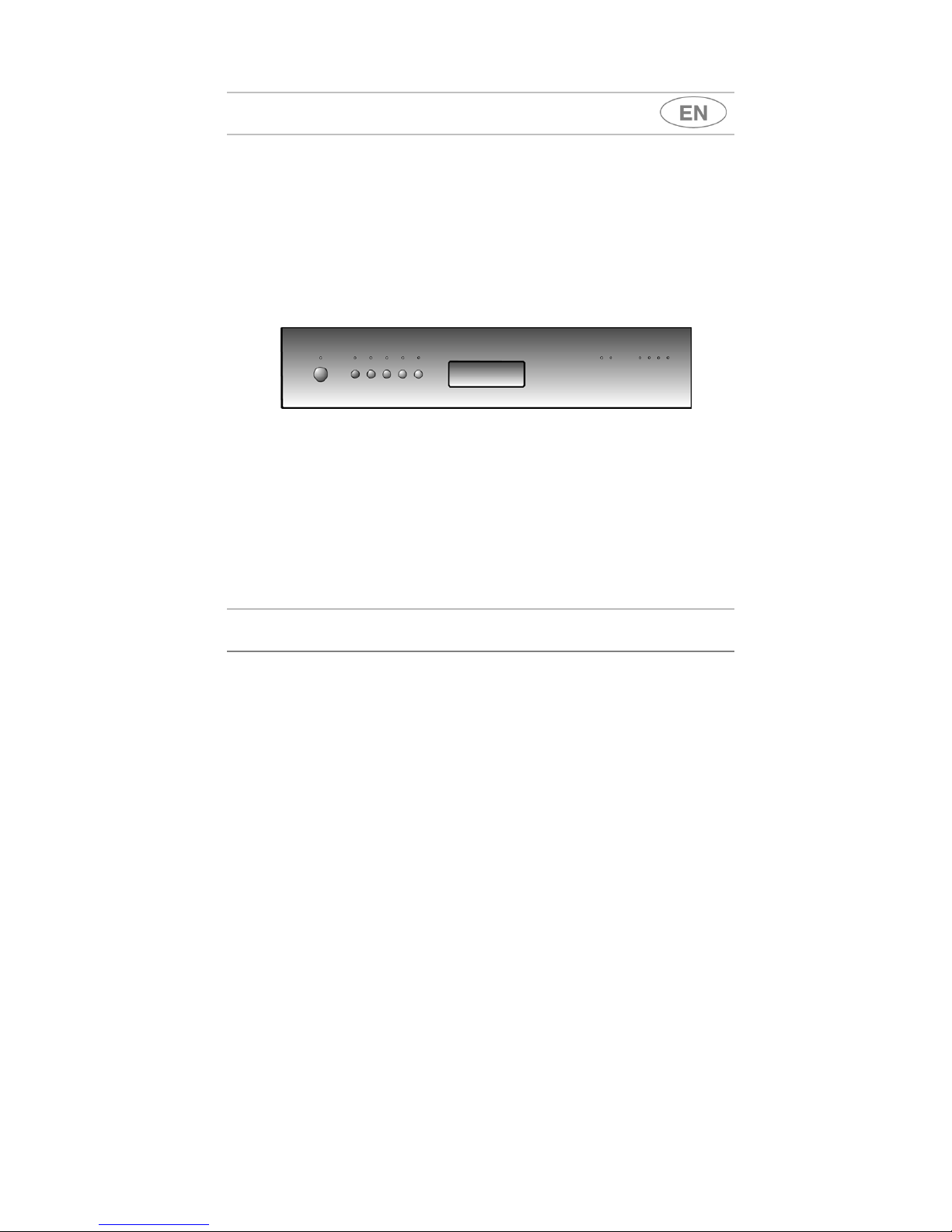

1. Description of the controls

1.1 Front panel

All the dishwasher control are grouped on the front panel.

1ON/OFF BUTTON

2SELECTION PROGRAMS BUTTONS (P1...P5)

3POWER ON LIGHT

4PROGRAMS LIGHTS

5NO SALT LIGHT (depending on the models)

6NO RINSE AID LIGHT (depending on the models)

7PHASES/PROGRAM LIGHTS

8RECESSED DOOR HANDLE

User instructions



DURATION CONSUMPTION

PROGRAM SELECTION TYPE AND GRADE DIRT PROGRESS

PROGRAM MINUTES

(2)

WATER

LITRES (1)

POWER

KWh (2)

SOAK

PANS AND DISHES

IN WAITING OF

COMPLETING

THE LOAD

Cold prewash 15' 60,03

LIGHT DISHES

NOT VERY DIRTY

Wash at 45°C

Cold rinse

Rinse at 68°C

Dry

70' 121,00

BIO

(*)

PANS AND DISHES

NOT VERY DIRTY BUT

WITH DRY RESIDUALS

Cold prewash

Wash at 50°C

Cold rinse

Rinse at 65°C

Dry

170' 171,05

NORMAL

PANS AND DISHES

DIRTY AND WITH

DRY RESIDUALS

Cold prewash

Wash at 65°C

Cold rinse

Rinse at 68°C

Dry

90' 17 1,30

SUPER

PANS AND DISHES

VERY DIRTY AND

WITH DRY RESIDUALS

Prewash at 45°C

Wash at 70°C

2 cold rinses

Rinse at 70°C

Dry

110' 201,60

Only run the soak program with half loads.

(*) Reference program as per EN 50242 standard.

(1) Average power consumption with the softener set on level 2.

(2) The cycle duration and power consumption may vary according to the water and room

temperatures, and the type and amount of dishes.

The washing cycle will not take place if the dishwasher door is left open

or not properly closed.

User instructions



1.2 Washing programs

The dishwasher is equipped with a control panel, described in chapter

"1. Description of the controls", from which it is possible to carry out all

the power switch-on, switch-off and programming operations.

Before starting a washing program make sure that:

•The water supply tap is open.

•The correct amount of detergent has been added to the

dispenser.

•The baskets have been correctly loaded.

•The spray arms are able to rotate freely and without

obstruction.

•The dishwasher door is securely closed.

LIGHTING

When the ON/OFF button (1) is pressed, the dishwasher switches on

and the light (3) comes on. About 2 seconds later, the

PHASES/PROGRAM lights (7) will come on.

PROGRAMMING

In this model of dishwasher, all programming procedures can only be

carried out with the door closed. As long as the door is open, the

PROGRAMS lights (4) and PHASES/PROGRAM lights (7) will remain

off.

SELECTION PROGRAM

The program selection is possible

through the relative buttons (2).

When the button relating to the program required is pressed, the relative

light will come on to confirm the operation.

User instructions



START PROGRAM

To start the dishwasher, press the button of the PROGRAM (2) required

for a few seconds, until the light of the first phase of the selected

program starts to flash (confirmation beep).

As the program runs, the PHASES/PROGRAM lights (7) will indicate the

current cycle status.

The light of the phase in progress will

flash, while the lights of the previous and

subsequent phases remain on.

N.B. during execution of programs which

do not include a prewash, the first

PHASES/PROGRAM light (7) will remain

off.

END PROGRAM

When the program finishes, a buzzer sounds

briefly and all the PHASES/PROGRAM lights

(7) flash.

Press any of the SELECTION PROGRAMS buttons (2), stops the light

flashins, and the dishwasher is now ready to perform a new cycle;

opening and shutting the door or switching the appliance off and on has

the same effect.

Rinse

User instructions



INTERRUPTION OF A PROGRAM

In order to interrupt a running program it is necessary:

•press one of the SELECTION PROGRAMS buttons (2), the light of

the current phase will go out;

•keep the button pressed until the PHASES/PROGRAM lights (7)

come on (confirmation buzzer);

•start the program (see “START PROGRAM”).

TO CHANGE A PROGRAM

To change the running program it is necessary:

•to interrupt the running program (see “INTERRUPTION OF A PROGRAM”);

•select the new program;

•start the program (see “START PROGRAM”).

ANNULLING A PROGRAM

To annul the program in progress, it must first be interrupted (see

“INTERRUPTION OF A PROGRAM”).

Now press buttons P1+P2 simultaneously and

the first three program lights will come on.

In case that the door is opened during the operation, to the next door

closing it is going to be necessary to start the program as shown in

paragraph “START PROGRAM”. The program will resume from the point in

which it was interrupted.

In case that the tub temperature is higher than 50°C the program

will start about 30 seconds later.

User instructions



TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT

•Always try to run the dishwasher fully loaded.

•Do not wash the dishes in running water.

•Use the washing program that is most appropriate for each type of

load.

•Do not carry out any preliminary rinsing.

•If available, connect the dishwasher to a hot water supply up to

60°C.

TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT

THE ENVIRONMENT

The phosphates contained in dishwasher detergents are harmful to the

environment. To avoid using excessive amounts of detergent and to

save on electricity, observe the following:

•separate the more delicate items from dishes that are more

resistant to aggressive detergents and high temperatures;

•do not pour the detergent directly on the dishes.

REMOVING THE DISHES

At the end of the washing program, wait at least 20 minutes before

removing the dishes, to allow them to cool down. To prevent any water

droplets on the upper basket from falling on the dishes in the lower

basket, it is advisable to unload the lower basket first, and then the

upper basket.

User instructions



ADJUSTING THE WATER SOFTENING SYSTEM

The dishwasher is equipped with an device for the user to adjust the

water softening system according to the hardness of the water supply.

According to the machine model, the selector which acts on the

adjustment may be located:

•inside the plastic locking ring located on the right-hand side, inside

the dishwasher;

•inside the water softener, just below the cap.

Both allow for adjustment to 5settings:

WATER HARDNESS TABLE

WATER HARDNESS

German Degrees (°dH) French Degrees (°dF) SETTING

0 - 4 0 - 7 Setting N. 1 NO SALT

5 - 15 8 - 25 Setting N. 1

16 - 23 26 - 40 Setting N. 2

24 - 31 41 - 60 Setting N. 3

32 - 47 61 - 80 Setting N. 4

48 - 58 81 - 100 Setting N. 5

Contact your local water board for information on the hardness of your

water supply.

User instructions



2. Troubleshooting

In case of a malfunction, the dishwasher will identify the program by

switching on a combination of lights.

When an alrm is present, all the

PROGRAM lights (4) come on, while the

PHASES/PROGRAM lights (7) identify

the error code:

CODE PHASES LIGHTS DESCRIPTION

E1 The anti-flooding system (if installed) has been

tripped.

E2 The system which limits the water level inside the

dishwasher (safety unit) has been tripped.

E3 The appliance cannot heat the water.

E4 Temperature sensor disconnected.

E5 The appliance is not able to take in water.

E6 The appliance is not able to pump out the water

from the tank.

The appliance is not able to measure the amount

of water loaded accurately (on models with turbine

flow-regulator only).

E8 Anomaly in the system which distributes water to

the basket (where installed).

The maximum level of water for loading has been

exceeded (on models with turbine flow-regulator

only).
