Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE _______________40

2. INSTALLATION OF THE APPLIANCE ________________________42

3. ADAPTATION TO DIFFERENT TYPES OF GAS ________________45

4. FINAL OPERATIONS______________________________________47

5. DESCRIPTION OF CONTROLS _____________________________49

6. USE OF THE COOKING HOB_______________________________55

7. USE OF THE OVENS _____________________________________57

8. ACCESSORIES __________________________________________58

9. COOKING HINTS_________________________________________60

10. CLEANING AND MAINTENANCE ____________________________68

11. EXTRAORDINARY MAINTENANCE __________________________72

THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE

IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.

INSTRUCTIONS FOR THE INSTALLER: these are for the qualified

technician who must carry out a suitable check of the gas system,

install the appliance, set it functioning and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the commands and the correct procedures for cleaning

and maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE

READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE

USING THE COOKER. ALSO KEEP THE SERIES OF NOZZLES SUPPLIED.

INSTALLATION MUST BE CARRIED OUT BY QUALIFIED PERSONNEL IN

ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS

INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT

REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY

OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP OF FOOD.

ALL OTHER USES ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.

SHOULD THE APPLIANCE NOT FUNCTION, SWITCH OFF THE POWER

SUPPLY TO THE APPLIANCE AND CALL THE NEAREST TECHNICAL

ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION

(OFF) WHEN YOU FINISH USING THE HOB.

NEVER PUT INFLAMMABLE OBJECTS INTO AN OVEN: IF THEY CATCH FIRE

THEY COULD CAUSE A FIRE IN THE HOME.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND

BRAND NAME IS POSITIONED VISIBLY IN THE STORAGE COMPARTMENT.

THE PLATE MUST NOT BE REMOVED.

Introduction

DURING USE THE APPLIANCE BECOMES VERY HO

.TAKECARENOTTO

TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

DO NOT INSTALL THIS APPLIANCE ON A RAISED PLATFORM

DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS

ON THE COOKING HOB GRIDS.

DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE

OUTER PERIMETER OF THE HOB.

THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW

CHILDREN TO GO NEAR OR PLAY WITH IT.

REPLACED APPLIANCES MUST BE TAKEN TO A SPECIAL GARBAGE

COLLECTION CENTRE.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2. INSTALLATION OFTHE APPLIANCE

It is the law that all gas appliances are installed by competent persons.

Corgi gas installers are approved to work to safe and satisfactory

standards. All gas installation, servicing and repair work must be in

accordance with the gas safety regulations 1984 (installation and use) as

amended 1990.

It can be placed against walls higher than the hob, at a distance of at

least 50 mm from the side of the appliance, as shown in the drawings A

and B relating to the installation classes. Wall units or extractor hoods

located above the hob must be at least 750 mm away from it.

A B

SLOT IN FREE STANDING

2.1 Positioning and levelling of the appliance

This appliance is fitted with 4 castors for easy positioning. To block the

appliance in tis final position, extract the feet on the front and screw the

corresponding castors in.

CAUTION: delicate floors could be damaged by the castors; in this case,

lift the appliance with a mechanical means.

2.2 Electrical connection

Make sure that the power line voltage matches the specifications

indicated on the rating plate located inside the storage compartment.

This rating plate must never be removed.

The connection to the mains shall be done conforming to the regulations

in force. Check that the power line is adequately grounded. Do not use

reducers, adapters or shunts. On the power line, install an omnipolar cut-

off device with contact cut-off distance greater than or equal to 3 mm,

located in an easily accessible position near the unit.

Instructions for the installer

The connection terminals are

located at the rear of the

appliance. For electrical

connections see following

diagram. To access, remove

the rear cover.

For operation on 400-415V3N

∼

∼∼

∼

:use

an H05RR-F-type five-core cable (5 x

1.5 mm2).

For operation on 400-415V2N

∼

∼∼

∼

:use

an H05RR-F-type four-

orecable(4x

2.5 mm2).

For operation on 230-240V

∼

∼∼

∼

:use an

H05RR-F-type three-core cable (3 x 4

mm2).

The cable end to be connected to the

appliance must be provided with an

ground wire (yellow-green) at least 20

mm longer.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance.

Instructions for the installer

2.3 Ventilation requirements

The room containing the appliance should have an air supply in

accordance with B.S. 5440 part 2 1989.

1. All rooms require an opening window or equivalent, and some

rooms will require a permanent vent as well.

2. For room volumes up to 5 m3an air vent of 100 cm2is required.

3. If the room has a door that opens directly to the outside, and the

room exceeds 1 m3no air vent is required.

4. For room volumes between 5 m3and 10 m3an air vent of 50 cm2is

required.

5. If there are other fuel burning appliances in the same room B.S.

5440 part 2 1989 should be consulted to determine the air vent

requirements.

6. This appliance must not be installed in a bed sitting room of less

than 20 m3or in a bathroom or shower room.

Windows and permanent vents should therefore not be blocked or

removed without first consulting a Corgi gas installer.

Failure to install appliances correctly is dangerous and could lead

to prosecution.

2.4 Connecting to natural and LPG gas

(Please see connection diagram)

Make the connection to the appliance using flexible

bayonet style hose in accordance to B.S. 669. The

hose connection at the rear of the appliance has a

1/2" BSP internal thread. Please use seal Cbetween

the flexible connection Land the appliance supply

tube B. When making the connection, make sure that

no stress of any kind is applied to the cooker and that

the hose does not touch any sharp edges or come in

contact with the rear of the appliance.

If connecting to LPG the bayonet hose must have

red bands on it.

Instructions for the installer

3. ADAPTATIONTO DIFFERENTTYPES OF GAS

Before performing any cleaning or maintenance work, switch off the

power supply to the appliance.

The cooking hob of the cooker is preset for G20 natural gas at a

pressure of 20 mbar. In the case of functioning with other types of gas the

burner nozzles must be changed and the minimum flame adjusted on the

gas taps. Replace the burner nozzles as indicated in the table of the gas

to be used.

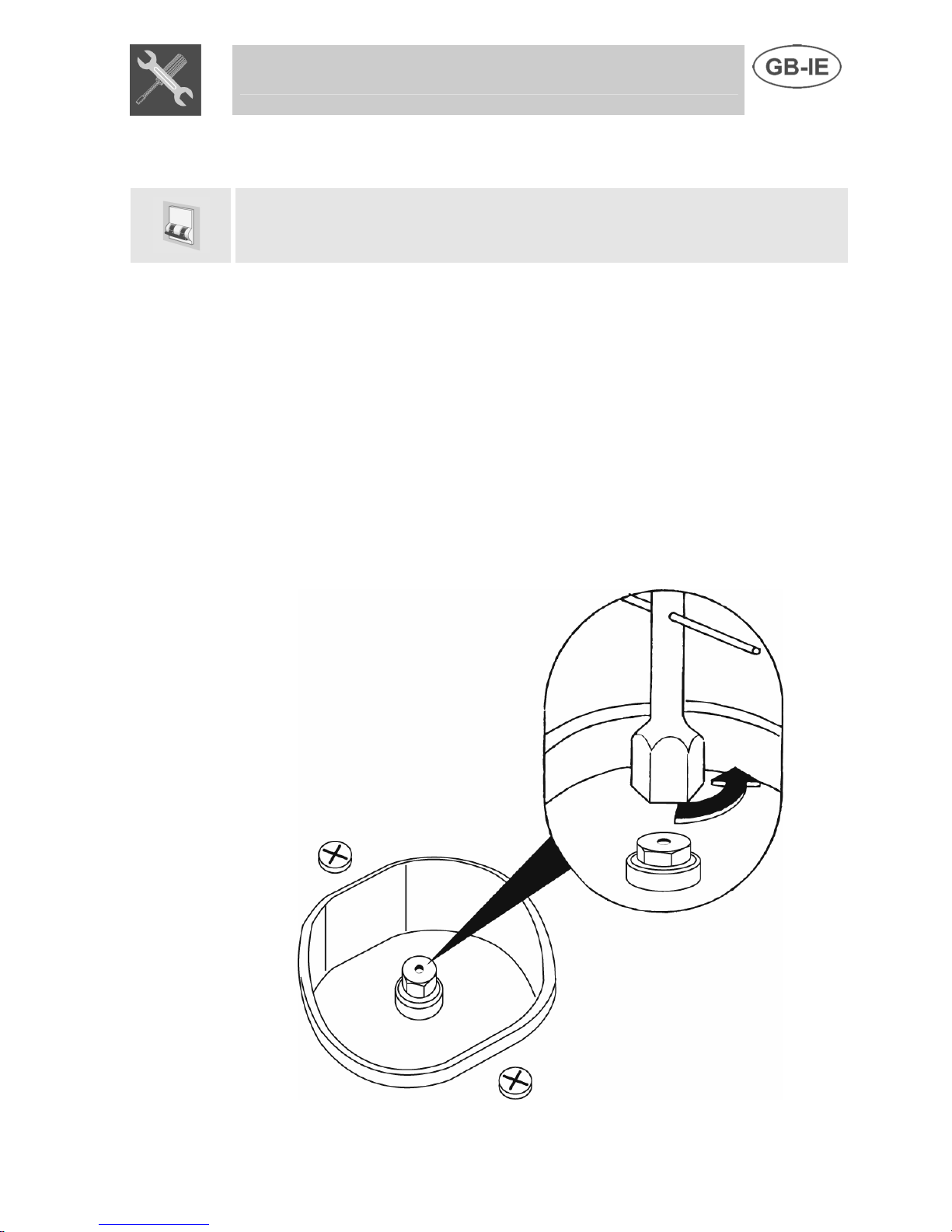

3.1 Changing nozzles

1. Extract the grids and remove all the caps and flame-spreader

crowns;

2. unscrewtheburnernozzleswitha7mmsocketwrench;

3. proceed with replacing the burner nozzles in accordance with the

table for the gas in question.

Instructions for the installer

3.2 Burner and nozzle characteristics table

Burner Rated

heating

capacity

(kW)

LPG – G30/G31 28/37 mbar

(drawing ref. X238)

Nozzle

diameter

1/100 mm

By-pass

1/100

Reduced

flowrate

(W)

Flowrate

g/h G30 Flowrate

g/h G31

Auxiliary 1.05 50 30 360 76 75

Semi rapid 1.8 65 33 450 131 129

Rapid 3.0 85 45 750 218 215

Fish Burner 1.9 68 45 800 138 136

Triple crown 3.3 91 68 1600 218 215

Burner Rated

heating

capacity

(kW)

NATURAL GAS – G20 20 mbar

Nozzle diameter

1/100 mm Drawing

Ref. Reduced flowrate

(W)

Auxiliary 1.05 72 (X) 360

Semi rapid 1.8 97 (Z) 450

Rapid 3.0 115 (Y) 750

Fish Burner 1.9 94 (X) 800

Triple crown 3.5 133 (S) 1600

3.3 Arrangement of burners on cooking hob

BURNERS

1 Auxiliary

2 Semi rapid

3 Rapid

4 Triple crown

5 Fish burner

Instructions for the installer

4. FINAL OPERATIONS

After replacing the nozzles, reposition the flame-spreader crowns, the

burner caps and the grids.

Following adjustment to a gas other than the preset one, replace the gas

adjustment label fixed to the appliance with the one corresponding to the

new gas. This label is in the packet together with the nozzles.

4.1 Adjustment of minimum for natural gas

Light the burner and turn it to the minimum

position . Extract the gas tap knob and turn the

adjustment screw at the side of the tap rod until

the correct minimum flame is achieved.

Replace the knob and check burner flame

stability: (rapidly turning the knob from maximum

to minimum position, the flame should not go

out). Repeat the operation on all the gas taps.

4.2 Regulation of minimum for LPG

For regulating the minimum with LPG, the screw at the side of the tap rod

must be turned clockwise all the way.

The bypass diameters for each individual burner are shown in paragraph

“3.2 Burner and nozzle characteristics table”. When adjustment is

complete, re-seal the by-passes using wax or an equivalent material.

Instructions for the installer

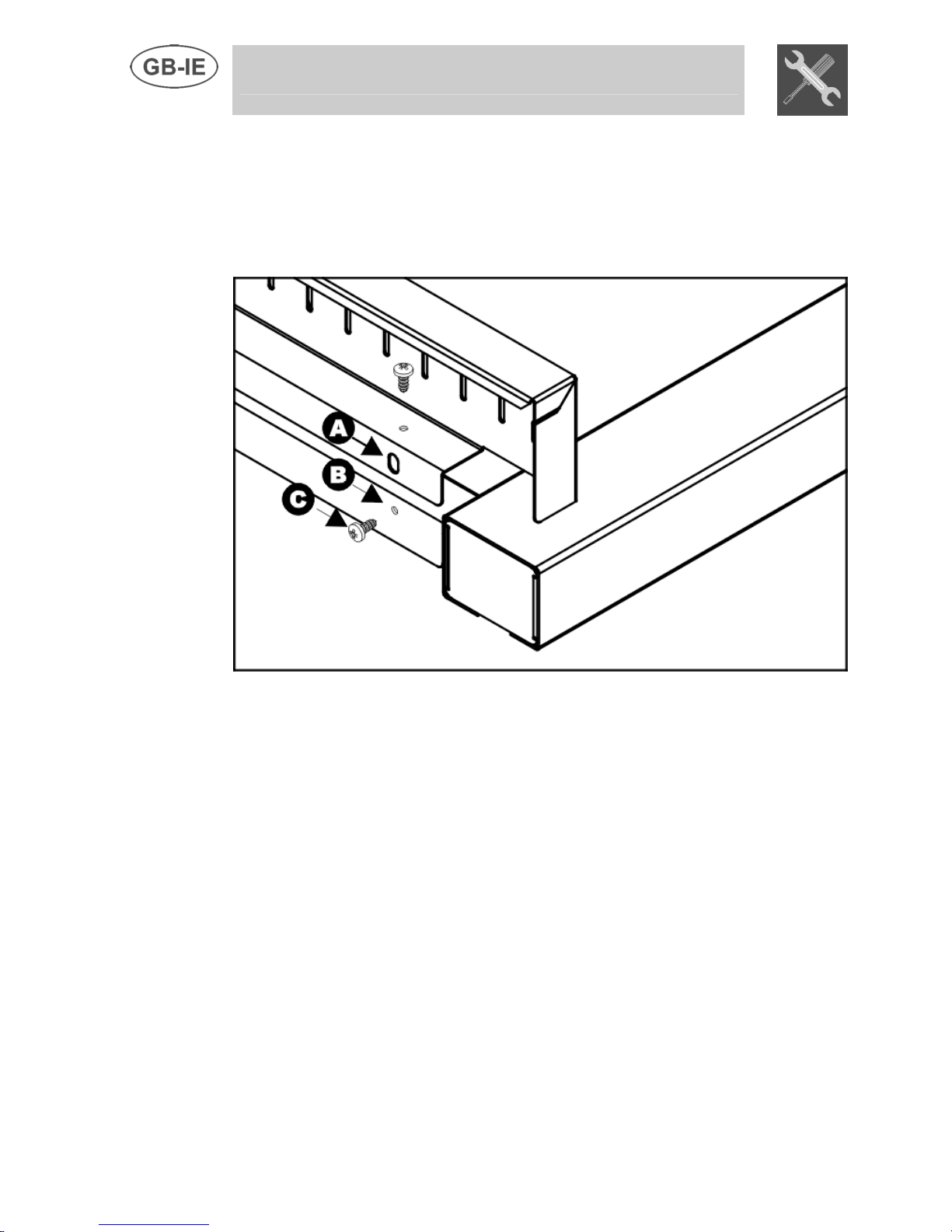

4.3 Mounting the rear top upstand

• Position the upstand above the top, taking care to align holes Awith

holes B.

• Secure the upstand to the top by tightening screws C.

Otros manuales para A3

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa de cocina de Smeg

Smeg

Smeg A3SX Manual de usuario

Smeg

Smeg HB96CXU3 Manual de usuario

Smeg

Smeg SIHP264S Manual de usuario

Smeg

Smeg PX1402AU Manual de usuario

Smeg

Smeg Built-in Electric Hob HBE64CAS Manual de usuario

Smeg

Smeg SIM3963D Manual de usuario

Smeg

Smeg SA312XA Manual de usuario

Smeg

Smeg SAI95 Manual de usuario

Smeg

Smeg SAR64X1 Manual de usuario

Smeg

Smeg SNL34AX1 Manual de usuario

Smeg

Smeg PGFU30X Manual de usuario

Smeg

Smeg PSA906-5 Manual de usuario

Smeg

Smeg SR764AOD Manual de usuario

Smeg

Smeg PGF95SCU3 Manual de usuario

Smeg

Smeg SA611XA Manual de usuario

Smeg

Smeg S2772TCU Manual de usuario

Smeg

Smeg NCT335EEU Manual de usuario

Smeg

Smeg PU75ES Manual de usuario

Smeg

Smeg NKT335EEC Manual de usuario

Smeg

Smeg SAI63 Manual de usuario

Smeg

Smeg 9FALOI1 Instrucciones de montaje

Smeg

Smeg SI4642B Manual de usuario

Smeg

Smeg SA711XA Manual de usuario

Smeg

Smeg PU64 Manual de usuario

Manuales populares de Placa de cocina de otras marcas

Bonnet

Bonnet OPTIMUM 700 Manual del propietario

Jenn-Air

Jenn-Air JGCP430 Manual de usuario

Frigidaire

Frigidaire FES367FCC Guía de inicio rápido

Ztove

Ztove EZ2 DUO Manual de usuario

Kleenmaid

Kleenmaid cooking GCTK9011 Guía de instalación

Casselin

Casselin CSASRE24 Manual de usuario

Jenn-Air

Jenn-Air JGC2536EB00 Manual de usuario

Waldorf

Waldorf RN8603E-B Manual de instrucciones

Whirlpool

Whirlpool SMP658CNEIXL Manual de usuario

Wolf

Wolf CI243C/B Manual de usuario

Fulgor Milano

Fulgor Milano F5PGK305S1 Manual de usuario

GE JP389 Manual de usuario

Wells

Wells WV-2HFG Manual de usuario

IKEA

IKEA Lagan HGA4K Manual de usuario

Samsung

Samsung NA36N9755 Manual de usuario

Miele

Miele KM 404 Manual de usuario

Lacor

Lacor 69562 Hoja de especificaciones

Keating Of Chicago

Keating Of Chicago MG-2 Manual de usuario
