OPERATION MANUAL

SMC Corporation

SI unit

EX120-SDN1

Doc.No. EX## -OME0015

EX121-SDN1

EX122-SDN1

EX124D/U-SDN1

Contents

1.Safety instructions ------------------------------------------------------ P3

2.Specifications

2-1.General specifications ------------------------------------------------------ P4

2-2.Electrical and network specifications ------------------------------------------------------ P4

2-3.Applicable solenoid valve series ------------------------------------------------------ P5

3.Wiring and setting

3-1.Connection type ------------------------------------------------------ P5

3-2.Address setting ------------------------------------------------------ P8

4.LED indicator and Physical dimensions

4-1.LED indication ------------------------------------------------------ P9

4-2.Physical dimensions ------------------------------------------------------ P9

5.EDS(Electronic Data Sheet) File ------------------------------------------------------ P12

6.Trouble Shooting ------------------------------------------------------ P13

SMC CORPORATION

Doc.No.EX##-OME0015

- 2 -

SMC CORPORATION

Doc.No.EX##-OME0015

1.Safety instructions

These safety instructions are intended to prevent a hazardous situation and/or equipment damage. These instructions indicate

the level of potential hazard by label of "CAUTION" , "WARNING".

To ensure safety, be sure to observe ISO, JIS and other safety practices.

CAUTION: Operator error could result in injury or equipment damage.

WARNING: Operator error could result in serious injury or loss of life.

CAUTION

Thoroughly read this manual and operate the product within the specified range. Follow the instructions.

Do not drop or impart any impact to the product.

Use within specified voltage range. Use outside of specified voltage will cause malfunction, damage of unit, electric shock, and

fire.

Do not touch the terminal or internal circuit board while they are energized. It may cause malfunction, damage to unit, and

electric shock.

Use within operating ambient temperature. Do not use where temperature can rapidly change even thought it is within the

specifications.

Foreign objects should be prevented from entering the product. Contamination by foreign objects, such as wire chips will cause

fire, breakage, and malfunction.

Use within the operating environment of the protection structure. In case of IP20, avoid use in the place where water and oil

scatter. To realize IP65, install manifold properly and give some prevention against splash of liguid to electrical entry.

Carry out periodical checks to confirm correct operation. Safety may not be maintained by unintentional malfunction or incorrect

operation. Design must consider the space necessary for maintenance.

As the contents of this manual is sometimes changed without the previous announcement, understand them beforehand,

please.

SI unit is not explosion proof. Operation in explosive enviromment may cause explosion accident.

WARNING

The product specified here is designed to be used in standard factory automation equipment. Do not use in machinery and/or

equipment where operators may be injured, and malfunction or failure may cause loss of life.

Do not disassemble to repair or modify the product.

Connection

CAUTION

Power of the product and all other equipments should be turned off while wiring.

Tighten the wiring with connector and tarminal screw completely. Short circuit, fire, and malfunction will be caused if connector

and tarminal screw are not tightened enough.

Avoid incorrect wiring. It may damage the product and/or other equipments.

Ensure that the FG terminal is correctly grounded.

Power with correct capacity should be prepared by considering the in-rush current when starting.

Influence of noise should be avoided for the wiring. Wiring should be separated from power cables and high voltage cables.

Ensure that the power is within the specified voltage range.

Ensure that the cable is capable of supporting the solenoid valve and SI unit in terms of rating.

Applicable solenoid valves

CAUTION

SMC offers no guarantee against malfunction and damage of unit when valves not described to “2-3.Applicable solenoid

valve series” and loads which is not valve are connected.

- 3 -

- 4 -

2-1. General specifications

Item Specifications

Model EX120

-SDN1

EX121

-SDN1

EX122

-SDN1

EX124D

-SDN1

EX124U

-SDN1

Operating ambient temp. 0 to +55(with 8 points of valve ON)

0 to +50℃(with 16 points of valve ON)

Operating ambient humidity 35 to 85%RH(No dew condensation)

Storage ambient temp. -20 to +60℃

Vibration proof 50m/s2 (comply with JIS C 0911)

Impact proof 100m/s2 (comply with JIS C 0912)

Noise immunity Normal mode ±1500 V Pulse 1µs

Common mode ±1500 V Pulse 1µs

Radiation 1000 V ±Pulse 1µs

Withstand voltage AC1000V for 1 min. between FG and external

terminal package.

Insulation resistance DC500V, 2MΩbetween FG and external terminal

package.

Operating environment No corrosive gas and no dust

Weight 110g

or less

140g

or less

130g

or less

240g

or less

Protection class IP20 IP65

2-2. Electrical and network specifications

Item Specifications

Applicable system DeviceNet Release 2.0

Power supply voltage for communication DC11V to DC25V

(supplied by communication connector)

Power supply voltage for solenoid valve DC24V +10% -5%

Communication and

Internal power supply

90mA or less (DC24V)Consumption

current

Power supply for

Solenoid valve

1.5A or less (DC24V)

Output style NPN output (Open collector)

Connected load DC24V, Solenoid valve with lamp-surge voltage

protection circuit of 2.1W or less.

(made by SMC)

Solenoid valve

Connection

spec.

Insulation type Opt-coupler insulation type

Residual voltage 0.4V DC or less

Applicable DeviceNet VolumeⅠ- Release 1.2

VolumeⅡ- Release 1.1

MAC ID setting range 0 to 63 (Set by Dip switch)

Baud Rate (Transmission speed) 500kbps, 250kbps, 125kbps (Set by Dip switch)

Slave (branch station) type Group 2 only server

Connection type T branch type, Multi drop type

Device type 16

Product code 288

Revision Referred to EDS file.

Vendor ID 7

Network connection spec.

Corresponding message Polled command (I/O message ), Explicit message

2. Specifications SMC CORPORATION

Doc.No.EX##-OME0015

- 5 -

3. Wiring and Setting

2-3. Applicable solenoid valve series

SI unit Valve series

EX120 VQ1000, VQ2000

EX121 VQ1000, VQ2000, SX3000, SX5000

EX122 SY3000, SY5000

EX124U/D VQ2000, VQ4000, VQ5000

Terminal resistance

Node Node

NodeNode

Node

Branch

line

Branch

line

Branch

line

T branch

Branch line

branch

Main line

Multi branch

Terminal resistance

Communication

distance Baud rate Total length of

trunk

Length of

branch line

Total length of

branch line

500 kbps 100m or less 39m or less

250 kbps 250m or less 78m or less

Thick cable

125 kbps 500m or less

6m or less

156m or less

Thin cable Common 100m or less ――――――

Terminal resistance 121 ohm (1/2W)

Length of cable

3-1.Connection type

DeviceNet can be connected by T branch, Multi branch, Branch line branch and Multi drop. Total

extension length of trunk and Branch line is different for different Baud rate and thickness of

communication cable.

SI unit I/O data (Receiving and sending data of polled command)

Item Output(Poll request) Input(Poll response)

Occupied byte 2 byte

(Solenoid valve output)

2 byte

Address +0 Output No. 0 to 7Sending/

receiving data Address +1 Output No. 8 to 15

Bit of each output data and corresponding solenoid valve no.

Offset MSB LSB

0 No.7 No.6 No.5 No.4 No.3 No.2 No.1 No.0

1 No.15 No.14 No.13 No.12 No.11 No.10 No.9 No.8

SMC CORPORATION

Doc.No.EX##-OME0015

*) Mapping method of sending / receiving data is different by PLC.

For further information, refer to the manual for PLC master (scanner)

- 6 -

Cable specification

CAUTION

For Multi drop connection, prepare plug connector for T branch separately.

(Example, TMSTBP 2.5...- STF -5.08 made by Phoenix Contact Corp.)

Use DeviceNet special cable for communication cable.

Be sure to connect DeviceNet special terminal resistor with both ends of trunk.

SMC CORPORATION

Doc.No.EX##-OME0015

Thickcable Thincable

Item Communication

Signal Power upply Communication

Signal Power supply

Conductor

cross section 0.82 mm21.65 mm20.20 mm20.33 mm2

Colors Blue, White Red, Black Blue, White Red, Black

Impedance 120Ω±

10%(1MHz) ―― 120Ω±

10%(1MHz) ――

Propagation

delay 1.36ns / ft(max) ―― 1.36ns / ft(max) ――

Attenuation

rate

500k：0.25dB / ft

125k：0.13dB / ft

1.00M：0.40dB / ft

――

500k：0.50dB / ft

125k：0.29dB / ft

1.00M：0.70dB / ft

――

Conductor

resistance

6.9Ω/

1000ft(max)

3.6Ω/

1000ft

(max)

28Ω/

1000ft(max)

17.5Ω/

1000ft(max)

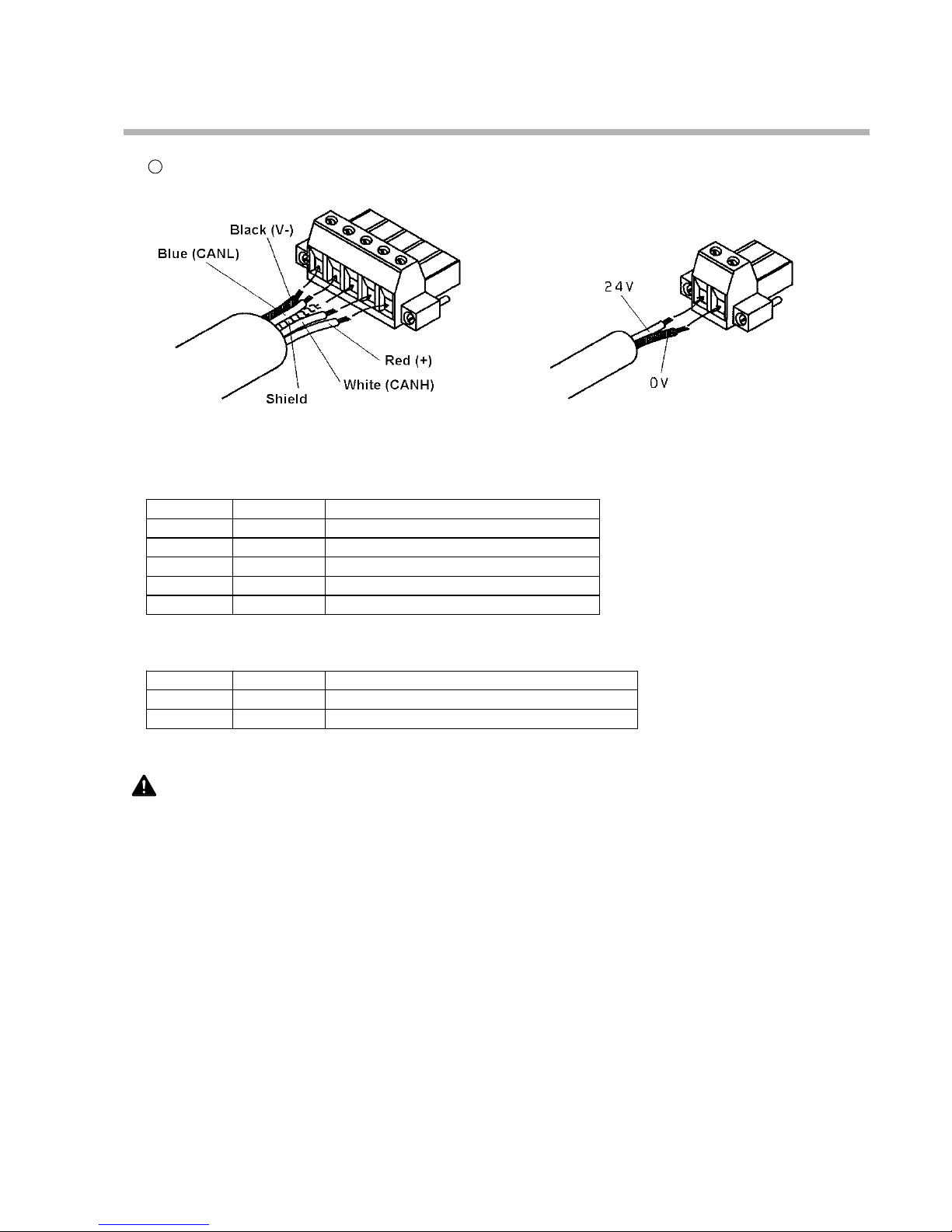

Wiring of cable for solenoid valve power supply and communication

Communication connector for DeviceNet

Terminal Wire color Connected to

V- Black (-) side of power supply cable

CANL Blue Low side of communication cable

FG - Ground / Shield

CANH White High side of communication cable

V+ Red (+) side of power supply cable

Power supply connector for solenoid valve

Terminal Wire color Connected to

24V - (+) side of solenoid valve source supply

0V - (-) side of Solenoid valve source supply

CAUTION

• Before wiring, be sure to turn power supply off.

• Screw for connectors is M3. Tighten them properly by torque of 0.5 to 0.6 [N·m].

• SI unit isn’t available for monitoring of power supply for solenoid valve.

• Do not put cable specified by DeviceNet with/near high voltage line or strong

electric line such as driving line.

- 7 -

SMC CORPORATION

Doc.No.EX##-OME0015

3-2. Address setting

Before setting of address by DIP switch, turn power supply for communication cable in SI

unit “OFF”.

Setting (binary) of following items is available by DIP switch installed to cover.

1) Node address (00 to 63)

2) Communication speed (125kbps, 250kbps, 500kbps)

- 8 -

SMC CORPORATION

Doc.No.EX##-OME0015

SW1 SW2 SW3 SW4 SW5 SW6

Node

address 12481632

#0 000000

#1 100000

#2 010000

#62 011111

#63 111111

Setting Max. transmission distance (m)

Length of trunk

SW7 SW8

Communication

speed (kbps) Thick

cable

Think

cable

Length

branch

line

Total length

branch line

0 0 125 500 156

1 0 250 250 78

0 1 500 125

100 6

1 1 Not used Not used

CAUTION

• When shipped, node address of 63 and communication speed of 125kbps are set in

advance.

• When communication error occurs, output condition is cleared.

4.LED indicator and Physical dimensions

- 9 -

Indication Contents

PWR Green Lights up when power for DeviceNet line is supplied.

Lights off SI unit isn’t on line or power supply for communication

line isn’t turned on.

Green

flashing Waiting for connection (ON line)

Green

lights up Connection completed (ON line)

Red

flashing Connection time out (Minor communication error)

MOD / NET

Red

lights up

MAC ID duplication error or BUS OFF error

(Major communication error)

4-1 LED indication

EX120-SDN1

EX121-SDN1

EX122-SDN1

EX124D-SDN1

EX124U-SDN1

4-2 Physical dimensions

SI unit (EX120-SDN1)

SMC CORPORATION

Doc.No.EX##-OME0015

STATION

ADDRESS

TRANSMIT

SPEED

125K

250K

500K

SWITCH

SETTINGS

SERIAL UNIT

SMC

28.8

10.2

- 10 -

SI unit (EX122-SDN1)

SI unit (EX121-SDN1)

SMC CORPORATION

Doc.No.EX##-OME0015

STATION

ADDRESS

TRANSMIT

SPEED

125K

250K

500K

SWITCH

SETTINGS

Flat cable length about 70mm

SERIAL UNIT

SMC

60.8

66.1

28.8

10.2

5.4

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de SMC Networks

SMC Networks

SMC Networks EliteConnect SMC2582W-B Manual de usuario

SMC Networks

SMC Networks ELITECONNECT SMC2502W Manual de usuario

SMC Networks

SMC Networks ELITECONNECT SMC2502W Manual de usuario

SMC Networks

SMC Networks 2585W-G FICHE Guía de instalación

SMC Networks

SMC Networks 2682W FICHE Manual de usuario

SMC Networks

SMC Networks -12MCC FICHE Manual de usuario

SMC Networks

SMC Networks EliteConnect SMC2582W-B Manual de usuario

SMC Networks

SMC Networks EZ Connect TURBO SMC2482W Manual de usuario

SMC Networks

SMC Networks SMCWTK-G Manual de usuario

SMC Networks

SMC Networks TigerAccess SMC7500A/VCP Manual de usuario

SMC Networks

SMC Networks EX500 Series Manual del propietario

SMC Networks

SMC Networks ELITECONNECT SMC2502W Manual de usuario

SMC Networks

SMC Networks TigerStore SMCNAS02 Manual de usuario

SMC Networks

SMC Networks SMC91C95 Manual de usuario

SMC Networks

SMC Networks EZ6505TX - annexe 1 Manual de usuario

SMC Networks

SMC Networks TigerAccess SMC7500A/VCP Manual de usuario

SMC Networks

SMC Networks EXW1 Series Manual de usuario

SMC Networks

SMC Networks EZ Switch SMCFS801P Manual de usuario

SMC Networks

SMC Networks EZ Connect TURBO SMC2482W Manual de usuario

SMC Networks

SMC Networks ElliteConnect 2.4GHz/5GHz Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
