SmarTrike 607 Manual de usuario
USA: 1-855-SMTRKUS
(1-855-768-7587)
UK: 0845 5046410
9:30am – 5:00pm Monday to Friday
Not Bank Holidays or weekends.
for assistance and advice.
Thank you for buying smarTrike,
If you have any assembly issues or are missing
a part, please call us for assistance. Our
smarTrike® assembly experts will assist you.
DO NOT RETURN TO THE STORE
If you are experiencing problems with this
product, please call our HELP LINE.
607/609
LOOK US UP ON YOUTUBE:
www.youtube.com/user/SmartTrikeOcial
www.smarTrike.com
A B
E F G
JI
H
D
C
-1-
1
2
K L N OM
20010001607 20010002607 X2 20010017607
20010006607
20010018607
20010007607 20010008607 20010009607
20010012607 X4 20010013607 X2 20010014607 20010015607 20010016607
20010010607 20010011607
-2-
Step 1 Parts needed to complete this section
-
a
1a
-
a
1b
-
a
1c
BKA
Place the washer (K)
on the back axle.
Place the washer (K)
on the back axle.
Connect each back
wheel (B) to back axle
-3-
Step 2 Parts needed to complete this section
the hole (as shown)
-
a
2a
Firmly insert black plug (L) into axle
opening, as shown. Align spring lock with
dropout hole in axle and push firmly into
position, until piece "clicks" into place.
ML
-
a
2b
By using the Phillips
screwdriver (M), screw
into part B. Firmly tighten
clockwise.
-4-
Step 3 Parts needed to complete this section
E
DC
Insert part D into part C all the
way, until the spring meets the
retaining head (as shown)
3b
Insert part D into the body
all the way through the hole
(as shown)
3a
-5-
Step 4
Push the apple firmly down to insert,
slightly turn until you hear a "click". Make
sure white connector is not visible.
4c
CLICK!
4a
CLICK!
2
1
Push the red button and simultaneously
turn the wheel 180º until you hear a 'click'.
4b
CLICK!
Push down on the handlebar. There should be
no space between the wheel unit and the body
of the trike. The screw should not be visible.
-6-
Step 5 Parts needed to complete this section
ME
5a 5b
Take the seat (E), push the screw through the
seat hole. Screw into the most rear facing
hole and firmly tighten with Allen key (M).
By using the "Allen" key (M), remove
screw by turning counter clockwise.
-7-
Step 6 Parts needed to complete this section
F
6a
6b
CLICK!
CLICK!
With little force, push part F into the
apple's holes until you hear a "click".
Place safety bar (F) holes
into protrusions located at
the back of the seat.

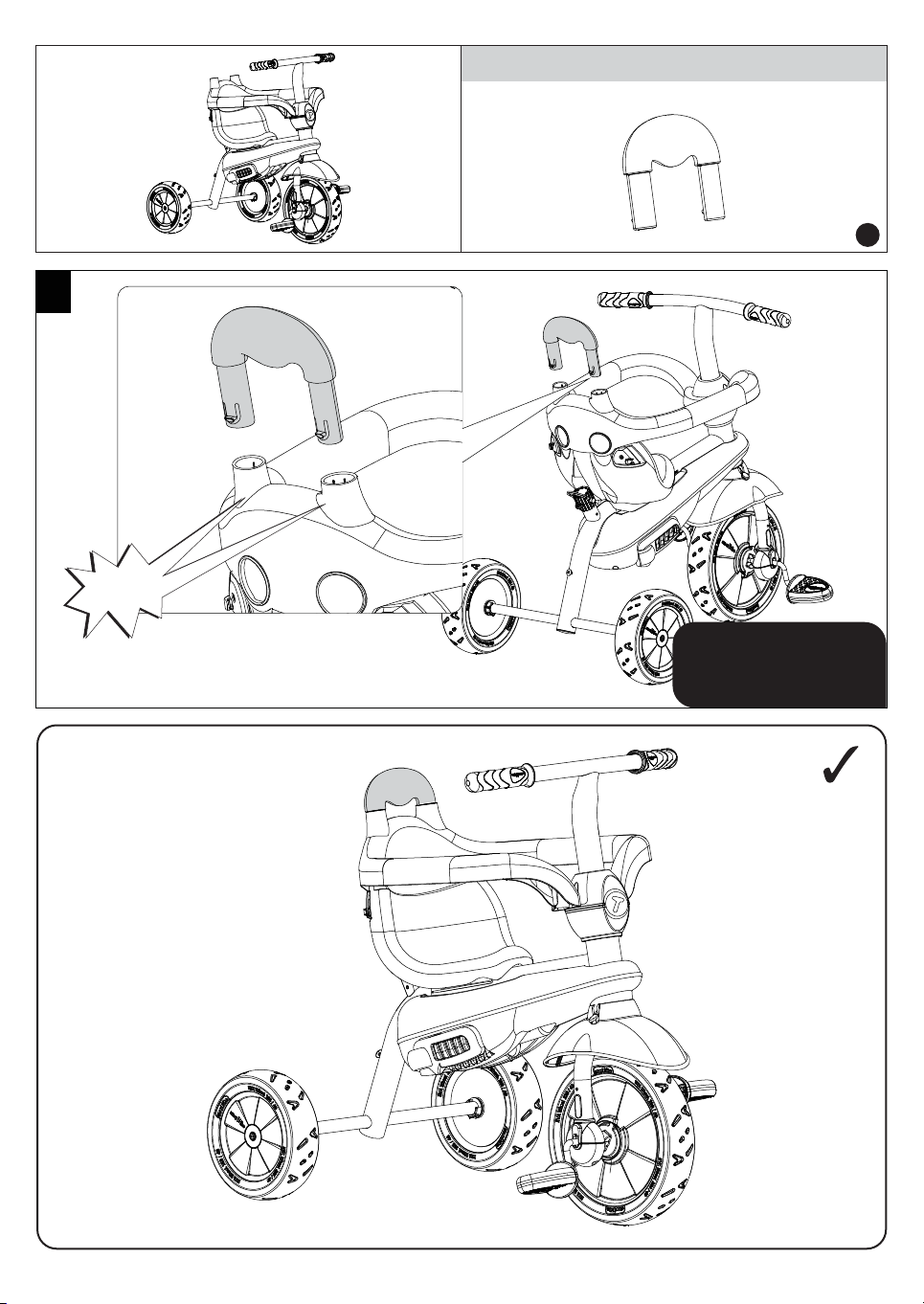

-8-
Step 7 Parts needed to complete this section
G
7a
CLICK!
Insert part G into the
safety bar, until you
hear a "click".
-9-
Step 8 Parts needed to complete this section
MH
8a
8c
8b
Attach basket firmly to vertical
frame, use removed screw and
turn clockwise until secured.
Push basket (H) firmly onto
rear axle until it "clicks" into
position (see 1 & 2).
By using the Phillips screwdriver
(M), remove screw by turning
counter clockwise.
CLICK!
CLICK!
2
1
-10-
Step 9 Parts needed to complete this section
I
9a
9b
9c
MJ
Keep the nut in place, remove the screw
from part I by turning counter clockwise.
Insert part J into part I. Align the hole
of part I with the correct hole in part J.
Use Phillips screwdriver (M) to
attach the screw to the nut.
WARNING: Nut must be inserted
correctly and secured.
