Smartech 083430 Manual de usuario
SMARTECH MODEL
WWW.SMARTECHRACING.COM
Our company have the right to change
or modify this manual without notice.
ITEM NO.:083430
1:8 SCALE OFF-ROAD
BUGGY
Length
Width
Height
Wheelbase
Tread(F/R)
Wheel Diameter
Gear Rate
Weight
Engine
500mm
307mm
230mm
325mm
302/307mm
114*42mm
11.7:1
3.5Kg
25CXP
TECHNICAL DATA
FEATURES
25CX ENGINE WITH PULL-STARTER
EQUIPPED WITH AIR FILTER AND ALUMINUM
EXHAUST PIPE
SINGLE SPEED TRANSMISSION AND 4WD
SYSTEM
FRONT/REAR DIFFERENTIAL BEVEL GEAR
OIL-FILLED ALUMINUM SHOCK ABSORBER
SENSITIVE DISC BRAKE SYSTEM
HIGH PERFORMANCE RACING WHEELS
15%-30%
Fuel
Notice before assembly
The following tools are needed for assembly. You must buy them from the local hobby
shops apart from the kits we provided.
Please read and comprehend this instruction manual before assembly.
Tools needed for assembly
Hexagonal wrenches
Scissor
Hobby knife
Cross sleeve
Super
glue Slide cutter Needle
nose pliers Cross screw
driver (No.2)
Cross screw
driver (No.1)
Charger Igniter
Additional items needed to buy for
running in the engine
Diff. oil
Fuel
bumper
Air filter oil Shock
absorber oil
Battery
Switch
Receiver
Steering servo
Throttle servo
2-Channel Transmitter system
Please read the transmitter system instructions carefully before use.
The servo must be set at the center position before installation. To set the servo to neutral
position, turn on the transmitter and receiver, and set the servo rod at the center position,
then turn off the receiver and the transmitter in succession. The servo will be at the
proper position.
Transmitter
Type:30113
Stop
Half forward
Full forward
Battery cover
Speed control trigger
"AA" battery
or Ni-cd(*8)
Left Right
Power switch
Antenna Steering adjuster
Speed control adjuster
01
Steering control wheel
2mm
2.5mm
1.5mm
02
TROUBLE SHOOTING
SolutionsProblems Causes
Engine does
not start.
Engine
flameout just
after starting
Bad reaction
and responge
from engine
Car is hard
to handle
1. No fuel in tank or in carburetor.
2. The spark plug is damaged, or the portfire has
not been charged.
3. The fuel pipe, air filter or muffler is choked.
4. Too much fuel.
5. The carburetor has not been adjusted properly.
6. The servo link has not been adjusted properly.
1. Fill the tank with fuel and press prime button.
2. replace a new spark plug or charge the portfire.
3. Clean the clogged parts or change with new one.
4. Remove the spark plug and dispose the fuel.
replace a new one if need.
5. Set the idle, main and slow needle to standard
starting position.
6. Set the servo to neutral position and readjust it.
1. No fuel in the fuel tank.
2. The fuel pipe, air filter or muffler is choked.
3. The carburetor has not adjusted properly.
4. The engine is overheated.
1. Fill the tank with fuel.
2. Clean or change the clogged parts.
3. Readjust the idle, main and slow needle, set
them to starting position.
4. Cool down the engine. Unscrew the main needle
adjusting screw, turn left for 30 degree.
1. The carburetor has not been adjusted properly.
2. Little oil pressure in muffler.
1. Readjust the idle, main and slow needle.
2. Assemble the pipe between the muffler and fuel
tank properly.
1. Charge the battery or replace it.
2. Fully extend antennas of transmitter and receiver.
3. Set the servo to the neutral position and readjust it.
1. The batteries of the transmitter or receiver are
weak or exhausted.
2. Poor effective of the antenna.
3. The servo link hasn’t been adjusted properly.
WARNING: In order to aviod accidents and personal
injury, please read the below following:
SAFETY PRECAUTION
Make sure the batteries of the transmitter and receiver
is fully charge. If not, the transmitter and receiver won’t
work efficiency. In that case, it may cause the car out of
control or even cause serious accident.
Only use the car at the following places and never use
the vehicle as below:
WARNING: Never run the car at the following places
or in the following situations (it may cause accidents)
OPERATION PRECAUTION
Operating in disorder may cause personal injury and
property losing.
Never disorder connecting the wires.
Never overload the electrical source voltage.
Turn off the transmitter and receiver while using.
Turn off the transmitter and receiver after using.
Keep motor and electric equipment away from water.
Never put finger into the rotating or moving parts!
Always keep alert if someone is operating a car nearby.
Never use the same frequency with others simultaneously,
otherwise the signal will be disturbed and may cause the
car out of control and may cause serious accident.
Always stop the car at once if there is any abnormal
problem with your car. Check for the problem fully before
operating your car or further troubles may cause accident.
The place where children and people gathering
Residentials and parks
Incapable indoor or outdoor place
On street
Operating the car after completely assembled
Avoid changing the running direction frequently or
abruptly.
Make sure all the screws and screw locknuts
are tightened.
Never run your car at a wet place or when raining.
183603
183604
183604
183603
183604
183602
183604
180021
M3
φ7xφ3.1x0.6T
φ7.8xφ2
φ8.35xφ4.5x1.0T
φ6.8x6.3x6
Shock Absorber Assembly
03
183600
（Front sock absorber）
183601
（Rear sock absorber）
Filled shock
absorber oil
2
1
φ7.8x7
M5x30
M5x5
M4x12
φ2.5x16.8

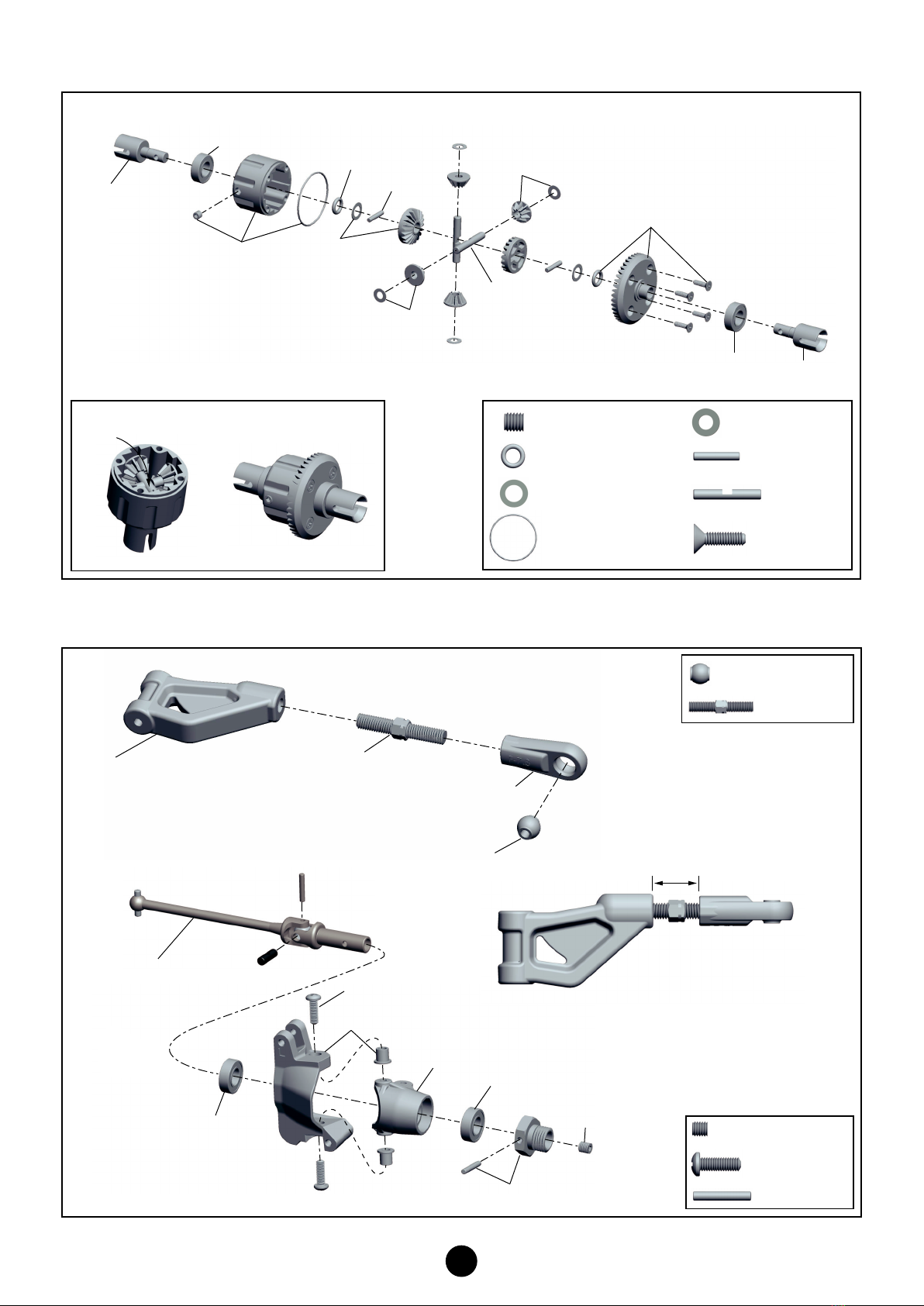

Diff. Gear Assembly
Rear Section Assembly (One)
04
183101
960007
183103
183103
183215
183102
183102
183215
183106
960007 183101
183215
Apply proper quantities
lubricating oil
φ2.5x13.8
φ4x27
M3x10
M4x4
φ5.8x1.9
φ6.2xφ10x0.2T
φ22x0.9
φ4.1xφ8x0.3T
960007
960007
910016
183612
183138
183157
910139
183323
183129
183129
183130
180016 7.8mm
920003
180020
910102
910085
183172
910013
183150
183126 183227
183126
960007
183142 920006
Front Section Assembly (Two)
M4
M3x10
M4x62
M4
M3x10
M4x37
M3x12
183172
183142
910013
920006
05
M3
M3x20
M3x22
M3x10
M3x10
M5x10
M4x10
M4x12
φ2.3x0.5T
φ3x0.5T
φ3x40
φ4x68
183145
910089
183148
910200
183131
183189
183189
183132
183131
183133
930005
910013
910090
183611
183169
910138
183189
183605
183605
183616
960005
960005
183605
910139
183609
183135
183172
910013 183140
183605
183142
183142
920006
910013
920006
Rear Section Assembly (One)
M5x5
2.5x16.8
φ
183101
960007
183103 183215
183102
183215
183102
910058
183615
960007
183101
φ7.8x9
φ7.8x10.5
Apply proper quantities
lubricating oil
M5x5
M4
M3x10
M4x37
M4x62
06
183153
960007
910139
183157
180018
183136
183137
183136
180017 15.6mm
φ2.5x13.8
φ4x27
M3x10
M4x4
φ5.8x1.9
φ6.2xφ10x0.2T
φ22x0.9
φ4.1xφ8x0.3T
Rear Section Assembly (Two)
183145
183610
910013
910090
910013
183143
M3x12
M4x22
M4x12
M3x10 910091
180020
920003
910147
930005
183133
910085
183213
183134
183189
183155
910102
M5x10
φ2.3x0.5
φ3x0.5
M3
M3x16
φ6x13
M3x22
M3x40
φ4x68
M3
M3x16
910014
910138 183189
183169
183135
910147 910147
183607
920003
07
183105
960007
183103
183215
183102
183215
183217
910013
960007 183105
910015
183112
183111 183111
183110 183608
183113
183114
183113
183620
183608
910058
910130 183114
183139
180019
183124
960008
183122
183121
960008
960008
183124 183121
183123
920003
183125
180019
910147
M3
M3x16
φ6.8x9
φ12.2xφ1.8x20
Center Diff. Gear Assembly
Center Diff. Mount Assembly
Bumper Section Assembly
08
Apply proper quantities
lubricating oil M4x4
φ5.8x1.9
φ6.2xφ10x0.2T
φ22x0.9
φ4.1xφ8x0.3T
φ2.5x13.8
φ4x27
M3x10
24.5 mm
M3x3
M3x10
M3x15
M3x40
Engine Mount Assembly
Fuel Tank Assembly Battery Case Assembly
Exhaust Pipe Elbow Bend Pipe Assembly
183292
180012
180013
180011
960001 180014
180025
183190
083121
910097
φ5x8x0.3T
M3x8
M3x10
M3x10
φ2.5x16.8
183621
163090
180006
183166
180004
180005
M4x4
910131
910131
183165
φ2.9x1.8
φ14.7x2.5
M3x6
M3x12
M3x27
301030
183606
301030
083071
910013
183606
183606
M3x10
183606
09
